Crown (Middleby) DL-30 Steam Kettles
Description

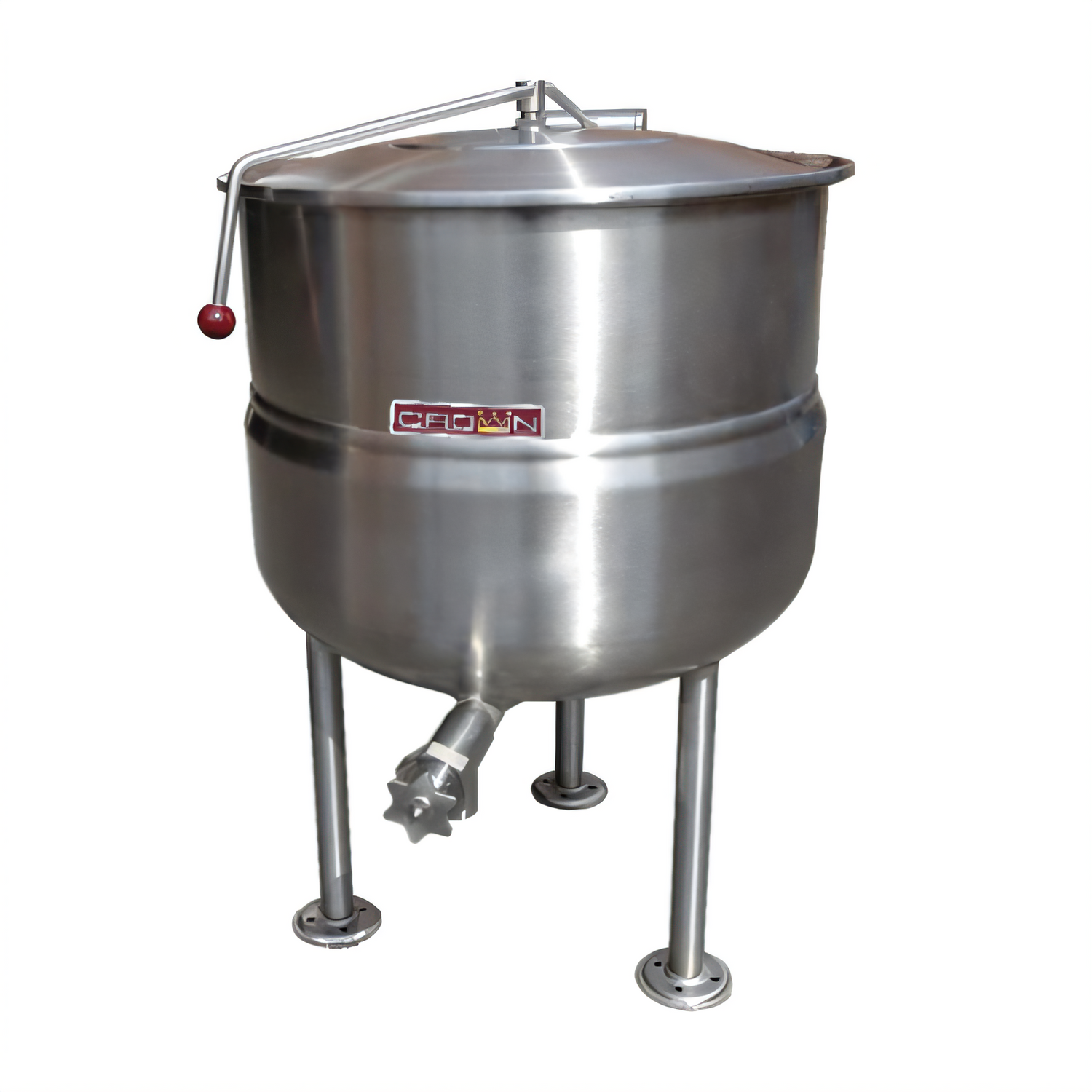

Crown DL-30 30-Gallon Direct Steam Stationary Kettle

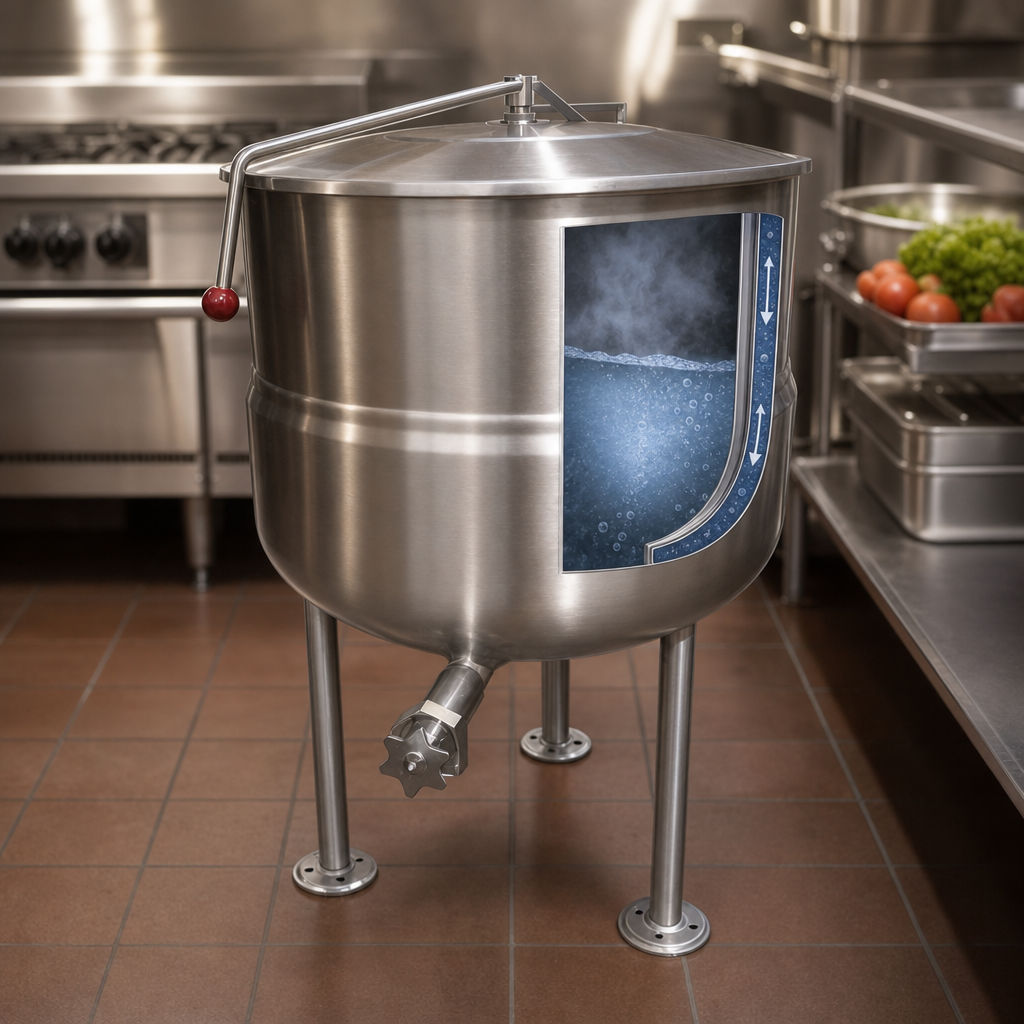

2/3 Jacket • 316/304 Stainless Steel • 2" Draw-Off ValveBuilt for high-volume, high-precision cooking, the Crown DL-30 combines rugged stainless-steel construction with the speed and efficiency of direct steam. From velvety soups to hearty sauces, this 30-gallon workhorse delivers consistent results shift after shift.
Key advantages
- 30 gal (114 L) batch size—≈480 eight-ounce servings per cook.

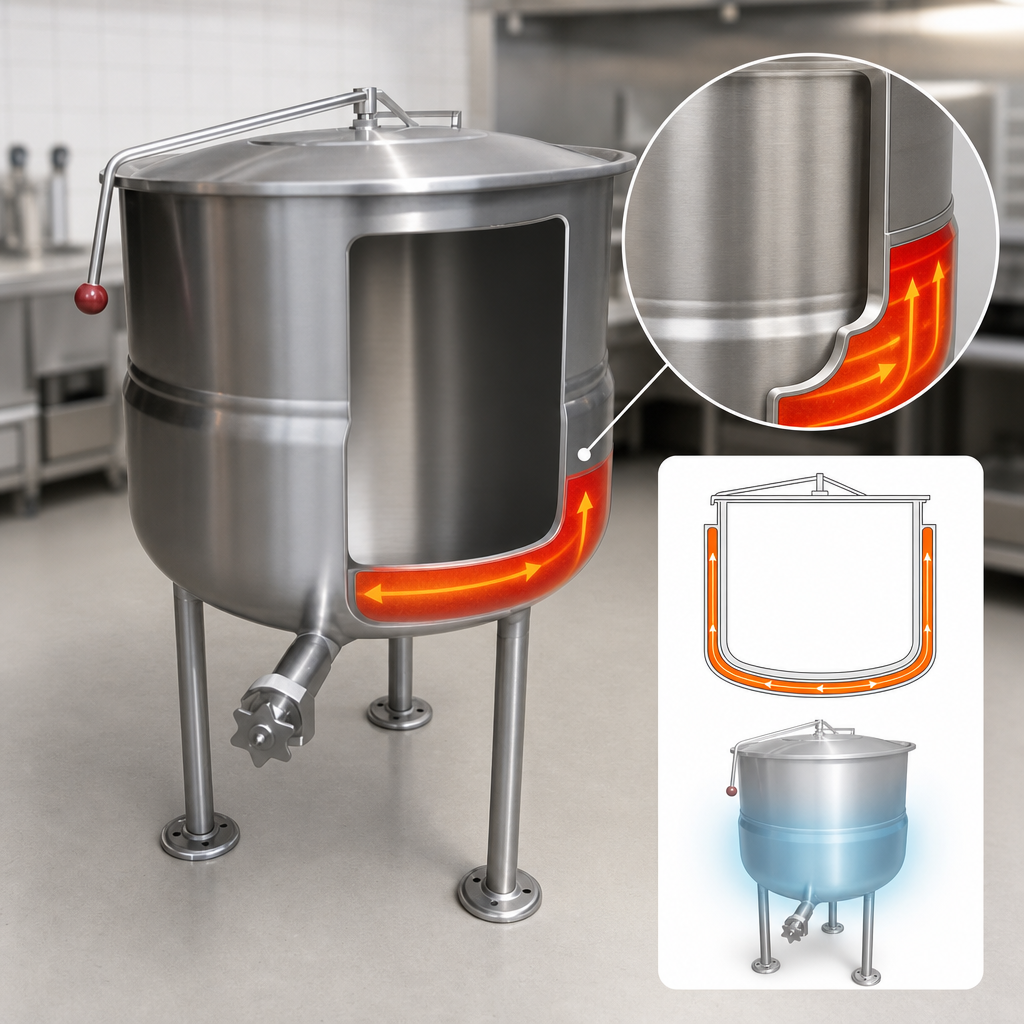

- 2/3 steam jacket surrounds the lower bowl for fast, even heat transfer at 5–30 psi.
- 316 stainless interior stands up to acidic ingredients—ideal for tomato-based recipes.
- Satin-finish 304 stainless exterior wipes clean and resists daily wear.
- Factory-installed 2" tangent draw-off valve with stainless perforated strainer prevents clogs when portioning stocks or chowders.
- Spring-assist hinged cover and faucet bracket included—no extra kits required.
- (3) heavy-duty stainless tubular legs with adjustable flanged feet for rock-solid, NSF-approved floor mounting.
- NSF & UL certified and proudly built in North America by Crown, a Middleby company.
At-a-glance specifications
| Model | DL-30 (leg mounted) |
|---|---|
| Capacity | 30 gal / 114 L |
| Jacket Coverage | Lower 2/3 of kettle bowl |
| Operating Steam Pressure | 5–30 psi (optional 5–45 psi) |
| Steam Connection | 3/4" NPT |
| Condensate Return | 1/2" NPT |
| Interior Liner | 316 stainless steel |
| Exterior Finish | 304 stainless steel |
| Draw-Off Valve | 2" stainless, with perforated strainer |
| Included Accessories | Hinged cover, faucet bracket |
| Mounting | (3) stainless tubular legs with adjustable flanged feet |
| Shipping Weight | 180 lb / 82 kg |
| Certifications | NSF, UL |
Footprint & clearances
Allow adequate overhead space for the cover to open fully.
| Diameter (A) | 24" / 610 mm |
|---|---|
| Front-to-Back (B) | 20" / 508 mm |
| Working Height (C) | 37" / 940 mm (rim) |
| Centerline to Draw-Off (D) | 25.88" / 657 mm |
| Overall Height (J) | 62.88" / 1 597 mm |
| Side Clearance | 3" / 76 mm minimum |
| Rear Clearance | 0.5" / 13 mm minimum |
Installation essentials
- Securely bolt and seal legs to floor to maintain NSF compliance.
- Provide floor drain directly under the tangent draw-off valve.
- Install a manual shut-off and strainer on the 3/4" steam supply line.
- Each kettle requires its own steam trap on the 1/2" condensate return.
- Add a pressure-reducing valve if incoming steam exceeds 50 psi (345 kPa).
Detailed installation, operation and maintenance instructions are available in Crown manual 10075. Always follow local codes and consult a qualified steam specialist for final hookup.
