Crown (Middleby) DL-20 Steam Kettles
Description

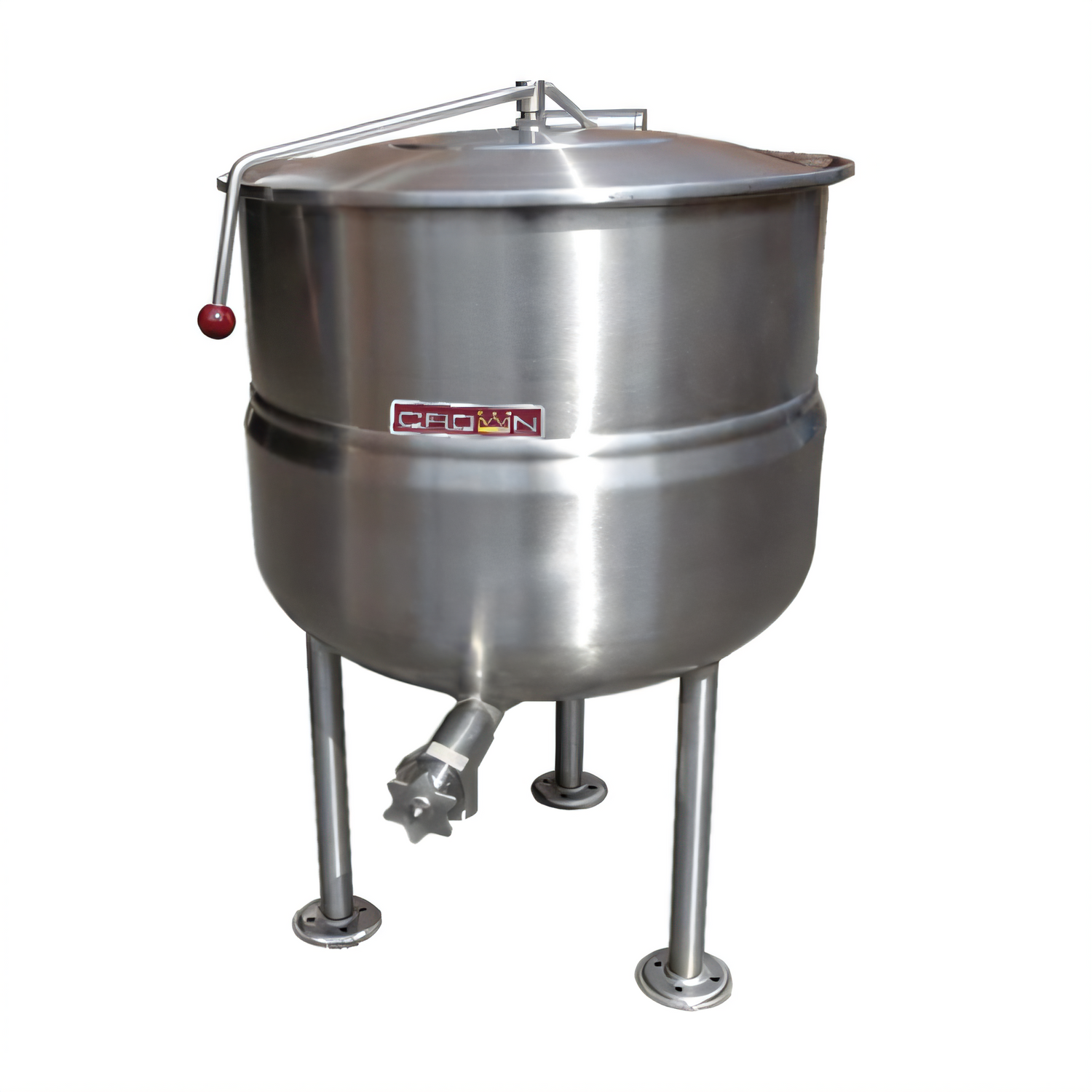

Crown DL-20 Stationary Direct-Steam Kettle – 20 Gal, 2/3 Jacket
316 Stainless Interior • 2" Draw-Off • NSFBuilt for busy commercial kitchens, the Crown DL-20 harnesses the speed and efficiency of direct steam to produce flawless soups, sauces, pastas and more—all in a compact 20-gallon footprint. Its heavy-duty construction, generous standard accessories and low-pressure operation make it a smart, long-term investment for any food-service operation.
Key Benefits

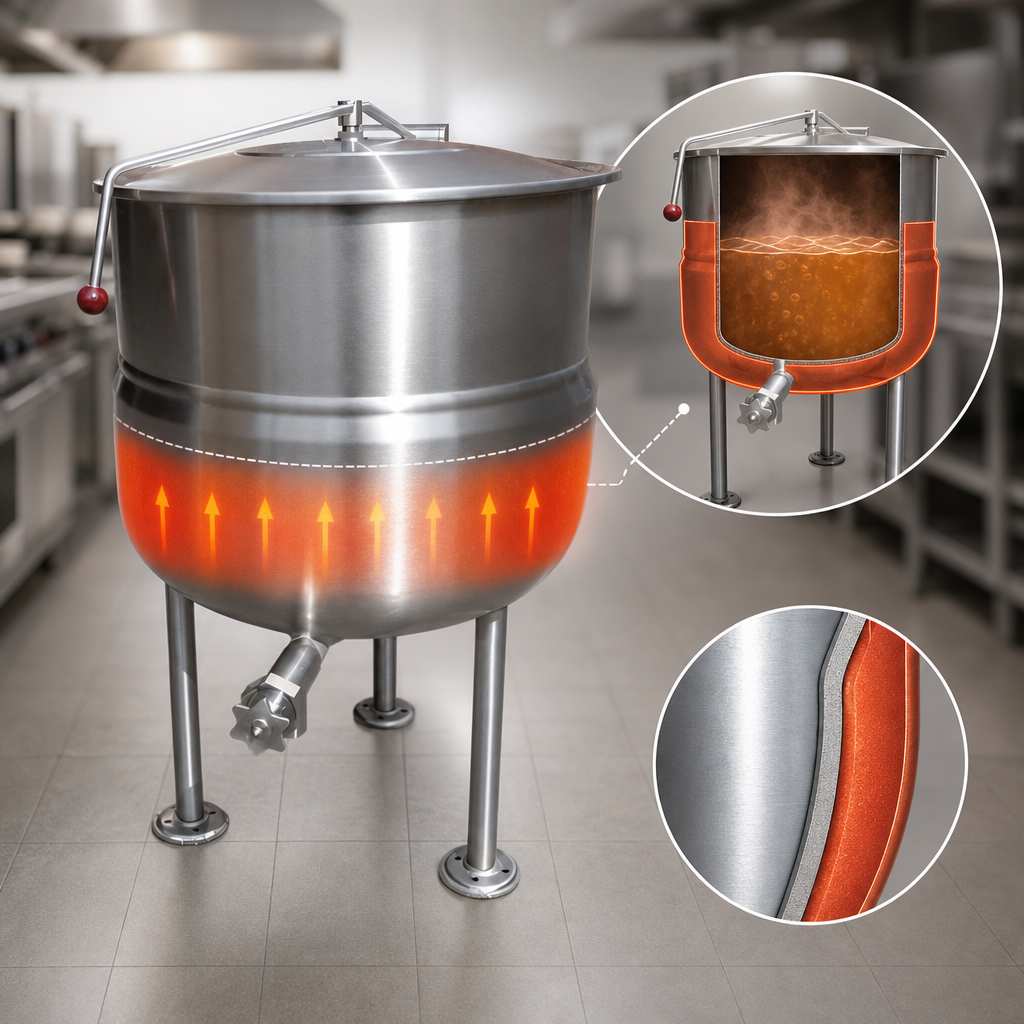

- Rapid, even heating from a 2/3-jacketed bowl—no scorching, no hot spots.
- 316 stainless steel liner stands up to acidic ingredients for extended kettle life.

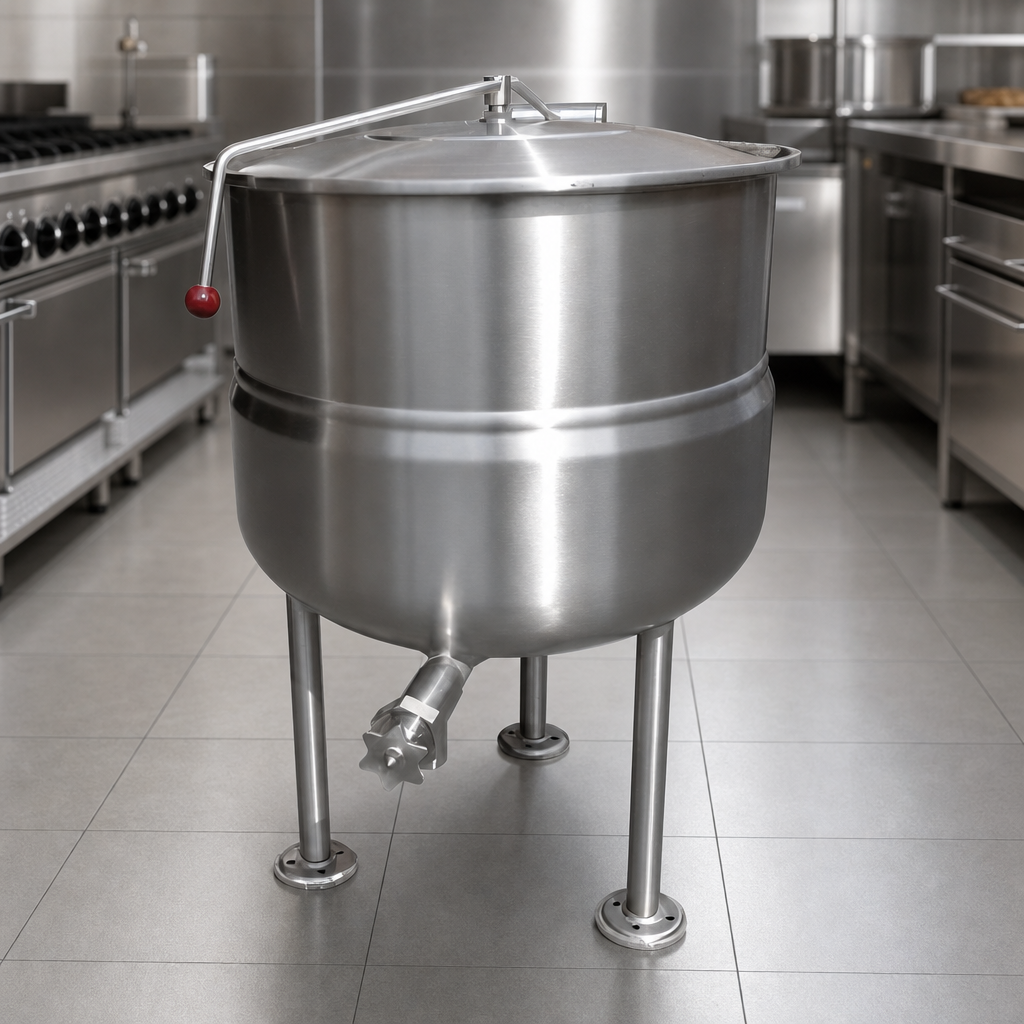

- Sleek, easy-clean 304 stainless exterior keeps your kitchen looking its best.
- 2" tangent draw-off valve with perforated strainer for clean portioning and pasta draining.
- Hinged cover helps retain heat and directs condensate back into the kettle.
- Integrated faucet bracket keeps a pot-filler (not included) within arm’s reach.
- Three tubular stainless legs with adjustable flanged feet bolt to the floor for rock-solid stability.
- Low-pressure (5–30 PSI) steam connection—no electrical hookup, fewer moving parts.
- Factory-installed 35 PSI safety relief valve and NSF certification for peace of mind.
What’s Included
- Perforated stainless steel strainer (fits 2" draw-off valve)
- Stainless steel hinged cover
- Welded faucet bracket
Technical Specifications
| Model | DL-20 (stationary, leg-mounted) |
|---|---|
| Capacity | 20 gal / 76 L |
| Jacket Coverage | Two-thirds of kettle body |
| Interior Material | 316 stainless steel, polished |
| Exterior Finish | 304 stainless steel, satin |
| Steam Operating Pressure | 5–30 PSI (optional 5–45 PSI) |
| Steam Connection | 3/4" IPS |
| Condensate Return | 1/2" IPS |
| Draw-Off Valve | 2" stainless tangent valve with strainer |
| Safety Relief Valve | Factory-set 35 PSI |
| Overall Height | 59.75" / 1,518 mm |
| Kettle Diameter (A) | 21" / 533 mm |
| Kettle Depth (B) | 18" / 457 mm |
| Shipping Weight | 155 lb / 70 kg |
| Minimum Clearances | 3" (76 mm) sides | 0.5" (13 mm) back |
| Certifications | NSF |
Requires connection to a low-pressure steam source. A pressure-reducing valve is mandatory if incoming pressure exceeds 50 PSI (345 kPa). Installation and service must be performed by qualified personnel in accordance with local codes.
