Crown (Middleby) DL-150 Steam Kettles
Description

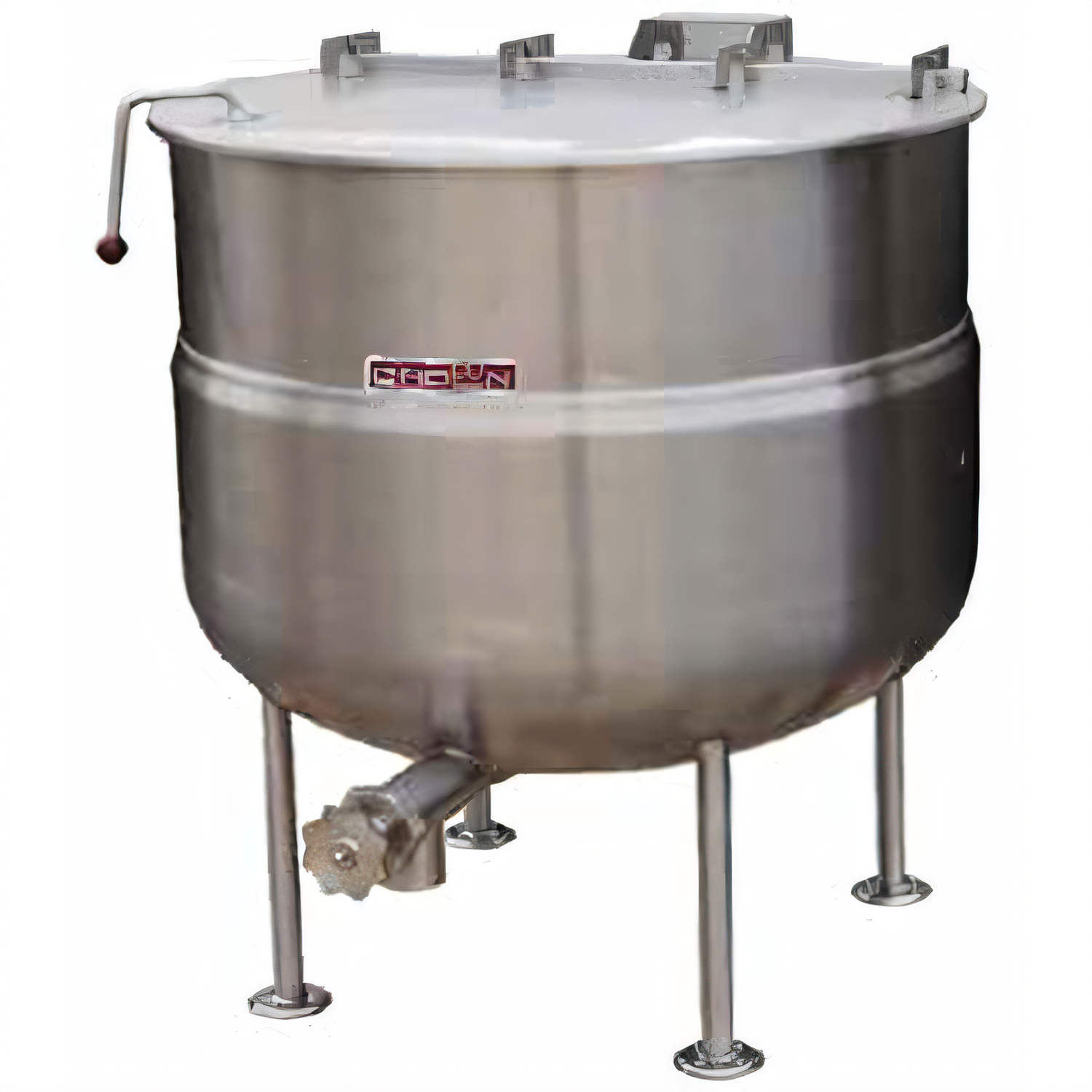

Crown DL-150 Direct-Steam Quad-Leg Kettle – 150 gal
High-capacity, 2/3-jacket stationary kettle for uncompromising commercial productionWhen your kitchen demands volume, consistency and rugged reliability, the Crown DL-150 answers with a full 150 gallons (568 L) of steam-powered performance. Built around a 316 stainless-steel hemisphere and wrapped in a 2/3 jacket, this NSF-listed kettle delivers rapid, even heat transfer and years of trouble-free service.
Why the DL-150?
- Massive 150 gal (568 L) batch capacity keeps high-volume production moving.

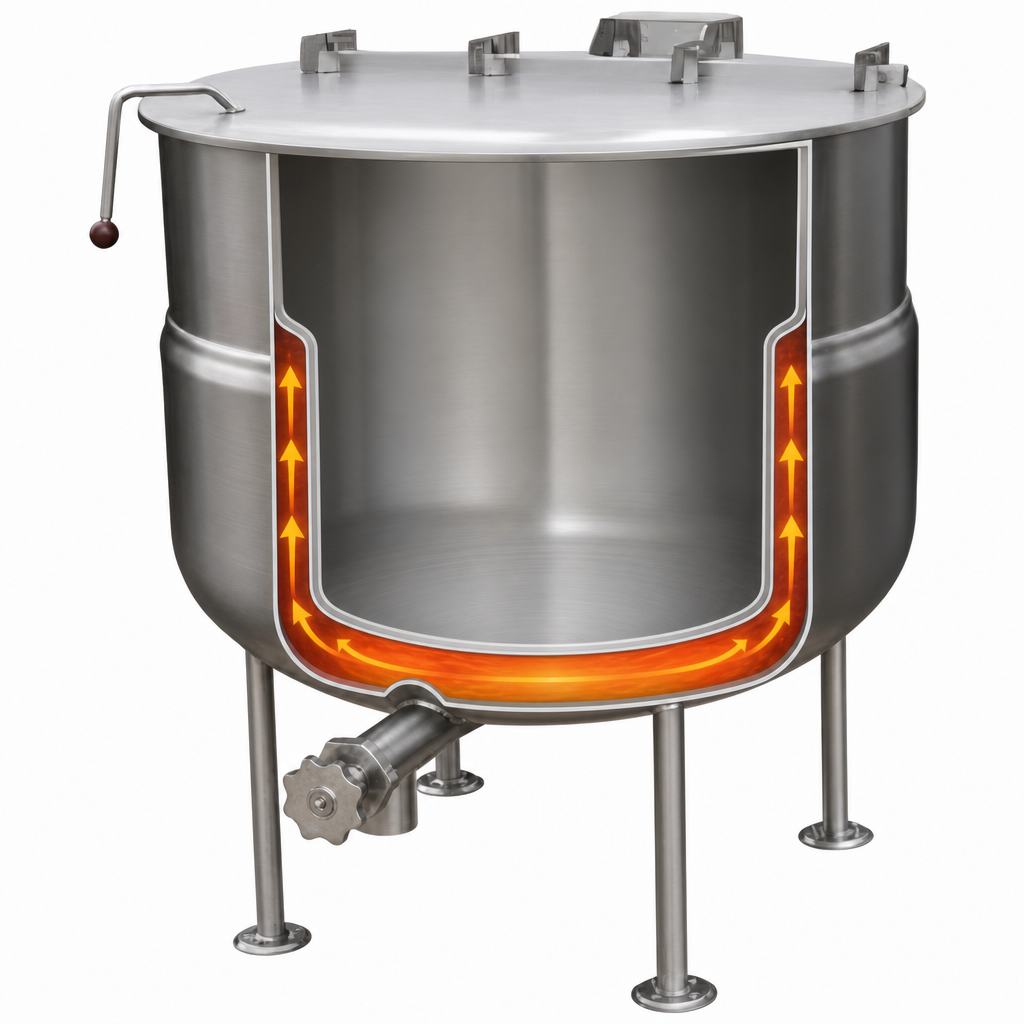

- 2/3 steam jacket (5–20 PSI) surrounds the lower kettle for faster heat-up and recovery.
- Hemispherical bottom maximizes heat circulation and simplifies cleaning.
- Sanitary 2″ draw-off valve with perforated strainer speeds portioning of stocks, sauces & soups.
- Hinged flat split cover—work one side while keeping the other sealed.
- Food-contact interior: 316 stainless steel resists acid corrosion and pitting.
- Exterior: all-welded 304 stainless with a satin finish for a professional look that stands up to abuse.
- Four stainless tubular legs with adjustable flanged feet anchor the kettle securely to the floor.
- NSF listed and backed by Crown’s 10-year hemisphere warranty.
Technical Specifications
| Capacity | 150 gal | 568 L |
|---|---|
| Jacket Coverage | Lower 2/3 of kettle |
| Operating Steam Pressure | 5–20 PSI (34–137 kPa) • 5–30 PSI option available |
| Steam Supply Connection | 3/4″ IPS |
| Condensate Return | 1/2″ IPS |
| Draw-Off Valve | 2″ sanitary, with removable perforated strainer |
| Interior Material | 316 stainless steel |
| Exterior Material | 304 stainless steel, all-welded satin finish |
| Cover | Hinged, flat, split stainless cover |
| Overall Diameter (A) | 42″ (1,067 mm) |
| Front-to-Back (B) | 33″ (838 mm) |
| Overall Height (C) | 48″ (1,219 mm) to safety valve |
| Rim Height (D) | 44″ (1,118 mm) |
| Working Height (H) | 36.12″ (918 mm) |
| Shipping Weight | 465 lb (211 kg) |
| Minimum Clearance | 3″ (76 mm) sides • ½″ (13 mm) back |
| Approvals | NSF, CSA, ASME coded jacket |
Popular Factory Options (sold separately)
- 35 PSI high-pressure jacket for higher cooking temperatures.
- 3″ draw-off valve (with or without strainer).
- Etched gallon or litre graduations.
- Steam trap assembly and check valve package.
- Single or double pantry kettle filler / faucet kits.
- Triple basket assembly, graduated measuring strip & more.

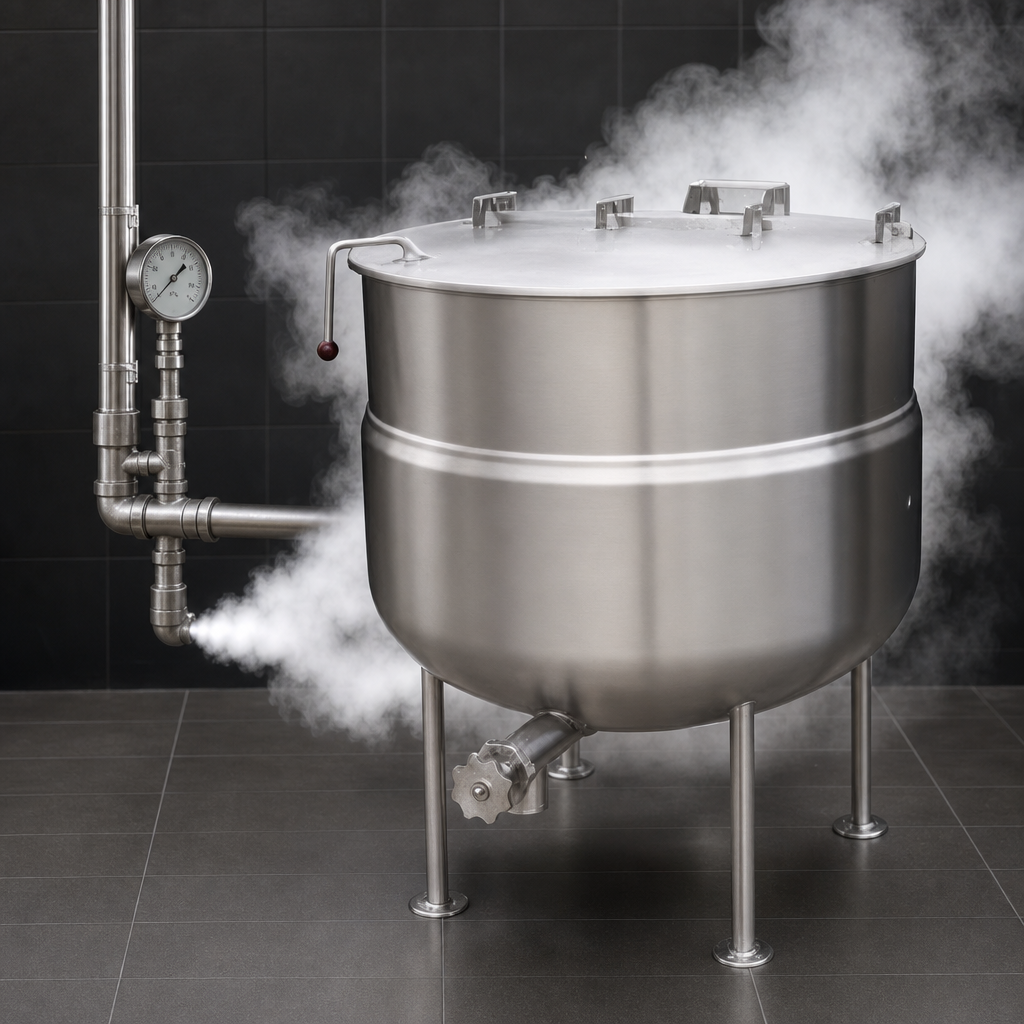

Requires a direct-steam supply; boiler not included. Intended for commercial use only.
