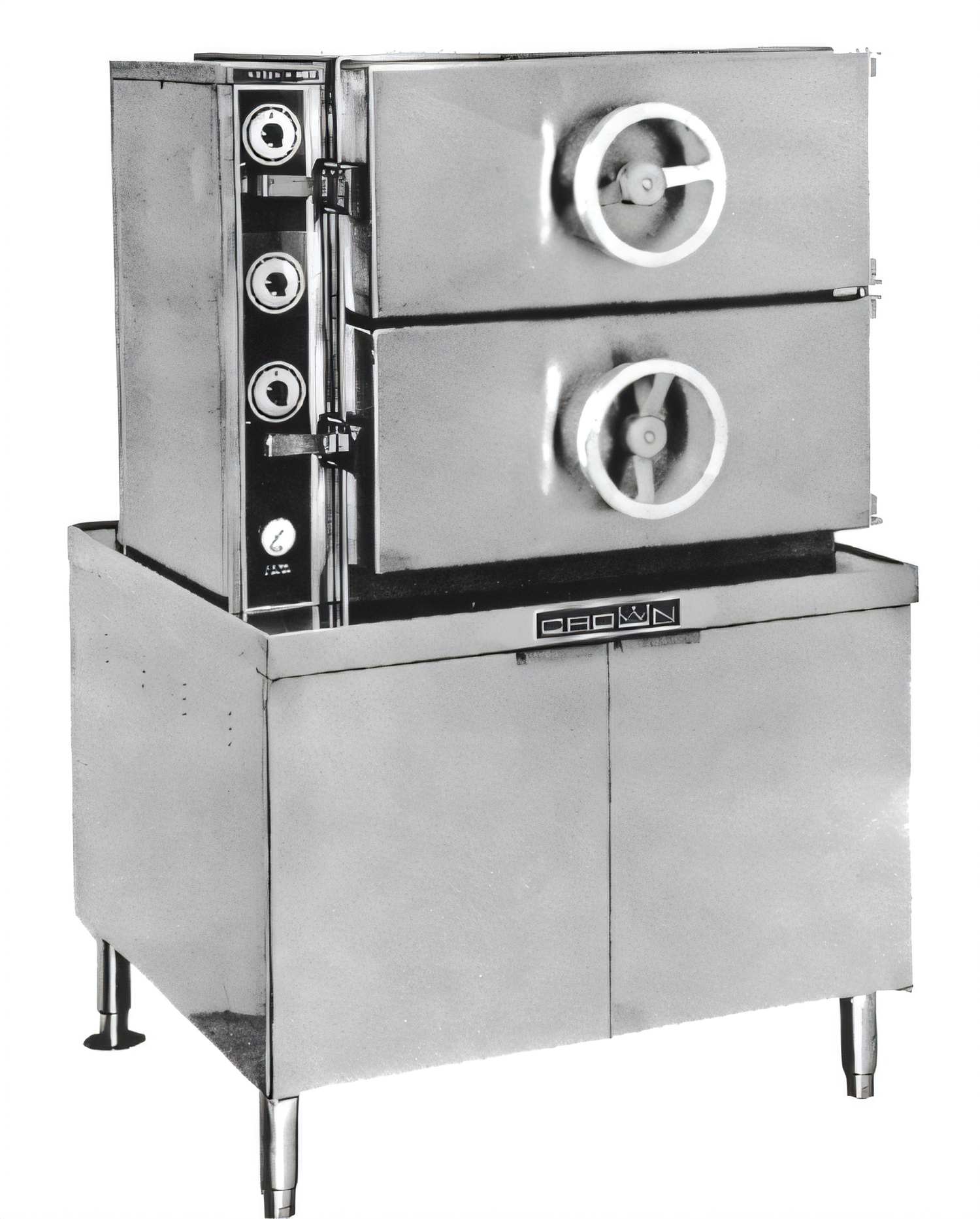

Crown DDA-2 “Do-All” Dual-Pressure Steamer
2-Compartment • 36" Cabinet Base • Direct SteamEngineered for kitchens that refuse to slow down, the Crown DDA-2 gives you two independent 1⁄1 GN/12" x 20" pan compartments in a single 36" footprint—plus the freedom to choose between pressureless or up-to-6 psi pressure cooking in the top compartment at the turn of a selector switch. From delicate seafood to dense root vegetables, the “Do-All” cooker handles it all with speed, precision and safety.
Why You’ll Love It
- Dual-mode top compartment – toggle between pressureless steaming and fast 6 psi pressure cooking.
- Simultaneous batch versatility – lower compartment operates as a traditional pressureless steamer.
- Independent manual controls & 60-min timers with bright pilot lights, buzzer and automatic shut-off.
- Rugged 304 stainless steel cabinet, doors and control housing with removable side panels for service.
- Wheel-and-screw door latches seal tight under pressure and pop open 15° for safe initial venting.
- Universal pan supports supplied in each compartment—hold hotel, steam-table & GN pans.
- Full-size storage base with two stainless doors keeps utensils and chemicals out of the work zone.
- Field-secure flanged legs – four 6" stainless legs with adjustable feet anchor the unit to the floor.
- cCSAus & NSF certified for gas, sanitation and electrical safety.
At-a-Glance Specs
| Model | DDA-2 (Direct Steam) |
|---|---|
| Compartments | 2 total – Top: pressure/pressure-less • Bottom: pressure-less |
| Operating Pressure | 0–6 psi (41 kPa) in pressure mode |
| Pan Capacity | 8–16 full-size (2 ¹⁄₂" deep) pans |
| Steam Supply | 3⁄4" NPT, 15–50 psi incoming direct steam (150 lb/hr min.) |
| Drain | 2" IPS to open floor drain (no solids connection) |
| Electrical (controls only) | 115 V, 1 Ph, 60 Hz, 2 A per compartment (220–240 V option available) |
| External Dimensions | 36" W × 41" D × ≈71" H (914 × 1041 × 1803 mm) |
| Construction | All-welded 304 stainless steel, #4 finish |
| Certifications | cCSAus, NSF |
| Warranty | 1 year parts & labor (factory limited warranty) |
Popular Options (sold separately)
- 220–240 V control transformer
- Correctional package (tamper-resistant hardware)
- Wire shelf racks or sheet-pan slides
- Spray-and-rinse assembly
- Stainless rear utility panel or full stainless frame
Crown reserves the right to modify design or specifications without notice. For complete installation and maintenance details, refer to the factory manual or contact an authorized Crown Steam Group service agency.
