Crown (Middleby) DCX-24 Steamers (Countertop & Floor)
Crown (Middleby) DCX-24 Steamers (Countertop & Floor) is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Description

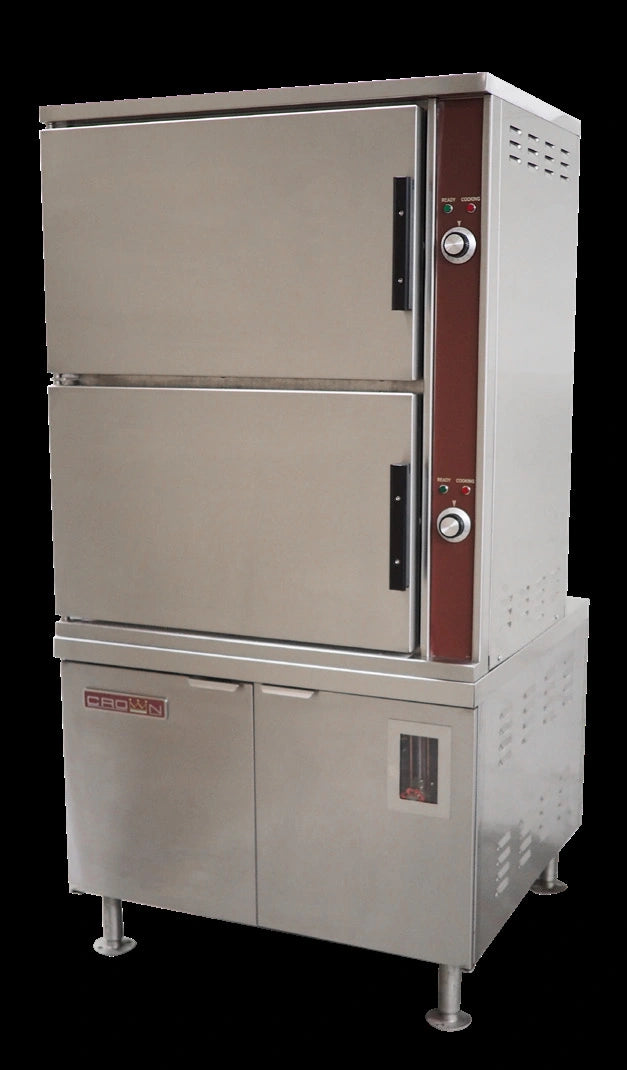

DCX-24 Direct-Steam Convection Steamer
Two compartments • 24-pan capacity • 36" cabinet baseEngineered by Crown – a Middleby brand trusted in the busiest commercial kitchens – the DCX-24 delivers rapid, even steam cooking for high-volume operations while taking up minimal floor space. With twin 12-pan compartments, intuitive 60-minute timers and a rugged all-stainless build, this direct-steam workhorse is ready for years of dependable service.
Why You’ll Love It
- 24 total 12" × 20" hotel pan capacity (12 per compartment at 2½" depth).
- Convection fan continuously circulates steam for faster, more even results than static steamers.
- Heavy-duty 316 SS one-piece chamber & 304 SS exterior resist corrosion and simplify clean-up.
- Gasketed doors with positive-lock handle; steam automatically shuts off when a door opens.
- Independent 60-min electro-mechanical timer, Ready (green) and Cook (red) lights, plus end-of-cycle buzzer for each compartment.
- Removable stainless pan supports & integral drip trough keep floors dry when unloading.
- Reinforced 36" cabinet base includes pressure regulator & condensate drain controls.
- 6" stainless legs with adjustable flanged (bullet) feet for rock-solid, code-compliant install.
- Certified cCSAus & NSF for worry-free code approvals.
Performance & Capacities
| Compartments | 2, individually controlled |
|---|---|
| Pan capacity (per cavity) | 12 × 12" × 20" × 2½" OR 24 × 1" pans • 8 × 4" pans • mixed loads (see manual) |
| Door opening | 17.625" W × 26.75" H (448 × 680 mm) |
| Steam requirement | Direct, 3⁄4" IPS, 15–45 psi (103–310 kPa) Pressure-reducing valve factory-supplied |
| Electrical | 115 VAC, 1-Phase, 60 Hz, 2 A per cavity (½" conduit) |
| Drain | 2" IPS, open floor drain (no solid connection) |
| Shipping weight | 800 lb / 363 kg |
Included With Your Steamer
- Factory-installed pressure regulator & condensate cool-down system
- Stainless removable pan racks & drip trough
- Full stainless access panel for easy service
- One-year parts & labor warranty (see Warranty tab)
Popular Factory Options
- 220 V or 240 V controls (50 Hz)
- Load-compensating timer (auto pre-heat to 185 °F)
- Sheet-pan supports (single or combo)
- Spray-and-rinse assembly
- Stainless cabinet back or frame upgrade
- Ball-float steam trap
Ideal For
- High-volume restaurants & hotel kitchens
- K-12 & university foodservice
- Healthcare & correctional facilities
- Commissaries seeking rapid batch production with small footprint
For full installation clearances, water treatment recommendations and operating instructions, download the official DCX-24 manual under the Specs & Docs section.
