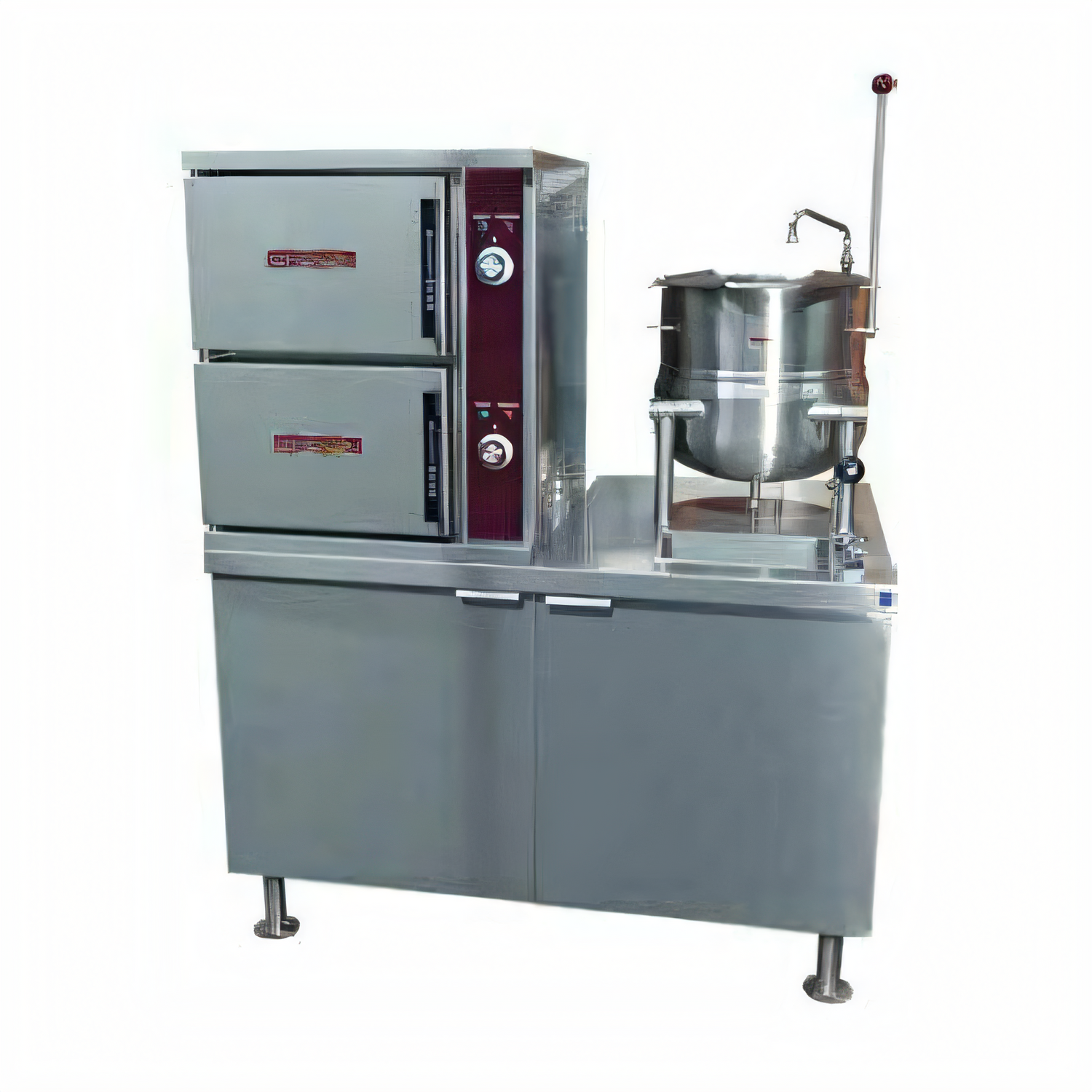

Crown DCX-2-6 Two-Compartment Direct Steam Convection Steamer with 6 Gallon Kettle

Two Compartments, 6 Gallon Kettle, Direct Steam Operation, Floor Model

Combine the efficiency of a convection steamer with the versatility of an integral kettle, all in one robust direct steam unit designed for high-volume commercial kitchens.

  • Dual cooking compartments for high-volume steaming.
  • Integrated 6-gallon kettle expands menu capabilities.
  • Direct steam operation ensures rapid, consistent cooking.
  • Durable 304 stainless steel exterior and 316 stainless steel interior for commercial use.
  • Individual 60-minute mechanical timers per compartment for precise control.
  • Deck mounted faucet with swing nozzle and integral sink for convenience.

Overall Dimensions:

44.0"W x 33.0"D x 62.13"H

Product Weight:

650.0 lb

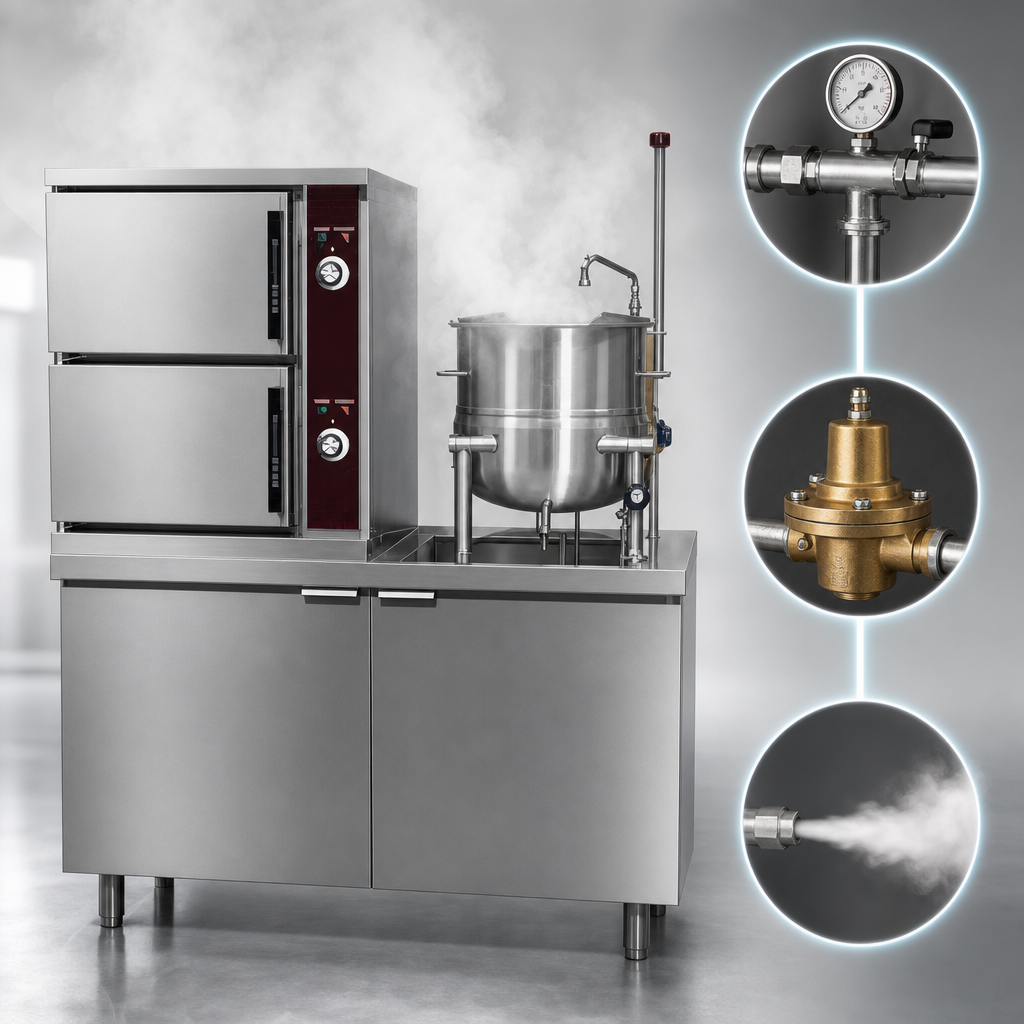

Direct Steam Operation

Requires a minimum of 10 psi (69kPa) incoming steam with a flow of 80 lbs. (36kg) per hour, with a pressure reducing valve providing a manifold pressure of 7 psi (49kPa).

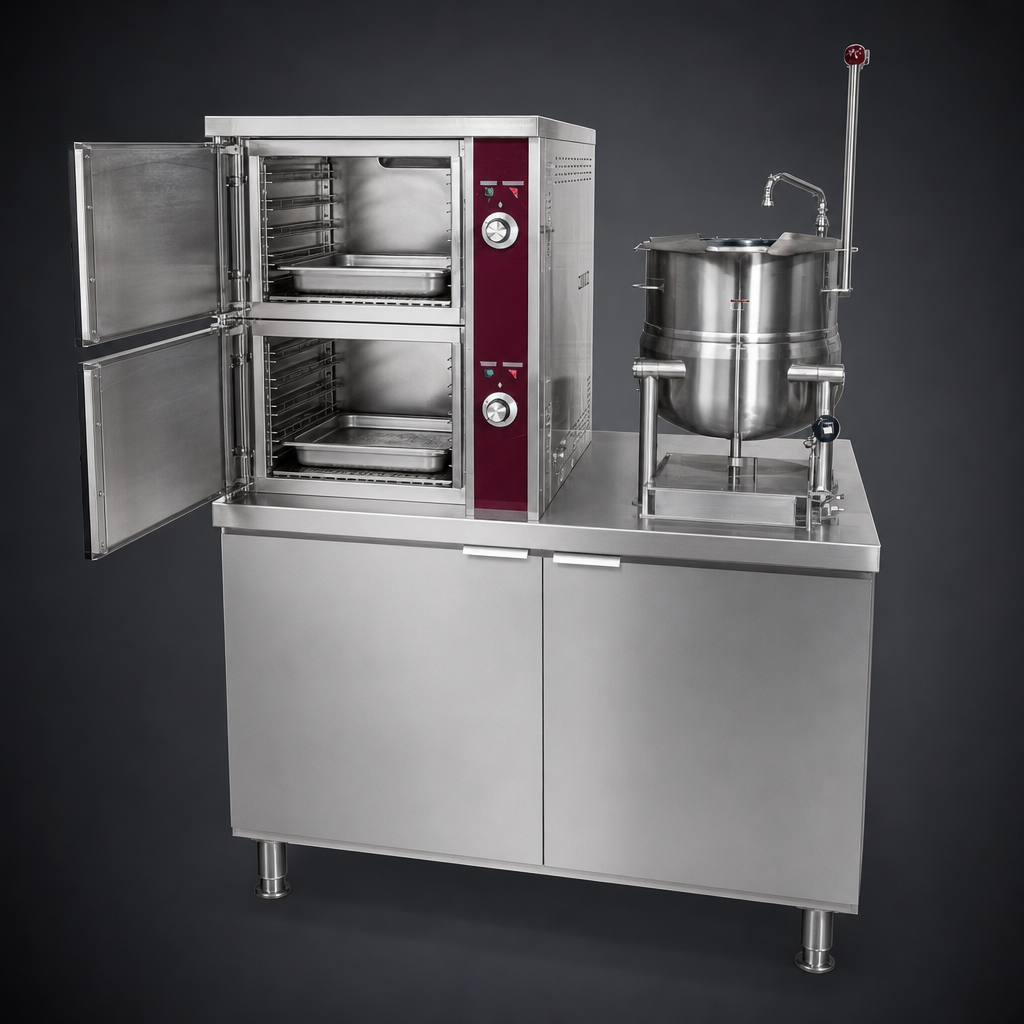

Dual Steaming Compartments

Each cooking chamber is constructed of all-welded type 316 stainless steel, fully insulated, and provided with removable stainless steel pan supports. Each compartment measures 14"W x 10.625"H x 19.875"D.

Integrated 6 Gallon Kettle

Features a 6-gallon kettle on a modular boiler base, expanding cooking capabilities.

Durable Construction

The exterior is made from type 304 stainless steel with a #4 finish, ensuring longevity and resistance to corrosion.

Convenient Faucet System

Equipped with a deck-mounted faucet valve, swing nozzle, and integral sink with a common drain for easy fill and cleaning.

Advanced Door Design

Doors feature a removable inner liner of stainless steel, a full perimeter gasket seal, a one-piece all-welded stainless steel outer shell, a positive lock and seal mechanism, and a stainless steel drip trough to collect condensate.

Individual Compartment Controls

Each compartment includes a 60-minute mechanical timer with ready and cooking pilot lights for independent operation.

Safety Features

Steam flow to the chamber interrupts when the compartment door is opened during the cooking cycle and reactivates when the door is closed. An audible signal sounds at the end of the cooking cycle.

Sturdy Cabinet Base

The cabinet base features a full perimeter painted angle frame, reinforced kettle and boiler mountings, and hinged doors with magnetic latches.

Adjustable Legs

Supported by four 6" (152 mm) stainless steel legs fitted with adjustable flanged feet for securing the unit to the floor.

Easy Access Controls

Steamer controls are accessible through a fully removable side panel for simplified maintenance.

Drain Temperature Control

Requires a cold water supply at 25-50 psi (170-345 kPa) to control the drain temperature.

Type Convection Steamer with Kettle
Style Direct Steam
Installation Type Floor Model (With Legs)
Compartments 2
Kettle Capacity 6 Gallons
Pan Capacity 3 Full-Size Pans (2-1/2 Inches Deep) Per Compartment
Interior Finish 316 Stainless Steel
Material 304 Stainless Steel (Exterior)
Voltage 120 Volts
Hertz 50/60 Hz
Phase 1-Phase
Amps 4.0 Amps
Gas Type Direct Steam
Steam Supply 3/4 Inch IPS
Drain Connection Size 2 Inches IPS
Sink Drain Connection Size 1-1/8 Inches OD
Faucet Cold Water Connection Size 3/8 Inch OD
Faucet Hot Water Connection Size 3/8 Inch OD
Condensate Cold Water Connection Size 3/8 Inch OD (Optional)
Controls 60 Minute Mechanical Timer Per Compartment
Shipping Width 44 Inches
Shipping Depth 33 Inches
Shipping Height 63 Inches
Shipping Weight 650 lb.
Country of Origin USA
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

Manufacturer's Warranty

Documents

PDF Cutsheet PDF Download PDF Parts list PDF Download PDF Middleby financial flyer PDF Download PDF Crown steam group letter PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The Crown DCX-2-6 requires a direct nontoxic steam supply at a minimum of 10 psi (69kPa) with a flow rate of 80 lbs. (36kg) per hour. A pressure reducing valve is needed if incoming pressure exceeds 50 PSI (345 kPa).
Each of the two compartments can hold three 12" x 20" x 2-1/2" deep full-size pans, two 4" deep pans, or one 6" deep pan.
The steamer features a type 304 stainless steel exterior with a #4 finish, and each cooking chamber is constructed of all-welded type 316 stainless steel.
Yes, each compartment includes its own 60-minute mechanical timer with ready and cooking pilot lights, allowing for independent operation.
Yes, the DCX-2-6 comes with an integrated 6-gallon kettle on a modular boiler base, alongside its two convection steamer compartments.
Yes, a cold water supply at 25-50 psi (170-345 kPa) is required to control the drain temperature.
