Crown (Middleby) DCX-2-6-10 Steam Kettles
Description

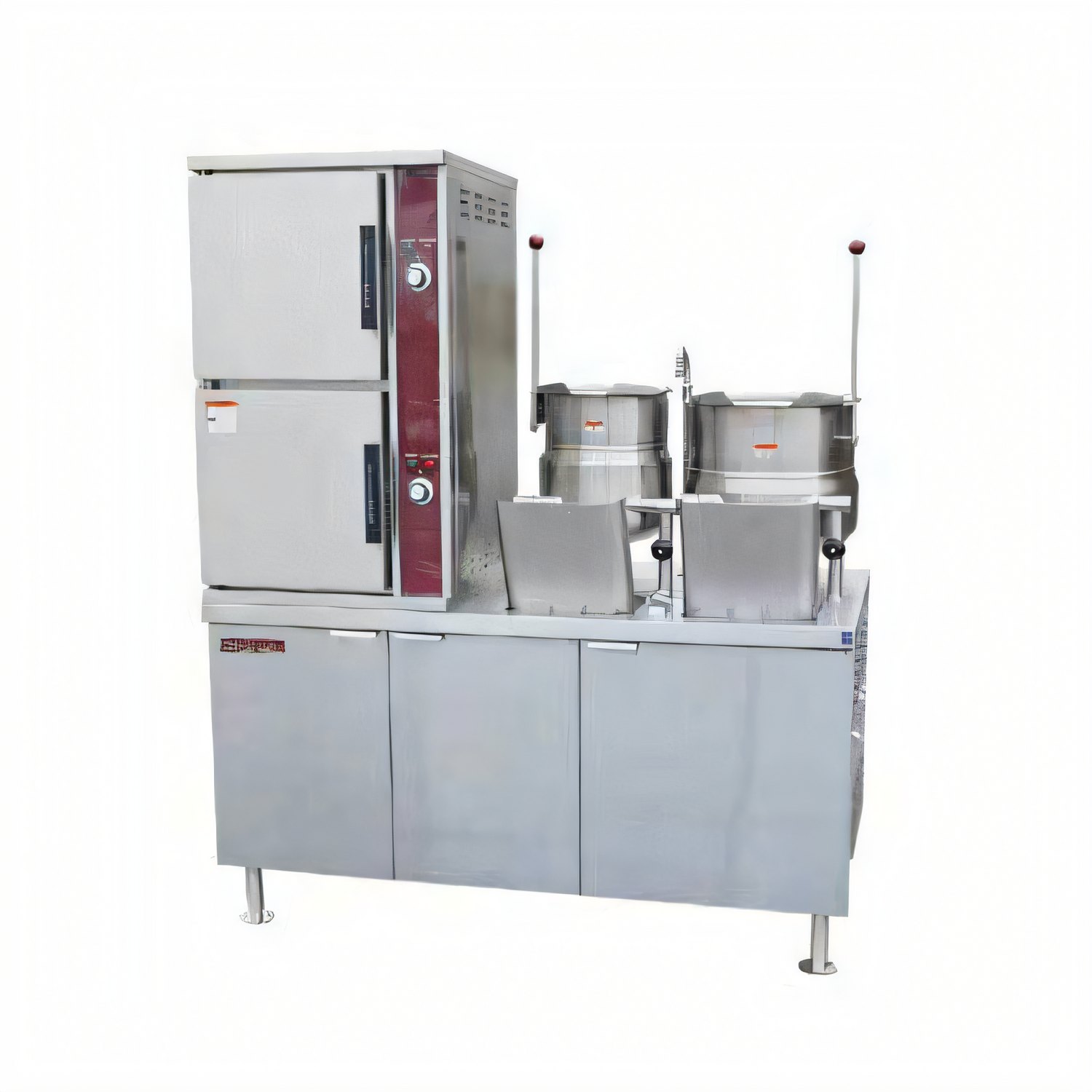

Crown DCX-2-6-10 Direct-Steam Convection Steamer + 6 & 10 Gallon Kettles
60" cabinet base • 2 independent compartments • Built-in sink & faucet
Keep production moving during the busiest dayparts with Crown’s two-compartment DCX-2-6-10. The unit combines high-efficiency direct-steam cooking with a 6-gallon kettle on the left and a 10-gallon kettle on the right—perfect for soups, sauces or holding. Rugged 304 stainless construction, 316 stainless cooking chambers and tool-free pan racks come together in a single 60" footprint that installs quickly and performs for years.
Why you’ll love it
- Two independent 3-pan steam cavities – each fits (3) 12" × 20" × 2½" GN pans
- Integrated 6 & 10 gal kettles share the same steam supply for maximum versatility
- 60-minute mechanical timer per compartment with “Ready” & “Cooking” lights plus audible buzzer
- Door interlock safely interrupts steam when the door is opened
- Deck-mount faucet valve, swing nozzle & integral rinse sink speed up change-overs
- All-welded 316 stainless chambers with removable racks for fast wipe-down
- Positive lock & seal doors with full perimeter gasket and drip trough
- (4) 6" stainless legs with adjustable flanged feet—bolt the cabinet securely to the floor
- NSF & CSAus listed for worry-free inspection approval
At-a-glance specs
| Model | DCX-2-6-10 |
|---|---|
| Steamer compartments | 2 (direct steam) |
| Pan capacity | 6 pans total – (3) 12 × 20 × 2½" per cavity |
| Kettle capacities | 1 × 6 gal (23 L) & 1 × 10 gal (38 L) |
| Cabinet width | 55.5" (1410 mm) – fits in a 60" line-up |
| Electrical | 120 V, 1-ph, 50/60 Hz, 4.0 A (2 A per cavity) |
| Steam inlet | ¾" IPS, 15-45 PSI (103-310 kPa) – built-in PRV provides 7 PSI manifold |
| Water connections | 3⁄8" O.D. cold water (25-50 PSI) for faucet & drain tempering |
| Drain | 2" IPS to open floor drain + 1 1⁄8" O.D. sink drain |
| Shipping weight | 870 lb (394 kg) |
| Clearance required | 0" sides / 0" back |
| Certifications | NSF, CSAus – commercial use only |
Popular options & accessories
- Etched gallon or litre markings for precise batching
- Lift-off stainless kettle covers &/or baskets
- Spray-and-rinse hose assembly (single or dual pedal)
- Load-compensating timers for mixed-size batches
- Stainless rear panel or frame for island installations
Standard warranty: 1 year parts & labor on the steamer, plus Crown’s 10-year hemisphere warranty on kettle shells.
