Crown (Middleby) DCX-2-36 Steamers (Countertop & Floor)
Description

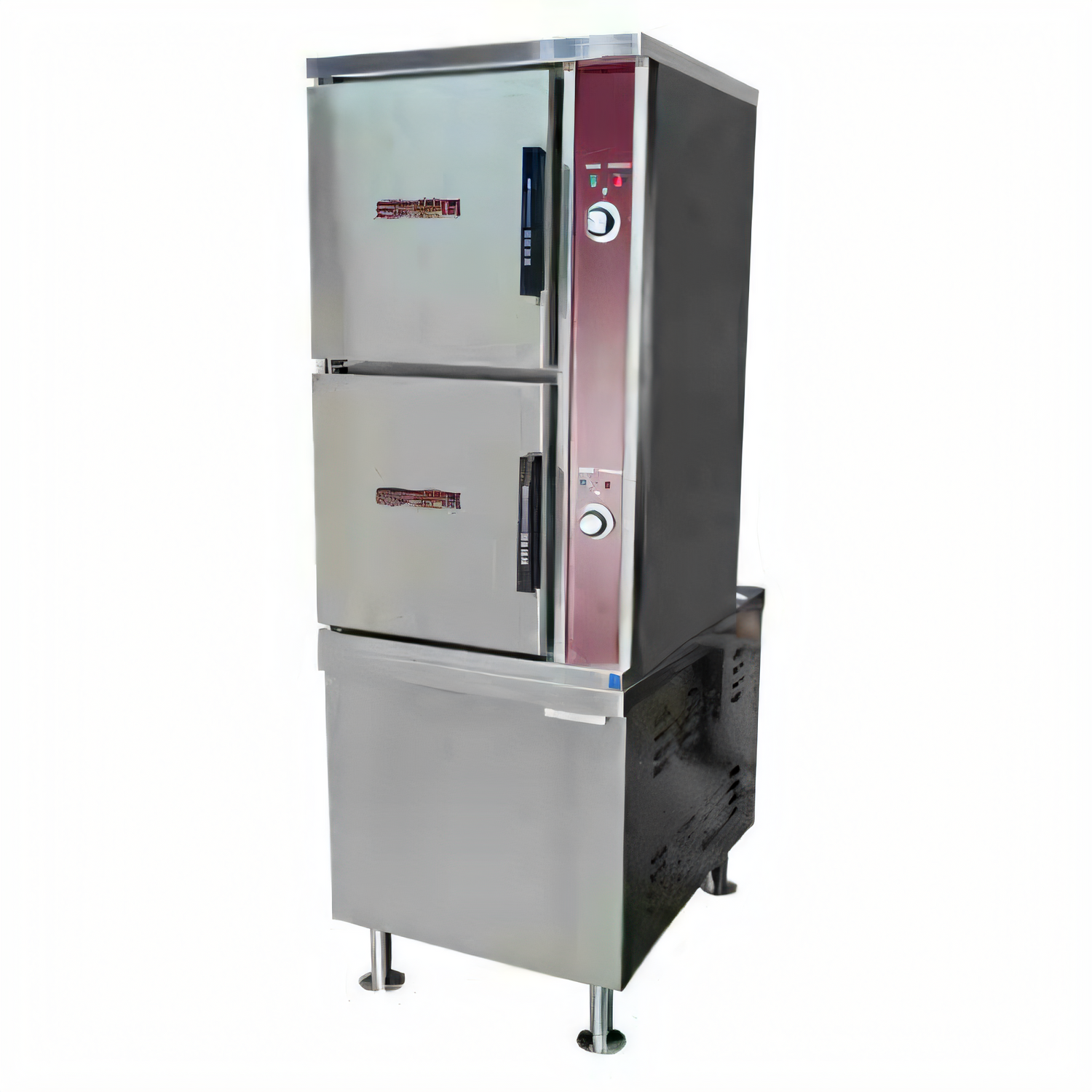

Crown DCX-2-36 Two-Compartment Direct-Steam Convection Steamer
6-pan capacity • 36" cabinet base • NSF & cCSAus approvedBuilt to keep up with high-volume kitchens that demand speed, consistency, and durability, the Crown DCX-2-36 delivers powerful direct-steam performance in a space-saving stacked design. Independent 60-minute timers, precise thermostatic control, and rugged all-stainless construction make this steamer a true workhorse for cafeterias, schools, hospitals, and restaurants alike.
Why you’ll love it

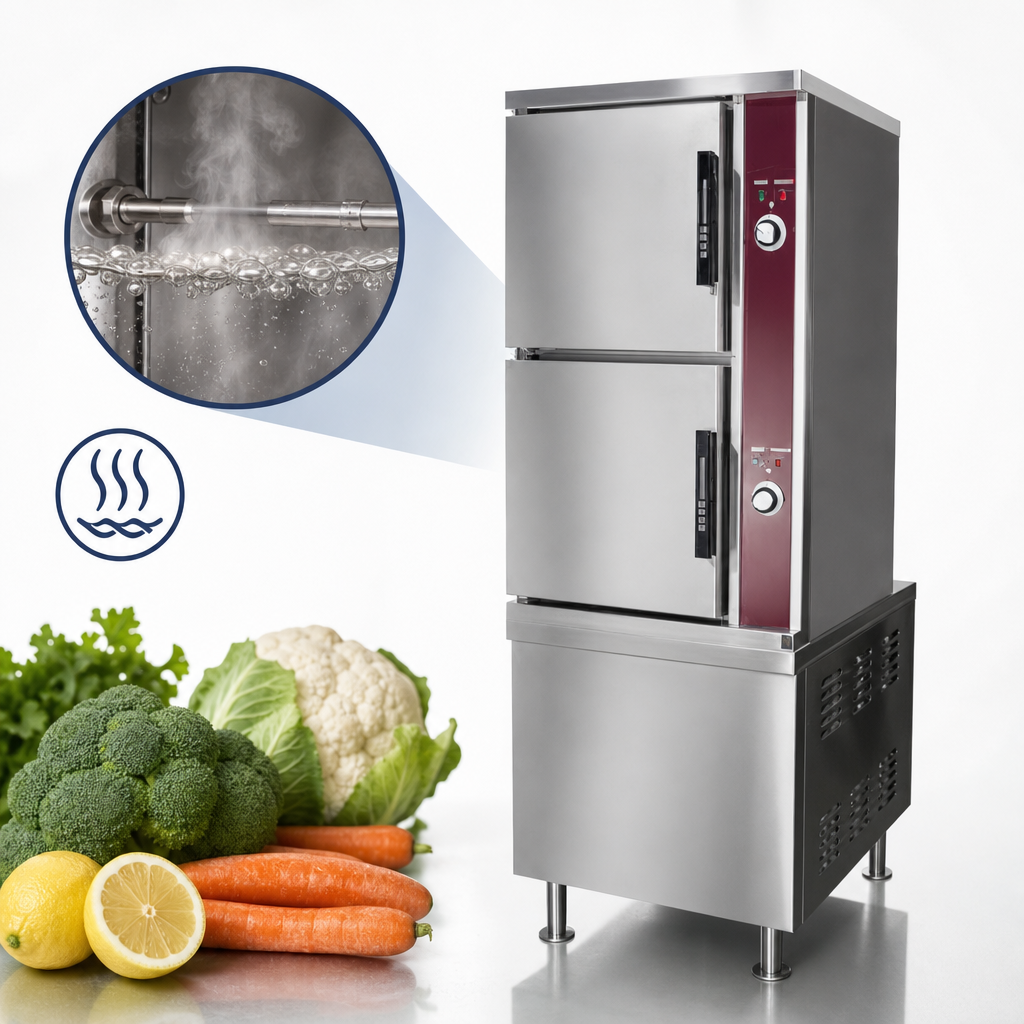

- Direct-steam operation accepts non-toxic steam at 15 psi, 80 lb/hr (pressure regulator supplied).

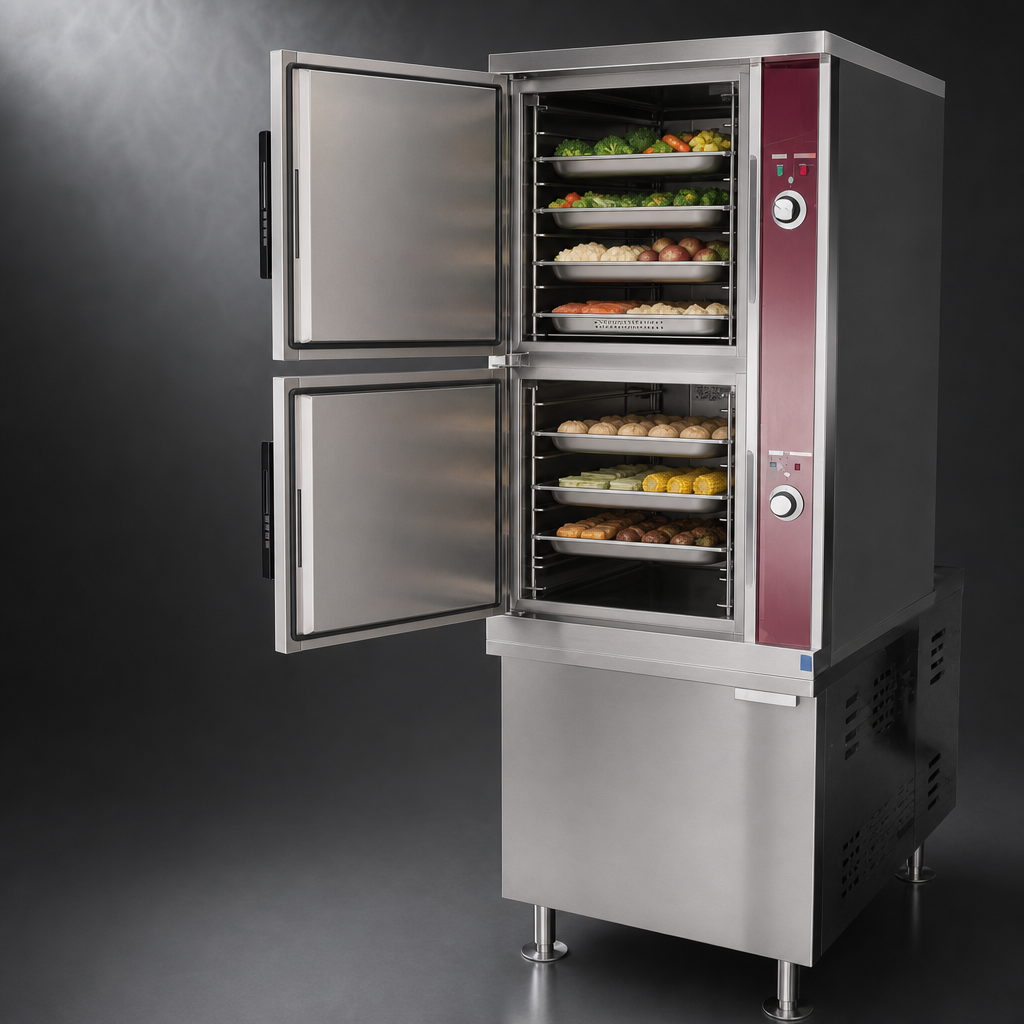

- (2) fully independent cooking compartments—finish different menu items simultaneously without flavour transfer.
- Holds up to (6) 12" × 20" × 1" hotel pans in total (3 per compartment) with removable pan racks for quick clean-up.
- 316 stainless-steel one-piece cooking chambers resist corrosion from acidic foods and cleaning chemicals.
- 304 stainless-steel exterior, door liners, and control housing for long-lasting professional appearance.
- Independent 60-minute mechanical timers with green “Ready” and red “Cook” indicator lights plus end-of-cycle audible buzzer.
- Door-activated steam shut-off protects staff and saves energy whenever a door is opened.
- Integrated stainless drip trough channels condensate safely to the drain.
- Mounted on a reinforced 36" cabinet base with four 6" adjustable flanged stainless legs for easy floor anchoring.
- Simple 120 V, 1-phase connection—only 2 A per compartment (4 A total).
At-a-glance specs
| Model | DCX-2-36 |
|---|---|
| Compartments | 2, direct steam |
| Total pan capacity (12" × 20") |
6 × 1" / 3 × 2.5" / 2 × 4" / 1 × 6" |
| Cabinet width | 36" (914 mm) |
| Steam supply | 3/4" IPS, 80 lb/hr @ 15 psi (min.) |
| Cold water | 3/8" O.D. tubing, 25–50 psi |
| Drain | 2" IPS to open floor drain |
| Electrical | 120 V / 60 Hz / 1-ph, 4.0 A total (2 A per compartment) |
| Shipping weight | ≈ 550 lb (249 kg) |
| Certifications | cCSAus, NSF |
Included with your purchase
- Factory-installed pressure reducing valve.
- 60-minute timers & thermostatic controls pre-wired for 120 V service.
- One-year parts & labor warranty (see full warranty for details).
- Lifetime support from Crown Steam Group’s nationwide authorized service network.
This equipment is intended for commercial use only. Follow all local codes for utility connections. For complete dimensional drawings, utility requirements, and installation guidelines, contact our team or download the specification sheet above.
