Crown (Middleby) DCX-2-24 Steamers (Countertop & Floor)
Description

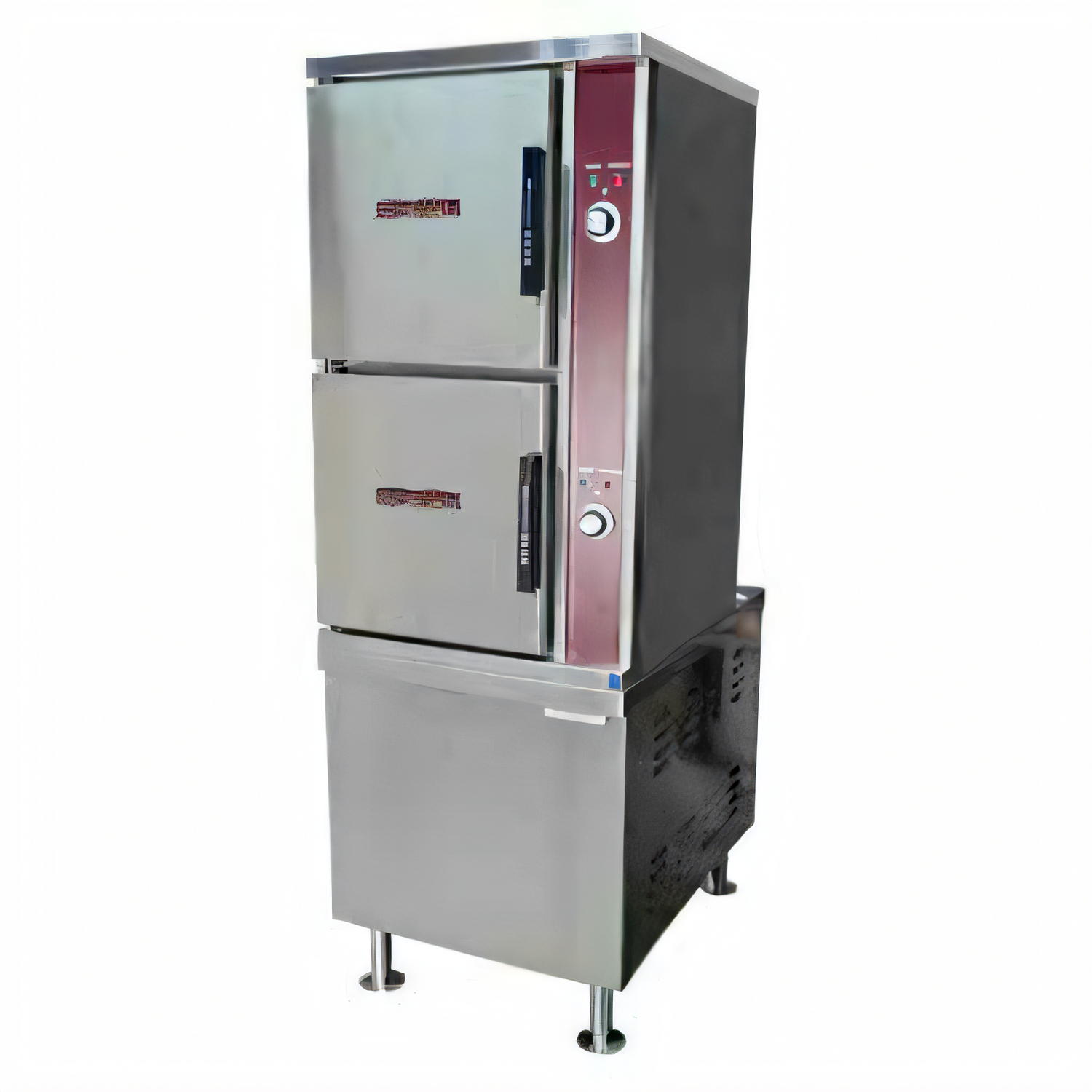

DCX-2-24 Two-Compartment Direct-Steam Convection Steamer
6-pan capacity • 24" cabinet base • Crown Steam (Middleby)Built for high-volume, no-hassle production, the Crown DCX-2-24 delivers reliable pressureless steaming in a compact 24 inch footprint. 316 stainless chambers, independent 60-minute controls and an included pressure-reducing valve guarantee consistent results shift after shift—whether you’re batch cooking veggies or re-therming menu items.
Why you’ll love it

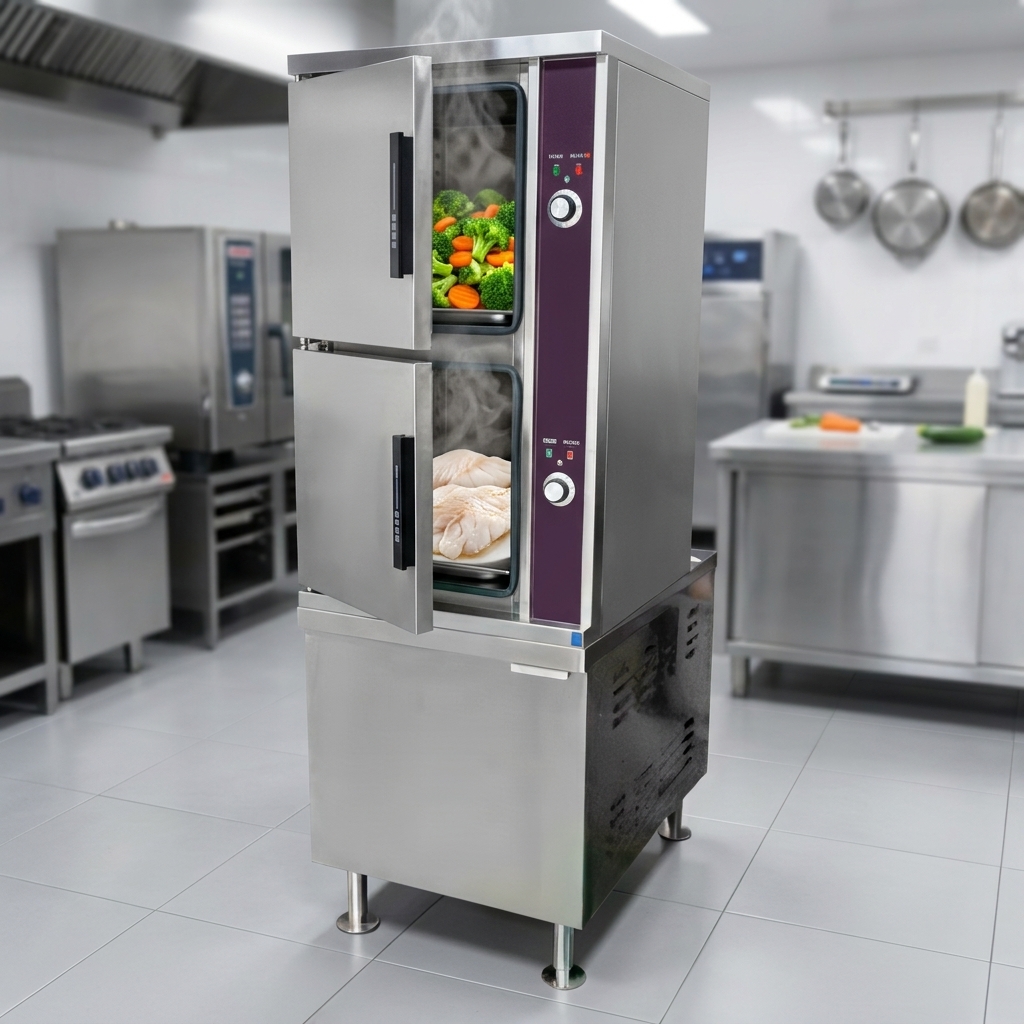

- Two independent compartments – steam different foods at once without flavor transfer.
- 6 hotel-pan capacity (12" x 20" x 1") – ideal for schools, healthcare & high-throughput kitchens.
- Rugged all-stainless build – 316 SS one-piece welded chambers & 304 SS exterior for maximum corrosion resistance.

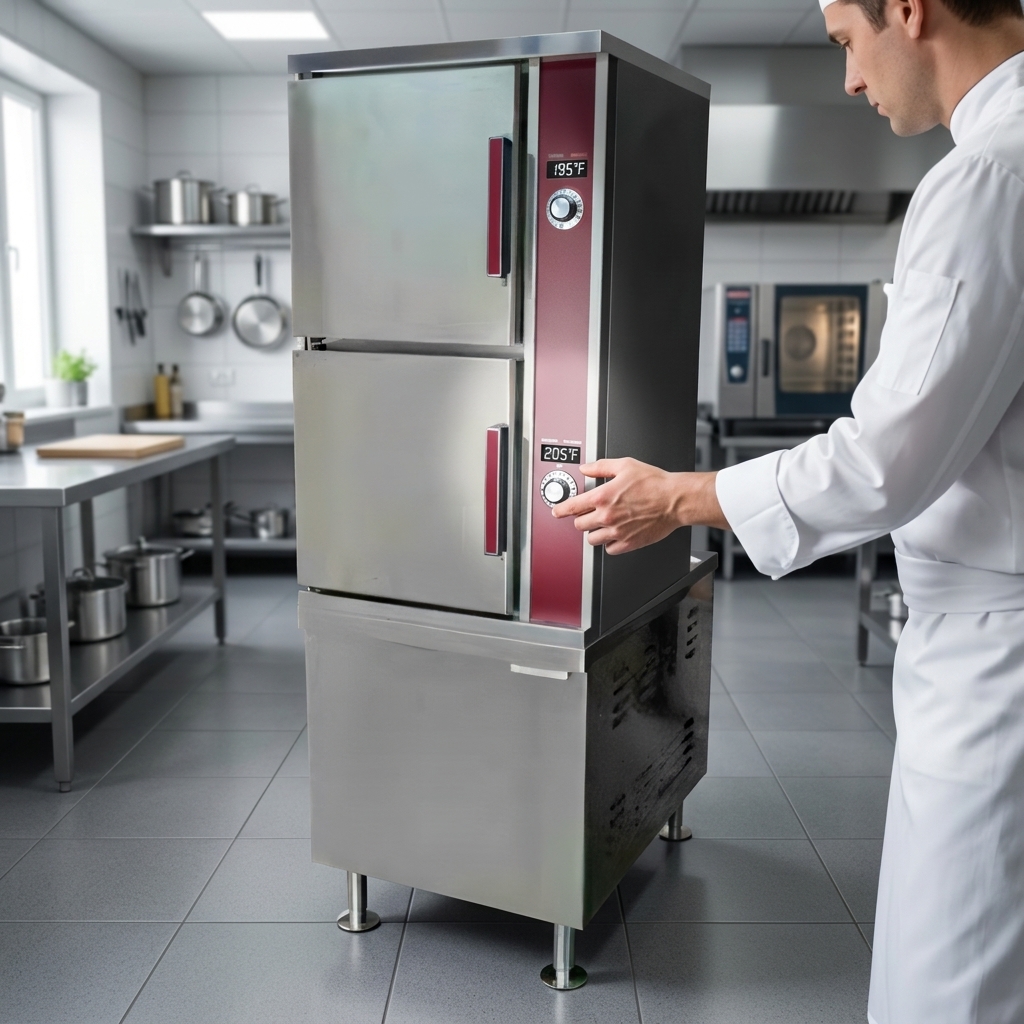

- Precision controls – 60-minute timer, cook/ready indicator lights & audible buzzer per compartment.
- Safe door interlock – steam shuts off automatically when a door is opened.
- Built-in pressure regulator – levels incoming steam to a steady 7 psi for uniform cooking.
- Easy clean-up – removable pan supports and drip trough channel condensate straight to the drain.
- Space-saving storage – 24" cabinet base with hinged door keeps utensils or chemicals close at hand.
Specifications
| Model | DCX-2-24 |
|---|---|

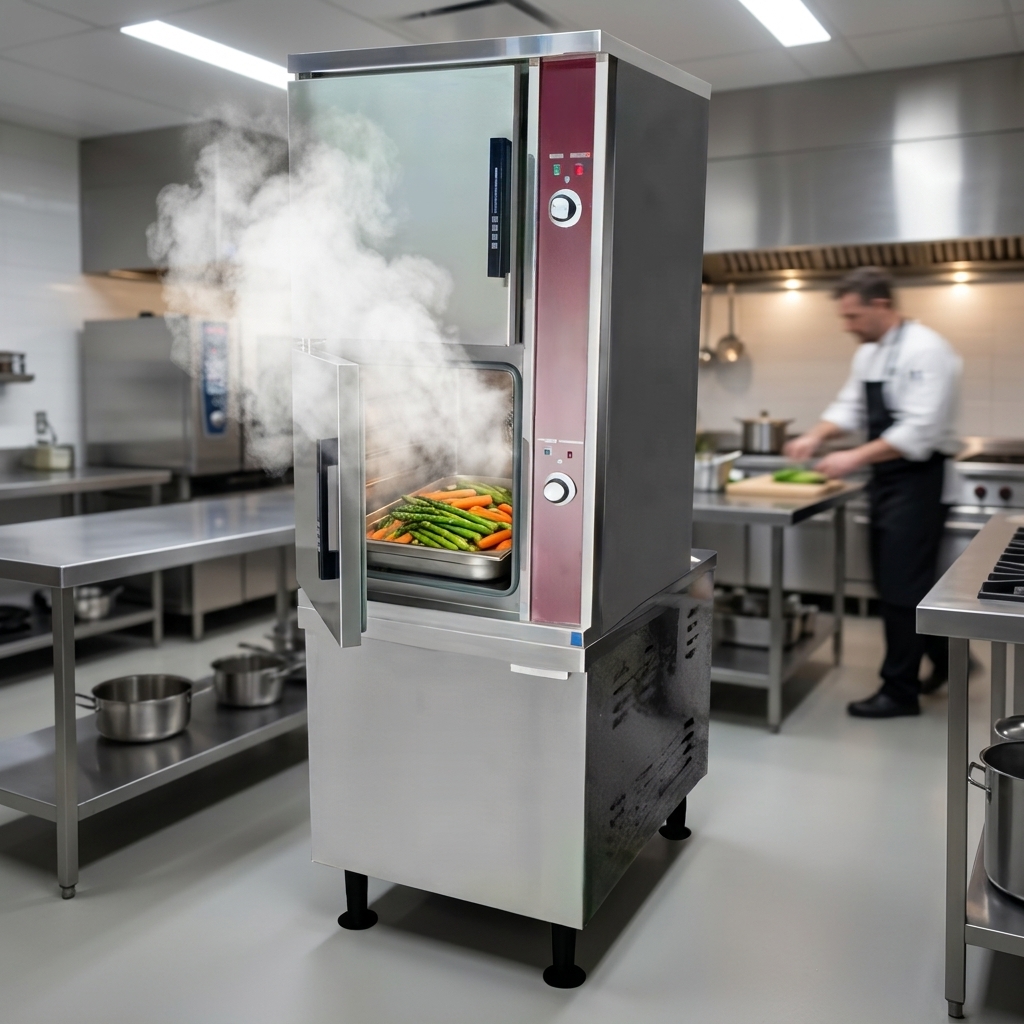

| Operation | Direct external steam (pressureless) |
| Compartments | 2 |
| Total pan capacity | 6 × 12" × 20" × 1" steam table pans |
| Chamber size (each) | 14" W × 10.625" H × 21" D (355 × 270 × 533 mm) |
| Cabinet width | 24 in (610 mm) |
| Construction | 316 SS interior, 304 SS exterior & frame |
| Legs | (4) 6" stainless steel with adjustable flanged feet |
| Electrical | 120 V, 60 Hz, 1-ph, 4 A (2 A per compartment) |
| Steam supply | 3/4" IPS, 80 lb/hr @ ≥15 psi; built-in reducer to 7 psi |
| Cold water | 3/8" O.D. tubing, 25–50 psi (drain tempering) |
| Drain | 2" IPS to open floor drain (no solid connection) |
| Shipping weight | Approx. 450 lb (204 kg) |
| Clearances | 0" sides & back |
| Certifications | cCSAus, NSF |
| Warranty | 1-year parts & labor (standard) |
Popular factory options (extra cost)
- Stainless rear panel
- Stainless frame upgrade
- Load-compensating timer
- Ball-float trap (BFT)
- Spray & rinse assembly
- Correctional package
Intended for commercial use only. Not for household installation.
