Crown (Middleby) DCX-10-6-6 Steam Kettles
Description

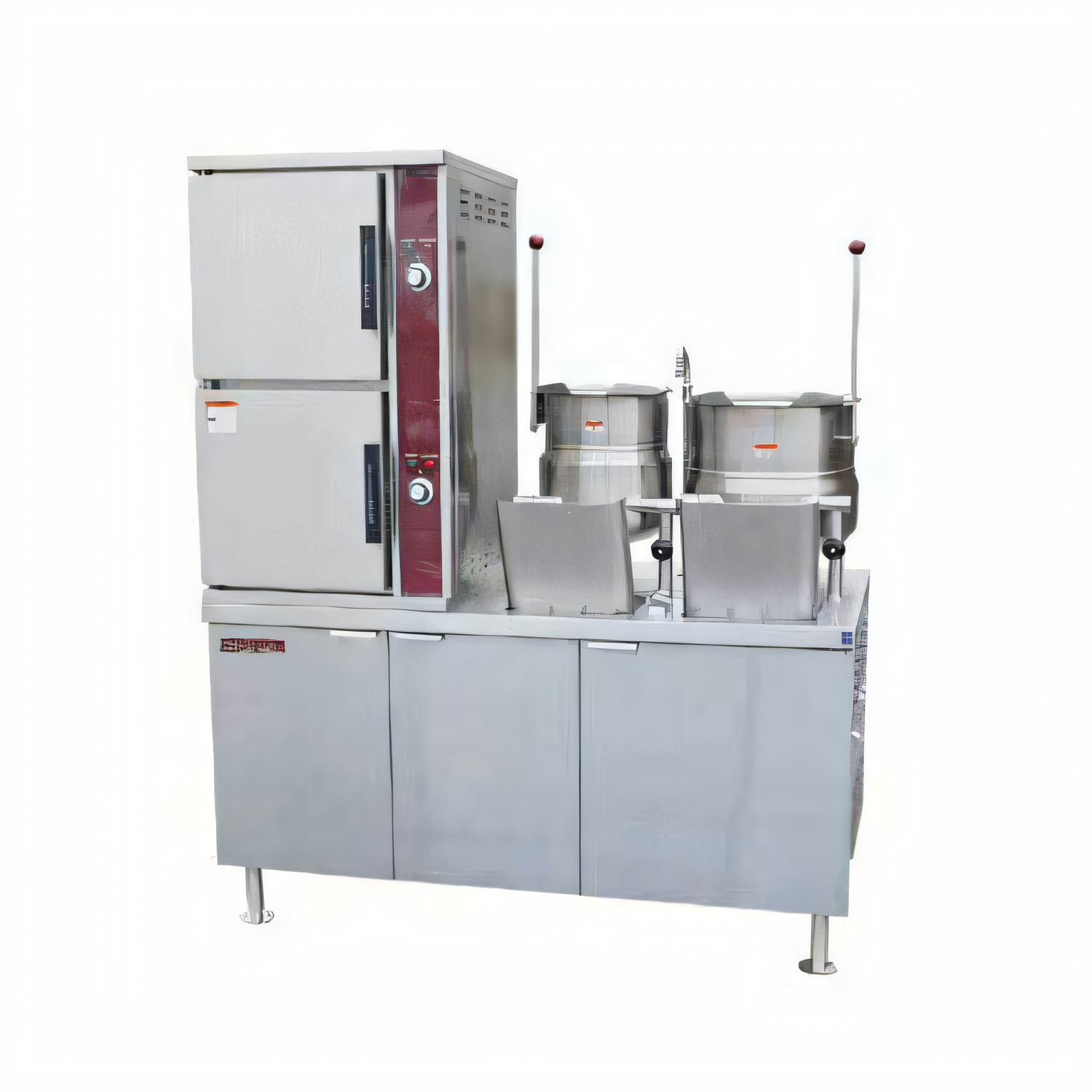

DCX-2-6-6 Two-Compartment Convection Steamer/Kettle
by Crown (Middleby)Built for serious volume, the Crown DCX-2-6-6 delivers the speed of pressureless convection steaming plus the versatility of two 6-gallon kettles – all on a compact 60" floor-mount base. Direct steam heats product in seconds, while individual 60-minute timers and an integral sink help your team keep up with the rush and stay sanitary shift after shift.
Why you’ll love it
- High output: steam 5 full-size hotel pans (12" × 20" × 2.5") per compartment – 10 pans total.

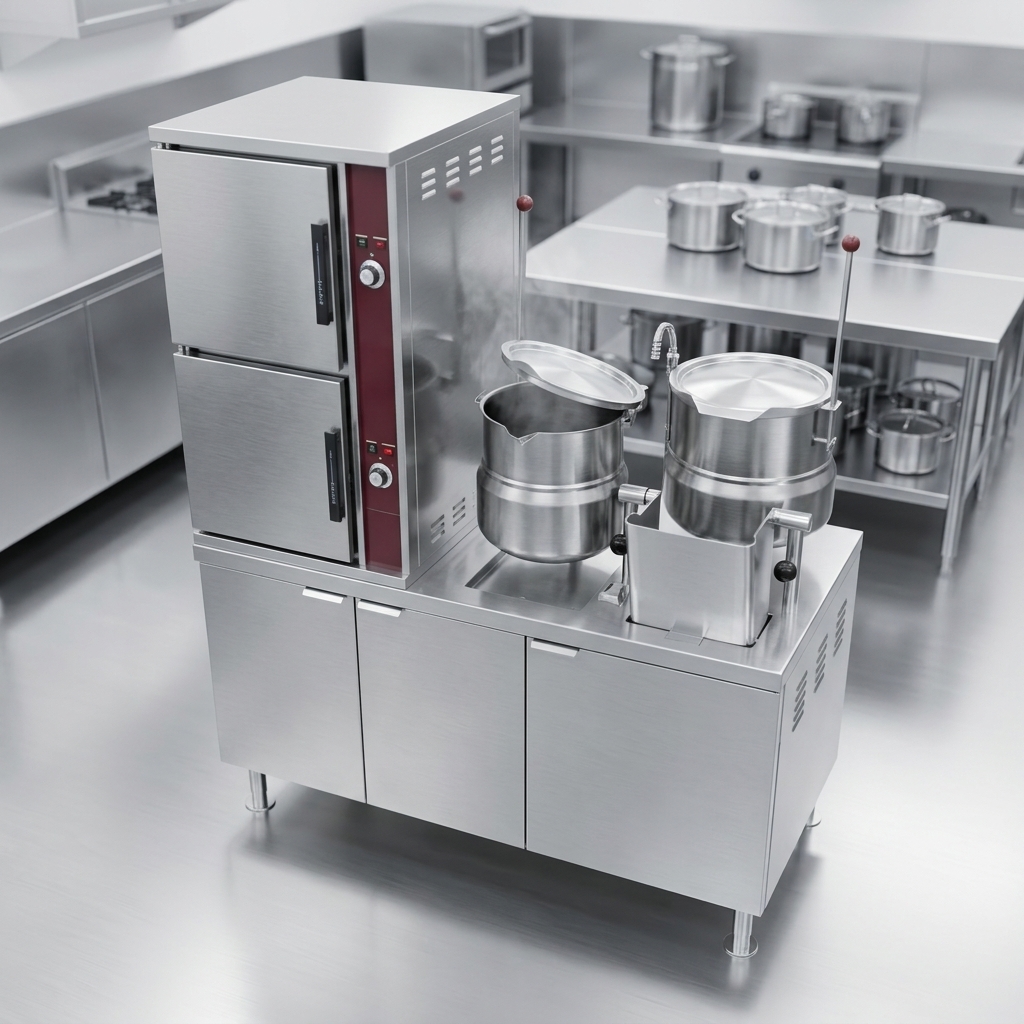

- Integrated cook-kettle station: twin 6 gal / 23 L hemispherical kettles mount securely on the base for soups, sauces & retherm.
- Direct steam operation (15-45 psi) for lightning-fast recovery and no boiler to maintain.

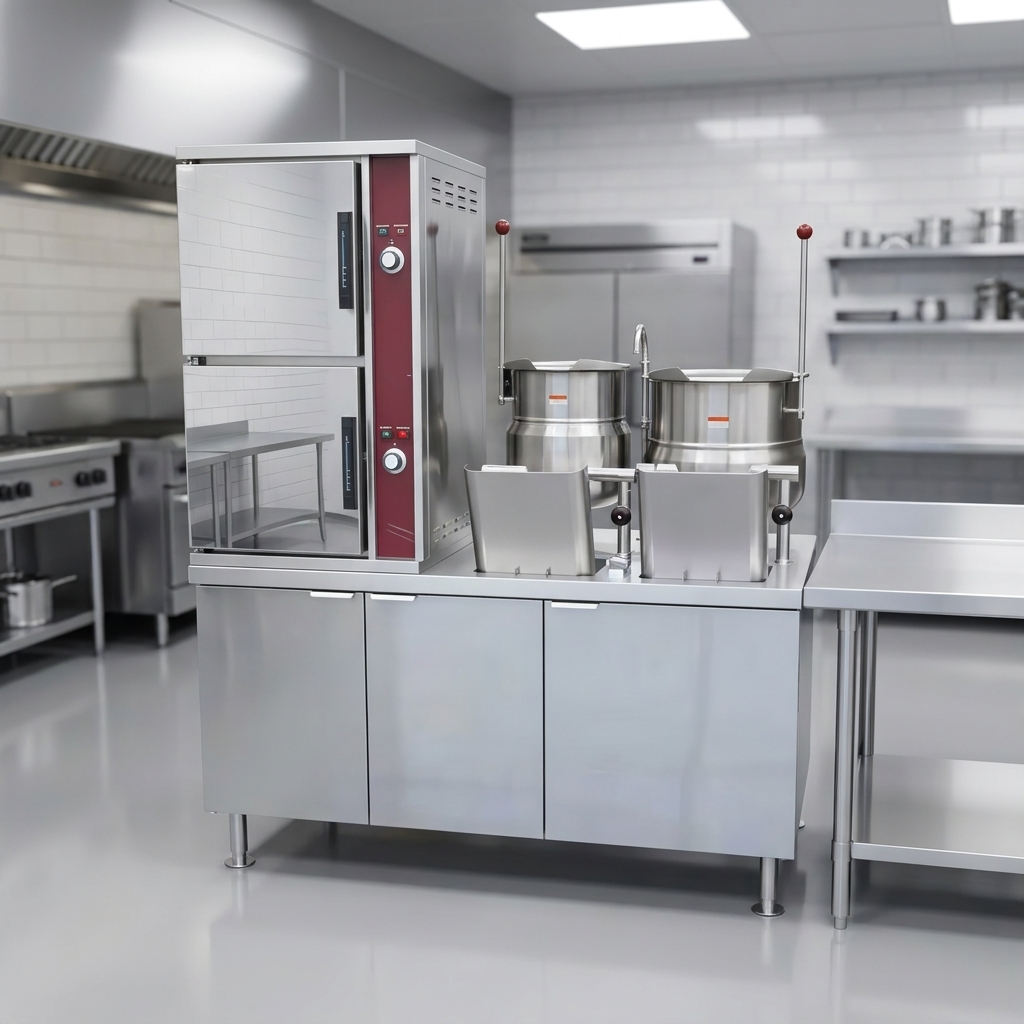

- Rugged 316 stainless steel cooking chambers with removable pan supports withstand acidic foods and heavy daily use.
- 304 stainless steel exterior, one-piece door shells and full perimeter gaskets keep steam where it belongs.
- Convenience sink with deck-mount faucet valve, swing nozzle and common drain simplifies filling, rinsing and clean-up.
- Separate 60-minute mechanical timer for each compartment with ready/cooking indicator lights and audible buzzer.
- Safety first: door interlock automatically interrupts steam when a door is opened.
- Field-adjustable 6" legs with flanged feet allow bolting the unit to the floor for code compliance.
- Certified to CSAus & NSF standards for gas/electrical and sanitation.
At-a-glance specs
| Model | DCX-2-6-6 |
|---|---|
| Compartments | 2 – pressureless convection |
| Kettle capacity | 2 × 6 gal (23 L) hemispherical kettles |
| Pan capacity | 5 × 12" × 20" × 2.5" pans per compartment |
| Base width | 60" (1524 mm) cabinet with 3 solid hinged doors |
| Controls | Manual 60-min timer & indicator lights per compartment |
| Steam supply | Incoming 15–45 psi (1.0–3.1 bar) via ¾" IPS |
| Electrical | 120 V, 50/60 Hz, 1-ph, 4.0 A (½" conduit) |
| Water (city) | Cold water 25–50 psi (NSF-61) for drain tempering & faucet |
| Drain | 2" IPS open floor drain connection |
| Construction | 316 SS interiors, 304 SS exterior, fully insulated |
| Legs | 4 × 6" stainless legs, adjustable, flanged |
| Shipping weight | ≈ 830 lb (376 kg) |
Utility Connections
-
Steam: ¾" IPS, min. 15 psi – max. 45 psi
(pressure-reducing valve required above 45 psi). - Cold water: ⅜" O.D. tubing @ 25-50 psi for faucet & condensate tempering.
- Drain: 2" IPS to open floor drain (no solid connection).
- Electrical: 120 V, 1-phase, 50/60 Hz, 4 A through ½" conduit.
- Minimum clearances: Sides 0" • Back 0".
Factory options (extra cost)
- Stainless rear panel (SSB-)
- Etched gallon or litre markings inside kettles
- Spray-and-rinse assembly
- One-piece lift-off covers or stainless basket inserts
- Load-compensating timers & correctional packages
Total dissolved solids < 60 ppm • Total alkalinity < 20 ppm • Silica < 13 ppm • Chlorine < 1.5 ppm • pH 6.8 – 7.3.
Failure to meet these limits or to purge 2-3 gal after each filter change can void warranty coverage.
Backed by Crown Steam Group’s 1-year parts & labor warranty on the unit and a 10-year hemisphere warranty on kettles. Full details available at crownsteamgroup.com.
