Crown (Middleby)

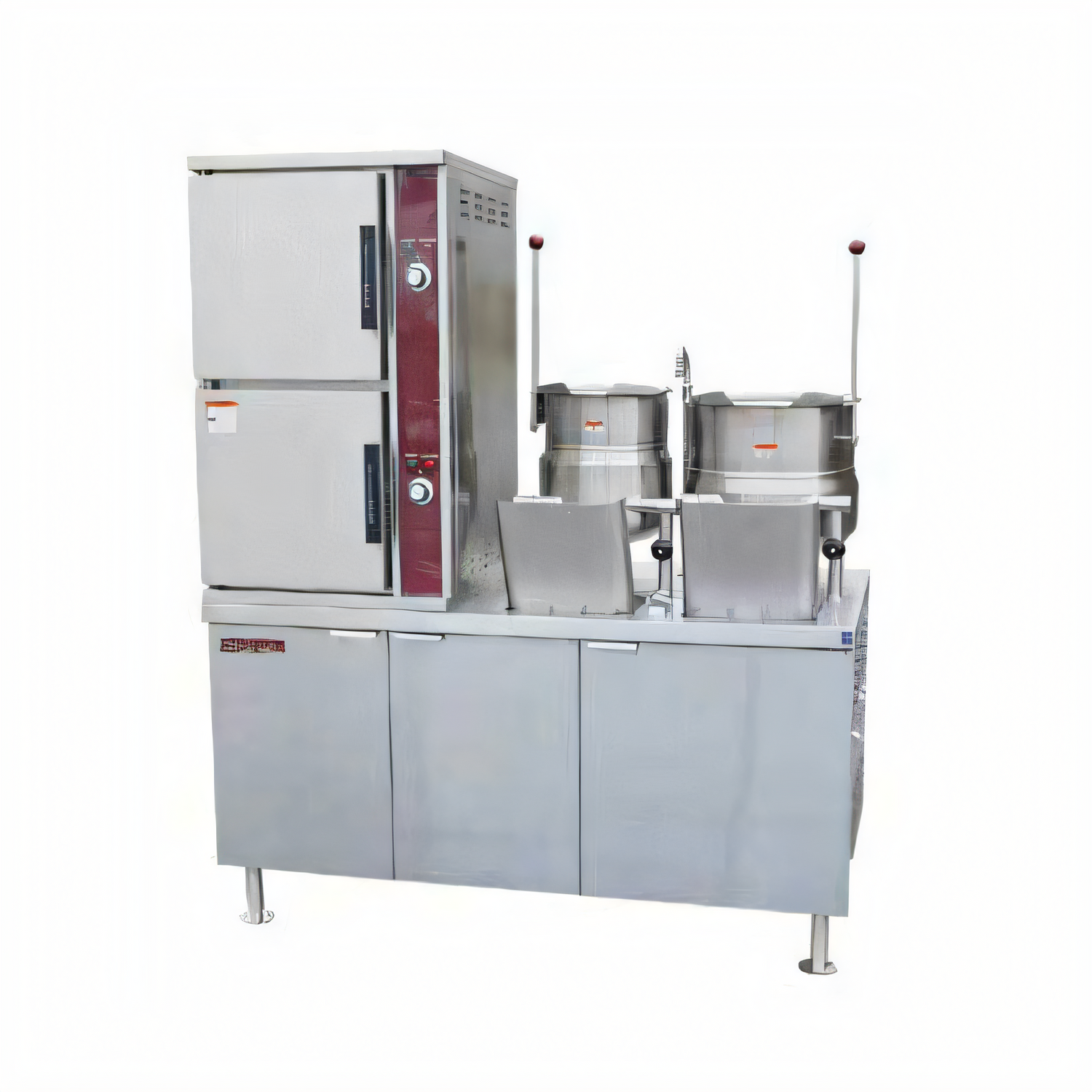

Crown DCX-10-6-10 Two Compartment Convection Steamer and Kettle Combination

SKU: DCX-10-6-10
$79,377.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?

Crown DCX-10-6-10 Two Compartment Convection Steamer and Kettle Combination

Direct Steam, (1) 6 Gallon & (1) 10 Gallon Kettle, (5) Full-Size Pan Capacity Per Compartment, 60-Inch Cabinet Base

This robust Crown DCX-10-6-10 unit offers versatile direct steam cooking with a dual-compartment convection steamer and integrated kettles, perfect for high-volume commercial kitchens.

  • Features two separate cooking compartments, each capable of holding five 12" x 20" x 2-1/2" full-size pans.
  • Equipped with one 6-gallon and one 10-gallon direct steam kettle for flexible batch cooking.
  • Durable construction with 304 stainless steel exterior and 316 stainless steel interior ensures longevity and hygiene.
  • Includes a convenient deck-mount faucet with swing nozzle and an integral sink for easy operation and cleanup.
  • Individual 60-minute timers per compartment provide precise control over cooking cycles.
  • Supported by a sturdy 60-inch cabinet base with three solid hinged doors and adjustable 6-inch legs.

Two Compartment Convection Steamer

Each compartment is designed to accommodate five 12" x 20" x 2-1/2" deep full-size pans, providing ample capacity for steaming large quantities of food simultaneously.

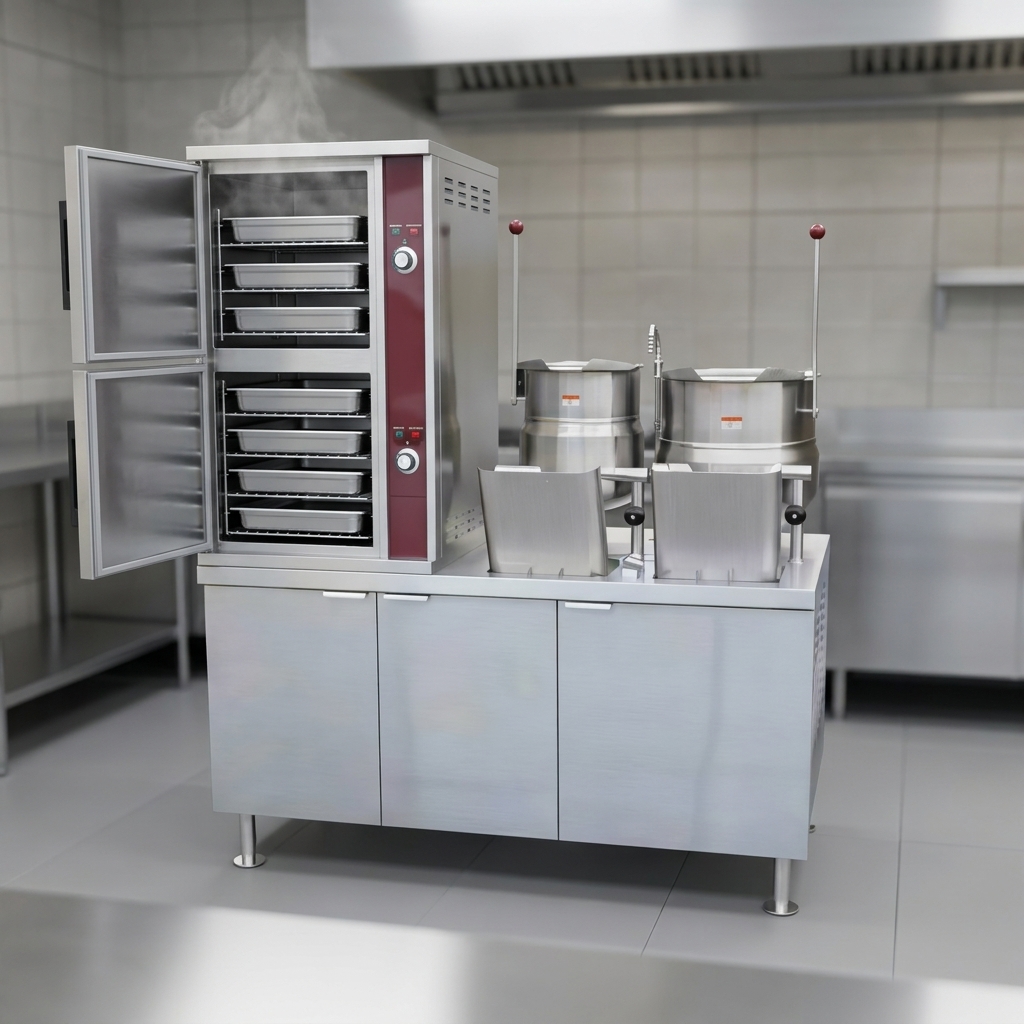

Observe the convection steamer's two spacious compartments, each designed to accommodate five full-size pans for high-volume kitchen efficiency.

Integrated Dual Kettle System

Features one 6-gallon and one 10-gallon direct steam kettle, allowing for varied batch sizes and different cooking needs within a single unit.

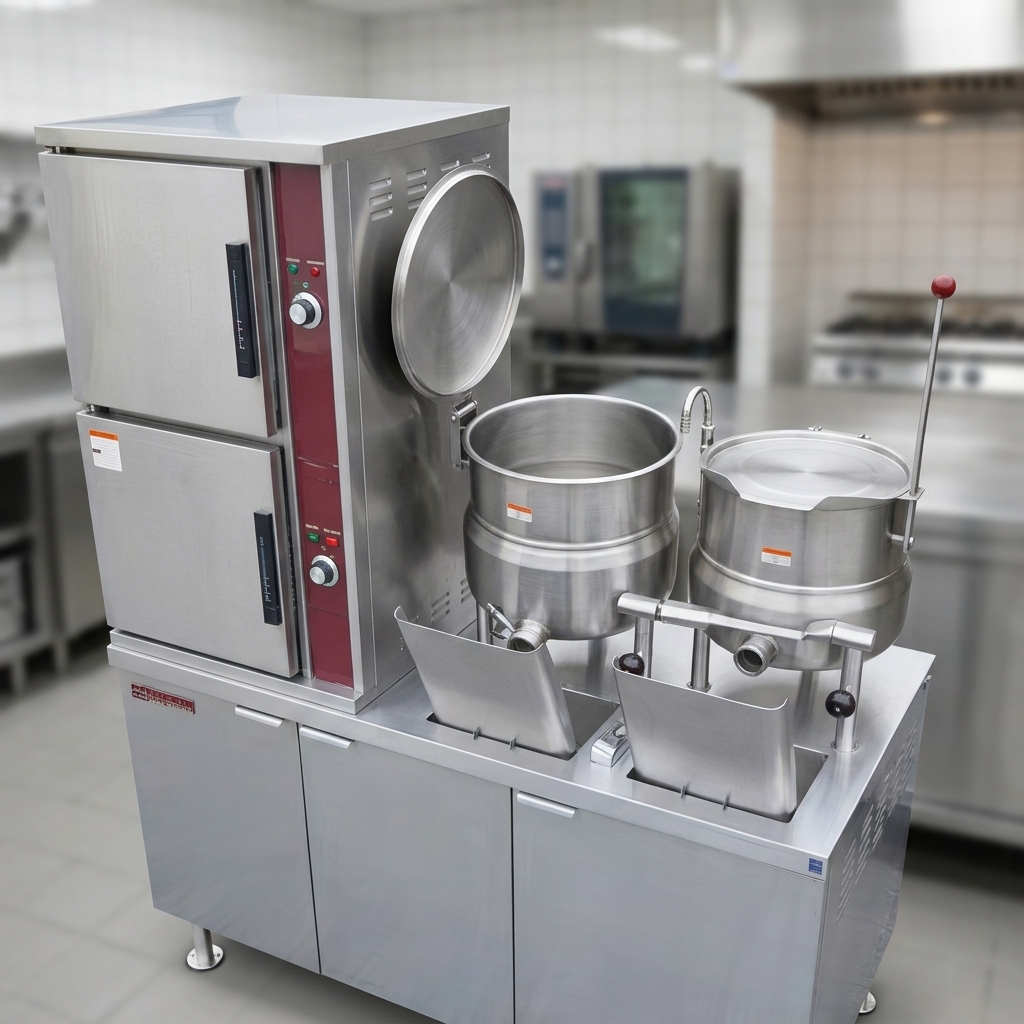

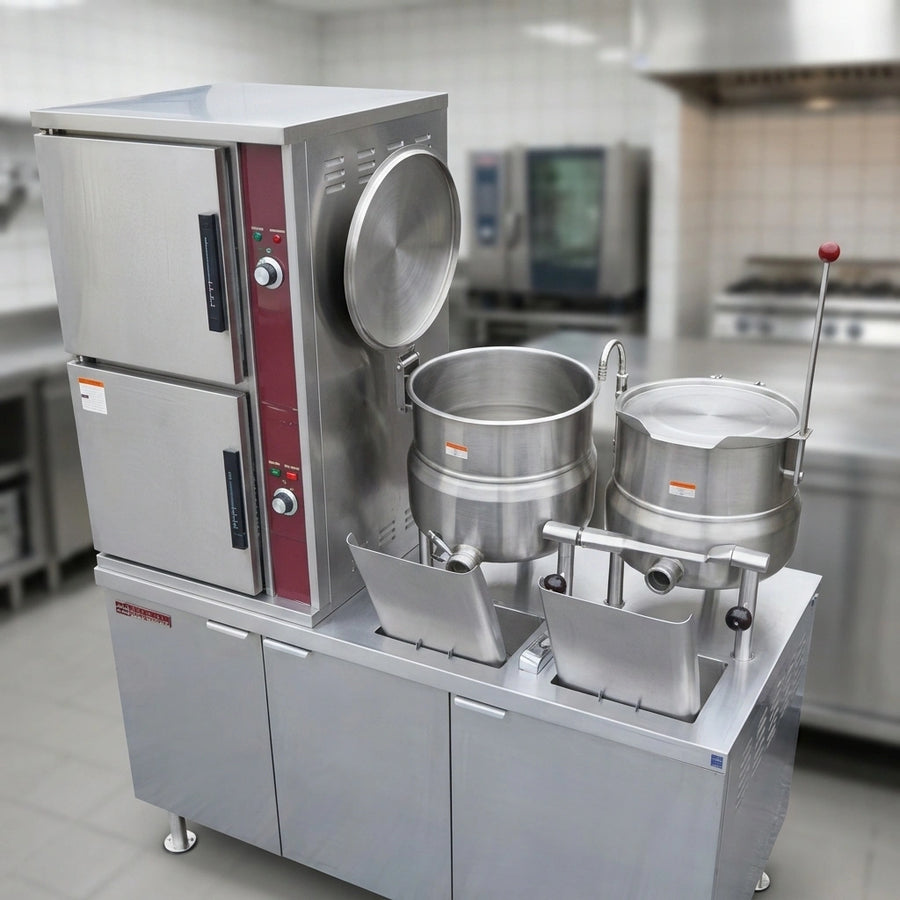

Observe the integrated dual kettle system on this convection steamer, offering both 6-gallon and 10-gallon capacities for diverse cooking demands.

Independent 60-Minute Timers

Each steaming compartment is equipped with its own 60-minute mechanical timer, enabling precise and independent control over cooking durations.

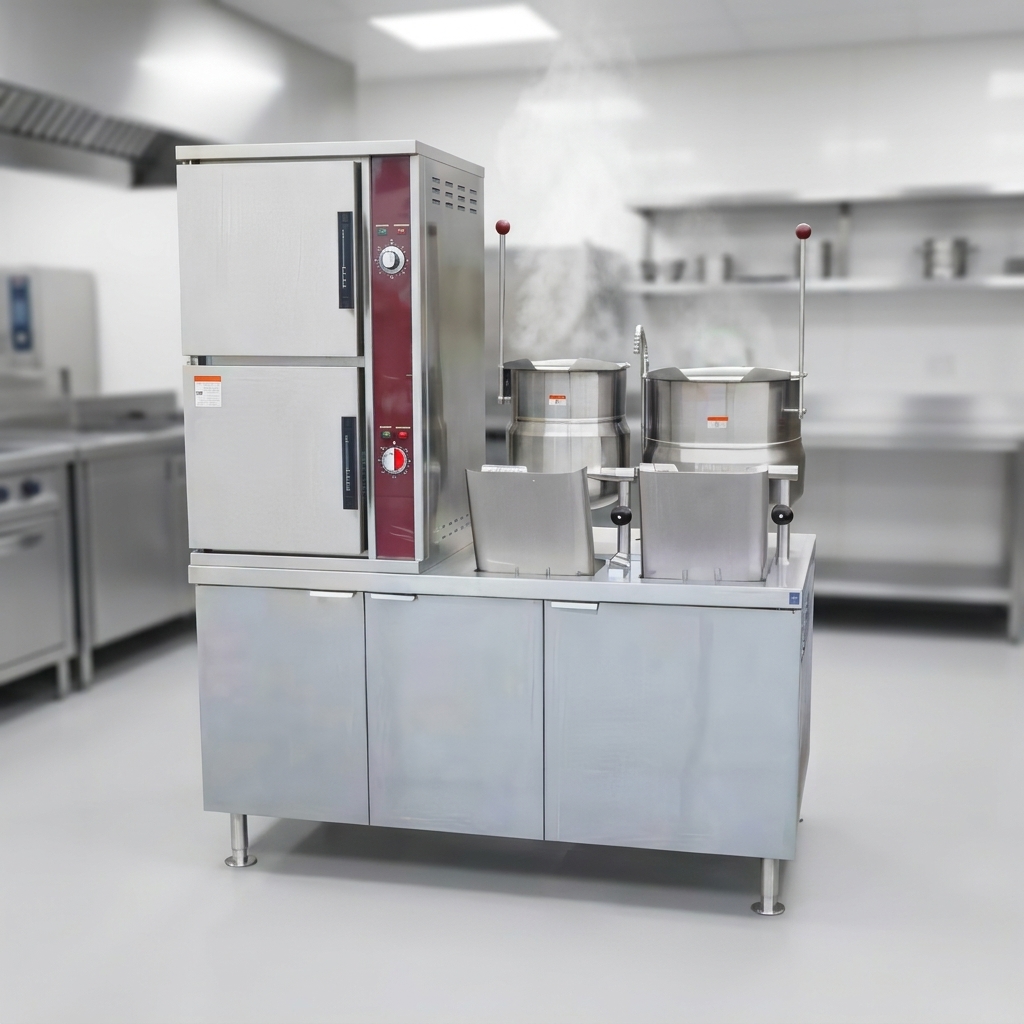

This image showcases the dual 60-minute independent timers, allowing precise, separate control for each steaming compartment.

Deck Mount Faucet with Integral Sink

A deck-mounted faucet valve with a swing nozzle provides convenient access to water for filling and cleaning, complemented by an integral sink for drainage.

Durable Stainless Steel Construction

The unit is built with 304 stainless steel for the exterior body and 316 stainless steel for the interior cooking surfaces, ensuring superior corrosion resistance and ease of cleaning.

60-Inch Cabinet Base

A robust 60-inch cabinet base with three solid hinged doors offers stable support and practical storage space, contributing to an organized kitchen environment.

Safety Door Switches

Each compartment door is fitted with a safety switch to ensure secure operation when the doors are opened.

Steam Pressure Gauge

An integrated pressure gauge allows for easy monitoring of steam pressure during operation, ensuring optimal cooking conditions.

Specifications

Type Convection Steamer / Kettle Combo
Style Direct Steam
Installation Type Floor Model (With Cabinet Base)
Compartments 2
Kettle Capacity (1) 6 Gallon & (1) 10 Gallon
Pan Capacity 5 Full-Size Pans Per Compartment
Pan Size 12" x 20" x 2-1/2"
Controls 60 Minute Timer
Interior Finish 316 Stainless Steel
Material 304 Stainless Steel
Voltage 120 Volts
Hertz 50/60 Hz
Phase 1-Phase
Amps 4.0 Amps
Water Connection Required
Drain Connection Required
Shipping Width 60 Inches
Shipping Depth 33 Inches
Shipping Height 63 Inches
Shipping Weight 970 lb.
Selling Unit Each
Units Per Case 1
Country of Origin Canada

Overall Dimensions:

60.0"W x 33.0"D x 62.13"H

Product Weight:

970.0 lb
Manufacturer Crown (Middleby)
Certifications ["NSF", "CSAus"]
Height 62.13in
Width 60.0in
Depth 33.0in
Shipping Weight 970.0lbs
Compartments 2
Kettle (1) 6 & (1) 10 gal
Pan Capacity per Compartment (5) 12"x20"x2-1/2" deep
Width (side - side) 60"
Specifications Convection Steamer/Kettle, direct steam, (2) compartment, (1) 6 gallon & (1) 10 gallon kettle, (5) 12" x 20" x 2-1/2" pan capacity per compartment, 60" cabinet base with (3) solid hinged doors, 60 minute timer per compartment, deck mount faucet valve, swing nozzle & integral sink, 316 stainless steel interior, 304 stainless steel construction, (4) 6" legs with adjustable flanged feet, 120v/50/60/1-ph, 4.0 amps, CSAus, NSF

Frequently Asked Questions

Each of the two steamer compartments can accommodate five 12" x 20" x 2-1/2" deep full-size pans, totaling 10 pans for the entire unit.
The DCX-10-6-10 features two integrated kettles: one with a 6-gallon capacity and another with a 10-gallon capacity.
This unit requires a 120 Volt, 50/60 Hz, 1-Phase electrical connection, drawing 4.0 Amps.
Yes, as a direct steam unit with an integrated faucet and sink, a water connection is required for both operation and cleaning.
The unit is constructed with a durable 304 stainless steel exterior and a high-quality 316 stainless steel interior, ensuring long-lasting performance and sanitation.
The unit features independent 60-minute mechanical timers for each steaming compartment, allowing for precise and separate control of cooking processes.
