Crown (Middleby) DCX-10-24 Steamers (Countertop & Floor)
Description

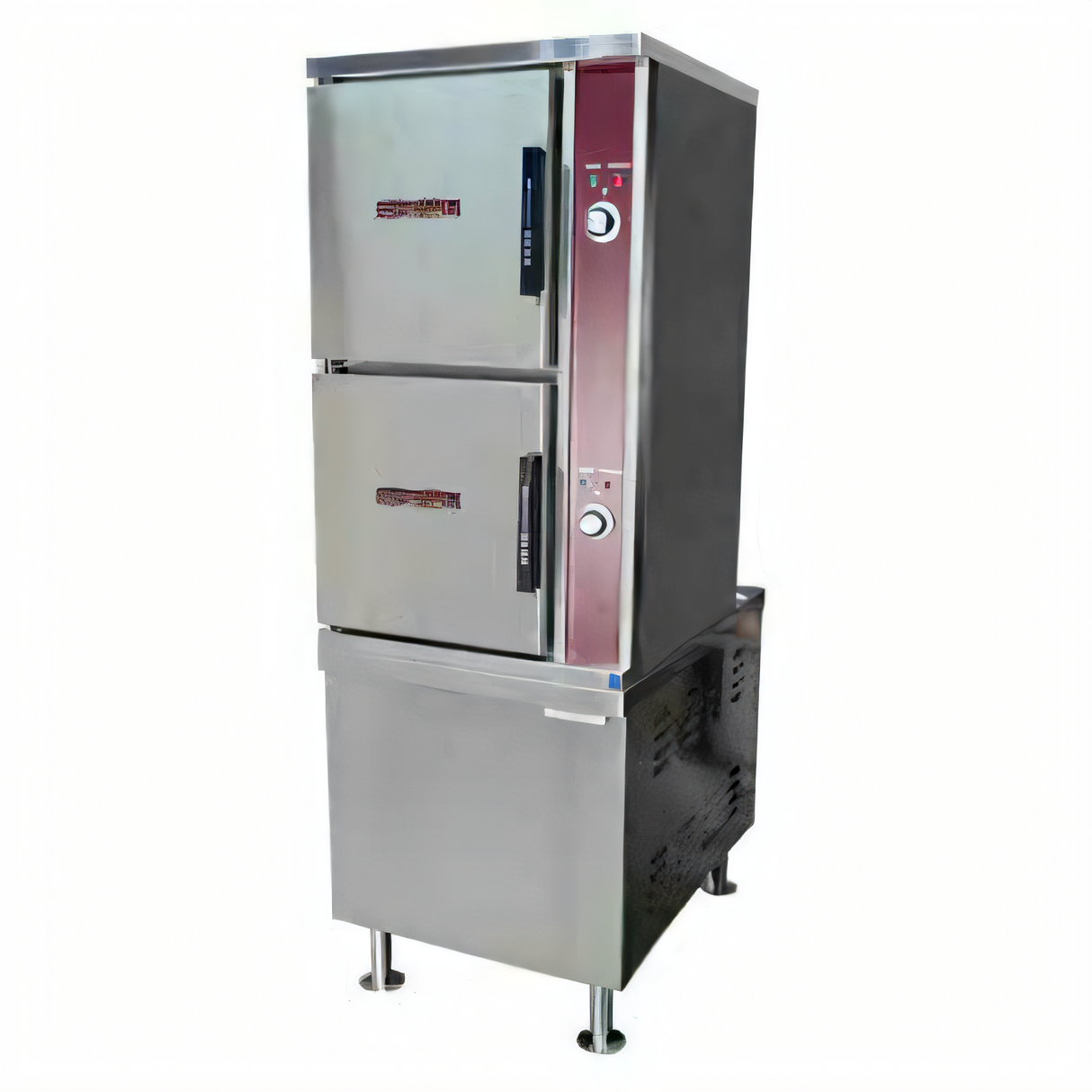

Crown DCX-10-24 Two-Compartment Direct-Steam Convection Steamer

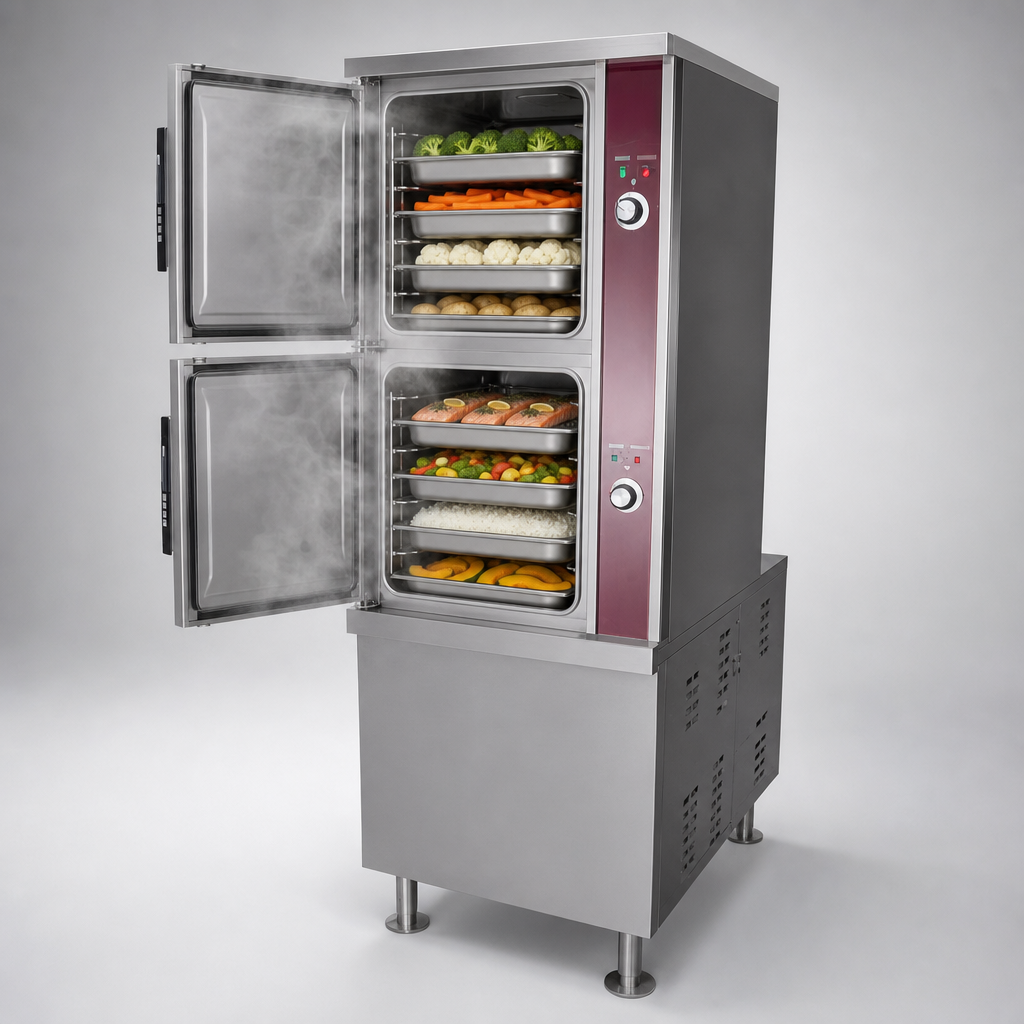

10-pan capacity • 24 inch cabinet base • 120 VEngineered for busy commercial kitchens, the Crown DCX-10-24 delivers high-volume steam cooking in a slim 24 inch footprint. Two fully independent compartments let you prepare vegetables, proteins, grains and more—all at the same time—without flavour transfer or downtime.
Why You’ll Love It

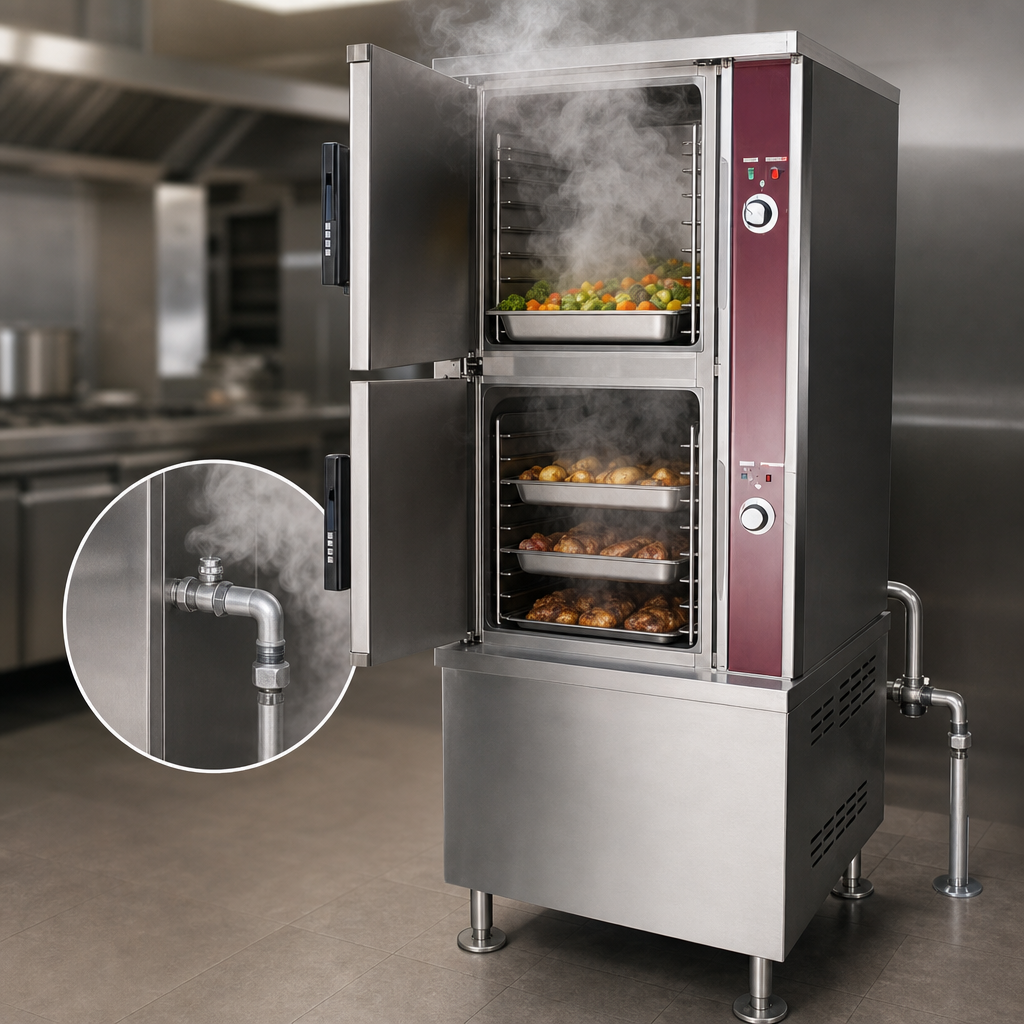

- Direct, non-toxic steam hookup (minimum 15 psi) for instant recovery and continuous output.
- Holds 10 full-size 12" × 20" × 1" pans (5 per compartment) on removable stainless pan racks.
- One-piece 316 SS cook chambers & 304 SS exterior stand up to years of daily use.
- Independent 60-minute timer, ready & cook indicator lights and audible buzzer on each compartment.
- Door interlock pauses steam when opened and resumes automatically when closed.
- Built-in pressure-reducing valve and regulator—no additional parts to source.
- Reinforced 24" stainless cabinet base with storage door, condensate drain & pressure regulator assembly.
- (4) 6" stainless steel legs with adjustable flanged feet for secure, level installation.
- Certified cCSAus & NSF for safety and sanitation.
Pan Capacity Guide
| Pan depth | Pans per compartment | Total pans |
|---|---|---|
| 1" (25 mm) | 5 | 10 |
| 2½" (65 mm) | 3 | 5 |
| 4" (100 mm) | 2 | 3 |
| 6" (150 mm) | 1 | 2 |
Technical Specifications
| Model | DCX-10-24 |
|---|---|
| Compartments | 2 pressureless convection chambers |
| Steam source | Direct steam, 80 lb/hr @ 15 psi (7 psi manifold), 3/4" IPS |
| Water connection | 3/8" O.D. tubing, 25-50 psi cold water |
| Drain | 2" IPS to open floor drain (no solid connection) |
| Electrical | 120 V / 60 Hz / 1-Ph, 4.0 A (2 A per compartment) |
| Cabinet width | 24" (610 mm) |
| Shipping weight | 550 lb (250 kg) |
| Required clearances | Sides: 0" • Back: 0" |
| Certifications | cCSAus • NSF |
Optional upgrades (sold separately): stainless rear panel, stainless frame, correctional package, ball-float trap, spray-and-rinse assembly, load-compensate timer.
Bring fast, flavourful and energy-efficient steaming to your operation with the Crown DCX-10-24— the professional’s choice for reliability and performance.
