Crown (Middleby) DCX-10-10 Steam Kettles
Description

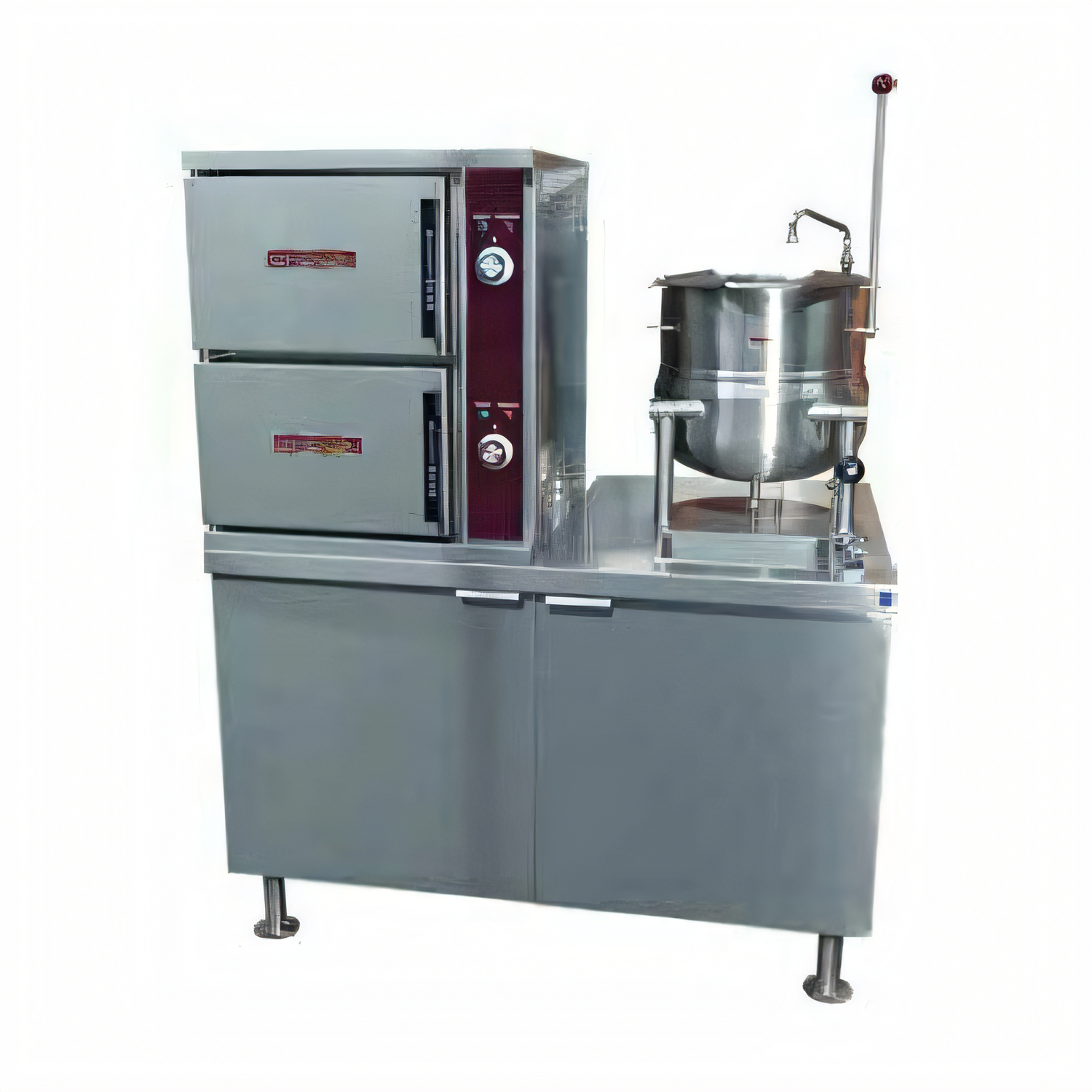

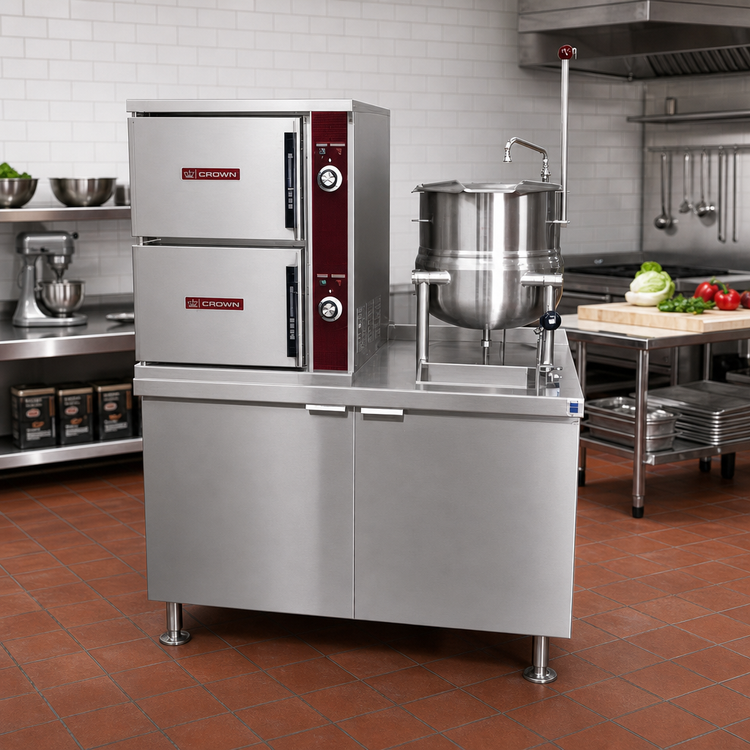

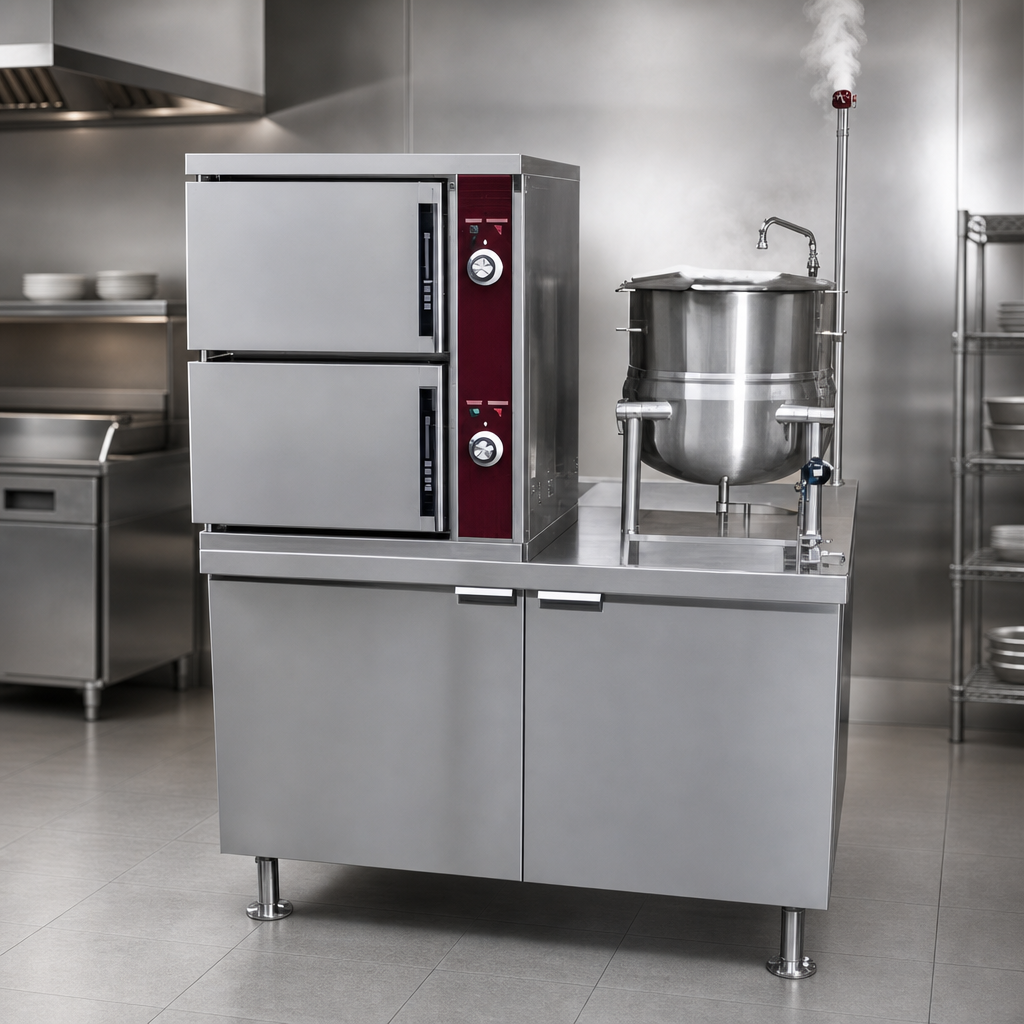

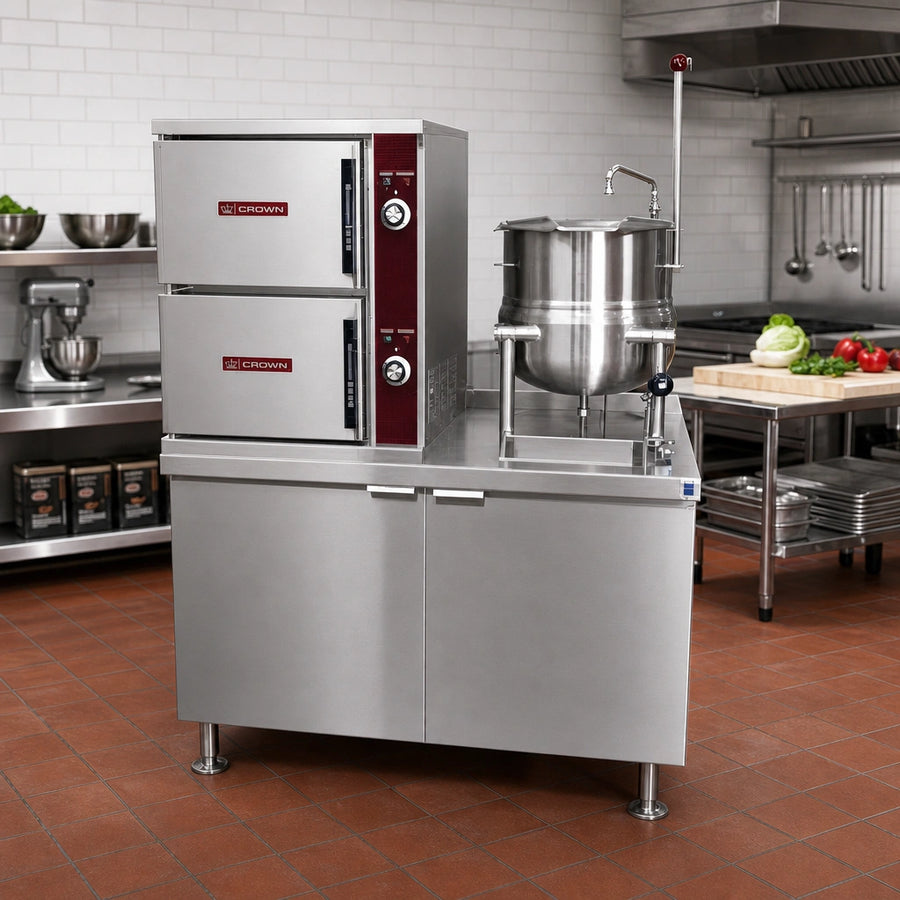

DCX-Series 2-Compartment Convection Steamer & 10-Gallon Kettle
Direct-Steam | Crown (Middleby) Model DCX-10-10Power through peak service with the Crown DCX direct-steam steamer/kettle. Two independent convection-steam compartments and a full 10-gallon kettle share a rugged 48-inch cabinet base, giving you the versatility to batch-cook vegetables, seafood, sauces and more without adding footprint.
Why you’ll love it

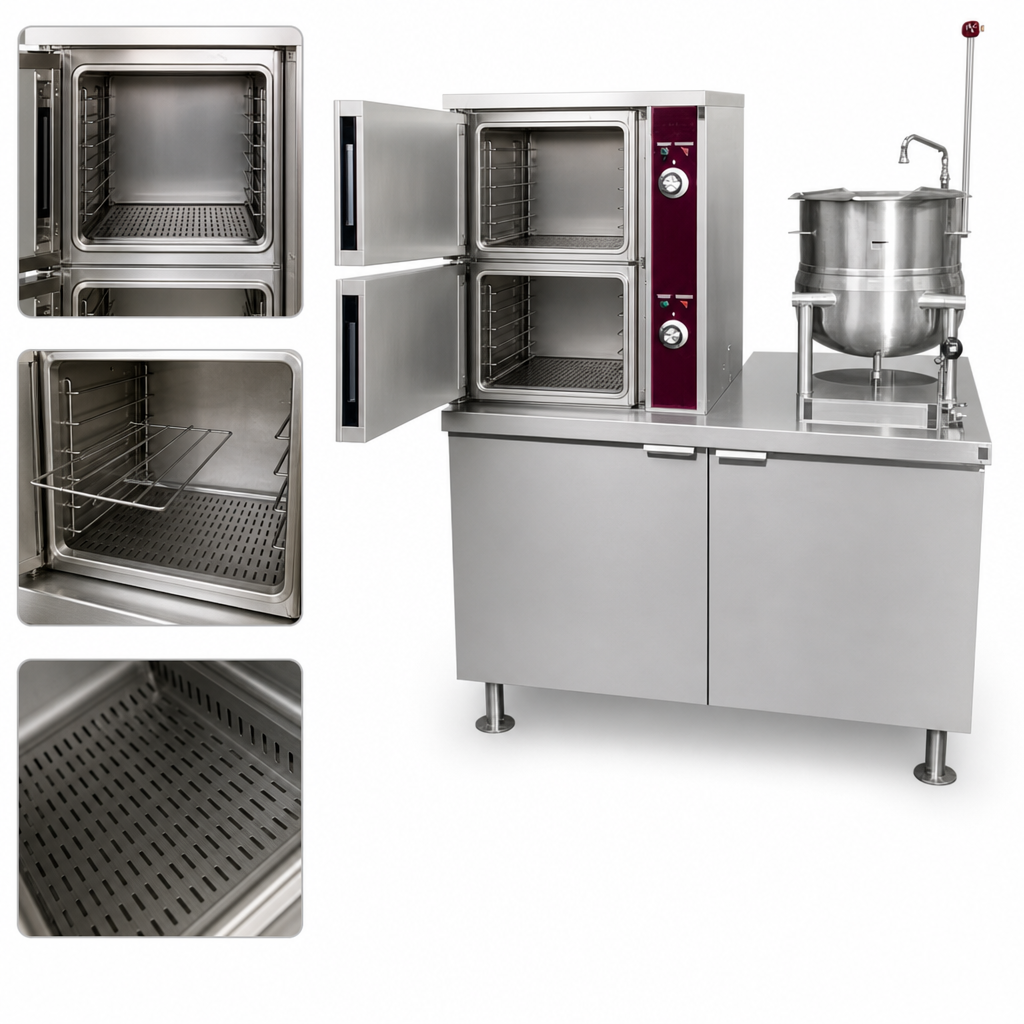

- High-volume cooking – each compartment holds (5) 12 × 20 × 1 in pans
- Integrated 10 gal (37.9 L) direct-steam kettle for soups, sauces & stocks
- Direct, non-toxic steam connection (10–45 psi) for fast heat-up
- Deck-mount faucet valve, swing nozzle & integral sink share a common drain—no extra plumbing mess
- Durable 316 SS cooking chambers | sanitary 304 SS exterior with #4 finish
- Full-perimeter door gaskets with positive-lock latches and condensate trough
- Independent 60-minute mechanical timer, ready/cook lights & end-of-cycle buzzer per compartment
- Door interlock automatically interrupts steam when a door opens—kitchen-safe by design
- 48 in cabinet base with two storage doors keeps utensils close at hand
- (4) 6 in stainless legs with adjustable flanged feet for rock-solid installation
- cCSAus & NSF certified for commercial kitchens
At-a-glance specs
| Pan capacity | 10 pans total | 5 per compartment (12 × 20 × 1 in) |
|---|---|
| Kettle capacity | 10 gal / 37.9 L |
| Cabinet width | 48 in (1219 mm) |
| Electrical | 120 V, 50/60 Hz, 1-phase, 4.0 A (2 A per compartment) |
| Steam supply | 3/4 in IPS, 10–45 psi (34–310 kPa) |
| Water connections | Hot & cold 3/8 in O.D.; 25–50 psi (170–345 kPa) |
| Drain | Main: 2 in IPS to floor drain | Sink: 1-1/8 in O.D. |
| Construction | Chambers: 316 SS | Exterior: 304 SS |
| Controls | Mechanical timers, indicator lights, audible signal, door-activated steam shut-off |
| Certifications | cCSAus, NSF |
| Warranty | 1 yr parts & labor | 10 yr kettle hemisphere shell |
Commercial use only. Requires a dedicated direct-steam supply and plumbing connections furnished by the installer.
