Crown (Middleby) DC-6 Steam Kettles
Description

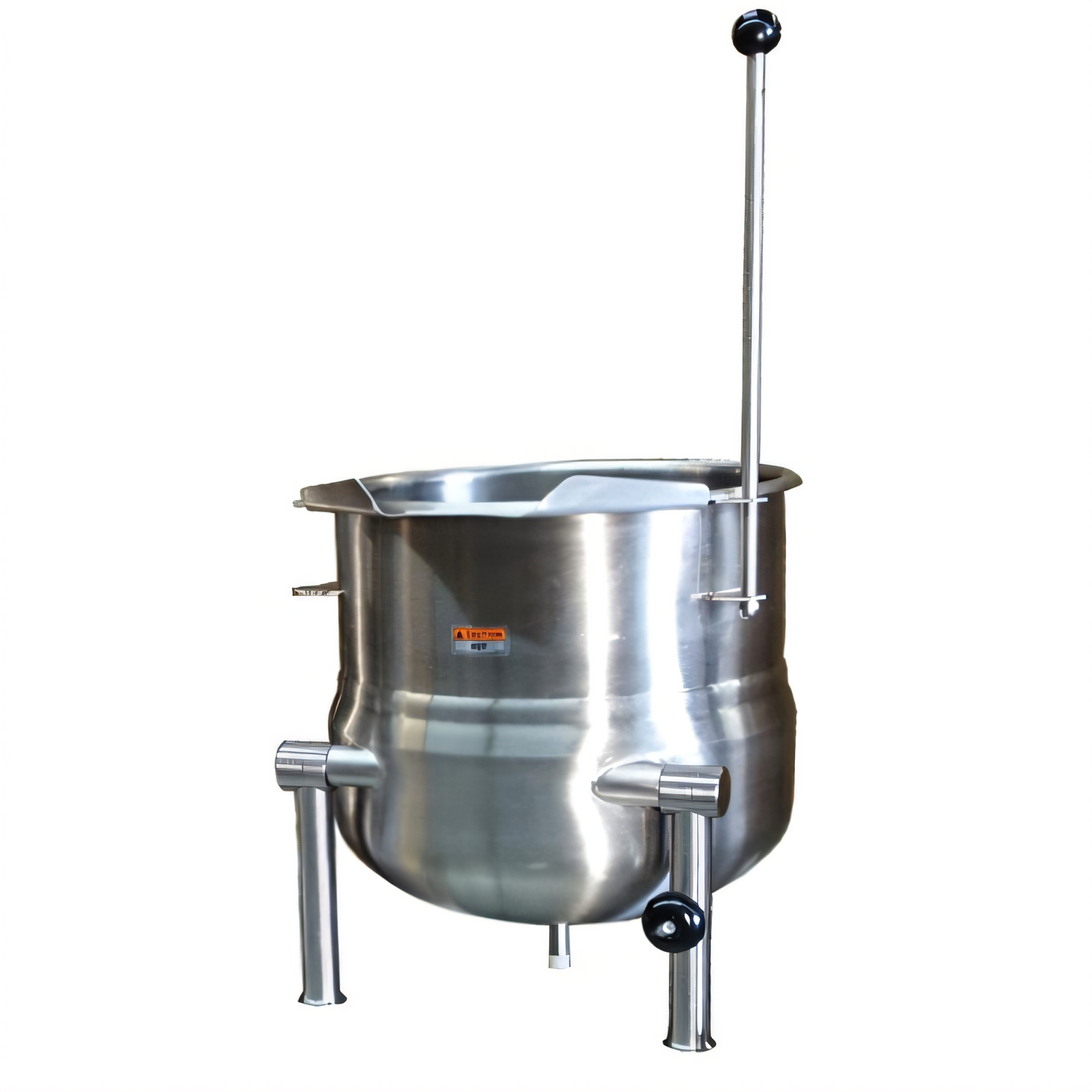

Crown DC-6 Countertop Tilting Kettle – 6 gal / 23 L

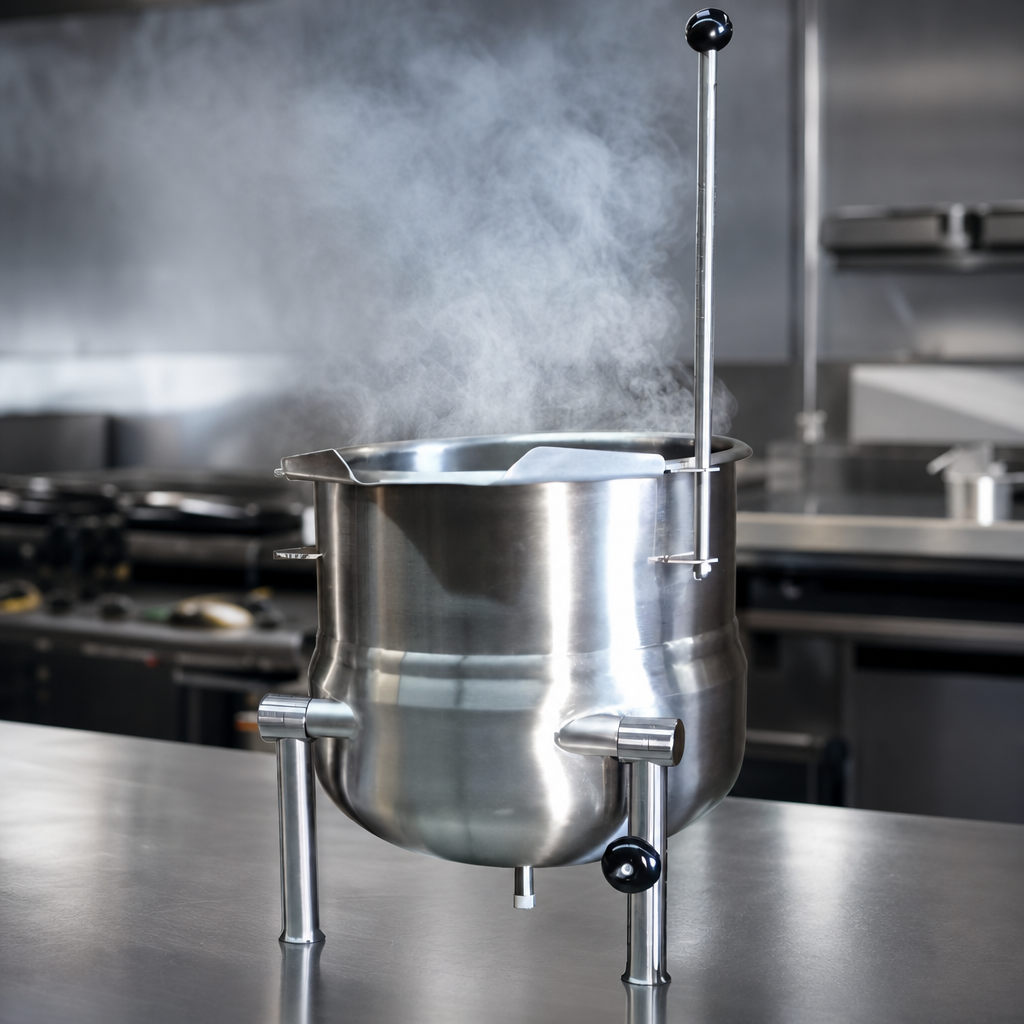

Direct-Steam • 2/3 Jacket • 304/316 Stainless Steel • NSFDesigned for smaller batch production, the Crown DC-6 brings the speed and efficiency of direct steam to any worktop. From glossy sauces to hearty soups, its 2/3-jacketed hemispheric bowl delivers rapid, even heat transfer while the smooth forward tilt makes precise portioning and complete emptying effortless.
Why You’ll Love It
- 6-gallon (23 L) capacity – perfect for small-batch cooking & finishing.

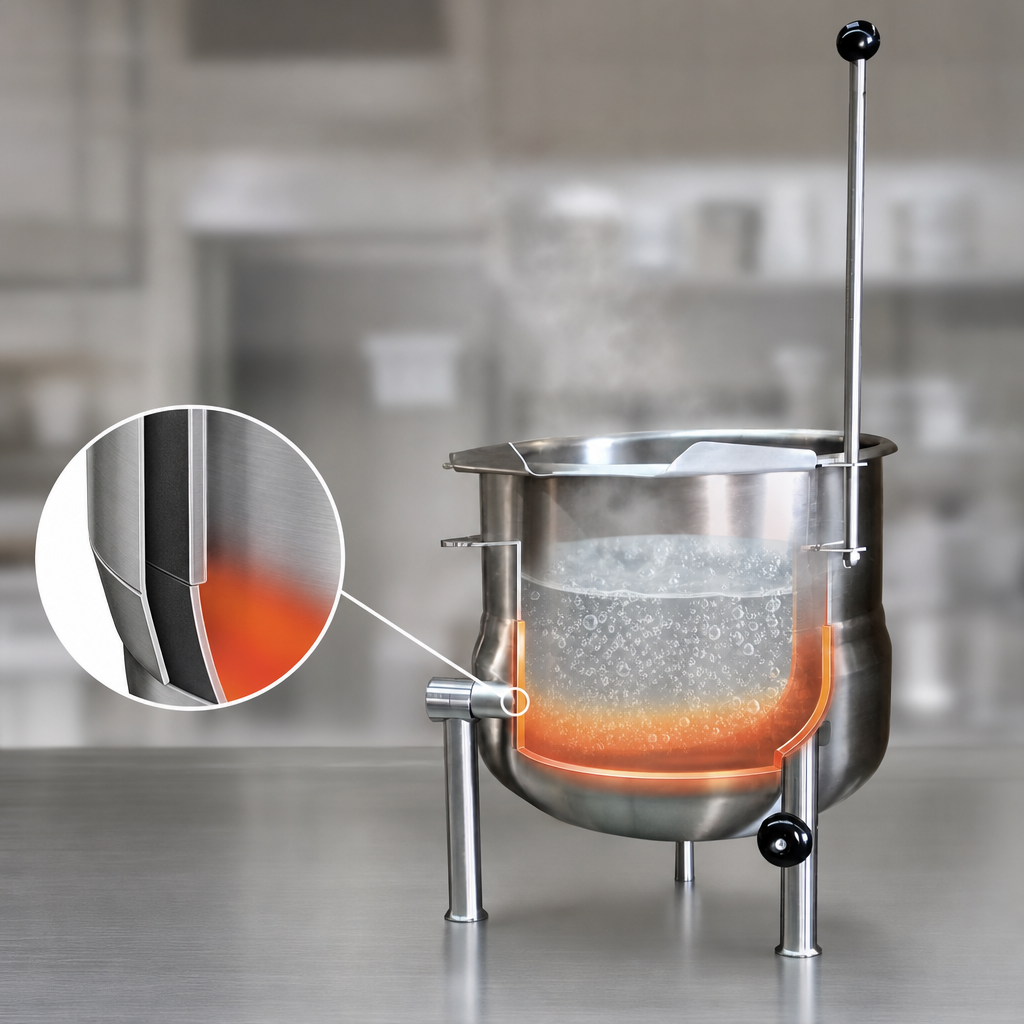

- 2/3 steam jacket surrounds the lower bowl for lightning-fast heat up and gentle, uniform simmering.
- 316 SS liner resists acids and cleans up fast; 304 SS exterior withstands daily commercial use.
- Reversible tilt handle with heat-proof knob – mount left or right to suit your workflow.
- Tilts past 90° for drip-free, complete emptying.
- Built-in steam control valve provides fingertip regulation of cooking temperature.
- Three tubular stainless legs conceal steam supply & condensate return lines for a clean countertop.
- Additional front support leg with nylon foot protects work surfaces and adds stability.
- NSF certified, ASME code stamped and National Board registered.
Specifications
| Model | DC-6 |
|---|---|
| Capacity | 6 gal │ 23 L |
| Heating method | Direct steam, 5–45 psi (34–310 kPa) |
| Jacket coverage | Lower 2/3 of bowl |
| Bowl construction | 316 stainless steel liner, hemispheric bottom |
| Exterior construction | All-welded 304 stainless steel, satin finish |
| Tilt mechanism | Sealed stainless bearings, reversible handle, >90° pour angle |
| Service connections | Steam Supply: ½ " IPS • Condensate Return: ½ " IPS |
| Shipping weight | 44 lb │ 20 kg |
| Minimum clearance | Sides 1 " (25 mm) • Back 3 " (76 mm) |
| Overall height | 34.12 " (867 mm) |
| Overall width | 15.12 " (384 mm) |
| Overall depth | 19.5 " (495 mm) |
Popular Accessories (sold separately)
- Lift-off stainless steel cover
- Etched gallon or litre markings
- Stainless steel perforated basket
- Pour-lip strainer
- 24" or 30" floor stands with sliding shelf or drain drawer
- Steam control assembly with line strainer, trap & safety valve
Kettle body carries Crown’s standard 10-year hemisphere warranty; one-year parts & labor on remaining components. Intended for commercial use only.
