Crown (Middleby) | SKU:
DC-3
Crown (Middleby) DC-3 Pressure Steamers
$31,500.00
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Crown (Middleby) DC-3 Pressure Steamers is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Crown (Middleby) DC-3 Pressure Steamers
$31,500.00
Unit price
/
Unavailable
Description

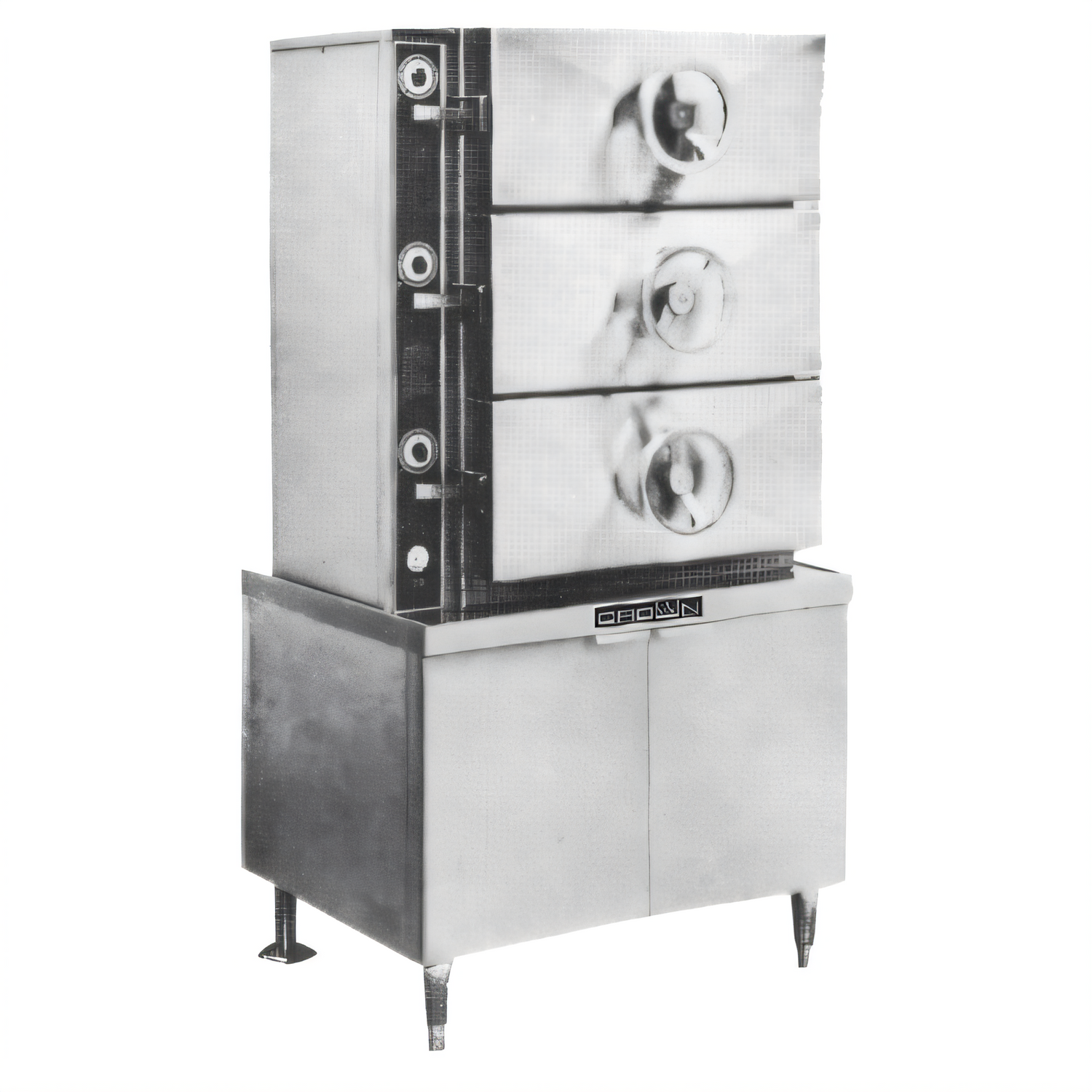

Crown DC-3 Direct-Steam Pressure Steamer
36" cabinet base • three independent 6 psi compartments • cCSAus, NSFBuilt for the volume and versatility today’s commercial kitchens demand, the Crown DC-3 delivers high-speed, high-yield steaming in a self-contained 36" footprint. Direct, non-toxic steam and precision pressure control lock in flavor and nutrients, while fully automatic controls take the guess-work—and the labor—out of every batch.
Why You’ll Love It

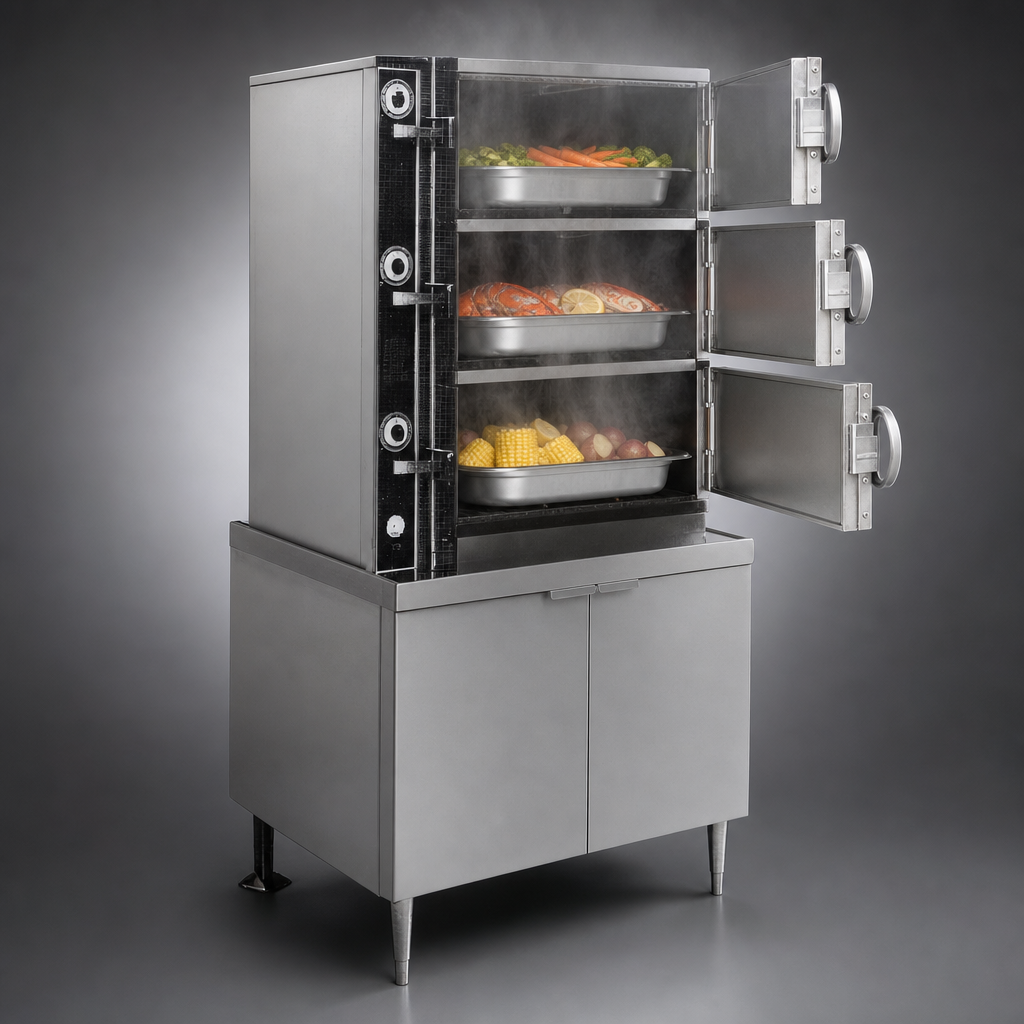

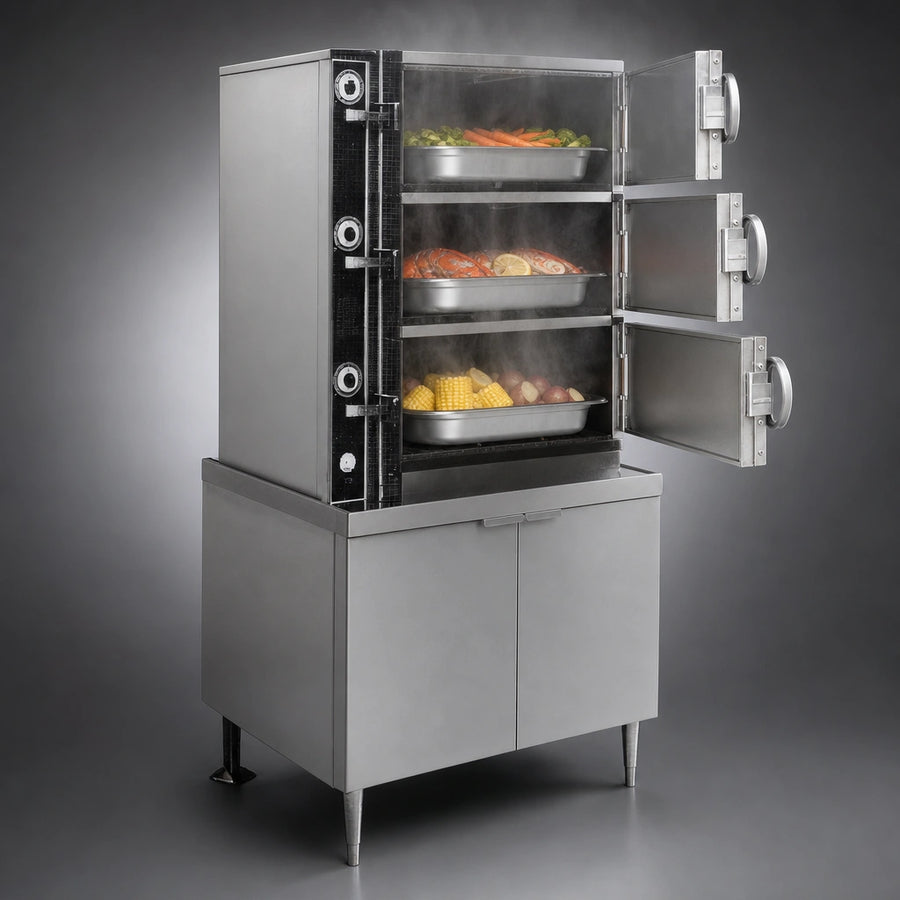

- Three separate pressure compartments, each rated at 6 psi (41 kPa) for reliable, even cooking.
- Independent 60-minute timer on every cavity with visible indicator, continuous buzzer and automatic steam shut-off/drain at cycle end.
- All-welded 304 stainless steel construction (#4 finish) resists corrosion and cleans fast.
- Heavy-duty doors swing 180°, feature wheel-and-screw closure, removable aluminum inner liner and full-perimeter gasket for a tight seal.
- Universal pan supports included; optional sliding shelves hold two full-size (1/1 GN) pans each.
- 36" cabinet base with hinged storage doors and full-perimeter angle frame for exceptional rigidity.
- (4) 6" stainless steel legs with adjustable flanged feet for secure floor mounting.
- Condensate cooling system tempers exhaust before it reaches the drain—no extra plumbing traps required.
- Factory cCSAus & NSF certifications for worry-free code compliance.
Technical Specifications
| Model | DC-3 |
|---|---|
| Compartments / Capacity | 3 compartments • 12 – 24 full-size (1/1 GN) pans total |
| Operating Pressure | 6 psi (41 kPa) per cavity — integral pressure-reducing valve supplied |
| Steam Supply | 3/4" NPT female, 15 – 50 psi (103 – 345 kPa) incoming |
| Cold-Water Connection | 3/8" O.D. tubing, 25 – 50 psi (170 – 345 kPa) |
| Drain | 2" IPS to open floor drain (no solid connection) |
| Electrical | 115 VAC, 1-Ph, 60 Hz (controls only) — 6′ cord & plug field wired |
| Overall Dimensions (W × D × H) | 36" W × 41" D × 68" H (914 × 1041 × 1727 mm) |
| Construction | All-welded 304 stainless steel cabinet & compartments |
| Certifications | cCSAus • NSF |
| Warranty | 1-year parts & labor (limited) |
Popular Factory Options (extra cost)
- 220 VAC control circuit (DBVS-1)
- Stainless steel rear panel (SSB-36) or frame (SSF-36)
- Wire shelf racks (SSR-PC) or sheet-pan supports (SPS-PC1/SPS-PC2)
- Ball float trap (BFT) for condensate management
- Spray-and-rinse assembly
- Correctional package for secure installations
Installation Note: This unit requires a direct steam source and must be installed by qualified personnel in accordance with local codes. For commercial use only.
Features & Specs
Features & Specs
Manufacturer
Crown (Middleby)
Certifications
NSF, cCSAus
Height
68.0in
Width
36.0in
Depth
33.88in
Controls
automatic controls
Compartments
3
Width (side - side)
36"
Pan Capacity per Compartment
(8) 12"x20"x2-1/2" deep
Specifications
Steamer, direct steam, pressure-type, (3) compartments, 36" cabinet base, independent automatic timer controls with visible and audible signals, automatic shut-off, 304 stainless steel construction, (4) stainless steel legs with adjustable flanged feet, cCSAus, NSF
