Crown (Middleby) DC-20 Steam Kettles

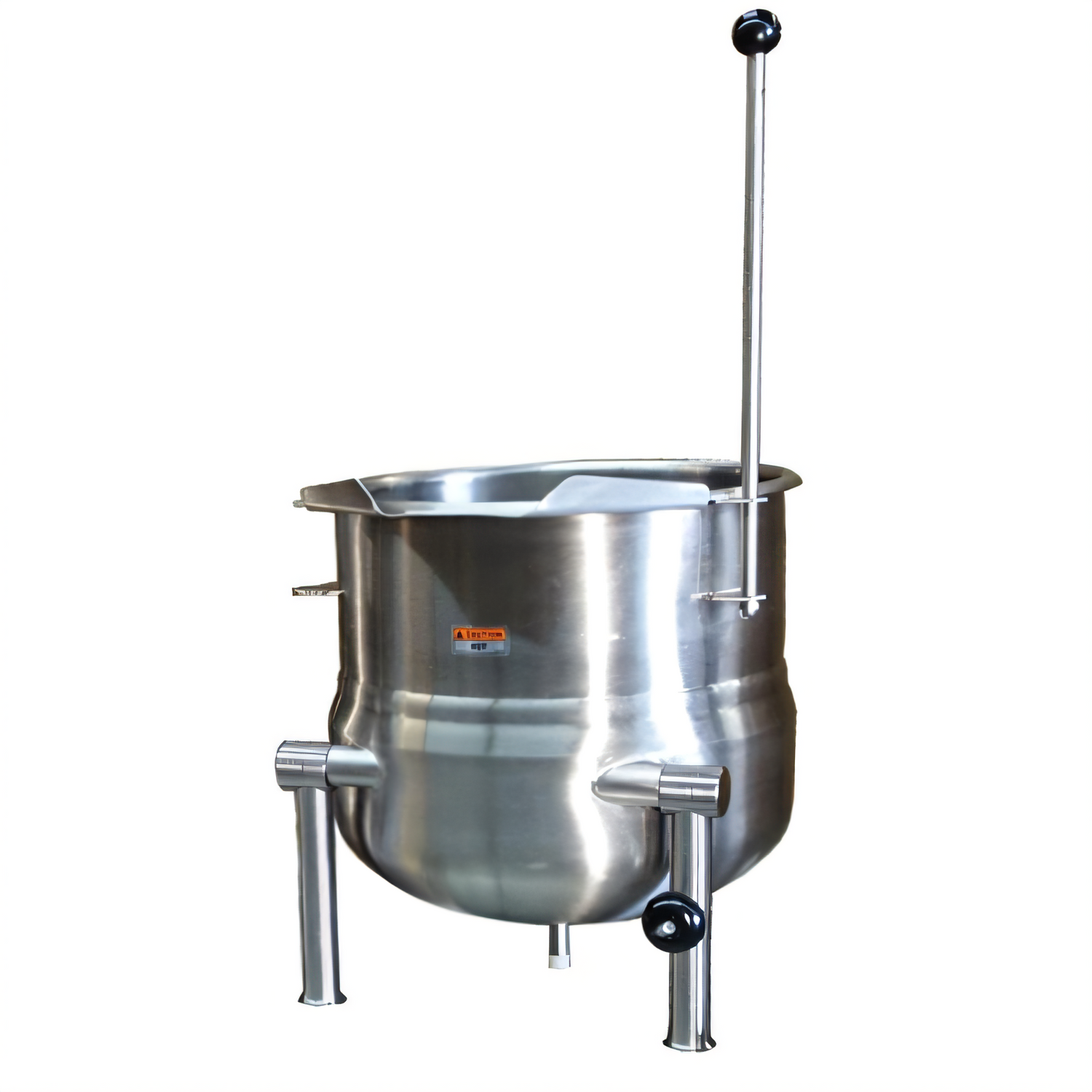

Crown DC-20 Countertop Tilting Kettle – 20 Gal / 76 L

Built for high-volume, high-acid and high-performance cooking, the Crown DC-20 delivers fast, even heating in a compact countertop footprint. A 316 stainless steel liner resists the harshest ingredients, while an all-welded 304 stainless exterior stands up to the daily demands of any commercial kitchen.

Key Performance Features

• 20 gal (76 L) capacity – ideal for stocks, sauces, soups & small-batch production

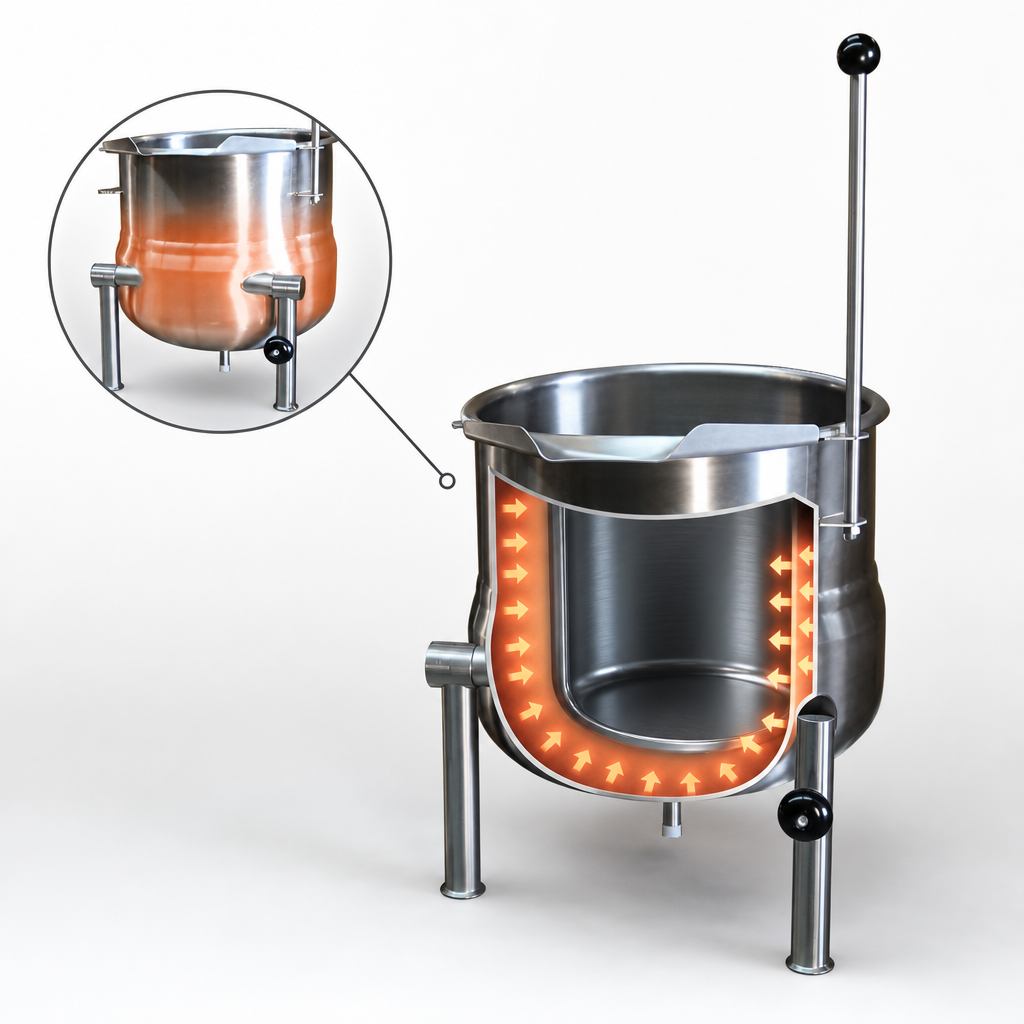

• 2/3-jacketed hemispheric kettle bottom for maximum heat transfer & faster recovery

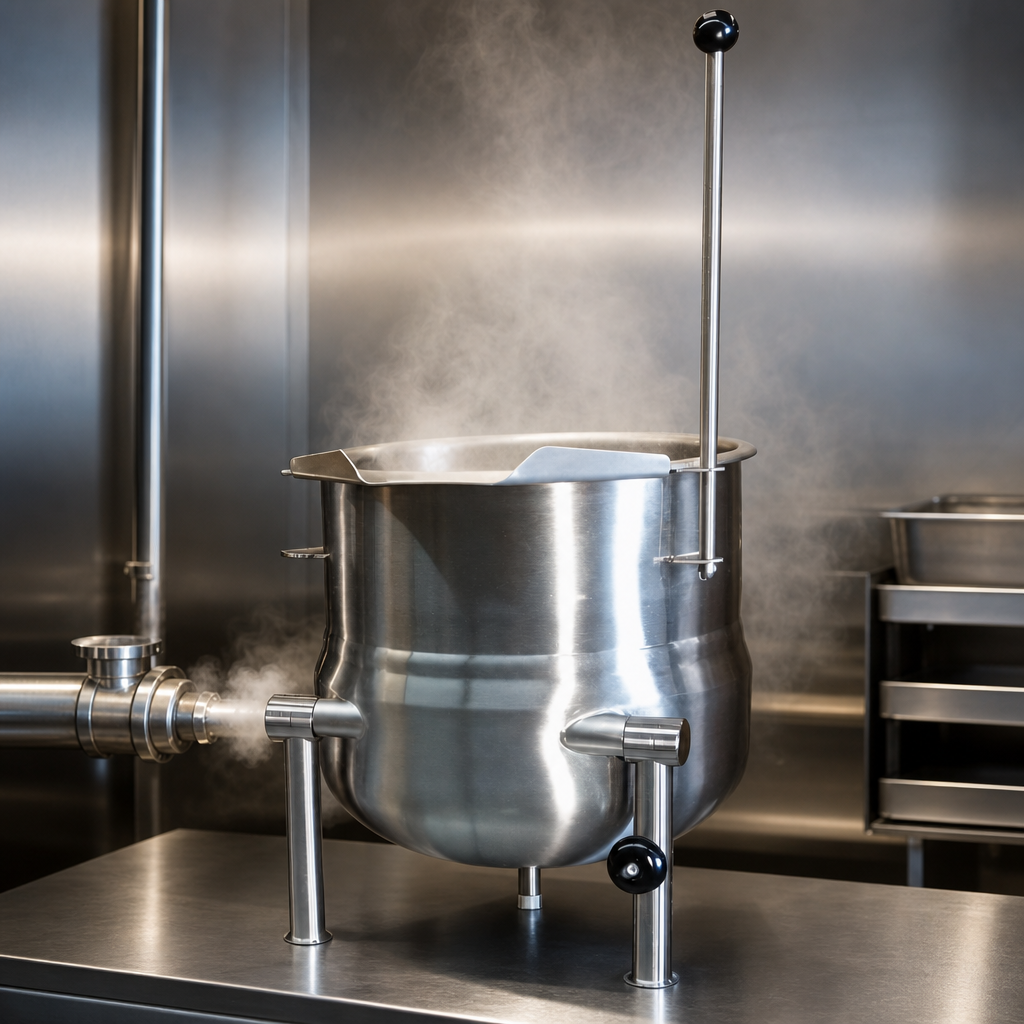

• Direct steam operation (5–45 PSI) with integrated steam control valve
• Reversible, removable tilt handle with heat-proof knob for right- or left-hand operation
• Sealed trunnion bearings allow 90°+ tilt for complete emptying & easy cleaning
• Tubular stainless mounting legs hide steam supply & condensate return lines for a clean install
• Single support leg with nylon foot adds stability without marring work surfaces
• NSF Certified, ASME code stamped & National Board registered

Technical Specifications

Popular Accessories • Add-Ons (sold separately)

• One-piece lift-off stainless steel cover (C-)
• Steamer kettle table (KT-)
• Pour-lip strainer (TKS-)
• Etched gallon (GM-) or liter (LM-) markings
• Perforated stainless basket (SSB-)
• Floor stands with sliding shelf or drain drawer (S-24 / S-30 / SD-24 / SD-30)
• Steam control assembly with trap & safety valve (STA-3)
• Pressure-reducing valve (PRV)

Industry-Leading Warranty

• 1-year parts & labor  • 10-year hemispherical kettle body warranty
