Crown (Middleby) DC-2 Pressure Steamers
Description

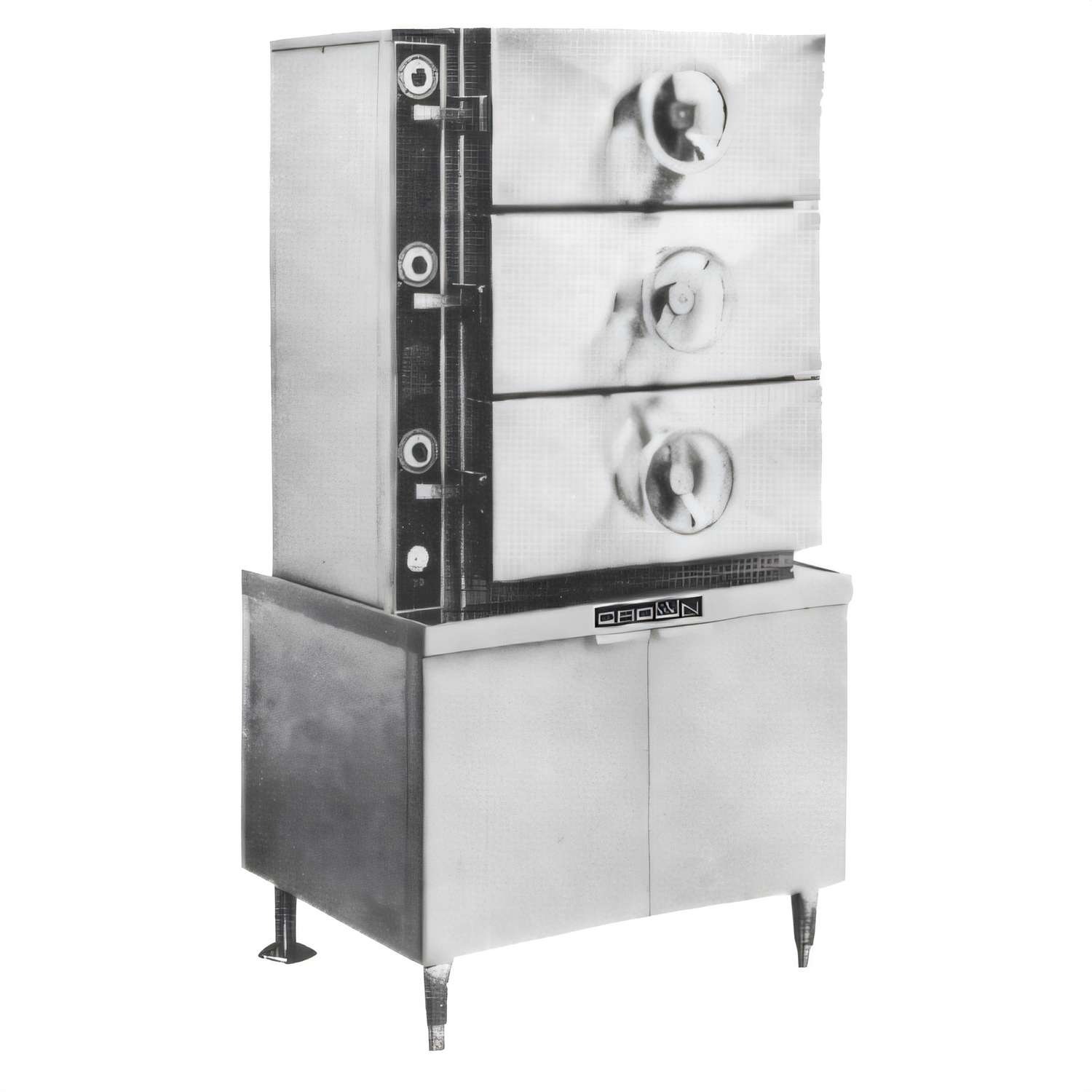

Crown DC-2 Direct Steam Compartment Cooker
2-Compartment • Pressure-Type • 36" Cabinet BaseEngineered for high-volume commercial kitchens, the Crown DC-2 delivers fast, consistent results with direct, non-toxic steam. Two independently controlled pressure compartments let you cook multiple menu items at once—each with automatic timer shut-off and an unmistakable audible signal—so your team can focus on plating, not watching the clock.
Why Choose the DC-2
- Direct steam operation (15–50 psi inlet) for rapid heat transfer and shorter cook times.
- Two independently timed compartments—set different cook cycles simultaneously.
- Automatic shut-off, steam exhaust & condensate drain at end of cycle for safer operation.
- Highly durable 304 stainless-steel cabinet, doors and frame with #4 polished finish.
- Wheel-and-screw door mechanism with full-perimeter gasket seals in heat up to 6 psi (41 kPa).
- Universal pan supports included; each optional slide holds two full-size (1/1 GN) pans.
- 36" cabinet base with lockable double doors offers convenient utensil or pan storage.
- Four 6" stainless-steel legs with adjustable flanged feet—bolt down for rock-solid stability.
- cCSAus & NSF listed to meet all applicable safety and sanitation codes.
Compartment Capacity
| Compartments | 2 |
|---|---|
| Full-Size Pans (1/1 GN) | 8 – 16 total |
| Maximum Operating Pressure | 6 psi (41 kPa) per compartment |
Utility Connections
| Steam Supply | 3/4" NPT female, 15–50 psi (103–345 kPa)
Pressure-reducing valve required above 50 psi. |
|---|---|
| Cold Water | 3/8" O.D. tubing, 25–50 psi (170–345 kPa) |
| Condensate Drain | 2" IPS piped to open floor drain (no solid connection) |
| Electrical | 115 VAC, 1-phase, 60 Hz (control circuit) |
Dimensions & Construction
| Width | 36" (914 mm) |
|---|---|
| Depth | 41" (1041 mm) overall |
| Height | 68" (1727 mm) to top of 2nd compartment |
| Door Opening | 10-1/4" × 26-3/8" (260 × 670 mm) |
| Net Weight | Approx. 600 lb (272 kg) |
| Material | All-welded 304 stainless steel, #4 finish |
Factory Options & Accessories
- 220 VAC control circuit
- Stainless-steel rear or frame panels
- Wire shelf racks or sheet-pan supports
- Spray-&-rinse assembly
- Ball-float steam trap
- Correctional package
Warranty & Certifications
- 1-year parts & labor warranty (factory authorized service required).
- NSF certified for sanitation.
- cCSAus certified for gas & electrical safety.
Intended for commercial use only. Water quality must meet manufacturer specifications—excess mineral content can void warranty.
