Crown (Middleby) CG-330 Steamers (Countertop & Floor)
Description

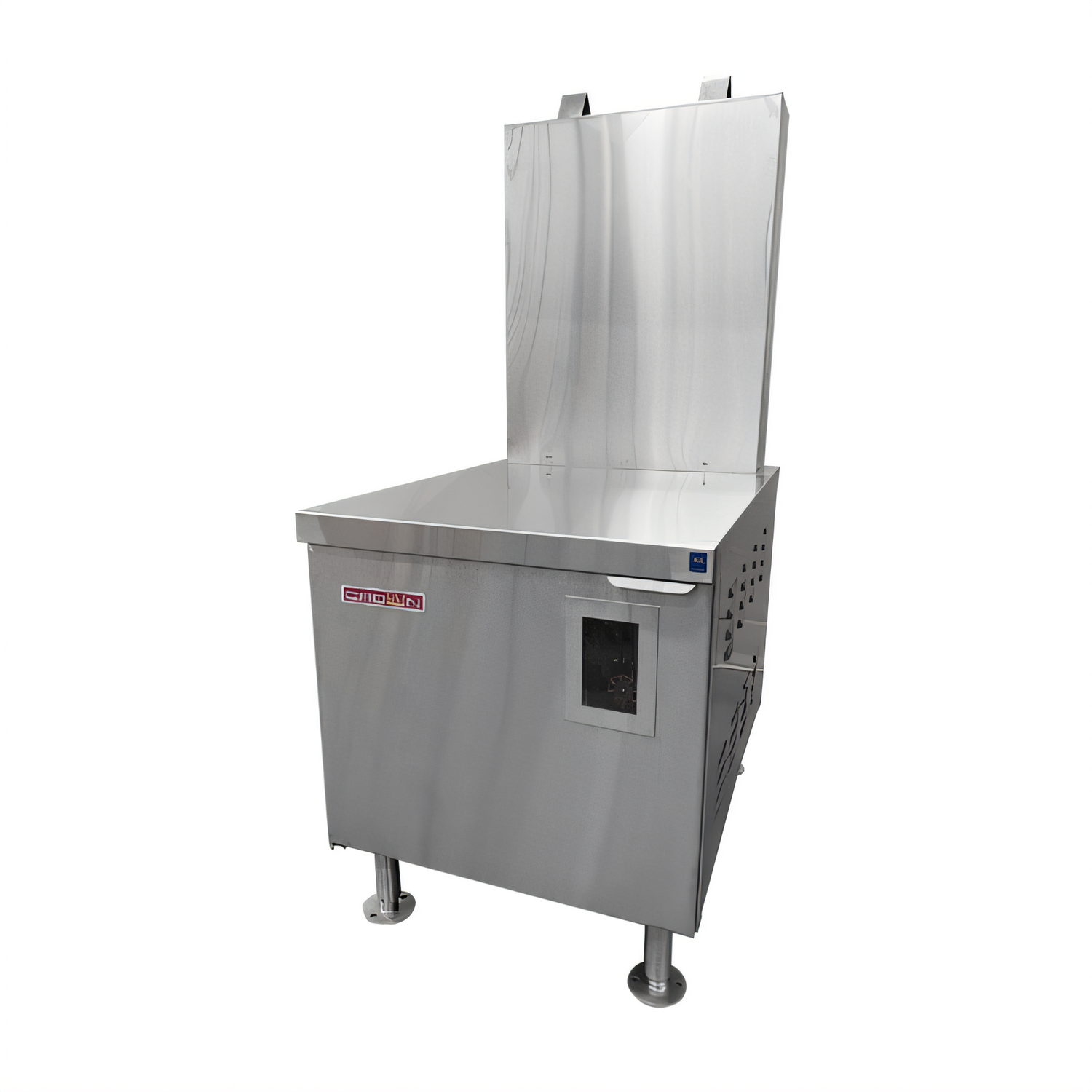

Crown CG-330 Gas Steam Generator – 36" Cabinet Base
300 000 BTU | 5-15 psi | CSA Star • CSA Flame • NSFEngineered for the toughest production schedules, the Crown CG-330 delivers a continuous, high-volume supply of clean, dry steam from a compact 36-inch stainless-steel cabinet. Electronic ignition, CSD-1 compliant controls and an included water treatment system simplify daily operation while protecting your investment for years to come.
Why the CG-330?
- 300 000 BTU/h steam output – ample capacity for multiple kettles, steamers or proofers.
- 5–15 psi operating range meets the needs of most commercial food-service equipment.

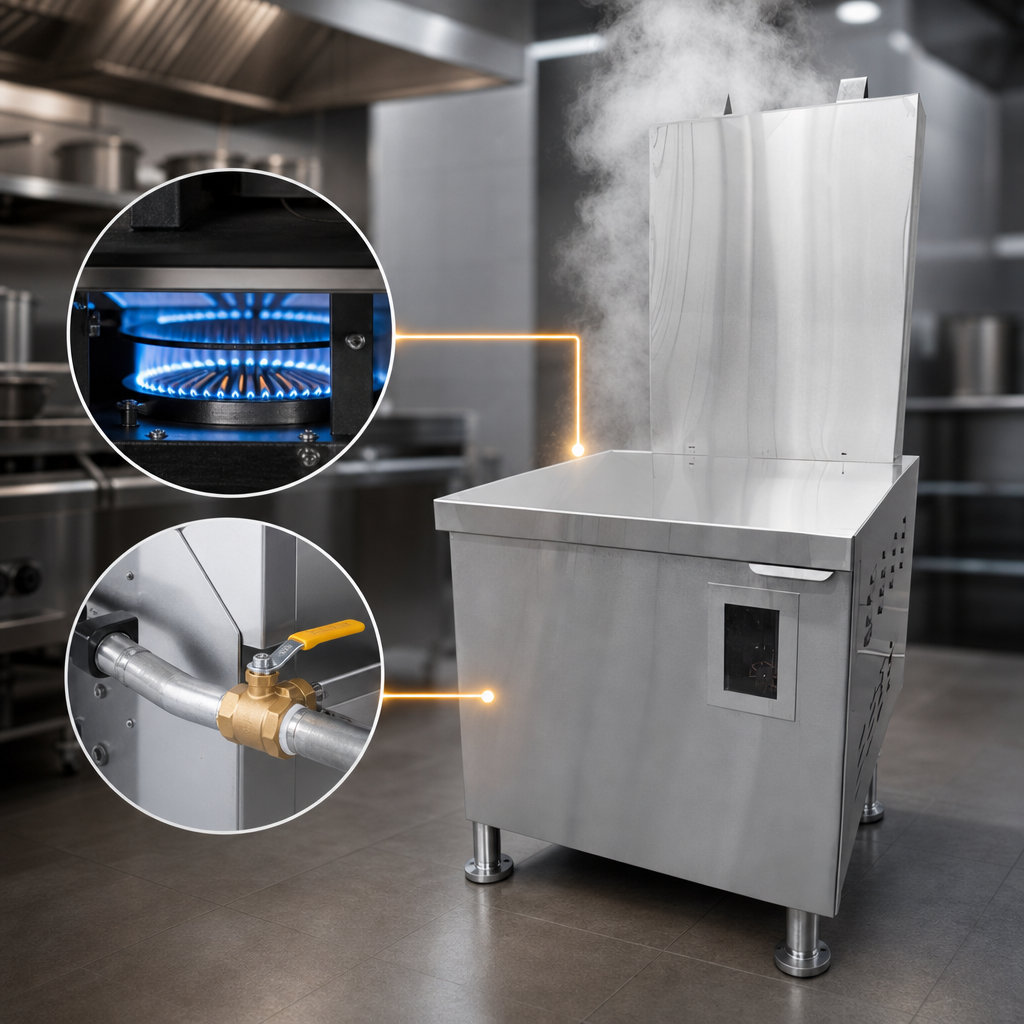

- Electronic ignition – no standing pilot for faster start-up and lower gas consumption.
- Full CSD-1 boiler control package with electronic low-water cutoff for maximum safety.
- Automatic boiler blow-down and split-water-line design reduce scale & foaming.
- Factory-installed water filter system protects the boiler and preserves warranty coverage.
- Integrated ¾" steam take-off kit powers adjacent steam equipment without an external boiler.
- Reinforced #4-finish countertop provides a sturdy mounting surface for countertop units.

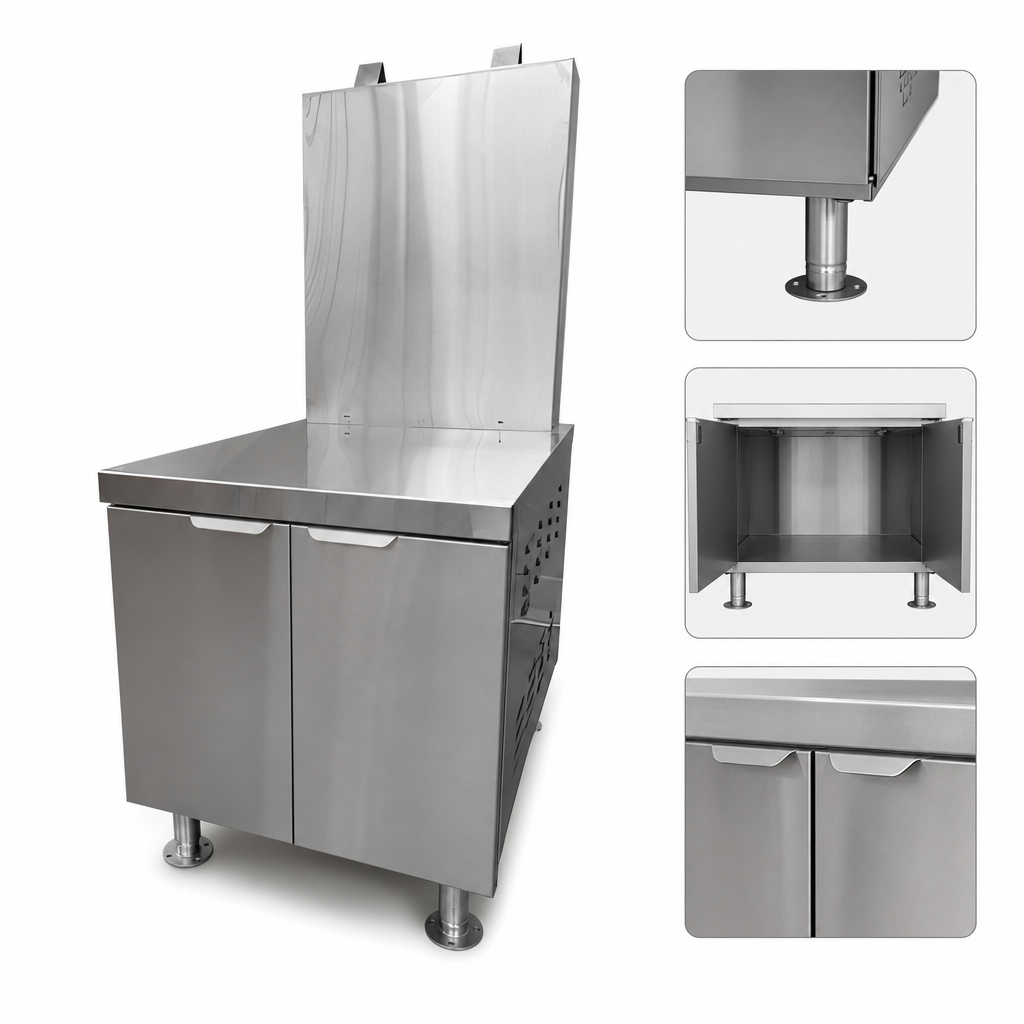

- Two lockable stainless doors keep controls out of sight; magnetic latches speed access.
- Four 6" stainless legs with adjustable flanged feet ensure a level, permanently anchored install.
Specifications at a Glance
| Model | CG-330 |
|---|---|
| Cabinet width | 36 in │ 914 mm |
| Heat input | 300 000 BTU/h (Natural or LP) 15 psi ASME design pressure |
| Operating pressure | Selectable 5-15 psi (34-103 kPa) |
| Gas connection | ¾" NPT • NG 7" W.C. │ LP 11" W.C. |
| Cold-water connection | ⅜" O.D. tubing at 25-50 psi (170-345 kPa) |
| Drain connection | 2" IPS to open floor drain (open gap required) |
| Electrical | 115 V / 60 Hz / 1-ph (control circuit) |
| Boiler safeguards | Primary & secondary pressure controls, high-limit, safety relief valve, water gauge glass, pressure gauge, electronic LWCO |
| Certifications | CSA-Star, CSA-Flame, NSF (commercial food-service) |
Warranty coverage requires incoming water quality of ≤60 ppm TDS, pH 6.8-7.3. The supplied Crown water treatment cartridge must be installed and maintained according to the manufacturer’s schedule.
Utility & Clearance Requirements
- Install on a non-combustible floor with 3" side and 6" rear clearance.
- Provide make-up air equal to any mechanical exhaust in the room.
- Anchor the flanged feet to the floor for CSD-1 compliance.
- Maintain access to left & right side panels for service.
