Crown (Middleby)  |  SKU: CG-325

Crown (Middleby) CG-325 Steamers (Countertop & Floor)

$24,334.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Installation & operation manual - 10042 Installation & operation Parts list Crown steam group letter Middleby financial flyer Warranty sheet
Related Searches
Steam Cooking Equipment Steamers (Countertop & Floor)

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

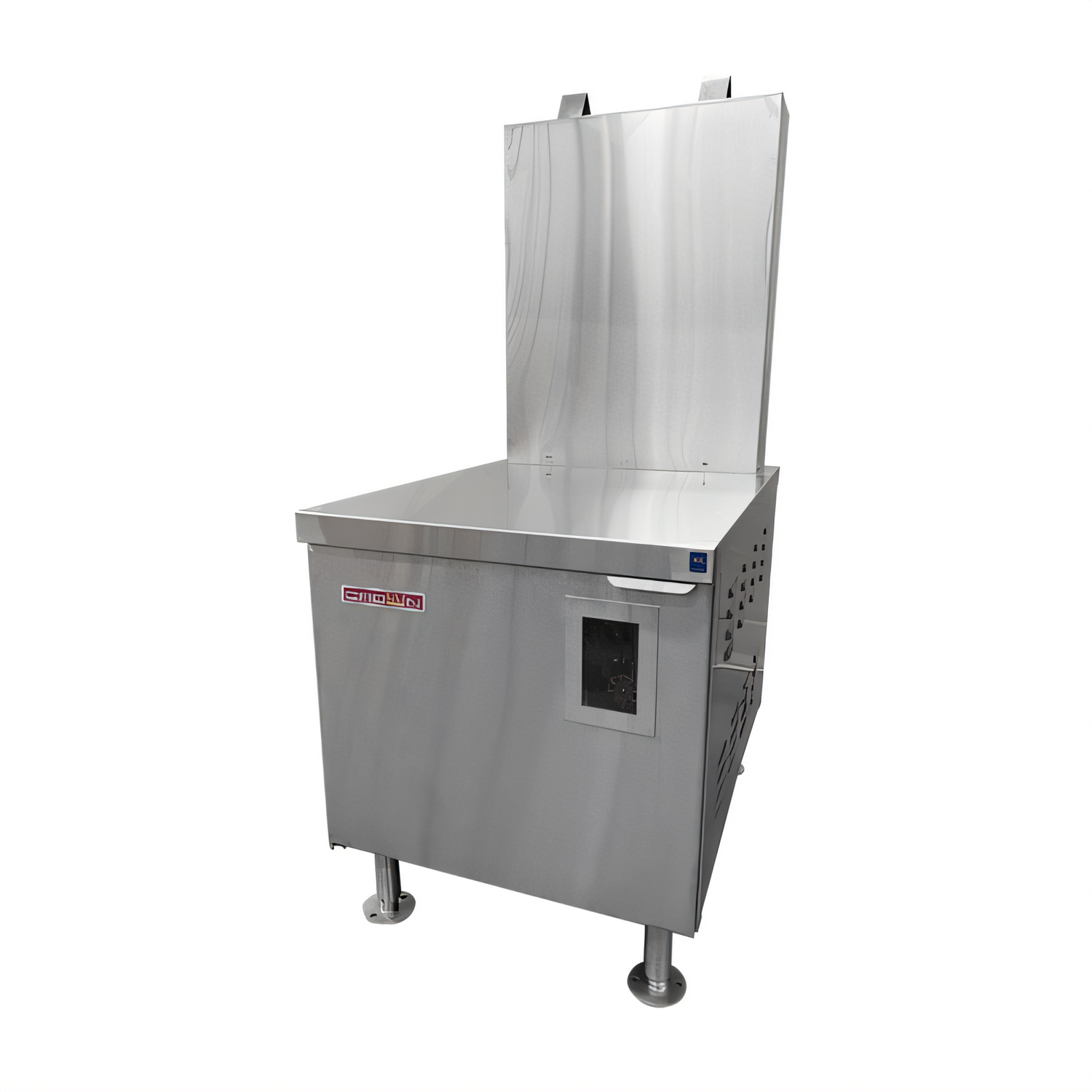

Crown CG-325 Gas Steam Generator — 250,000 BTU

36" stainless cabinet base • electronic ignition • CSD-1 safety controls

Engineered for busy commercial kitchens, the Crown CG-325 delivers a dependable 250,000 BTU of low-pressure steam from a compact 36" freestanding cabinet. Automatic water management, integral water treatment and full stainless construction keep your operation running smoothly shift after shift.

Key performance & safety features

  • 5–15 psi operating range — ideal for kettles, steamers, pasta cookers and sanitizing tasks.
  • Electronic ignition with CSD-1 compliant circuitry for fast, reliable start-ups.
  • Factory-installed water treatment system helps prevent scale, corrosion and unwanted downtime.
  • Automatic boiler blow-down, split water line and high-limit safeguards extend boiler life.
  • Pressure gauge, water gauge glass, primary & secondary pressure controls plus safety relief valve.
  • Reinforced #4-finish stainless countertop supports extra equipment without flexing.
  • Two hinged doors with magnetic latches keep all piping and components neatly inside the cabinet.

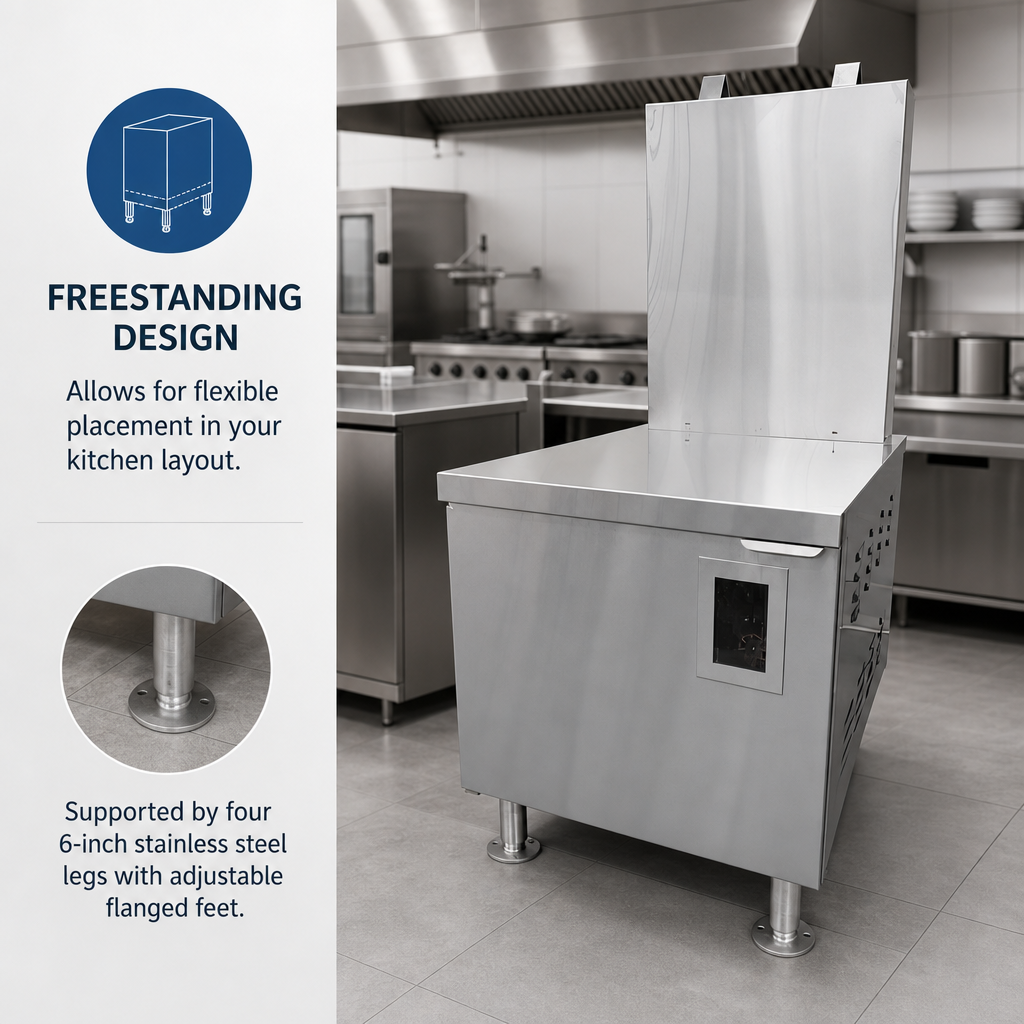

  • Four 6" stainless legs with adjustable, flanged feet for easy leveling and floor-anchoring.
  • ¾" NPT steam take-off kit included — power additional steam equipment from the same source.

At-a-glance specifications

Model CG-325
Steam output Low pressure, 5–15 psi (34–103 kPa)
Heat input 250,000 BTU/hr
Fuel Natural or LP gas (field specified)
¾" NPT line — Nat 7" W.C. / LP 11" W.C. minimum
Cabinet width 36" (914 mm)
Exterior Stainless steel, #4 polish finish
Water inlet 3/8" OD cold water, 25–50 psi (170–345 kPa)
Drain 2" IPS to open floor drain (air gap required)
Electrical 115 V, 60 Hz, 1 Phase, 15 A
Controls & gauges Auto water-level, pressure gauge, water glass, dual pressure controls, safety relief valve
Certifications CSA-Star • CSA-Flame • NSF
Warranty 1-year parts & labor (see water quality requirements)

What’s in the box

  • Water filter cartridge & head (factory-matched)
  • Steam take-off isolation valve
  • Automatic blow-down valve
  • Installation, operation & parts manuals
Water quality matters: For full warranty coverage, incoming water must meet Crown’s standards (TDS < 60 ppm, alkalinity < 20 ppm, chlorine < 1.5 ppm, silica < 13 ppm, pH 6.8–7.3). Purge 2-3 gal through the filter after every cartridge change.

Commercial use only — not for household installation. Always verify local gas, electrical and venting codes before installing.

Features & Specs

Manufacturer

Crown (Middleby)

Certifications

NSF, CSA

Height

55.0in

Width

36.0in

Depth

33.0in

Power

250 MBTU

Base

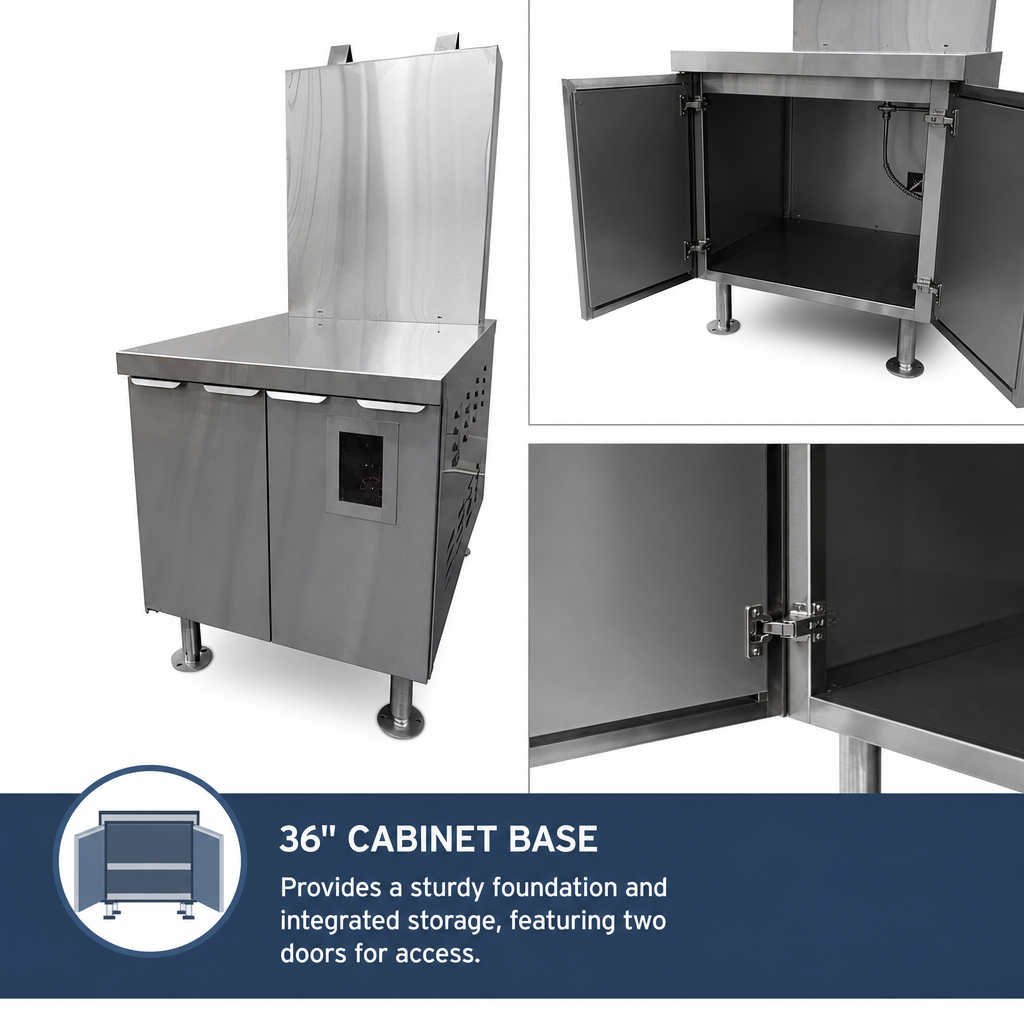

36" Cabinet

Specifications

Steam Generator, gas, 36" cabinet base, freestanding design, electronic ignition, CSD-1 controls, includes water filter system, automatic water level control, pressure gauge, water gauge glass, pressure control with secondary safety pressure control, safety relief valve, split water line, automatic boiler blow-down, steam take off kit, reinforced countertop, (2) doors, stainless steel exterior finish, (4) 6" stainless steel legs with adjustable flanged feet, 5-15 psi, 250,000 BTU, CSA-Star, CSA-Flame, NSF
