Crown (Middleby)

Crown CG-220 Gas Steam Generator with 24" Cabinet Base

SKU: CG-220
$20,776.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Cooking Equipment Cooking Equipment Crown (Middleby) New Arrivals Restaurant Equipment Steam Cooking Equipment Steam Cooking Equipment Steam Generator Steamers (Countertop & Floor)

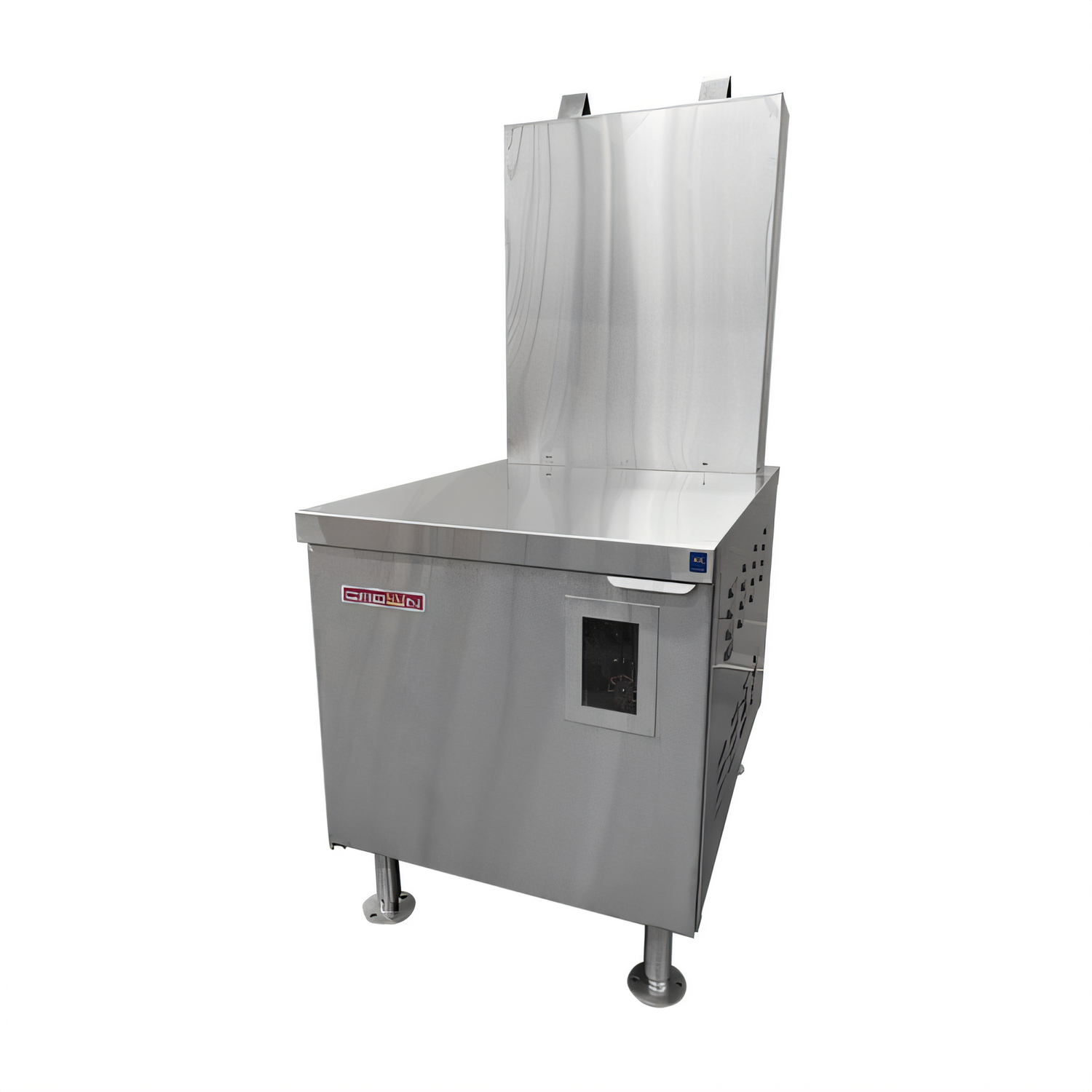

Crown CG-220 Gas Steam Generator with 24" Cabinet Base

Freestanding, 200,000 BTU, Natural Gas

Designed for demanding commercial kitchens, the Crown CG-220 delivers reliable steam generation with advanced controls and robust construction.

  • Efficient 200,000 BTU gas-fired steam generator ensures quick and consistent steam production.
  • Integrated 24-inch cabinet base provides a freestanding design and sturdy foundation.
  • Equipped with CSD-1 controls and electronic ignition for safe and precise operation.
  • Features an automatic water level control and blow-down system for easy maintenance and longevity.
  • Durable stainless steel exterior and reinforced countertop withstand rigorous commercial use.

Overall Dimensions:

24.0"W x 33.0"D x 55.0"H

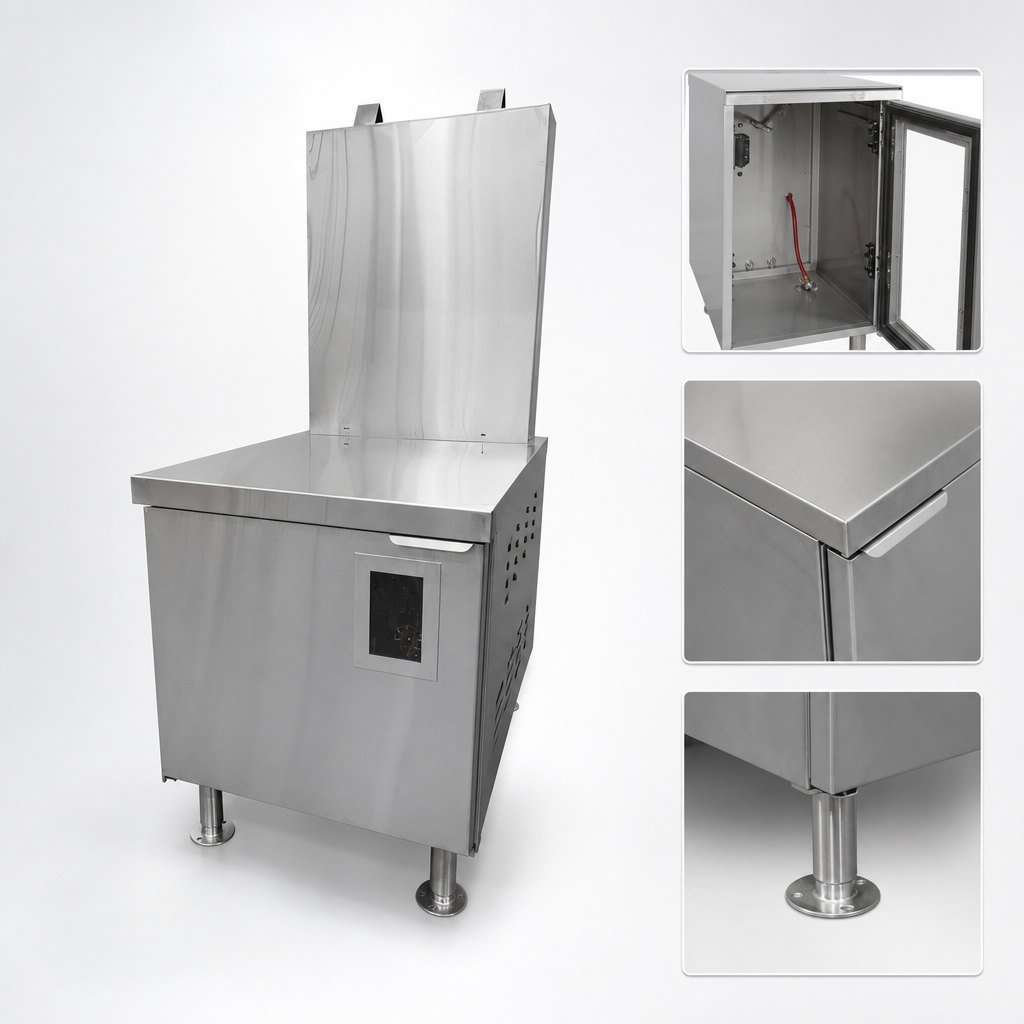

Cabinet Base Design

24-inch cabinet base with a single door for a freestanding design.

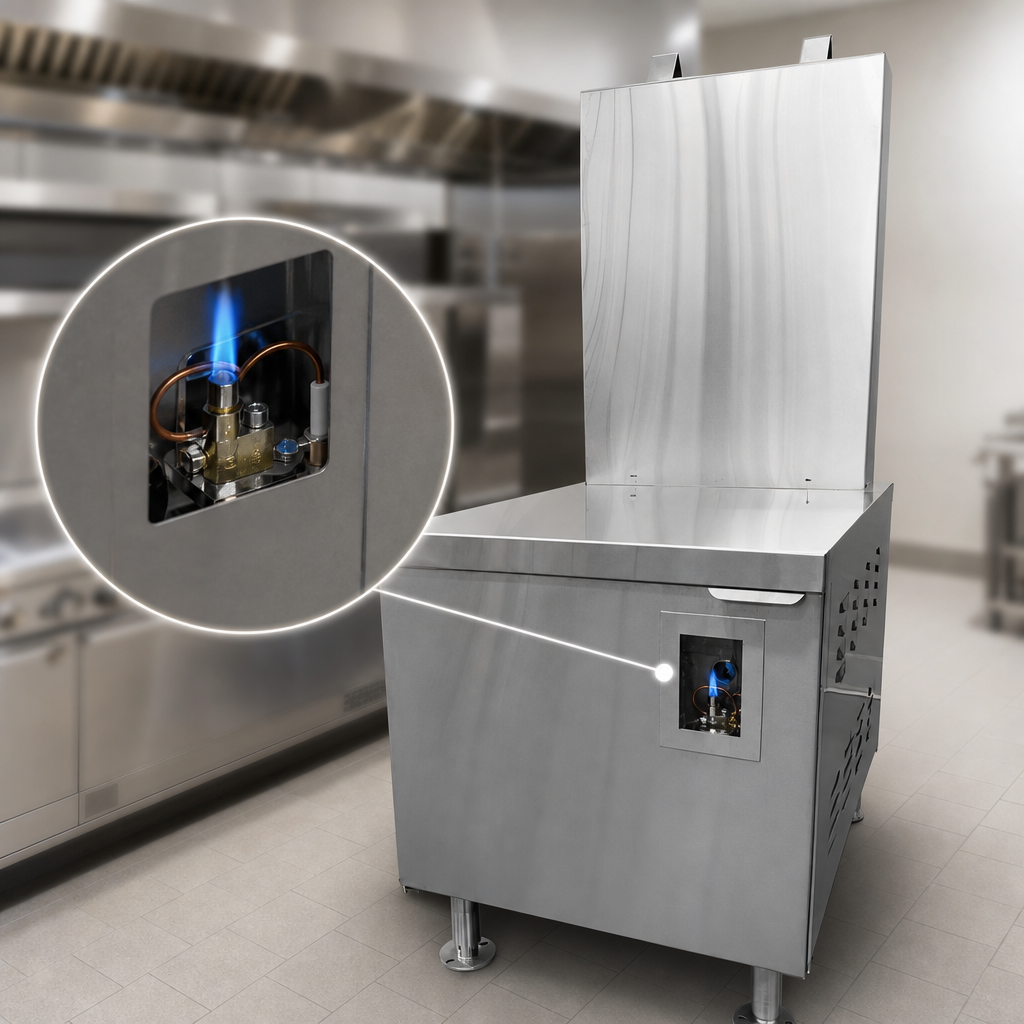

Electronic Ignition

Provides reliable and safe startup for the gas boiler.

CSD-1 Controls

Advanced control system for enhanced safety and operational management.

Water Filter System

Includes a water filter system to ensure clean water for steam generation.

Automatic Water Level Control

Automatically maintains the correct water level in the boiler for continuous operation.

Pressure Gauge

Allows for clear monitoring of internal pressure.

Water Gauge Glass

Provides a visual indication of the water level within the boiler.

Pressure Control with Secondary Safety

Features primary pressure control along with a secondary safety pressure control for added operational security.

Safety Relief Valve

Ensures safe operation by releasing excess pressure.

Split Water Line

Optimized water line design for efficient operation.

Automatic Boiler Blow-Down

Automates the process of draining boiler water to remove sediment and maintain efficiency.

Steam Take Off Kit

Included kit for convenient steam connection.

Reinforced Countertop

Provides a durable and strong work surface on top of the cabinet.

Stainless Steel Exterior Finish

Robust and easy-to-clean stainless steel construction for hygiene and longevity.

Adjustable Legs

Equipped with four 6-inch stainless steel legs with adjustable flanged feet for leveling and stability.

Type Steam Generator
Style Freestanding
Installation Type Floor Model (With Cabinet Base)
Base Type 24 Inch Cabinet
BTU 200,000 BTU
Gas Type Natural Gas
Gas Inlet Pressure 5-15 psi
Controls CSD-1 Controls
Material Stainless Steel
Shipping Width 24 Inches
Shipping Depth 33 Inches
Shipping Height 55 Inches
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Documents

PDF Cutsheet PDF Download PDF Middleby financial flyer PDF Download PDF Installation & operation manual - 10042 PDF Download PDF Installation & operation PDF Download PDF Parts list PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The Crown CG-220 is a gas-fired steam generator, designed for use with Natural Gas, providing 200,000 BTU for efficient steam production.
CSD-1 (Controls and Safety Devices for Automatically Fired Boilers) controls are a set of standards and devices designed to ensure the safe and reliable operation of automatically fired boilers, including features like safety pressure controls and automatic water level management.
Yes, the Crown CG-220 includes an integrated water filter system as part of its standard features to help maintain water quality for steam generation.
Yes, the CG-220 features a 24-inch cabinet base and 6-inch stainless steel legs with adjustable flanged feet, making it suitable for freestanding floor model installation.
The automatic boiler blow-down feature regularly purges a portion of the boiler water to remove accumulated dissolved solids and sediment, which helps maintain boiler efficiency and extend its lifespan.
