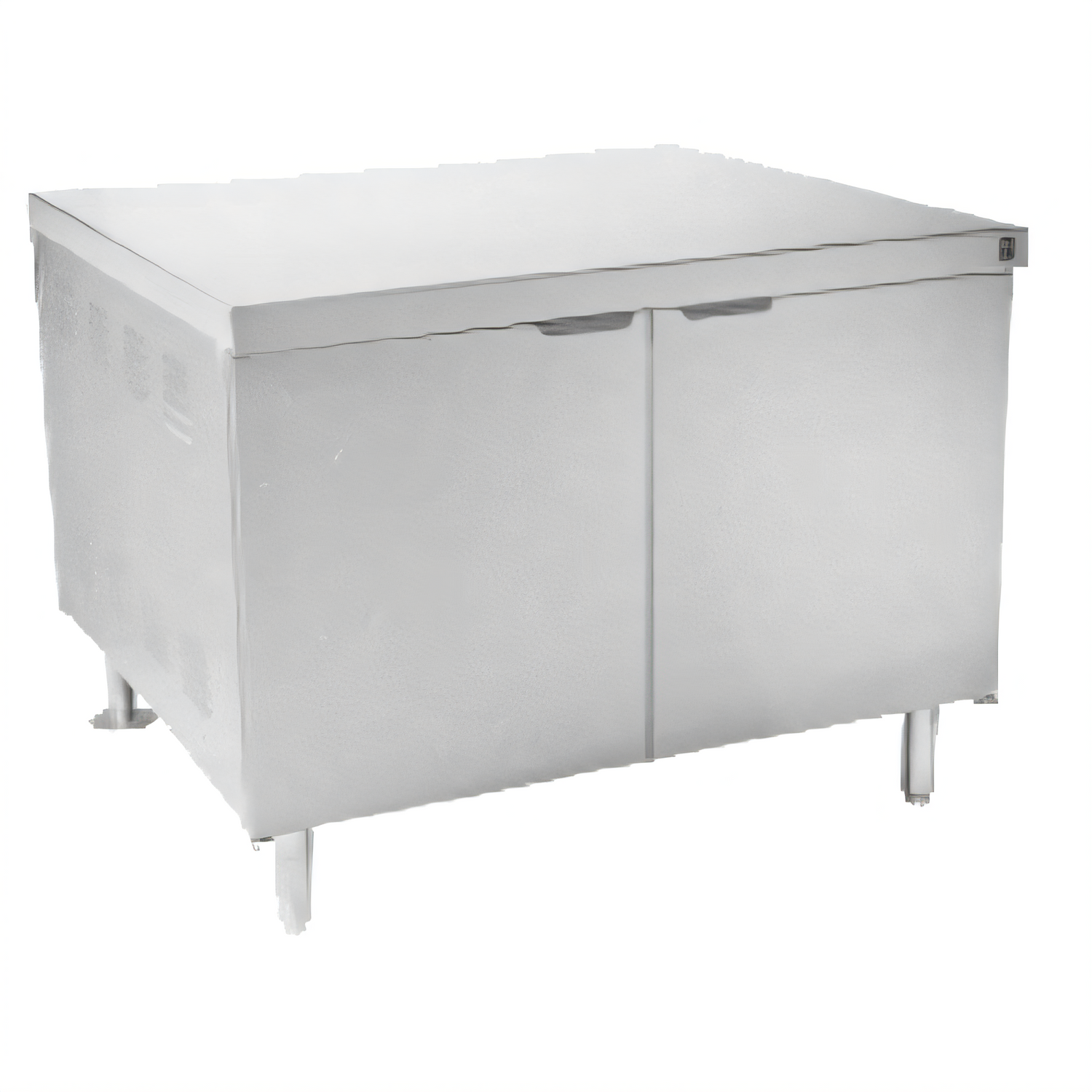

Crown CE-48 Electric Steam Generator with 24" Cabinet Base, 48kW

Freestanding, 3-Phase, CSD-1 Controls

Power your steam cooking equipment with the Crown CE-48 electric steam generator, featuring a robust 48kW output and advanced CSD-1 controls for reliable performance.

  • Generates up to 148 lbs of steam per hour with 48 kW of electric power, suitable for commercial kitchens.
  • Equipped with comprehensive CSD-1 controls for enhanced safety and operational management.
  • Features an automatic blowdown system and a water filter for extended boiler life and reduced maintenance.
  • Constructed with a durable stainless steel exterior and reinforced countertop for heavy-duty use.
  • Designed as a freestanding unit with a 24-inch cabinet base and adjustable 6-inch legs for stable placement and easy leveling.

CSD-1 Controls

Integrated with comprehensive CSD-1 controls for safe and compliant operation, including high temperature, high pressure, and low water safety lockout circuits.

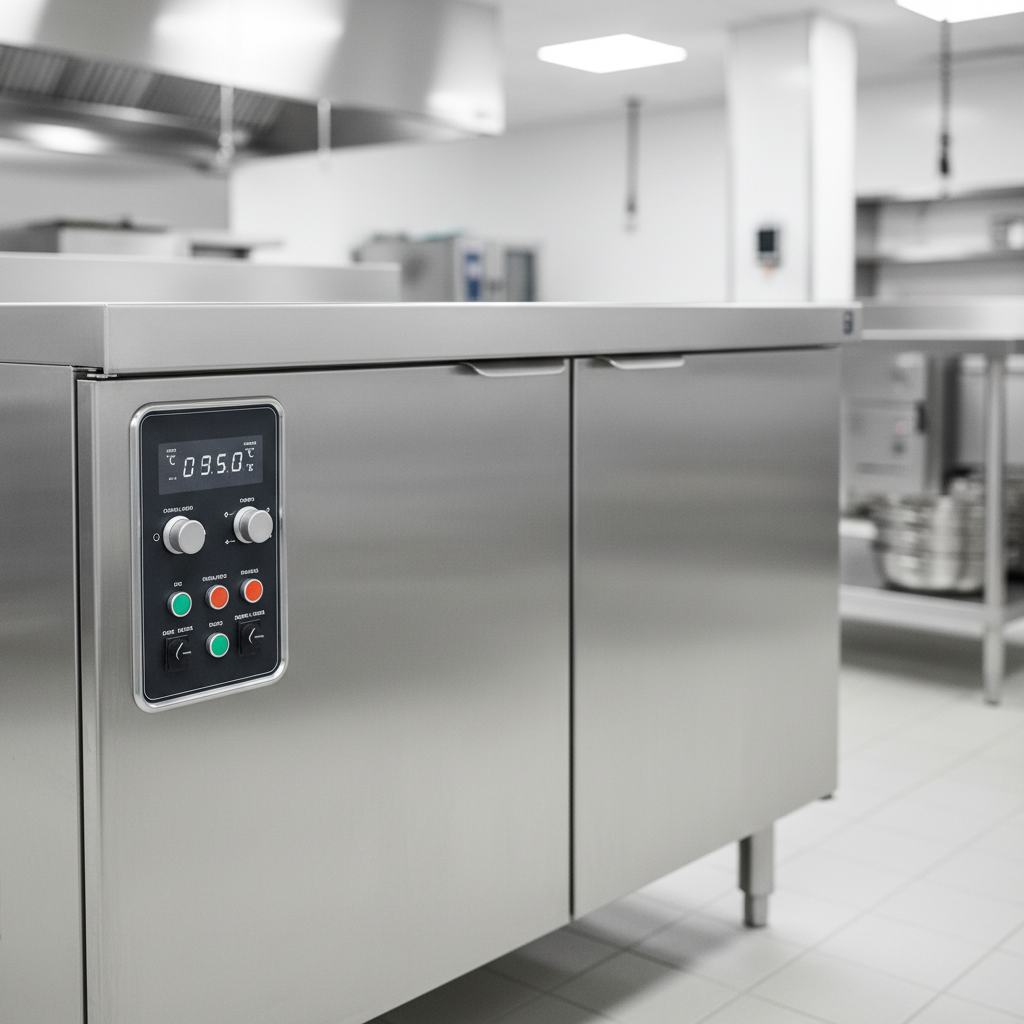

View the steam generator's integrated control panel, engineered for comprehensive and compliant operational safety.

Automatic Blowdown System

Automatically drains the boiler when powered off to remove sediment, lime, or scale, promoting efficiency and extending the life of the heating elements.

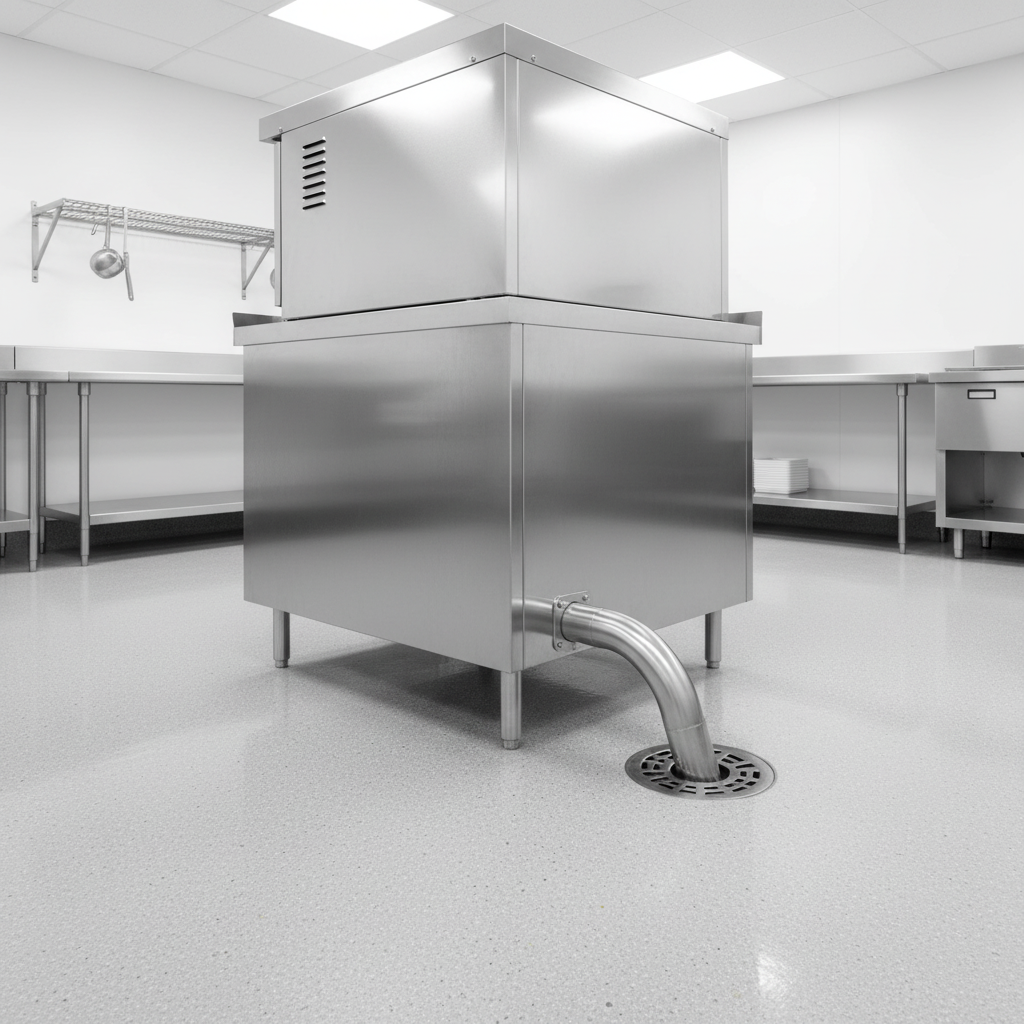

This image highlights the Crown CE-48 Electric Steam Generator's automatic blowdown system, ensuring a clean boiler and extended heating element life through efficient sediment removal.

Integrated Water Filter System

Includes a water filter system and utilizes a split water line connection for optimal water quality, which is crucial for boiler performance and warranty coverage.

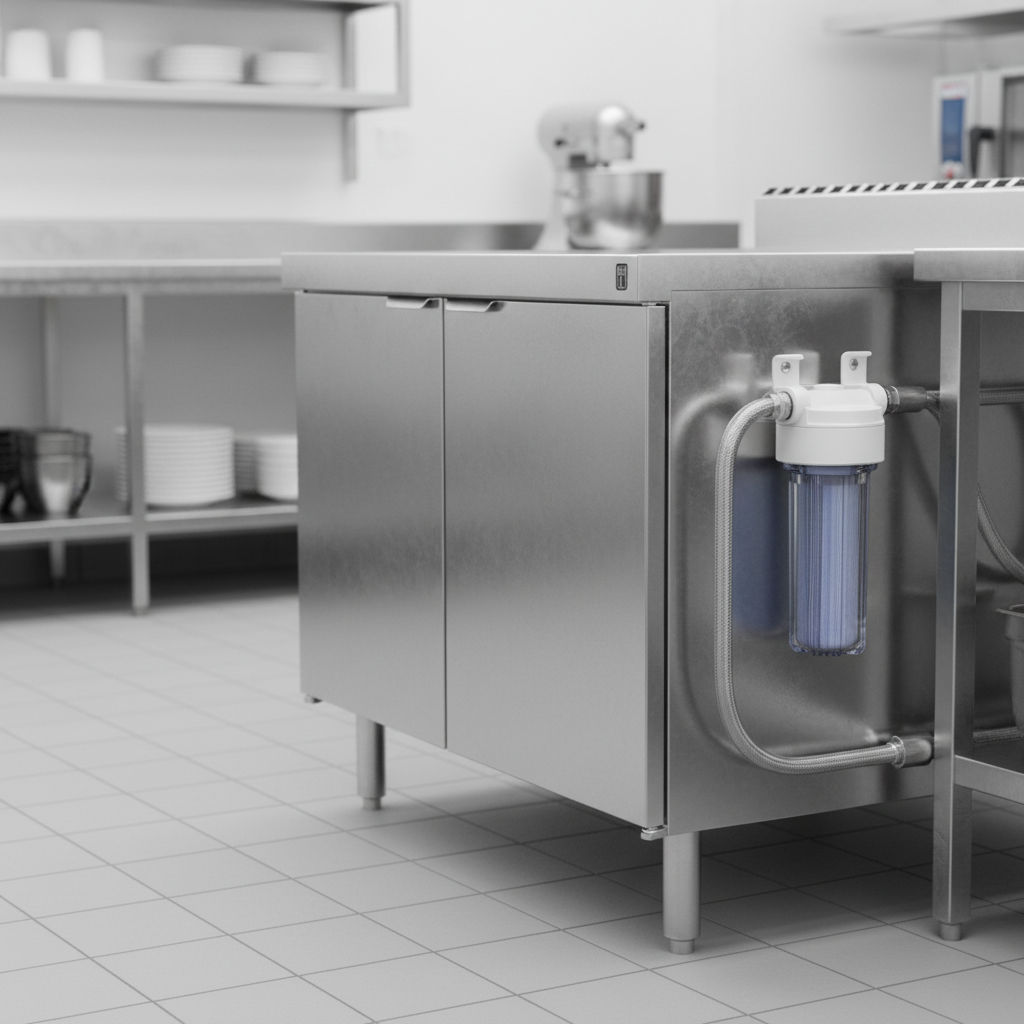

This image showcases the steam generator's integrated water filter system and robust split water line connection, ensuring optimal water quality and boiler performance.

Automatic Water Level Control

Ensures consistent water levels in the boiler for continuous and efficient steam generation, preventing low water conditions.

Clear Boiler Monitoring

Features a boiler pressure gauge, indicating an operating pressure range of 9-11 psi, and a water level sight glass for easy observation of boiler status and water quality.

Safety Relief Valve

Automatically releases pressure if the boiler exceeds a safe operating limit of 15 psi, ensuring operator safety and preventing damage to the unit.

Steam Take-Off Kit

Provides a 3/4" IPS connection point to operate adjacent steam cooking equipment, making it a versatile central steam source.

Durable Cabinet Base

Built with a sturdy 24-inch stainless steel cabinet base, reinforced countertop, and two access doors, offering durability and convenient access for service and maintenance.

Adjustable Flanged Feet

Supported by four 6-inch stainless steel legs with adjustable flanged feet, allowing for precise leveling and stable installation on various floor surfaces.

Specifications

Type Electric Steam Generator
Style Cabinet Base
Installation Type Floor Model
Material Stainless Steel
Finish Stainless Steel
Watts 48 kW
Phase 3-Phase
Voltage 240 Volts
Amps 115.5 Amps
Hertz 60 Hz
Capacity 148 lbs/hr
Controls CSD-1
Steam Pressure 9-11 psi
Water Inlet Size 3/8" O.D. Tubing
Drain Connection Size 2" IPS
Water Connection Required
Drain Connection Required
Steam Take-Off Connection 3/4" IPS
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 24 Inches
Shipping Depth 33 Inches
Shipping Height 28 Inches
Shipping Weight 350 lbs.

Overall Dimensions:

24.0"W x 33.0"D x 28.0"H

Product Weight:

350.0 lb
Manufacturer Crown (Middleby)
Certifications ["NSF", "cCSAus"]
Height 28.0in
Width 24.0in
Depth 33.0in
Shipping Weight 350.0lbs
Base 24" Cabinet
Wattage 48 kilowatts
Specifications Steam Generator, electric, 24" cabinet base, freestanding design, CSD-1 controls, automatic blowdown, split water line, includes water filter system, automatic water level control, pressure gauge, water gauge glass, pressure control with secondary safety pressure control, safety relief valve, steam take off kit, reinforced countertop, (2) doors, stainless steel exterior finish, (4) 6" stainless steel legs with adjustable flanged feet, 9-11 psi, 48kW, cCSAus, NSF

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

Warranty coverage is dependent on proper installation and maintenance, with exclusions for poor water quality.

Documents

PDF Cutsheet PDF Download PDF Installation & operation PDF Download PDF Crown steam group letter PDF Download PDF Parts list PDF Download PDF Middleby financial flyer PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

For optimal performance and warranty coverage, the water supply should have less than 60 PPM total dissolved solids, less than 20 PPM total alkalinity, less than 13 PPM silica, less than 1.5 PPM chlorine, and a pH factor between 6.8 and 7.3. Water not meeting these standards should be treated with a suitable water treatment system.
The boiler water level control must be flushed daily by rotating the blowdown valve counterclockwise about 1/4 turn to fully open it for approximately 15 seconds. This removes accumulated sediment and ensures proper float operation. Always observe the water level and boiler pressure during this process.
The CSD-1 controls provide enhanced safety features, including automatic shutdown and lockout conditions for high temperature, high pressure, and low water levels. These controls ensure the boiler operates within safe parameters and prevent potential damage or injury.
If the safety relief valve opens, it indicates that the boiler pressure has exceeded its limit. While the valve functions as a safety measure, it suggests a potential issue with the pressure switch requiring adjustment or replacement. Discontinue use immediately and contact a qualified service technician.
It is recommended that the boiler be checked every 90 to 120 days for scale build-up. Regular descaling is crucial for maintaining efficiency and extending the life of the heating elements.
