Crown (Middleby)  |  SKU: CE-42

Crown (Middleby) CE-42 Steamers (Countertop & Floor)

$23,927.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options

Documents

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

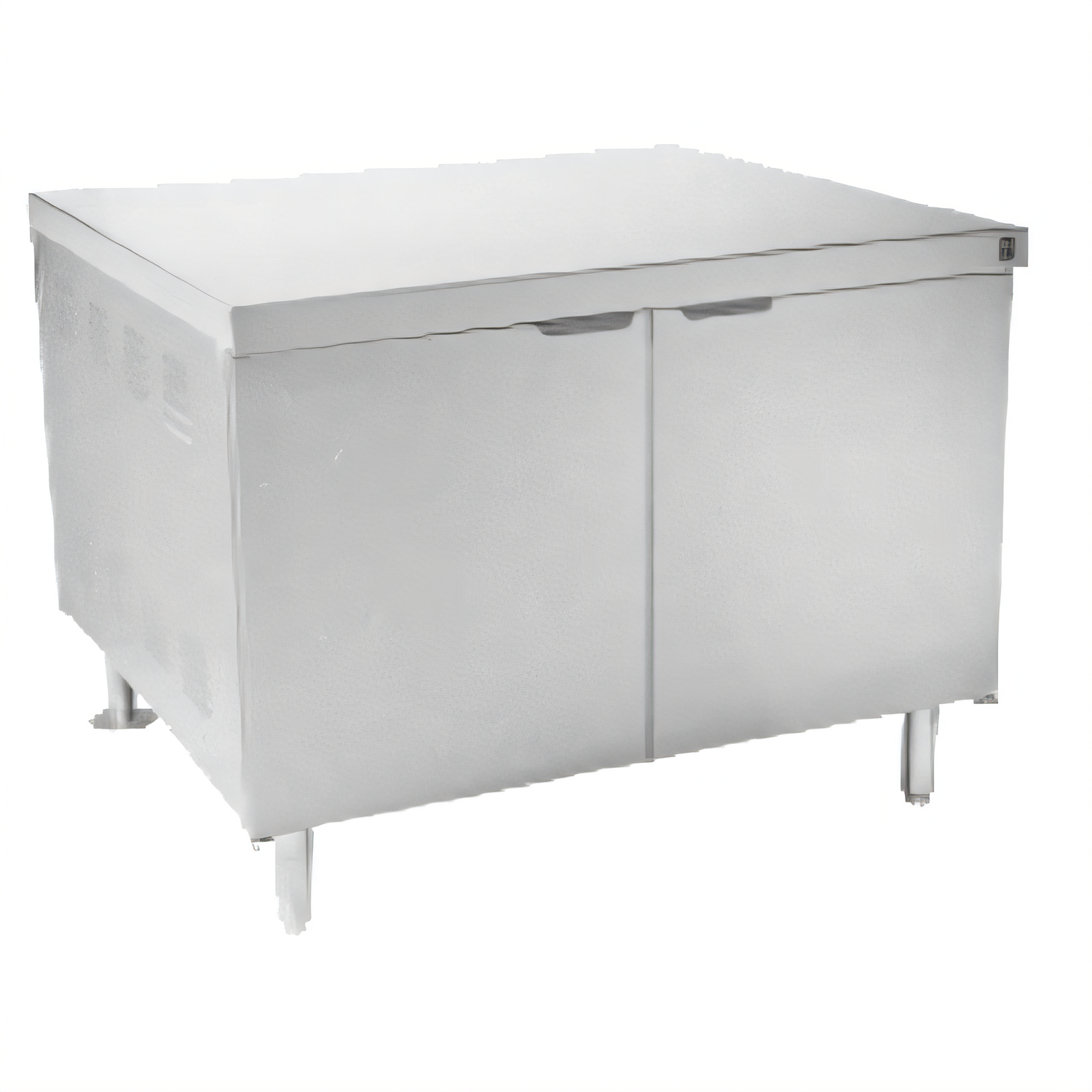

Crown CE-42 Electric Steam Generator – 24" Cabinet Base

42 kW • 128 lb/hr steam • CSD-1 code compliant

Built for high-volume commercial kitchens, the Crown CE-42 delivers a dependable 128 lb/hr of clean, constant steam from a compact 24 inch footprint. Fully assembled in a heavy-gauge stainless-steel cabinet with integral countertop, this freestanding generator is ready to feed steam kettles, convection steamers, pasta cookers, or any pressureless steam appliance connected through the included ¾" steam take-off kit.

Why you’ll love it

  • 42 kW electric boiler supplies up to 128 lb/hr of saturated steam at 9–11 psi.

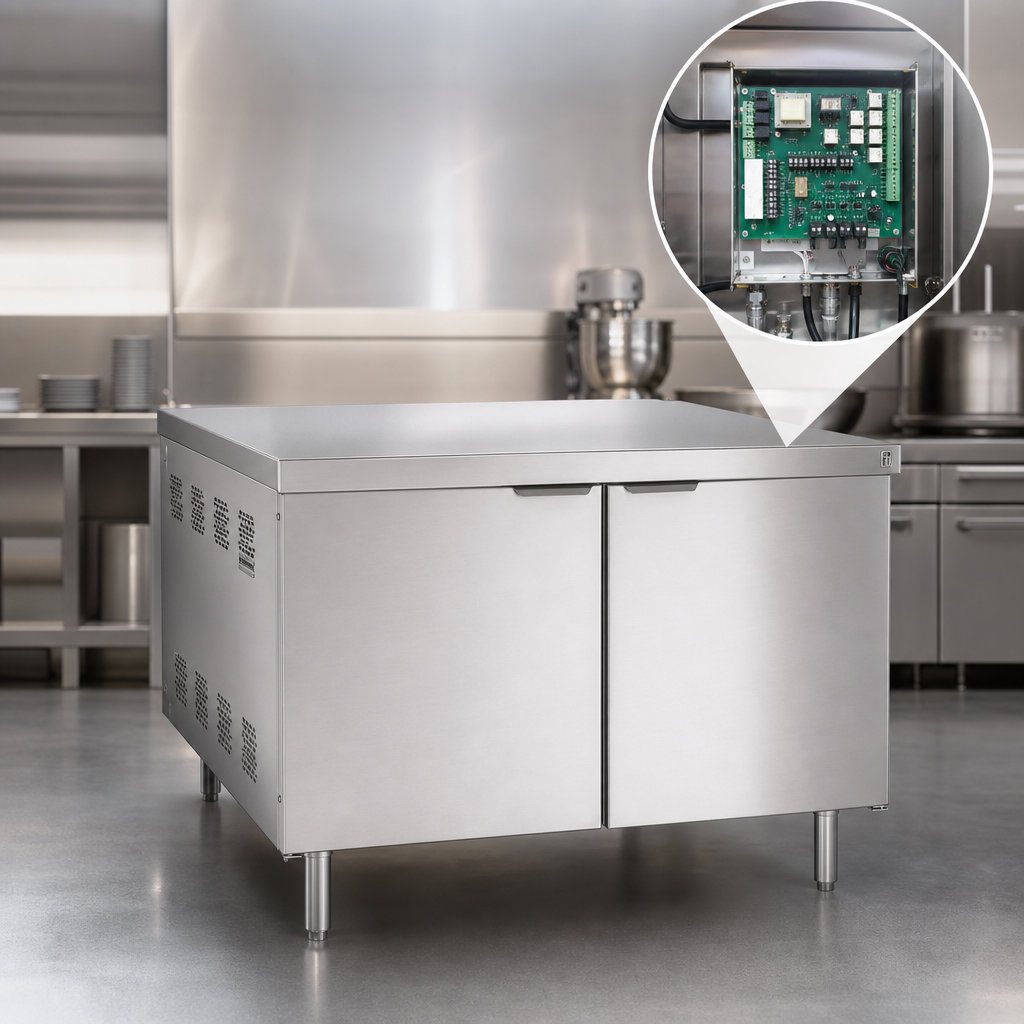

  • CSD-1 safety package with:
    • Primary and secondary pressure controls
    • Low-water cut-off & automatic water level control
    • High-limit safety pressure control & 15 psi ASME relief valve

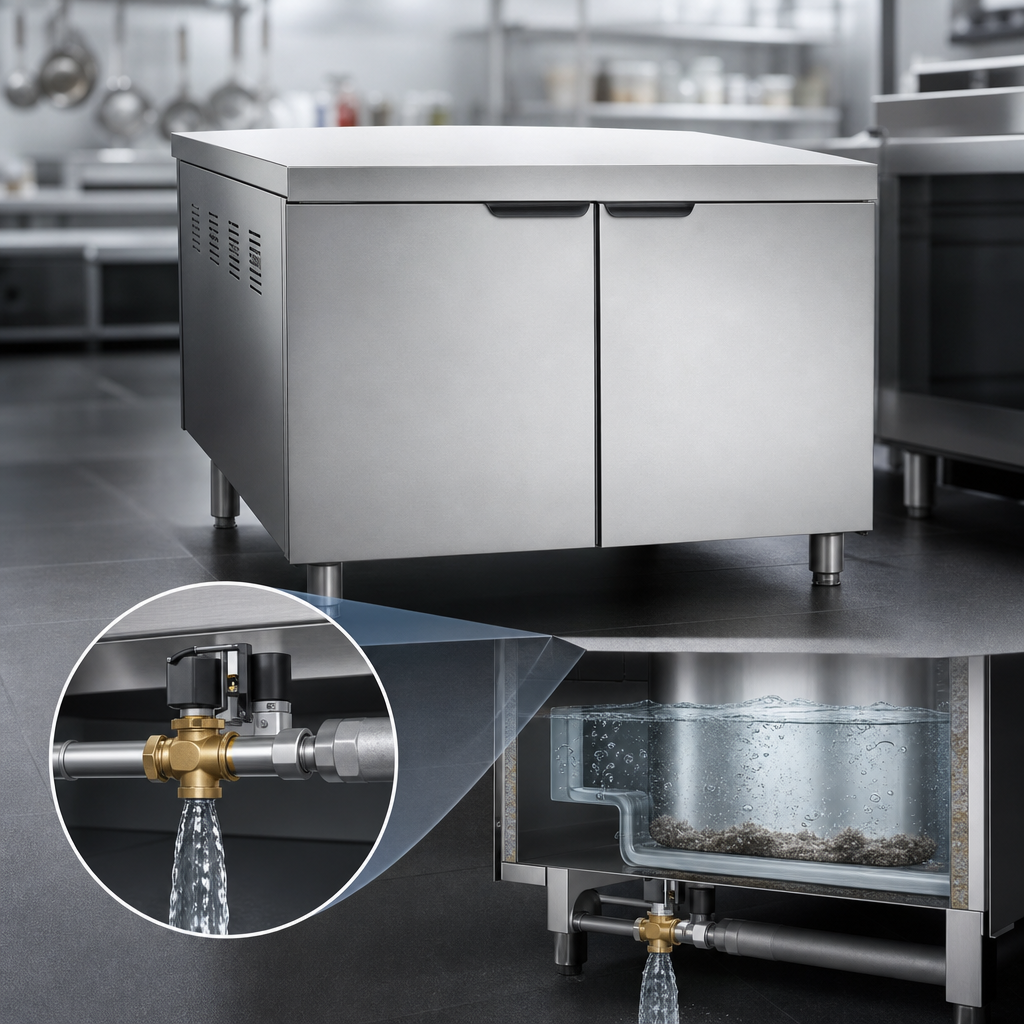

  • Factory-installed automatic blowdown keeps the boiler clean with no manual intervention.
  • Split water line & water filter system included—protects the elements and extends warranty coverage.
  • Large, easy-to-read pressure gauge & glass water gauge for at-a-glance monitoring.
  • Reinforced stainless-steel countertop supports counter-mounted equipment.
  • (2) full-height front doors provide unrestricted service access to all components.
  • (4) 6" stainless legs with adjustable flanged feet for code-compliant floor anchoring.
  • cCSAus & NSF certified; ASME stamped pressure vessel.

At-a-glance specs

Model CE-42
Cabinet width 24" (610 mm)
Steam output 128 lb/hr  @ 9–11 psi
Boiler rating 42 kW, 3-phase (208, 220, 240, 380, 415 & 480 V options)
57–110 A per line  (see data plate for exact draw)
Operating pressure 9–11 psi   (0.6–0.8 bar)  - 15 psi maximum
Water connections 3⁄8" OD cold water & 3⁄8" OD hot water, 25–50 psi
Steam take-off ¾" IPS
Drain 2" IPS, open floor drain required
Shipping weight ≈ 350 lb (159 kg)
Certifications ASME, NSF, cCSAus

What’s in the crate

  • CE-42 electric steam generator, factory-wired & tested
  • Water filter & head assembly (meets Crown water quality specs)
  • Steam take-off kit (¾")
  • Installation & operation manual

To maintain peak performance and warranty coverage, incoming water must be < 60 ppm TDS, < 1.5 ppm chlorine, pH 6.8–7.3 and silica < 13 ppm. Replace the filter cartridge per manufacturer’s schedule.

Features & Specs

Manufacturer

Crown (Middleby)

Certifications

NSF, cCSAus

Height

28.0in

Width

24.0in

Depth

33.0in

Shipping Weight

350.0lbs

Wattage

42 kilowatts

Base

24" Cabinet

Specifications

Steam Generator, electric, 24" cabinet base, freestanding design, CSD-1 controls, automatic blowdown, split water line, includes water filter system, automatic water level control, pressure gauge, water gauge glass, pressure control with secondary safety pressure control, safety relief valve, steam take off kit, reinforced countertop, (2) doors, stainless steel exterior finish, (4) 6" stainless steel legs with adjustable flanged feet, 9-11 psi, 42kW, cCSAus, NSF
