Crown (Middleby) CE-36 Steamers (Countertop & Floor)
Description

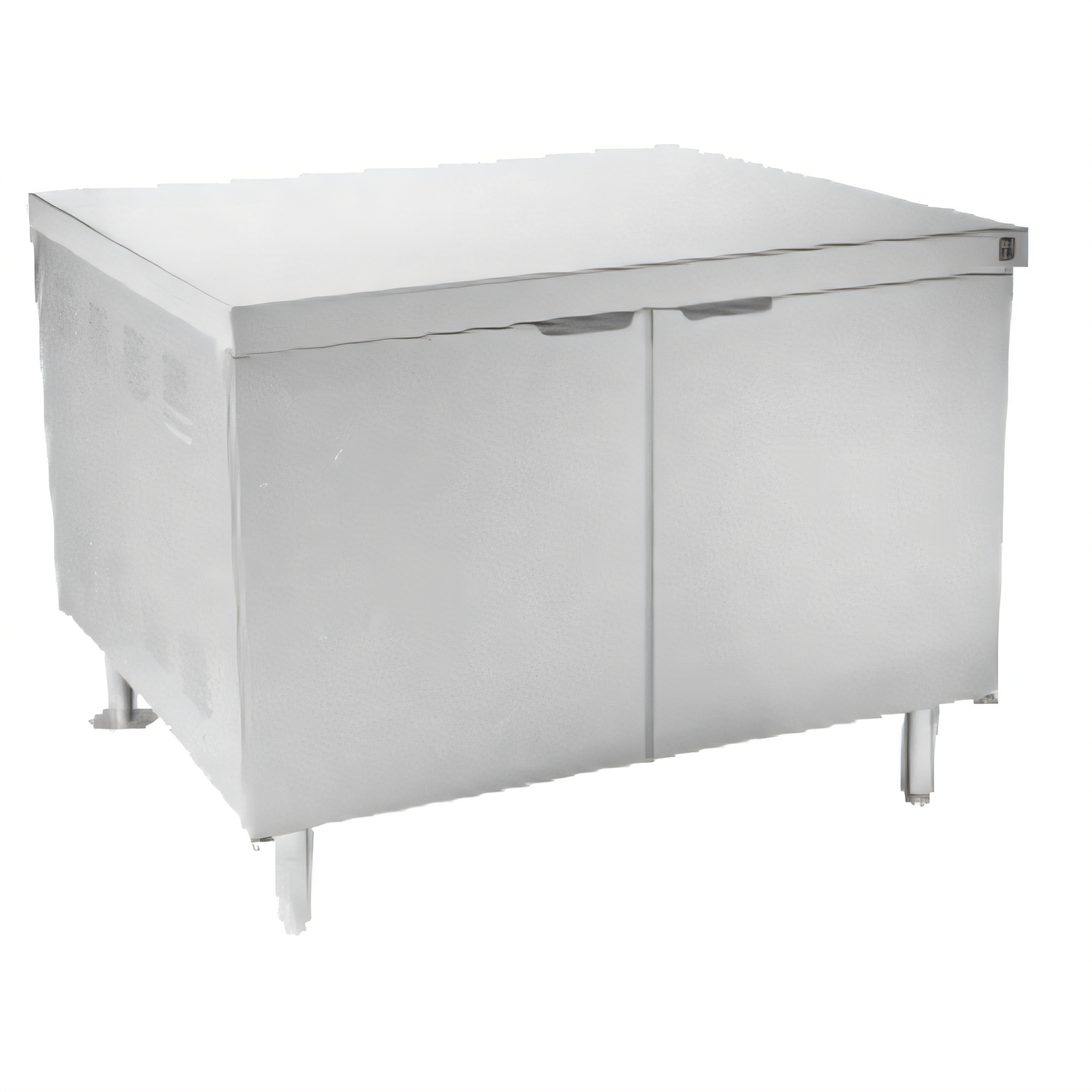

Crown CE-36 Electric Steam Generator – 24″ Cabinet Base, 36 kW
High-output, space-saving boiler for powering steamers, kettles & moreEngineered for busy commercial kitchens that demand consistent, on-demand steam, the Crown CE-36 delivers up to 107 lb of steam per hour from a compact 24″ stainless steel cabinet. CSD-1 compliant controls, automatic blow-down and an included water filtration system keep the generator running safely, efficiently and with minimal daily maintenance.
Performance & Construction Highlights
- 36 kW electric heating elements generate approx. 107 lb/hr of saturated steam at 9-11 psi.
- 24″ (610 mm) freestanding cabinet base with reinforced countertop—stack steamers, pans or kettles on top.
- Durable all-stainless exterior, double front doors and sanitary coved corners for quick wipe-downs.
- (4) 6″ stainless legs with adjustable flanged feet for easy leveling & floor anchoring.

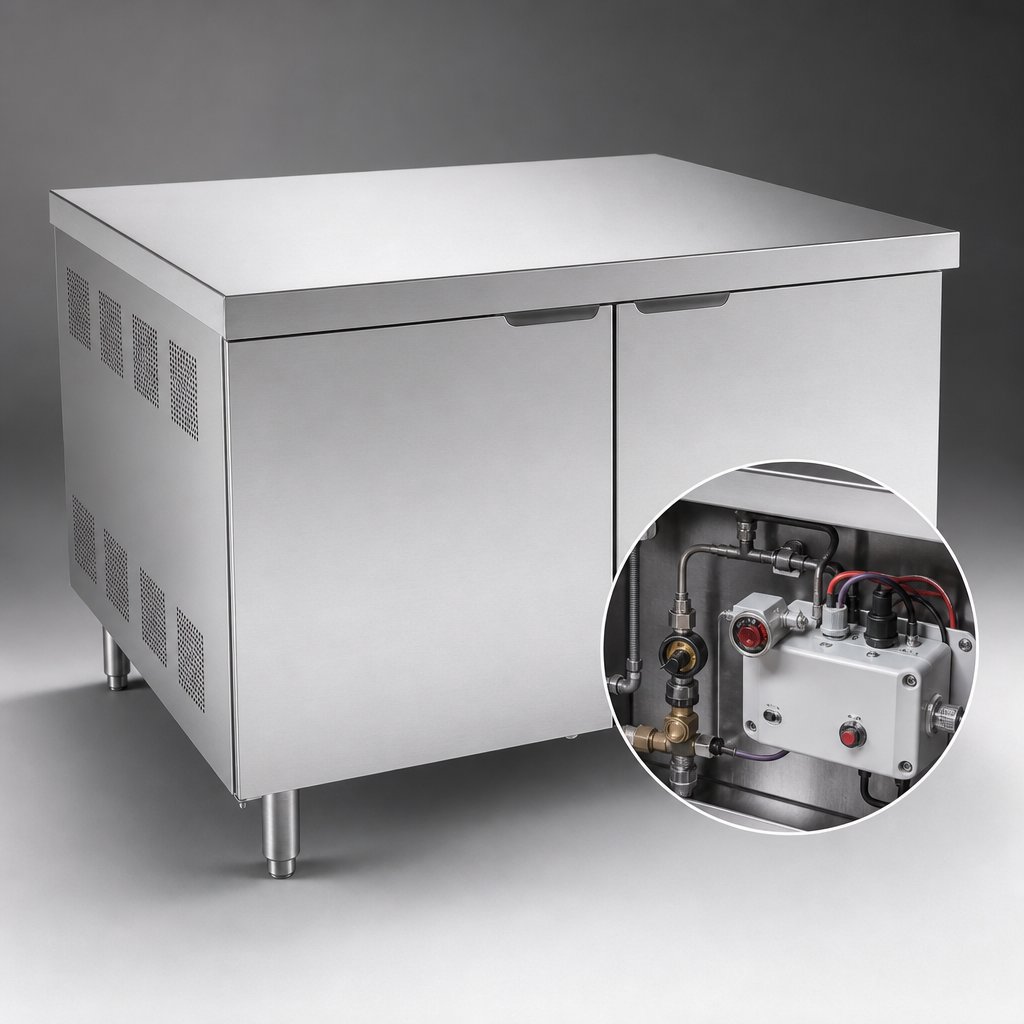

- CSD-1 safety package: automatic water-level control, low-water cut-off, pressure control & secondary safety pressure control.

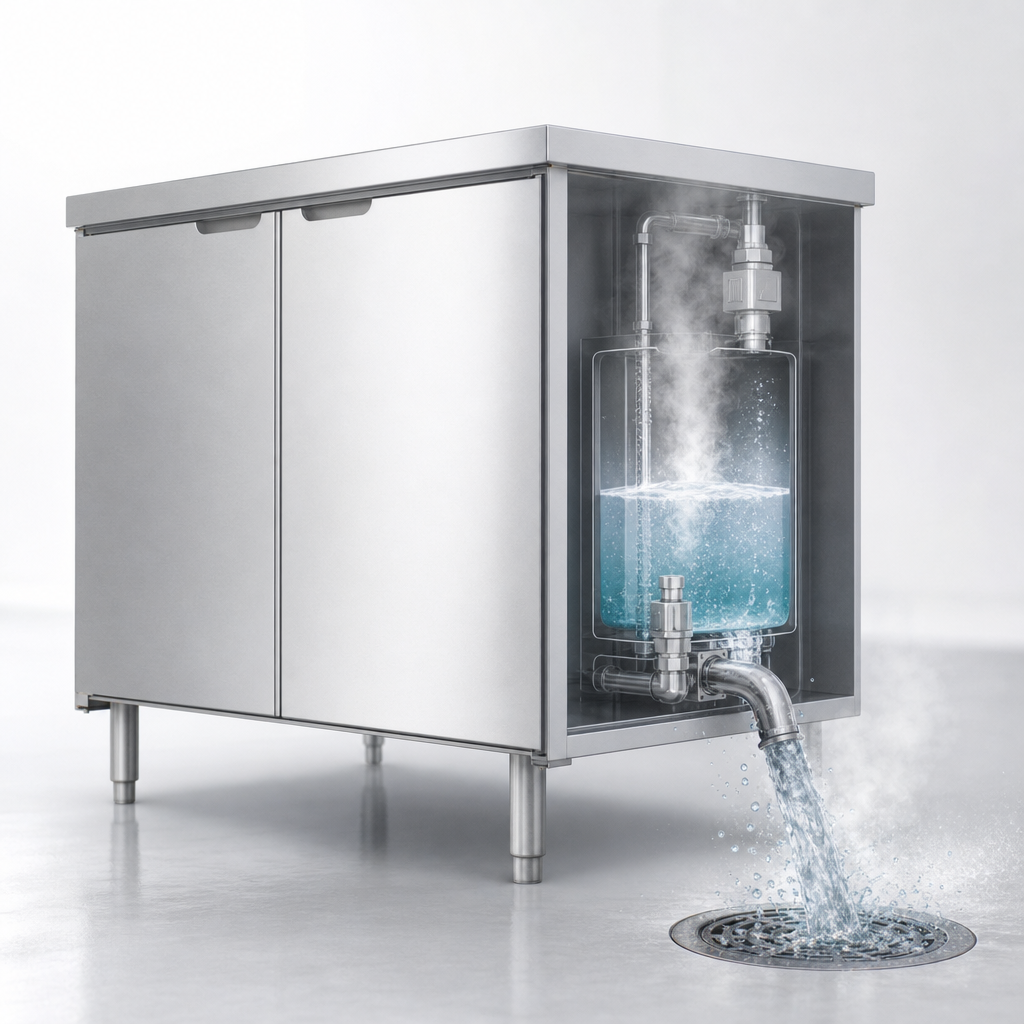

- Automatic blowdown valve clears sediment and extends element life—no manual draining required.
- Split water line with included water filter system meets Crown’s water-quality standards.
- Front-mounted pressure gauge & sight glass for instant system monitoring.
- ASME-approved 15 psi safety relief valve plus 3/4″ IPS steam take-off kit for running adjacent equipment.
Specifications
| Model | CE-36 (24″ cabinet) |
|---|---|
| Steam Output | 107 lb/hr (approx.) |
| Operating Pressure | 9–11 psi (vessel rated 15 psi) |
| Heating Power | 36 kW |
| Electrical | 208, 220, 240, 380, 415 or 480 V / 3-phase (99.9–43.3 A per line – see data plate) |
| Cabinet Width | 24″ / 610 mm |
| Shipping Weight | ≈ 350 lb / 159 kg |
| Construction | Stainless steel exterior & reinforced top, double doors, 6″ adjustable legs |
| Certifications | cCSAus, NSF, ASME Section I |
| Included | Water filter system, automatic blowdown, steam take-off kit |
Why Choose Crown?
- Energy-efficient electric operation—no gas line or venting required.
- Identical footprint & connections to legacy Southbend, Blodgett & Market Forge models for effortless replacement.
- Backed by Crown Steam Group and the nationwide Middleby support network.
Commercial use only. Installation must comply with local electrical & plumbing codes.
