Crown (Middleby)

Crown CE-348 Freestanding Electric Steam Generator with 36 Inch Cabinet Base, 48 kW, and CSD-1 Controls

SKU: CE-348
$31,357.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Cooking Equipment Cooking Equipment Crown (Middleby) New Arrivals Restaurant Equipment Steam Cooking Equipment Steam Cooking Equipment Steam Generator Steamers (Countertop & Floor)

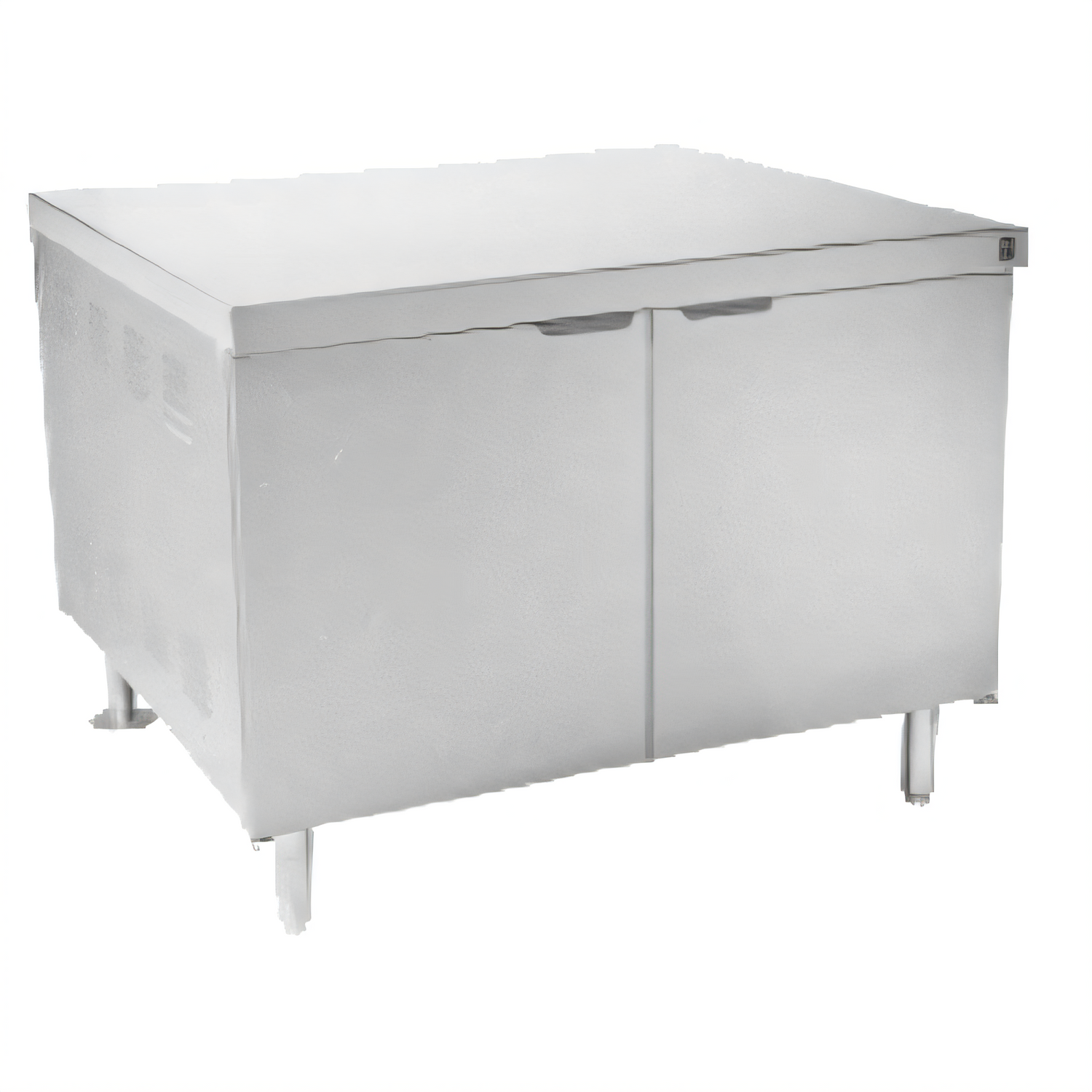

Crown CE-348 Freestanding Electric Steam Generator with 36 Inch Cabinet Base, 48 kW, and CSD-1 Controls

Freestanding, 36 Inch Cabinet Base, 48 kW, CSD-1 Controls

Designed for demanding commercial kitchens, the Crown CE-348 electric steam generator delivers reliable, high-volume steam production with advanced safety and operational controls.

  • Efficient 48 kW electric steam generator for continuous operation.
  • Freestanding design with a durable 36 inch cabinet base for convenient installation.
  • Equipped with CSD-1 controls for enhanced safety and precise steam management.
  • Features automatic blowdown and water level control for easy maintenance and optimal performance.
  • Includes a comprehensive water filter system to ensure water quality and protect components.
  • Constructed with a robust stainless steel exterior and a reinforced countertop for longevity.
  • Integrated steam take-off kit allows for operation of adjacent steam-powered equipment.

Overall Dimensions:

36.0"W x 33.0"D x 28.0"H

Product Weight:

415.0 lb

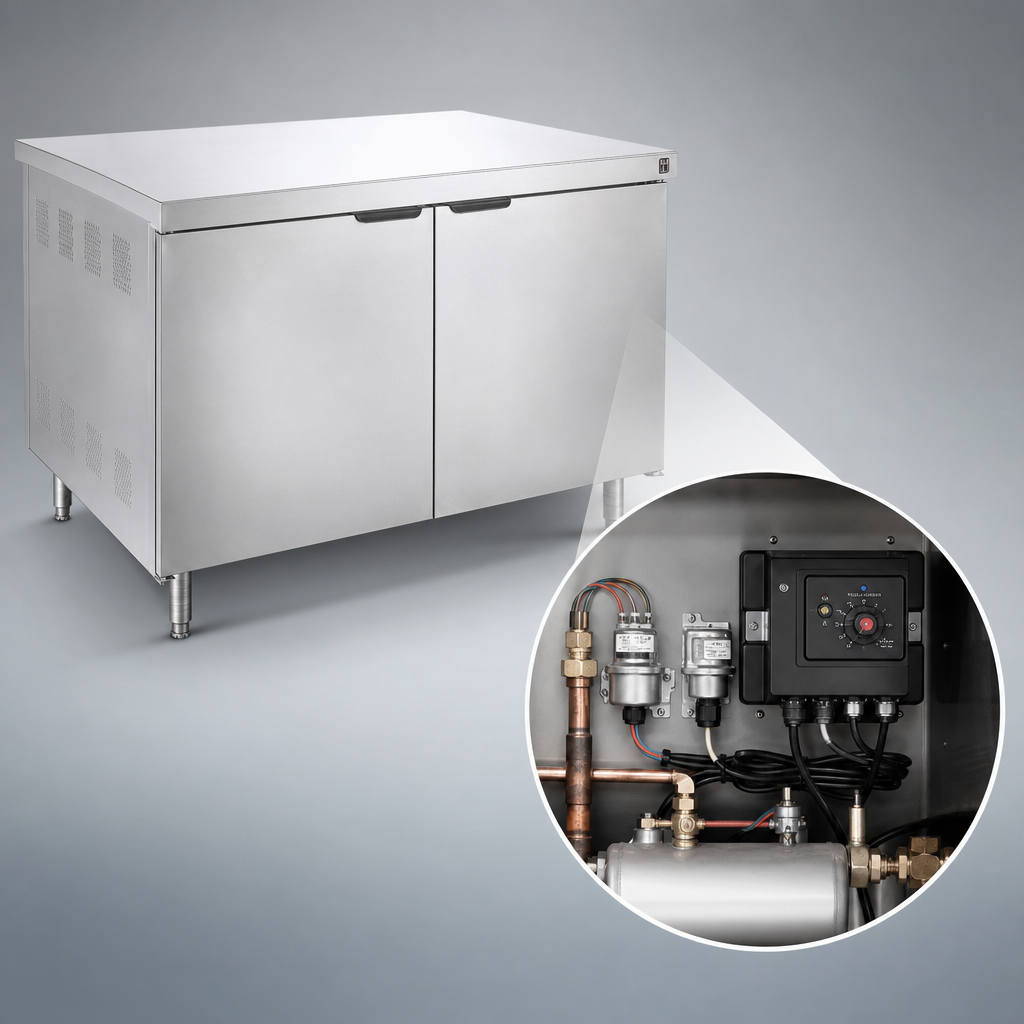

CSD-1 Controls

Boiler comes equipped with CSD-1 controls which include high temperature safety, high pressure safety switch, and a low water safety cut-off, ensuring safe and compliant operation.

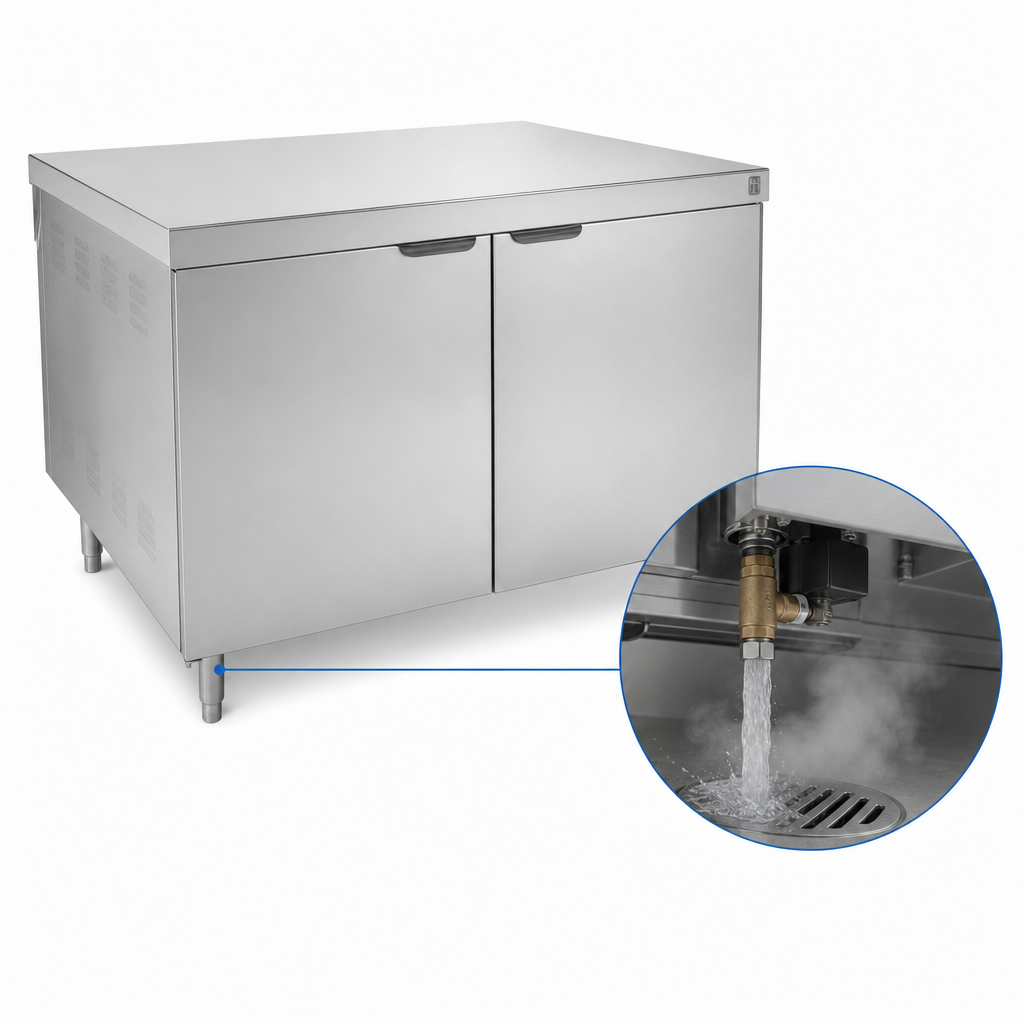

Automatic Blowdown

Automatically drains the boiler tank and releases water and steam to the drain when the main power switch is turned off, facilitating daily removal of sediment, lime, or scale.

Automatic Water Level Control

Maintains the proper water level within the boiler during operation, adding water as it is consumed to produce steam.

Split Water Line

Features separate connections for boiler feed (filtered water) and condenser feed (unfiltered cold water), optimizing water usage and system protection.

Water Filter System

Includes a water filter system to treat incoming water, which is crucial for appliance performance, longevity, and warranty coverage by meeting strict water quality standards.

Boiler Pressure Gauge

Provides a clear indication of boiler pressure, typically reading 9-11 psi during operation and 0 psi during shutdown.

Water Level Sight Glass

Allows operators to visually observe the water level and quality inside the boiler, helping identify inadequate water conditions.

Safety Relief Valve

Designed to release pressure if it exceeds the boiler's limits, ensuring operator safety and preventing damage.

Steam Take-Off Connection

Equipped with a 3/4 inch IPS connection to supply steam to adjacent cooking equipment.

Reinforced Countertop

Provides a durable and stable work surface on top of the cabinet base.

Cabinet Base with Doors

A 36 inch cabinet base with two doors provides a sturdy freestanding foundation and convenient access.

Stainless Steel Exterior

The entire exterior is constructed from stainless steel, offering durability, corrosion resistance, and ease of cleaning.

Adjustable Flanged Feet

Four 6 inch stainless steel legs with adjustable flanged feet allow for precise leveling and secure anchoring to the floor.

Type Electric Steam Generator
Style Cabinet Base
Installation Type Floor Model (With Stand)
Watts 48 kW
Phase 3-Phase
Output 148 lbs/hr
Operating Pressure Range 9-11 psi
Max Pressure 15 psi
Controls CSD-1 Controls
Steam Take Off Connection Size 3/4 Inch IPS
Cold Water Inlet Size 3/8 Inch O.D. Tubing
Water Inlet Pressure 25-50 PSI
Drain Connection Size 2 Inch IPS
Exterior Finish Stainless Steel
Legs 6 Inch Stainless Steel Legs with Adjustable Flanged Feet
Selling Unit Each
Units Per Case 1
Shipping Width 36 Inches
Shipping Depth 33 Inches
Shipping Height 28 Inches
Shipping Weight 415 lb.
Country of Origin Canada

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

Warranty coverage is subject to proper installation, regular maintenance, and adherence to water quality standards.

Documents

PDF Cutsheet PDF Download PDF Crown steam group letter PDF Download PDF Installation & operation PDF Download PDF Middleby financial flyer PDF Download PDF Parts list PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

For optimal performance and warranty coverage, the water supply must meet specific guidelines: Total dissolved solids less than 60 PPM, Total alkalinity less than 20 PPM, Silica less than 13 PPM, Chlorine less than 1.5 PPM, and a pH Factor between 6.8 - 7.3. Use of Crown's (Middleby's) Water Treatment System is recommended if these standards are not met.
The boiler water level control, and specifically its float chamber, must be flushed at least once a day to remove accumulated sand, scale, and sediment that could interfere with its operation. Failure to do so can cause the control to malfunction and lead to serious boiler damage.
CSD-1 controls include critical safety features such as a high temperature safety device, a high pressure safety switch, and a second low water safety cut-off. These devices shut down the boiler and indicate a lockout condition if temperature, pressure, or water levels exceed safe limits.
It is recommended that the boiler be checked every 90 to 120 days for scale buildup. Regular descaling maintenance should be carried out at this time to maintain efficiency and prevent damage.
During normal operation, the boiler pressure gauge should indicate a steam pressure in the range of 9 to 11 psi. The boiler is designed not to exceed 15 psi, as per ASME Code.
The boiler is equipped with a second low water safety cut-off. If the water level falls below normal operating levels, the boiler will automatically shut down and enter a lockout state, indicated by 'LOW WATER' and 'STANDBY' pilot lights.
