Crown (Middleby) CE-336 Steamers (Countertop & Floor)
Description

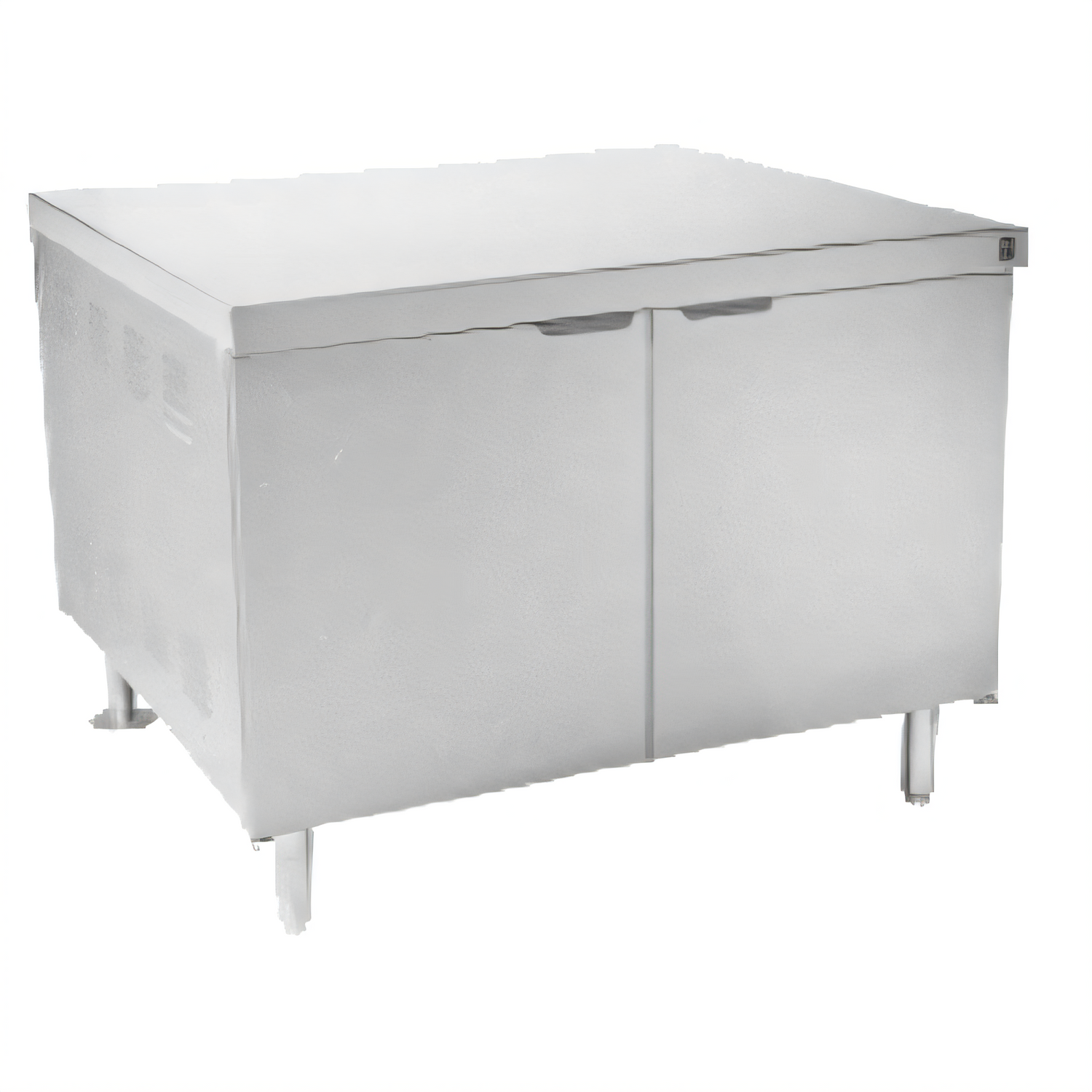

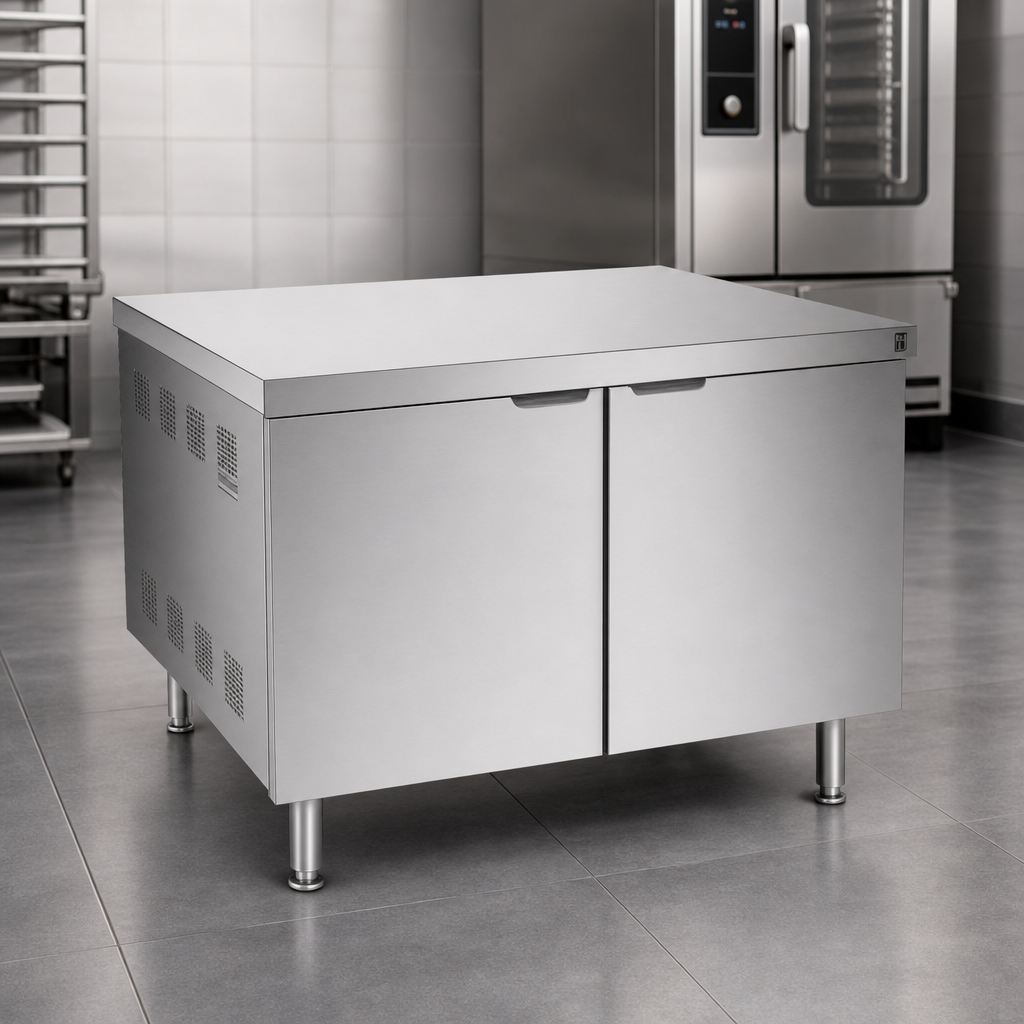

Crown CE-36 Electric Steam Generator – 36" Cabinet Base, 36 kW
CSD-1 compliant, 107 lbs/hr steam output, stainless steel exteriorBuilt for demanding commercial kitchens, the Crown CE-36 delivers a steady 9-11 psi of clean, dry steam from a compact 36" freestanding cabinet. With rugged stainless construction, automatic controls and a generous 36 kW heating package, this self-contained boiler is ready to power steamers, kettles and other equipment day in, day out.
Highlights
- 36 kW electric element package produces up to 107 lbs/hr of steam
- Operates at 9-11 psi; ASME stamped for 15 psi maximum

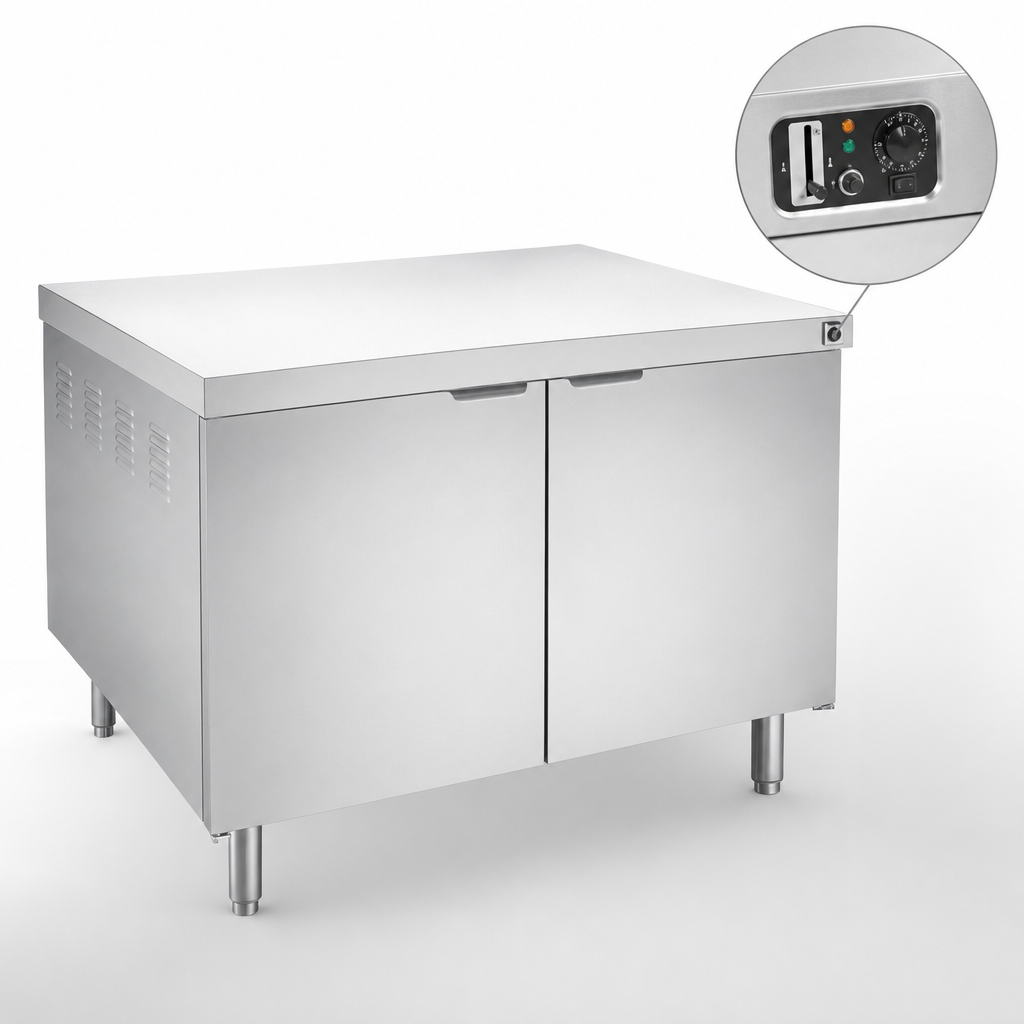

- Factory-installed CSD-1 control system with low-water cutoff & high-limit pressure protection
- Automatic blowdown minimizes scale and simplifies maintenance
- Split water line with included water filter system—connects boiler feed and condenser feed separately
- Electronic water level control plus external water gauge glass for at-a-glance monitoring
- Integrated pressure gauge, pressure control & secondary safety pressure control
- Factory-plumbed safety relief valve (15 psi) for added peace of mind
- Steam take-off kit, ¾" IPS for powering adjacent steam equipment
- Reinforced stainless-steel countertop with two locking doors for easy access
- (4) 6" stainless legs with adjustable flanged feet for secure floor anchoring
- cCSAus & NSF certified – approved for commercial food-service installations
Specifications
| Model | CE-36 (36" cabinet base) |
|---|---|
| Steam Output | 107 lbs/hr (48.5 kg/hr) |
| Operating Pressure | 9-11 psi (0.6-0.8 bar) |
| Power | 36 kW, 3-phase (208 / 220 / 240 / 380 / 415 / 480 V field wired per data plate) |
| Overall Width | 36" (914 mm) |
| Shipping Weight | 415 lb (188 kg) |
| Water Connections | 3⁄8" O.D. Cold & Hot (25-50 psi) |
| Steam Take-Off | ¾" IPS |
| Drain | 2" IPS to open floor drain |
| Certifications | ASME, cCSAus, NSF |
Ideal Applications
- Supporting high-volume steamers, kettles, tilt skillets or warming cabinets
- Central commissaries and institutional kitchens needing a dedicated steam source
- Retrofits where gas service is unavailable or electric is preferred for energy management
Professional installation by a licensed electrician & plumber is required. Refer to Crown manual 10044 for complete installation, operation and maintenance instructions.
