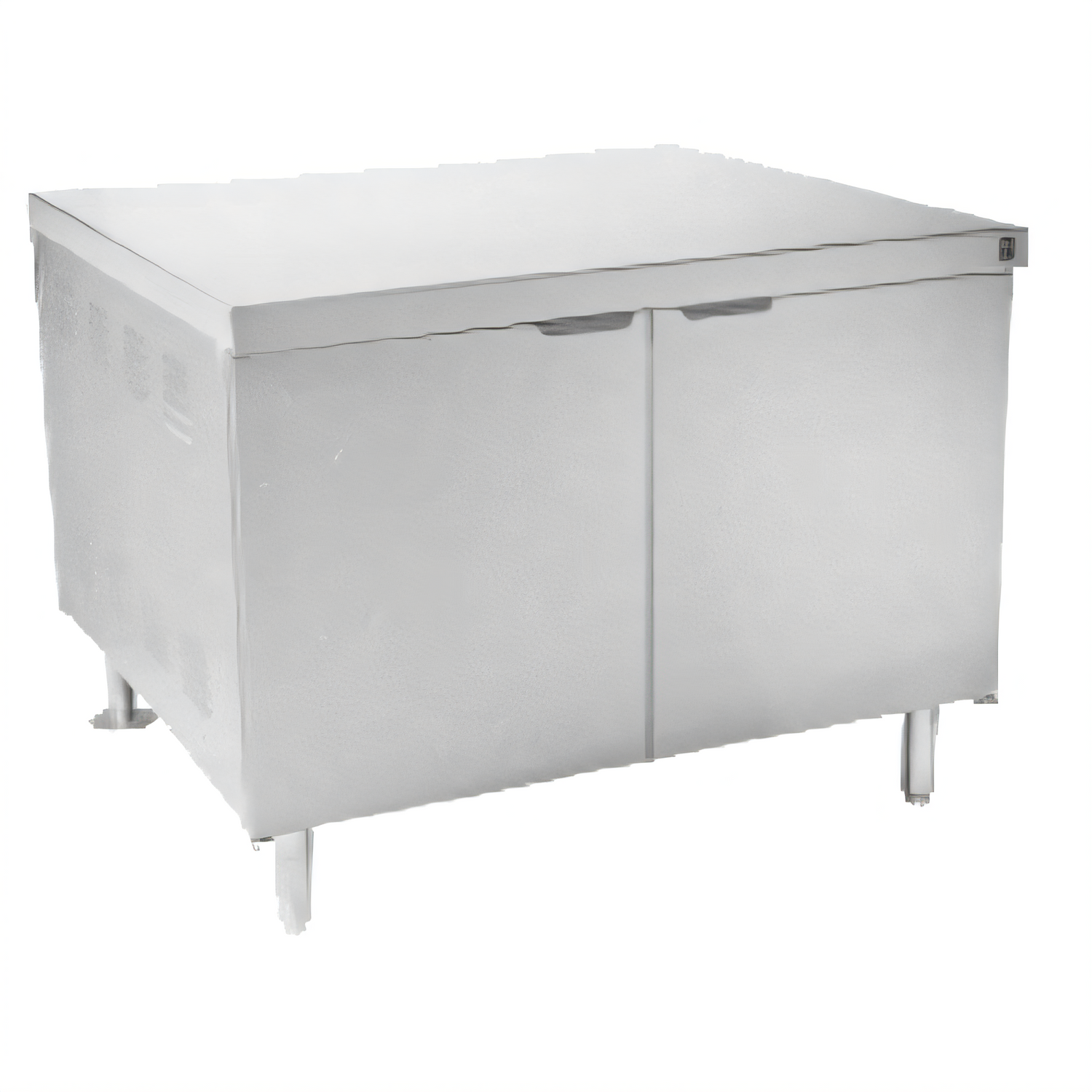

Crown CE-324 24kW Electric Steam Generator with 36 Inch Cabinet Base and CSD-1 Controls

SKU: CE-324
$25,767.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Cooking Equipment Cooking Equipment Crown (Middleby) New Arrivals Restaurant Equipment Steam Cooking Equipment Steam Cooking Equipment Steam Generator Steamers (Countertop & Floor)

Crown CE-324 24kW Electric Steam Generator with 36 Inch Cabinet Base and CSD-1 Controls

Freestanding, 3-Phase, Automatic Blowdown, Water Filter System

The Crown CE-324 electric steam generator delivers reliable and efficient steam production for commercial kitchens with its robust cabinet base and advanced CSD-1 controls.

  • Produces 69 lbs of steam per hour with a powerful 24 kW electric heating system.
  • Features a durable 36-inch stainless steel cabinet base with two doors for convenient access.
  • Equipped with CSD-1 controls for enhanced safety, precise operation, and automatic lockout conditions.
  • Includes an automatic blowdown system for daily sediment removal and reduced maintenance.
  • Comes with a comprehensive water filter system and automatic water level control for optimal performance and longevity.
  • Freestanding design with 6-inch stainless steel legs and adjustable flanged feet for stable installation.

Overall Dimensions:

36.0"W x 33.0"D x 28.0"H

Product Weight:

415.0 lb

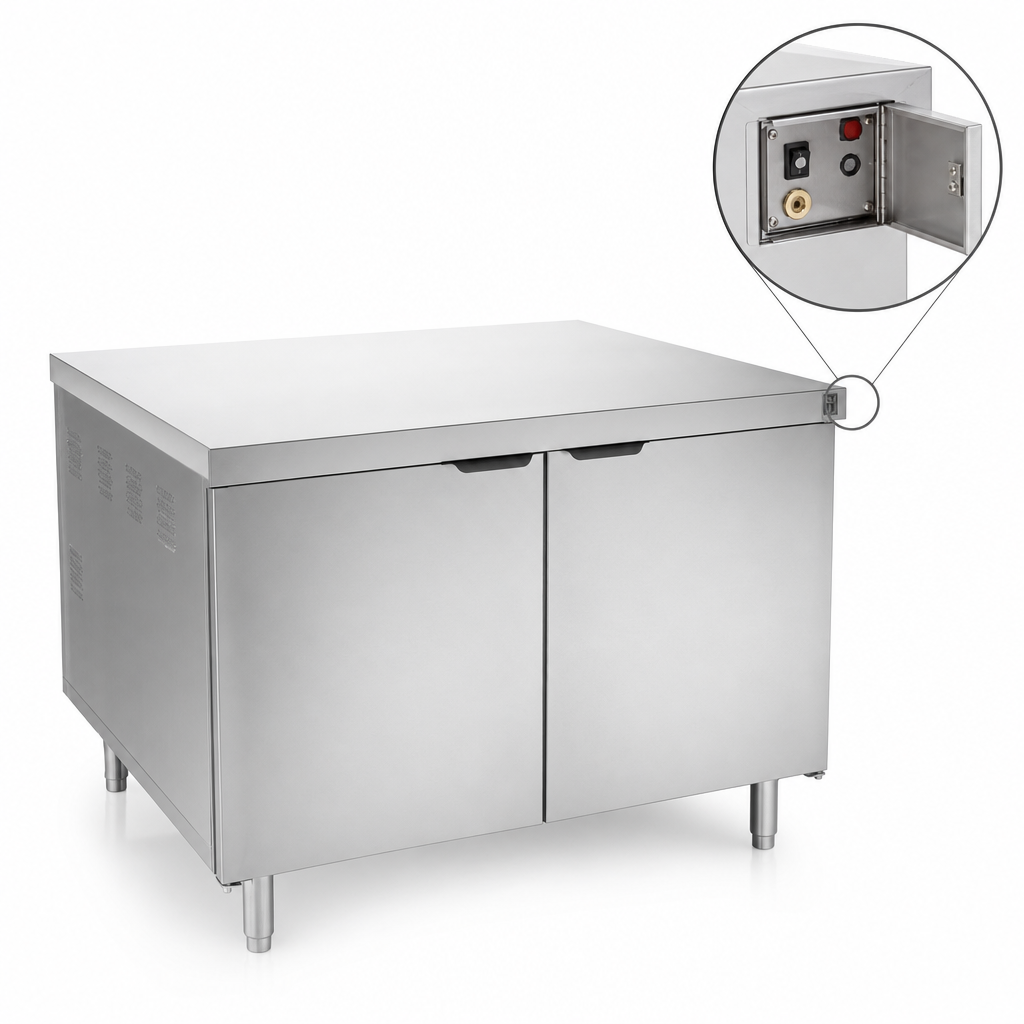

CSD-1 Controls

Boiler includes CSD-1 controls for safe operation, incorporating features like a reset switch for safety lockout, high temperature safety device, high pressure safety switch, and a low water safety cut-off.

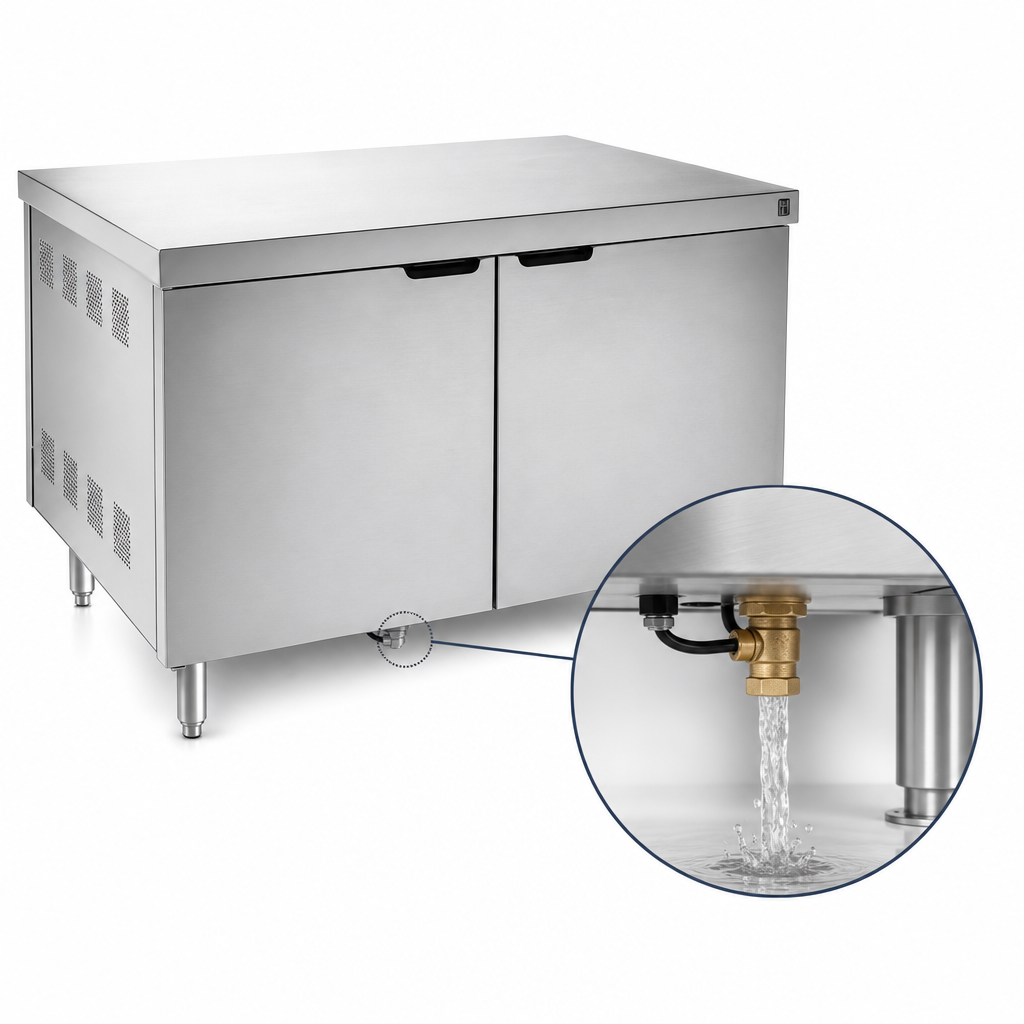

Automatic Blowdown System

Automatically drains the boiler when the main power switch is turned off, emptying the tank to remove sediment, lime, or scale, crucial for daily maintenance and prolonging equipment life.

Split Water Line System

Allows for separate connections for boiler feed (filtered water) and condenser feed (cold, unfiltered water) for optimized water usage and system protection.

Integrated Water Filter System

Comes with a water filter system to ensure water quality meets the manufacturer's standards, essential for warranty coverage and appliance performance.

Automatic Water Level Control

Maintains optimal water levels in the boiler automatically and features a daily flush procedure to remove accumulated sediment.

Boiler Pressure Gauge

Displays the internal boiler pressure, typically reading 9-11 psi during operation and 0 psi during shutdown for easy monitoring.

Water Level Sight Glass

Provides a visual indication of the water level and water quality within the boiler, helping identify inadequate water conditions.

Safety Relief Valve

Designed to release pressure if the boiler's internal pressure exceeds safe limits, with a weekly test recommendation to ensure proper function.

Steam Take-Off Connection

A 3/4 inch IPS connection allows for easy integration to operate adjacent steam equipment.

Reinforced Countertop

The cabinet base features a reinforced countertop, providing a sturdy surface.

Stainless Steel Exterior

Constructed with a durable stainless steel exterior finish for commercial kitchen environments.

Adjustable Legs

Equipped with four 6-inch stainless steel legs featuring adjustable flanged feet for stable and level installation on uneven floors.

Cabinet Doors

Includes two access doors on the cabinet base for easy access to internal components and controls.

Type Steam Generator
Style Cabinet Base
Installation Type Floor Model (With Stand)
Watts 24 kW
Phase 3-Phase
Steam Output 69 lbs/hr
Steam Pressure Range 9-11 psi
Controls CSD-1
Material Stainless Steel
Cold Water Inlet Size 3/8 Inches O.D.
Hot Water Inlet Size 3/8 Inches O.D.
Water Connection Required
Drain Connection Size 2 Inches IPS
Drain Connection Required
Shipping Width 36 Inches
Shipping Depth 33 Inches
Shipping Height 28 Inches
Shipping Weight 415 lb.
Selling Unit Each
Units Per Case 1
Country of Origin Canada

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

Warranty details are available from Crown Steam Group, with specific conditions regarding water quality.

Documents

PDF Cutsheet PDF Download PDF Parts list PDF Download PDF Middleby financial flyer PDF Download PDF Crown steam group letter PDF Download PDF Installation & operation PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

For optimal performance and warranty coverage, the water supply must meet specific guidelines: Total dissolved solids less than 60 PPM, Total alkalinity less than 20 PPM, Silica less than 13 PPM, Chlorine less than 1.5 PPM, and a pH Factor between 6.8 and 7.3. Use of a Middleby Water Treatment System is recommended if these standards are not met.
The boiler water level control must be flushed at least once a day to remove sand, scale, and other sediment that may accumulate in the float chamber, ensuring proper operation and preventing boiler damage.
The CSD-1 controls include a high temperature safety device, a high pressure safety switch, and a low water safety cut-off. These devices shut down the boiler and activate lockout conditions to prevent property damage, injury, or death.
After turning the main power switch ON and the boiler fills to the proper water level, the heaters require about 15 minutes to begin steam generation. The boiler pressure gauge should then indicate 9 to 11 psig.
The cold water supply requires 3/8" O.D. tubing at 25-50 PSI. A second connection for condenser feed (if applicable) also uses 3/8" O.D. tubing. The drain connection is 2" (51 mm) IPS and must be piped to an open floor drain with no solid connection.
No, this product is intended for commercial use only and not for household use.
