Description

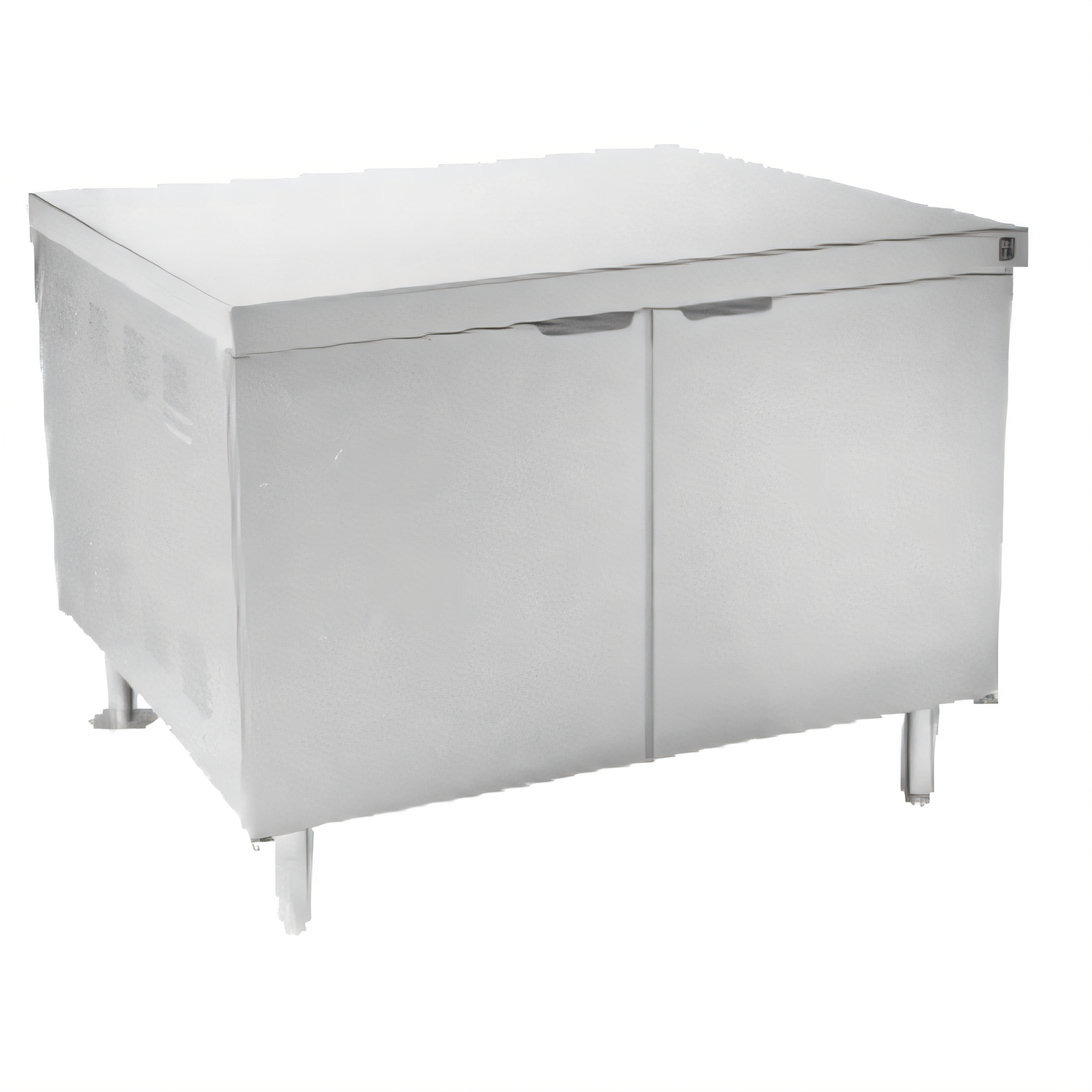

Crown CE-24 Electric Steam Generator Cabinet Base – 24 kW
24″ freestanding cabinet | CSD-1 controls | 9–11 psi operating pressureBuilt to fuel high-volume production without the footprint of a full boiler room, the Crown CE-24 delivers a steady 69 lb/hr of clean, dependable steam from a compact 24″ stainless-steel cabinet. Packed with automatic safety and maintenance features, it is the ideal central steam source for kettles, ovens, steamers and other adjacent equipment.
Key performance features
- 24 kW incoloy heating elements produce up to 69 lb/hr of steam at 9–11 psi.

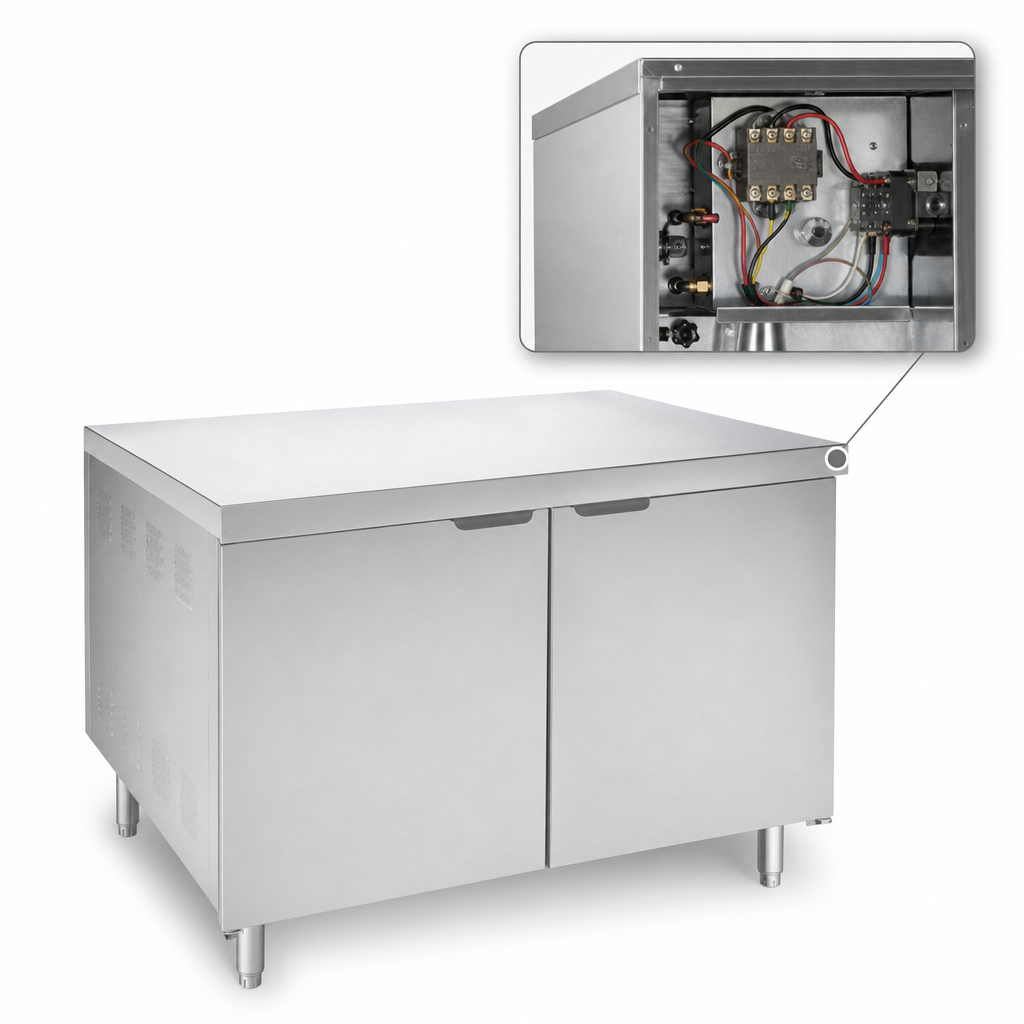

- Factory-installed CSD-1 compliant control package with low-water cut-off, high-limit pressure control, manual reset and status lights.
- Automatic water level control and electronic fill valve keep the boiler primed at all times.

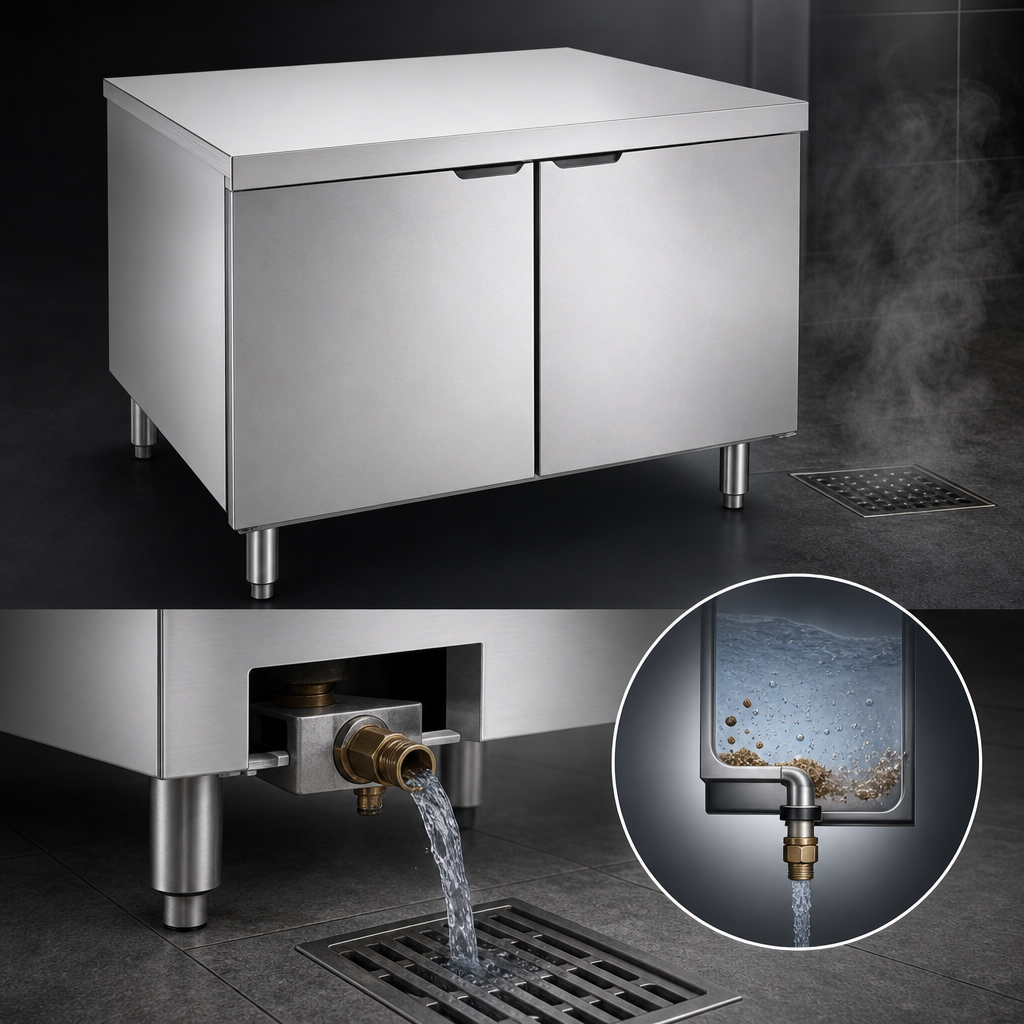

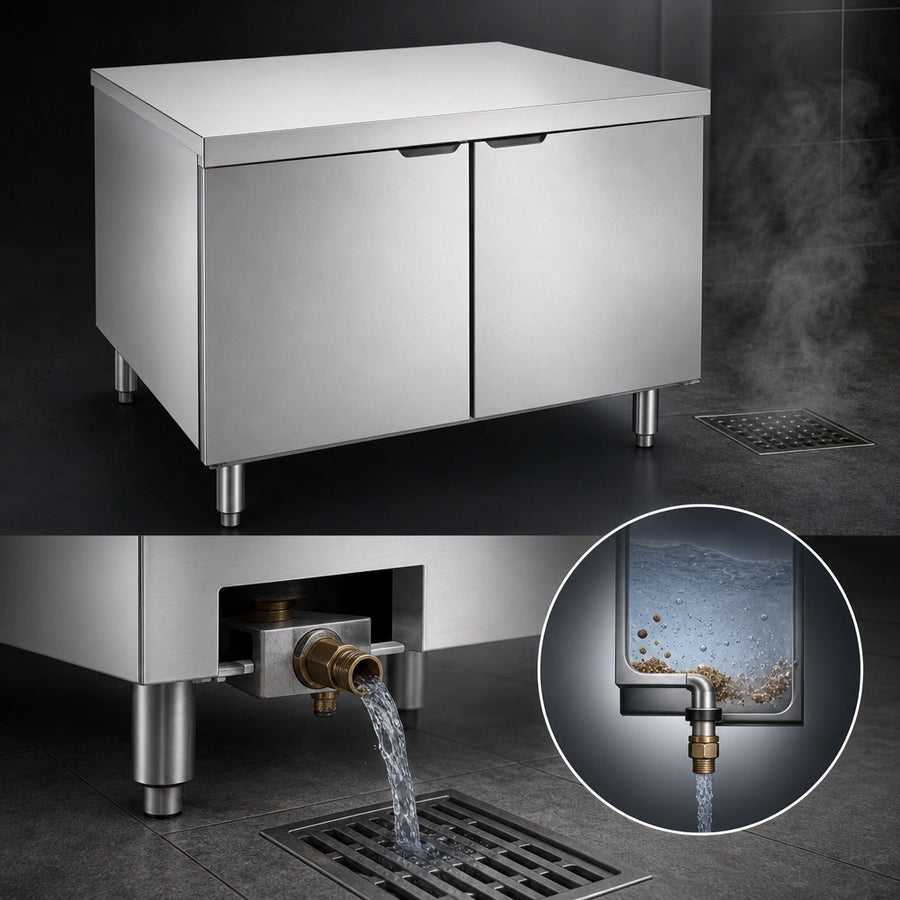

- Automatic timed blow-down removes scale and sediment to extend element life.
- Included split water line & water filter system for optimized water quality and warranty protection.
- Front-mounted pressure gauge & water gauge glass for instant visual monitoring.
- Steam take-off kit (¾″ IPS) ships standard—connects quickly to kettles, ovens or CPFUs.
- ASME-rated pressure vessel with 15 psi safety relief valve (unit operates at 9–11 psi).
- Rugged stainless-steel exterior, reinforced countertop & twin storage doors.
- (4) 6″ stainless legs with adjustable flanged feet for easy leveling & floor anchoring.
- cCSAus & NSF listed; conforms to applicable sanitation & electrical standards.
At-a-glance specs
Model | CE-24 |
---|---|
Steam output | 69 lb/hr (31 kg/hr) |
Operating pressure | 9–11 psi (0.6–0.8 bar) |
Heat input / elements | 24 kW (single incoloy element assembly) |
Electrical | 208/220/240/380/415/480 V, 60 Hz, 3-phase standard (single-phase available – consult factory) |
Water connections | 3⁄8″ OD tubing, 25–50 psi (cold & hot) |
Steam take-off | ¾″ IPS |
Drain | 2″ IPS to open floor drain (air-gap required) |
Cabinet width | 24″ (610 mm) |
Shipping weight | ≈ 350 lb (159 kg) |
Certifications | cCSAus, NSF, ASME |
Why choose Crown’s CE-24?
- Space saver: All-in-one cabinet footprint frees up valuable line space.
- Labor saver: Automatic blow-down and water level control reduce manual checks and downtime.
- Operator safety: CSD-1 package, gauge glass, relief valve and dual pressure controls add multiple layers of protection.
- Service friendly: Front service panel and side access simplify element replacement and inspections.
To maintain peak performance and warranty coverage, feed water must meet Crown water-quality requirements. Replace filter cartridges per manufacturer guidelines.
