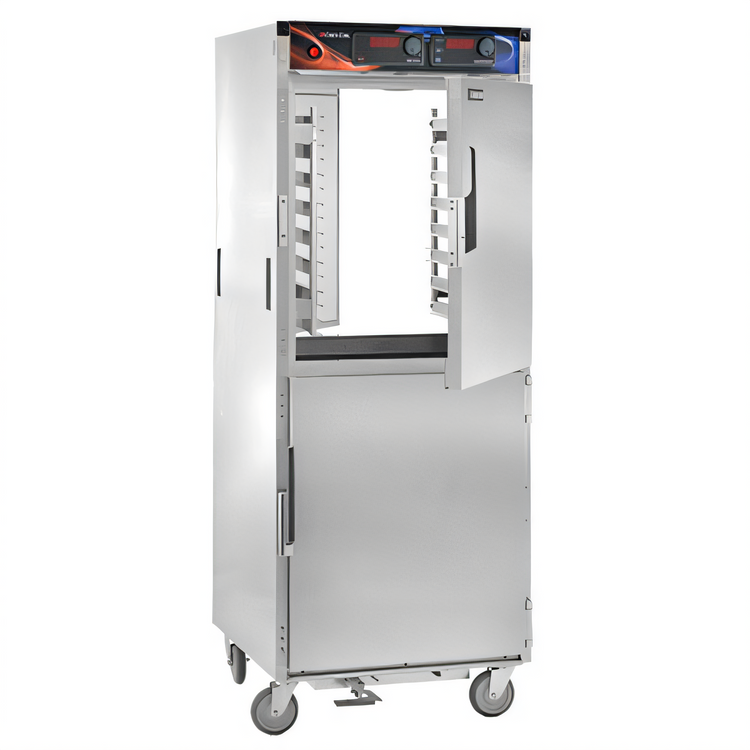

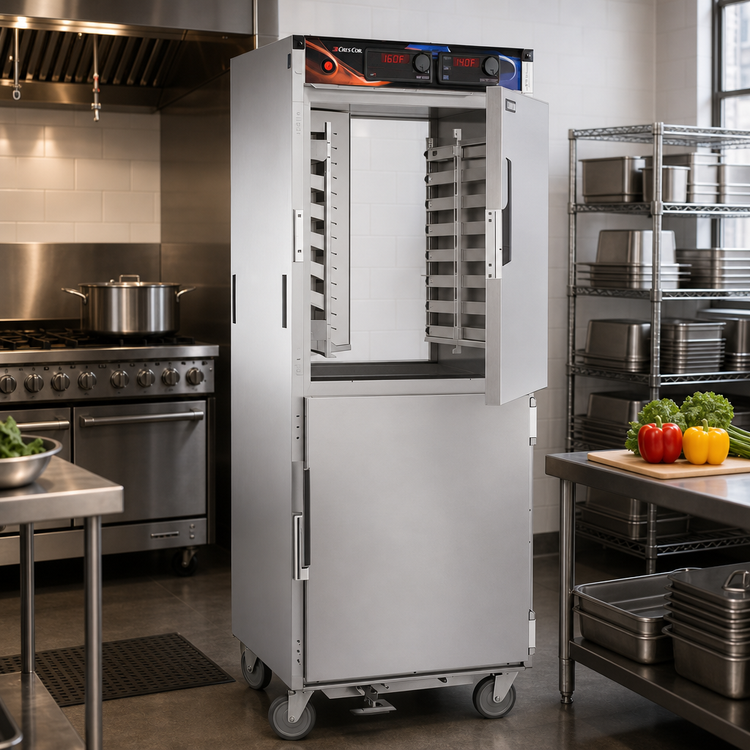

Cres Cor AquaTemp Insulated Pass-Thru Hot Holding Cabinet, 32-Pan, 120V

SKU: H138PWS1834DL
$8,682.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Cres Cor Equipment Food Holding & Warming Equipment Food Holding & Warming Equipment Food Warmers & Holding Equipment Heated Cabinets & Holding Shelves Holding Cabinets Holding Cabinets New Arrivals Restaurant Equipment

Cres Cor AquaTemp Insulated Pass-Thru Hot Holding Cabinet, 32-Pan, 120V

Left-Hinge Dutch Doors, Stainless Steel, Solid-State Control

Keep food hot, moist, and ready to serve with a pass-thru cabinet that precisely manages both temperature and humidity.

  • Pass-thru design speeds loading and unloading between prep and serving areas.
  • Holds up to 32 full-size 18 x 26 pans on 1-1/2-inch centers.
  • AquaTemp solid-state controls manage heat and humidity for consistent holding results.
  • Insulated stainless steel construction and coved interior corners support durability and cleanup.
  • Field-reversible Dutch doors with magnetic latches and silicone gaskets help reduce heat loss.
  • Four 5-inch swivel casters, recessed handles, and a front drip trough improve mobility and handling.

Overall Dimensions:

28.75"W x 32.75"D x 73.0"H

Product Weight:

381.0 lb

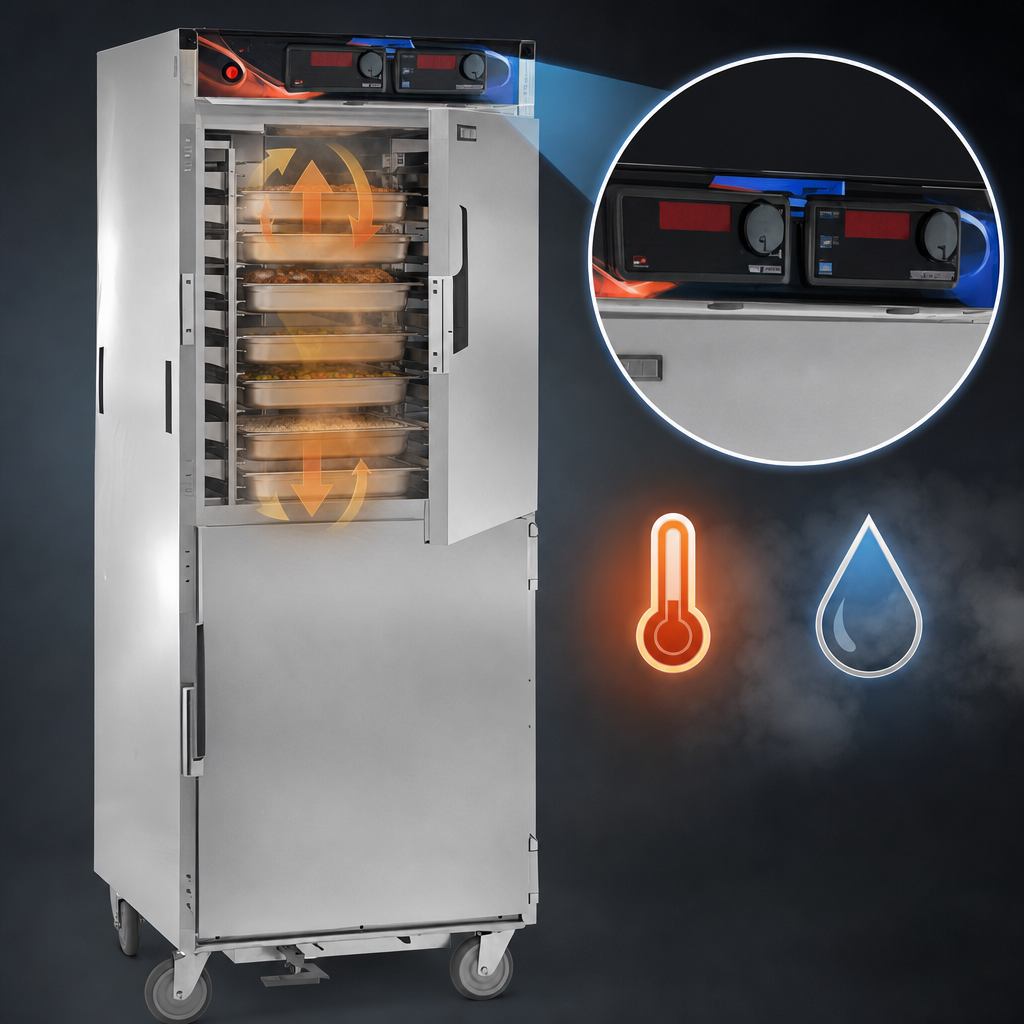

AquaTemp Heat And Humidity Control

Solid-state electronic control continuously monitors temperature and humidity to hold food at up to 200°F and up to 95% humidity.

AquaTemp Heat And Humidity Control

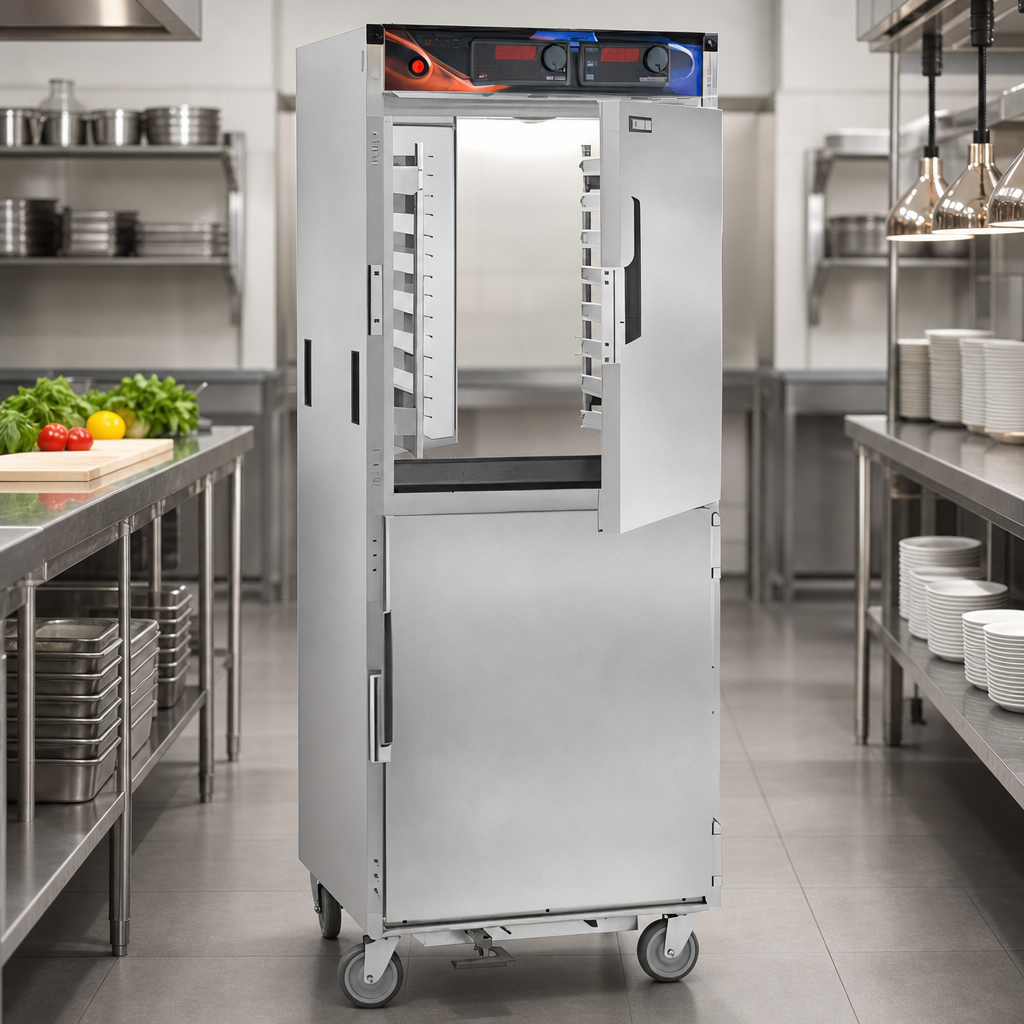

Pass-Thru Design

Front and rear access supports efficient workflow from prep area to service area.

Pass-Thru Design

Adjustable Pan Slides

Channel slides hold 32 full-size 18 x 26 pans on 1-1/2-inch centers.

Stainless Steel Construction

Stainless steel body, doors, and internal frame provide durability and simplify cleaning.

Left-Hand Reversible Dutch Doors

Insulated Dutch doors are field reversible, and this unit is configured with left-hand hinging.

Magnetic Latches And Silicone Gaskets

High-temperature magnetic latches and perimeter silicone gaskets help maintain a tight seal and reduce temperature loss.

Recessed Handles And Drip Trough

Recessed push/pull handles protect walls and aid maneuvering, while the front drip trough helps keep the surrounding area dry.

Heavy-Duty Swivel Casters

Four 5-inch swivel modulus casters make the cabinet easier to move; the front casters include brakes.

Low Water Safety

Low-water LED indication and water-heater shutoff help protect the unit when water reaches a critically low level.

Type Hot Cabinet
Style Pass-Thru
Installation Type Floor Model
Controls Solid State Digital
Material Stainless Steel
Interior Finish Stainless Steel
Pan Capacity 32 18 x 26 Pans
Pan Size 18 x 26 Inches
Temperature Range Ambient to 200°F
Voltage 120 Volts
Watts 2 kW
Hertz 60 Hz
Phase 1-Phase
Amps 16 Amps
Breaker Size 20 Amps
Plug Type NEMA 5-20P
Cord Length 10 Feet
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of CSA Certified
CSA Certified

Warranty & Protection

3-year parts, 1-year labor

Documents

PDF Cutsheet PDF Download PDF Owner's manual PDF Download PDF Product page PDF Download

Frequently Asked Questions

It holds up to 32 full-size 18 x 26 pans on 1-1/2-inch centers.
It continuously monitors and controls temperature and humidity to help maintain proper holding conditions.
The holding temperature range reaches up to 200°F (93°C).
Yes. The insulated Dutch doors are field reversible, and this unit is configured with left-hand hinging.
It requires 120 Volts, 60 Hz, single-phase power, draws 16 amps, and uses a NEMA 5-20P plug with 20-amp service.
The cabinet includes a 3-year parts and 1-year labor warranty.
