Cres Cor

Cres Cor Insulated Pass-Thru AquaTemp Hot Holding Cabinet for 18 x 26 Pans

SKU: H138PWS1834D2M
$8,560.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?

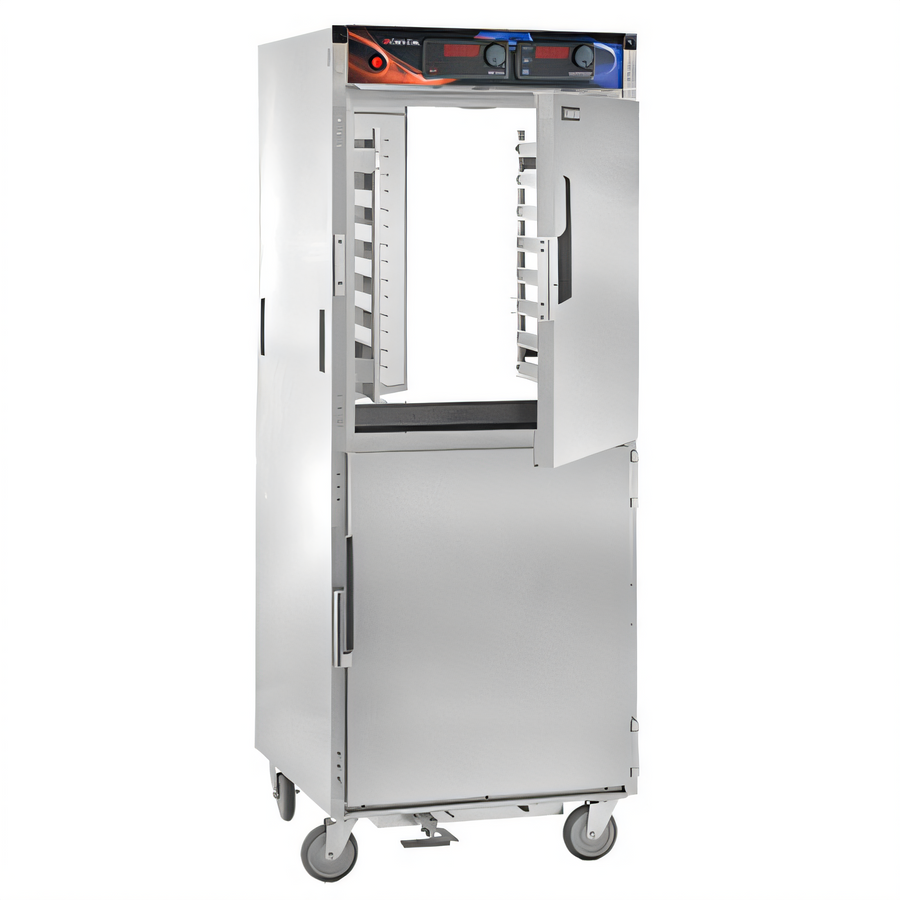

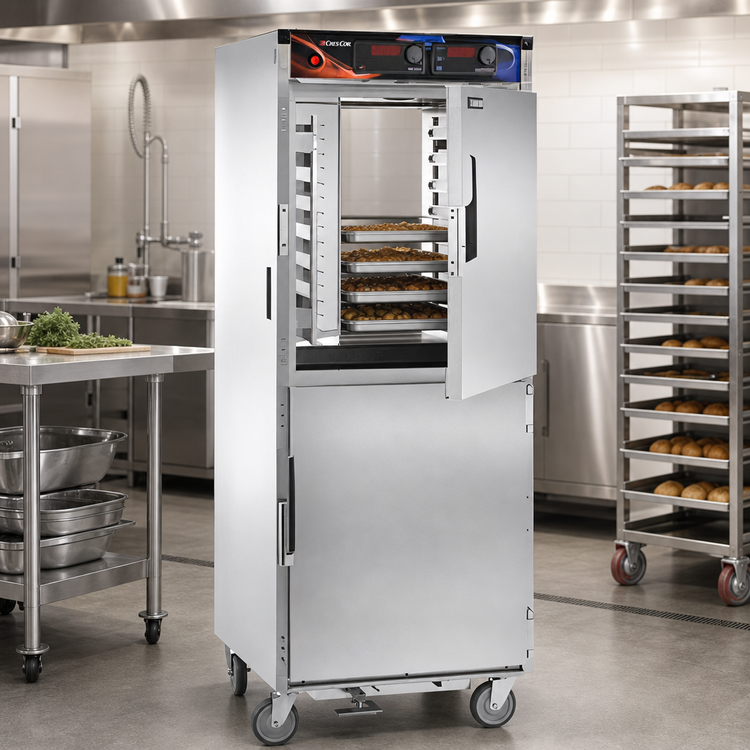

Cres Cor Insulated Pass-Thru AquaTemp Hot Holding Cabinet for 18 x 26 Pans

32 Pan Capacity, Stainless Steel, 120V

Keep food hot, humidified, and ready to serve from either side with a durable pass-thru cabinet built for 32 full-size pans.

  • Pass-thru design supports efficient transfer between prep and serving areas.
  • AquaTemp solid-state control manages temperature and humidity to help preserve food quality.
  • Holds 32 full-size 18 x 26 pans on 1-1/2 inch centers.
  • Stainless steel construction with an insulated cabinet and coved interior corners improves durability and cleaning.
  • Field-reversible Dutch doors with magnetic latches help reduce heat loss.
  • 5-inch swivel casters and recessed handles make the cabinet easier to move.
  • 120V, 2000W electric operation with low-water protection and a digital display.

Overall Dimensions:

28.75"W x 32.75"D x 75.0"H

Product Weight:

412.0 lb

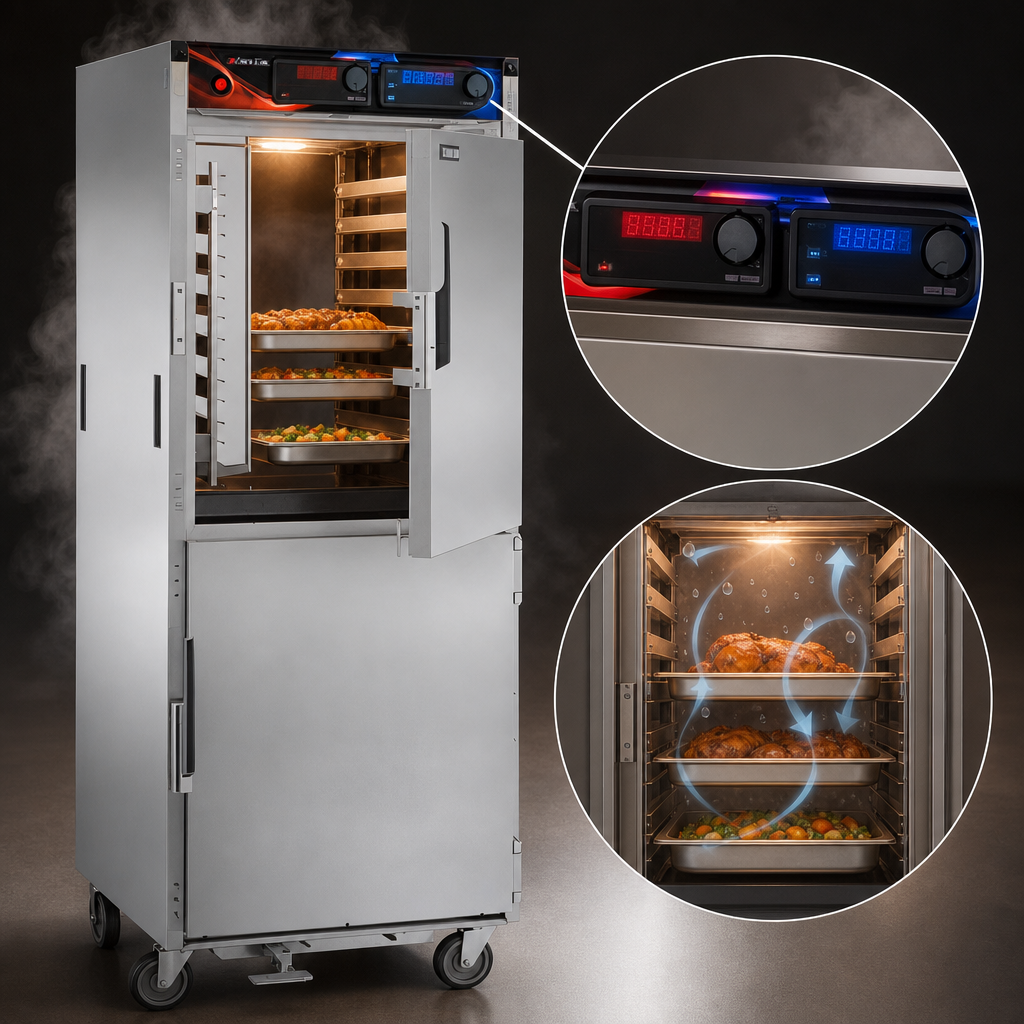

AquaTemp Temperature And Humidity Control

Solid state digital control measures, displays, and controls both temperature and humidity for consistent holding performance.

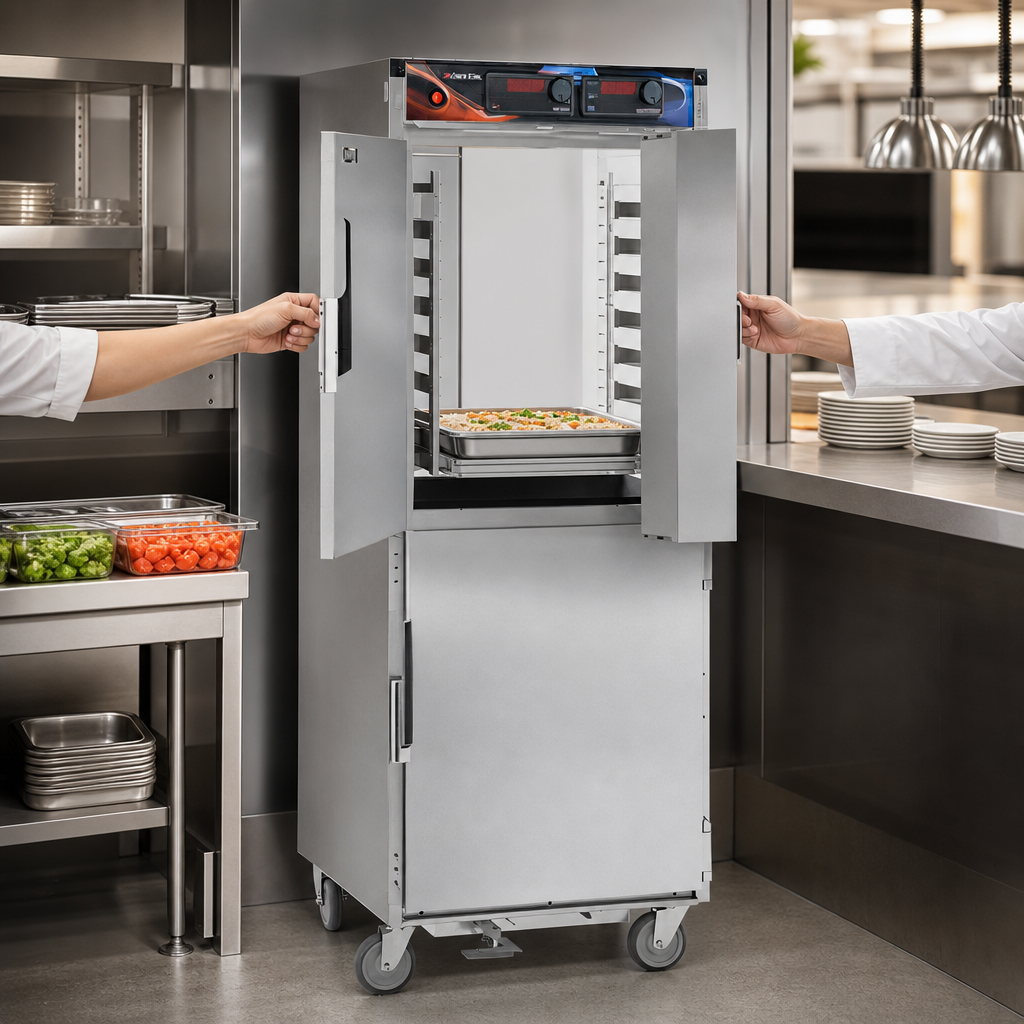

Pass-Thru Access

Doors on both sides support faster loading and unloading between preparation and serving areas.

Field-Reversible Dutch Doors

Insulated Dutch doors can be reversed in the field; standard right-hand hinging is provided with left-hand hinging available upon request.

32-Pan Capacity

Channel pan slides hold 32 full-size 18 x 26 pans on 1-1/2 inch centers without tipping.

Stainless Steel Construction

Stainless steel body, doors, internal frame, and reinforced base provide strength and durability.

Magnetic Latches And Silicone Gaskets

High-temperature ceramic magnetic latches, twist-lock catches, and silicone gaskets help maintain a tight seal.

Mobility Package

5-inch swivel modulus casters with front brakes and recessed push/pull handles make maneuvering easier.

Low-Water Protection

Low-water indicating LED and water heater shutoff help protect the humidity system when water is critically low.

Type Hot Holding Cabinet
Style Pass-Thru
Installation Type Floor Model
Pan Capacity 32 18 x 26 Inch Pans
Pan Size 18 x 26 Inches
Controls Solid State Digital
Temperature Range Ambient to 200°F
Material Stainless Steel
Interior Finish Stainless Steel
Voltage 120 Volts
Watts 2 kW
Hertz 60 Hz
Phase 1-Phase
Amps 16 Amps
Plug Type 5-20P
Cord Length 10 Feet
Shipping Width 29 Inches
Shipping Depth 33 Inches
Shipping Height 75 Inches
Shipping Weight 412 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of CSA Certified
CSA Certified

Warranty & Protection

3-Year Parts / 1-Year Labor

Frequently Asked Questions

It holds 32 full-size 18 x 26 pans on 1-1/2 inch centers.
Yes. The AquaTemp system measures, displays, and controls both temperature and humidity.
The cabinet operates on 120 Volts, 60 Hz, single phase, and draws 16 Amps. It is listed with a 5-20P plug and 20 Amp service.
Yes. The insulated Dutch doors are field reversible. Standard hinging is right-hand, and left-hand hinging is available upon request.
Yes. It is mounted on 5-inch swivel modulus casters, with brakes on the front casters.
Optional accessories include an automatic water fill system, tempered glass door windows, bail handles, a lock hasp, a side bumper kit, extra universal angles, and HACCP documentation with a built-in USB port.

Need Help Deciding?

Our equipment specialists can help you match specs to your kitchen layout, electrical capacity, and menu requirements.
