Cres Cor H138PS1834D2M Insulated Pass-Thru Hot Holding Cabinet, 32 Full-Size Pan Capacity, 120V, 1-Phase

SKU: H138PS1834D2M
$9,672.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Cres Cor Equipment Food Holding & Warming Equipment Food Holding & Warming Equipment Food Warmers & Holding Equipment Heated Cabinets & Holding Shelves Holding Cabinets Holding Cabinets New Arrivals Restaurant Equipment

Cres Cor H138PS1834D2M Insulated Pass-Thru Hot Holding Cabinet, 32 Full-Size Pan Capacity, 120V, 1-Phase

Stainless Steel Construction, Electronic Time and Temperature Control

Keep prepared foods at serving temperature and move the cabinet where you need it with this fully insulated pass-thru hot cabinet.

  • Pass-thru access supports efficient loading from prep and service areas.
  • Holds up to 32 18 x 26 pans on 1-1/2-inch centers.
  • Solid-state electronic control helps maintain precise holding temperature.
  • Fully insulated stainless steel construction helps retain heat and simplify cleaning.
  • Field-reversible insulated Dutch doors with magnetic latches help reduce heat loss.
  • 5-inch swivel modulus casters make it easier to reposition when loaded.

Overall Dimensions:

28.75"W x 32.75"D x 73.0"H

Product Weight:

392.0 lb

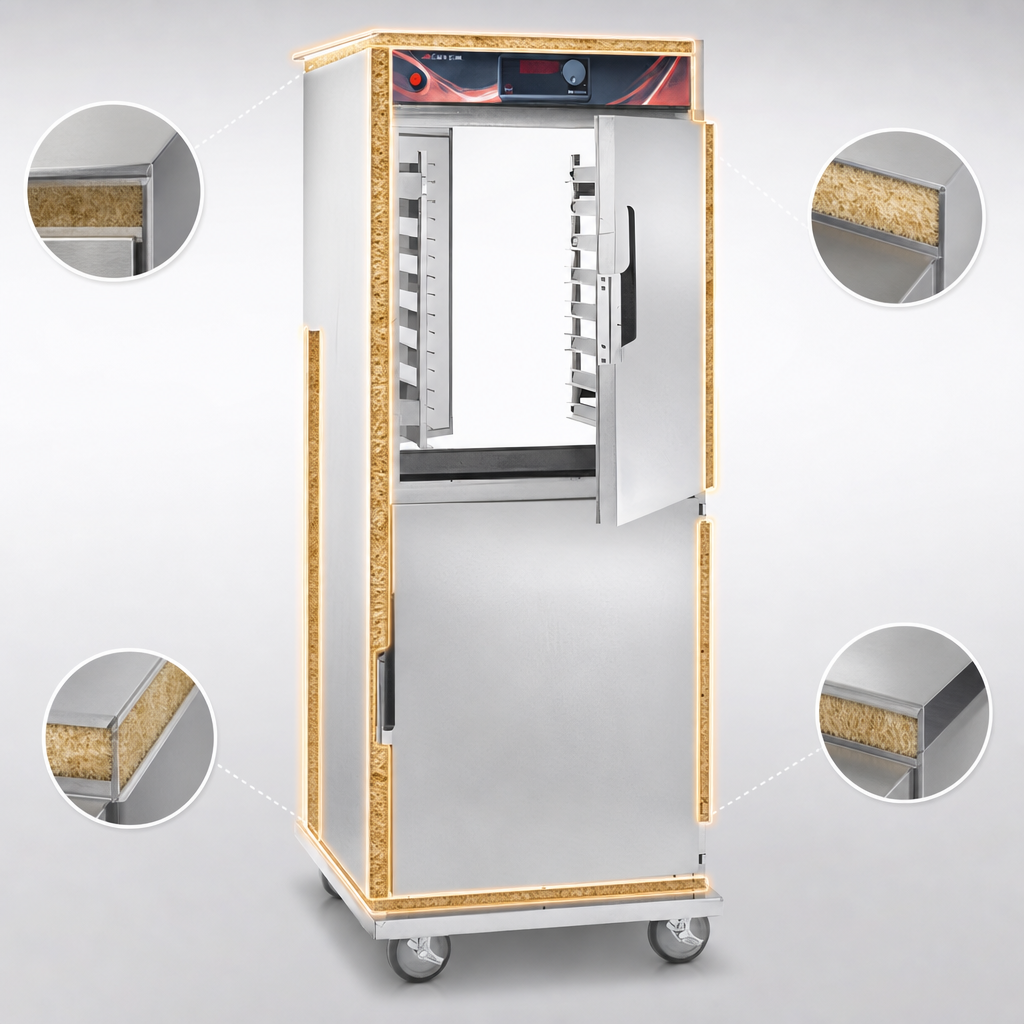

Fully Insulated Construction

Insulation in the doors, top, base, and sidewalls helps retain heat and maintain serving temperatures.

Fully Insulated Construction

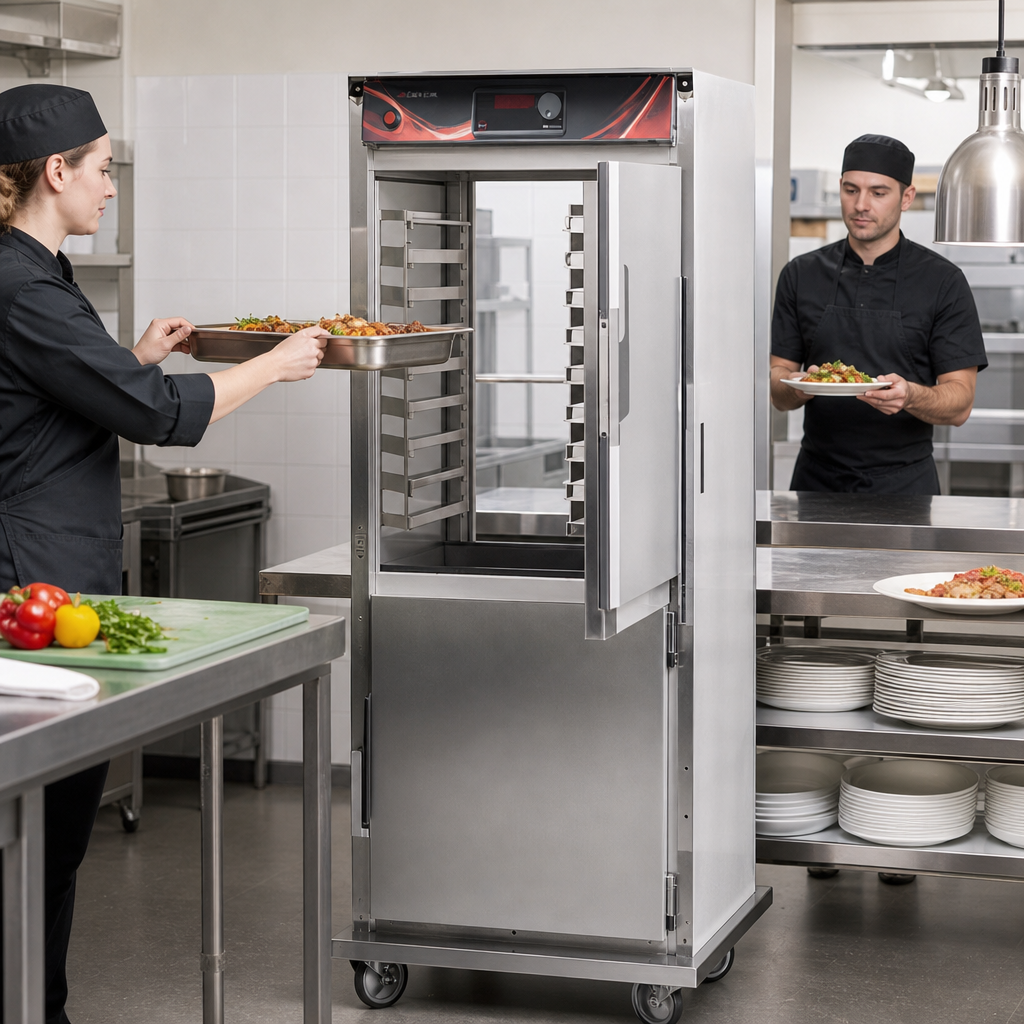

Pass-Thru Design

Front and rear access improves workflow between preparation and serving areas.

Pass-Thru Design

Solid State Electronic Control

LED digital control allows precise time and temperature management for holding food safely.

32-Pan Slide Capacity

Channel pan slides hold 18 x 26 pans on 1-1/2-inch centers without tipping.

Field-Reversible Dutch Doors

Insulated front and back doors with silicone gaskets and magnetic latches help minimize temperature loss.

Stainless Steel Construction

Stainless steel body, internal frame, and coved interior corners support durability and easier cleaning.

Mobile Casters

Four 5-inch modulus casters provide mobility, and the front casters include brakes.

High-Output Electric Heating

2000-watt electric heating system is designed to maintain hot holding temperatures up to 200°F.

Type Hot Cabinet
Style Pass-Thru
Installation Type Floor Model
Material Stainless Steel
Controls Solid State Digital
Temperature Range Ambient to 200 Degrees F
Pan Capacity 32
Pan Size 18 x 26 Inches
Voltage 120 Volts
Watts 2 kW
Hertz 60 Hz
Phase 1-Phase
Amps 16 Amps
Breaker Size 20 Amps
Plug Type 5-20P
Cord Length 10 Feet
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 29 Inches
Shipping Depth 33 Inches
Shipping Height 73 Inches
Shipping Weight 392 Pounds

Certifications & Compliance

Certified badge of CSA Certified
CSA Certified

Warranty & Protection

3-Year Parts / 1-Year Labor

Documents

PDF Cutsheet PDF Download PDF Owner's manual PDF Download PDF Product page PDF Download

Frequently Asked Questions

It holds 32 sets of universal angles on 1-1/2-inch centers and 32 pans sized 18 x 26 inches.
It requires 120 Volts, 60 Hz, single-phase power, draws 16 Amps, and needs 20 Amp service.
A solid-state electronic controller with LED digital display manages holding time and temperature.
Yes. The insulated Dutch doors are field reversible, with right-hand hinging standard and left-hand hinging available upon request.
Optional tempered glass door windows, key lock handle, lock hasp, corner bumpers, perimeter bumper, floor lock, and caster options are available.
The cabinet includes a 3-year parts / 1-year labor warranty.
