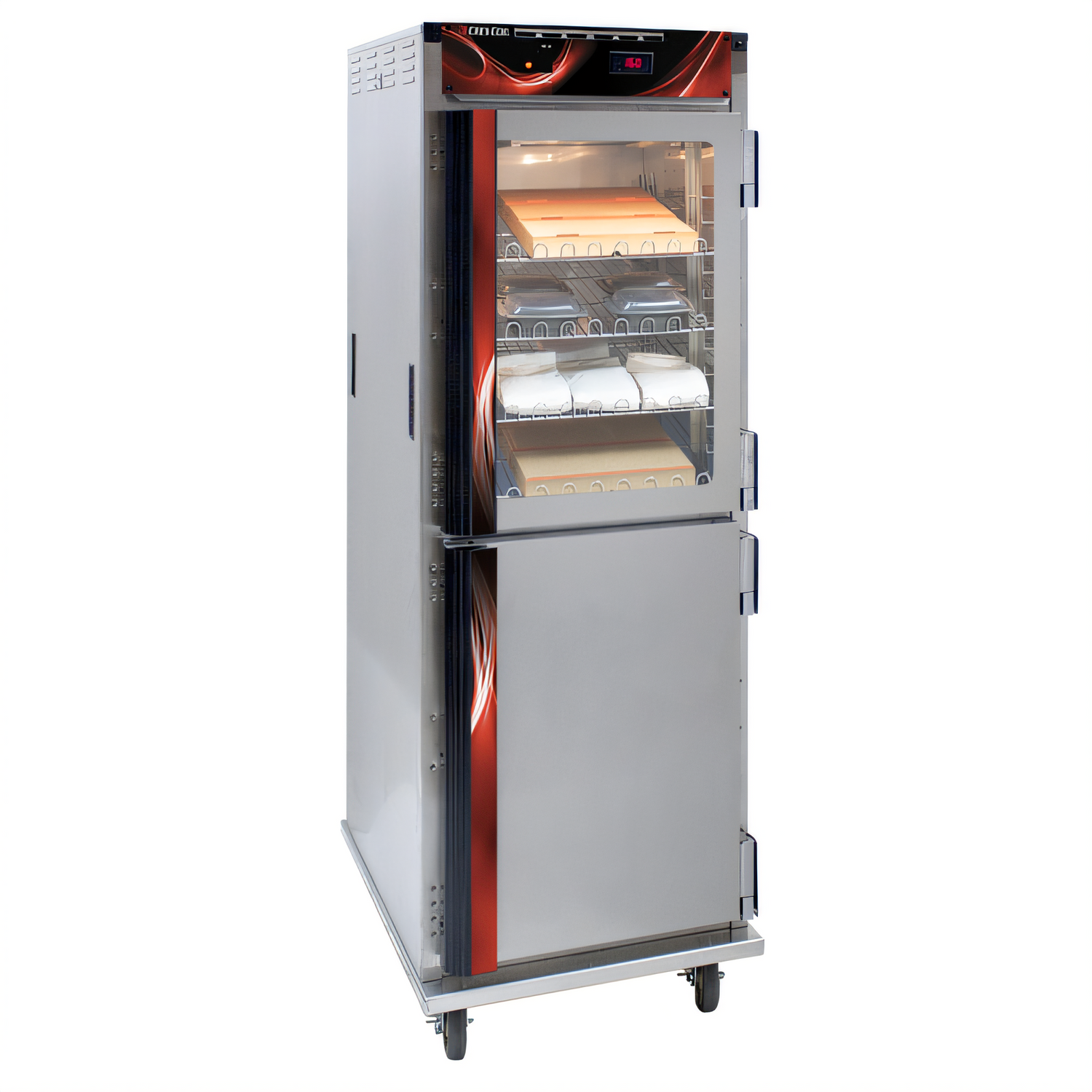

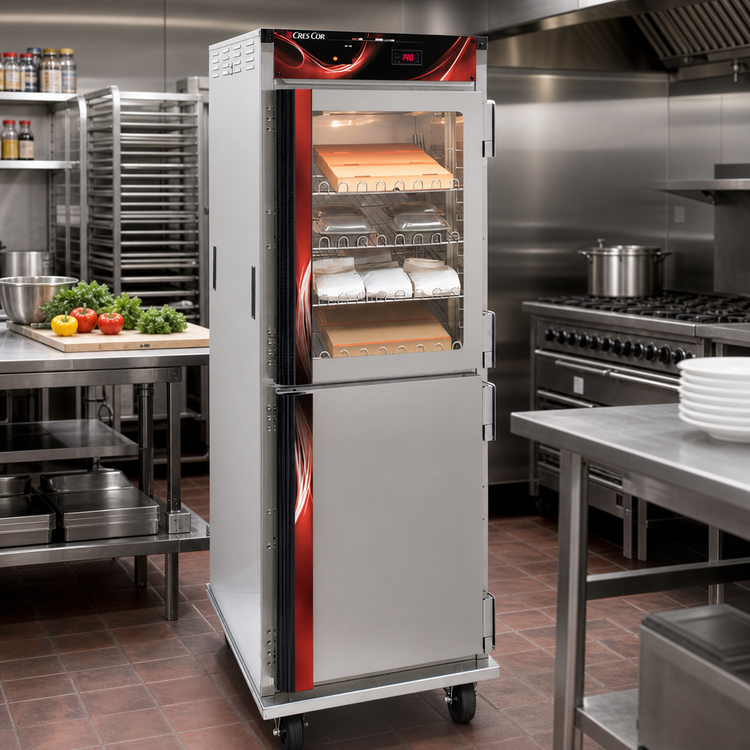

Cres Cor Insulated Pass-Thru Mobile Heated Holding Cabinet with Top-Mount Heater, Dutch Doors, and 12-Pan Capacity

SKU: H138NPSCC3MC5Q
$7,158.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Cres Cor Food Holding & Warming Equipment Food Warmers & Holding Equipment Heated Cabinets & Holding Shelves Holding Cabinets Holding Cabinets New Arrivals Restaurant Equipment

Cres Cor Insulated Pass-Thru Mobile Heated Holding Cabinet with Top-Mount Heater, Dutch Doors, and 12-Pan Capacity

Stainless Steel, 120V, Floor Model with Casters

Keep high-volume service moving with a mobile, insulated pass-thru cabinet that holds 12 full-size pans and maintains serving temperature from either side.

  • Pass-thru access from prep and serving areas simplifies workflow.
  • Top-mounted heating system keeps foods hot and ready, up to 200°F.
  • Stainless steel body with coved interior corners is built for durability and easy cleaning.
  • Holds 12 full-size 18 x 26 pans on 3-inch centers.
  • Dutch front doors, rear glass door, and 5-inch braked casters add convenience and mobility.

Overall Dimensions:

25.0"W x 33.0"D x 74.5"H

Product Weight:

302.0 lb

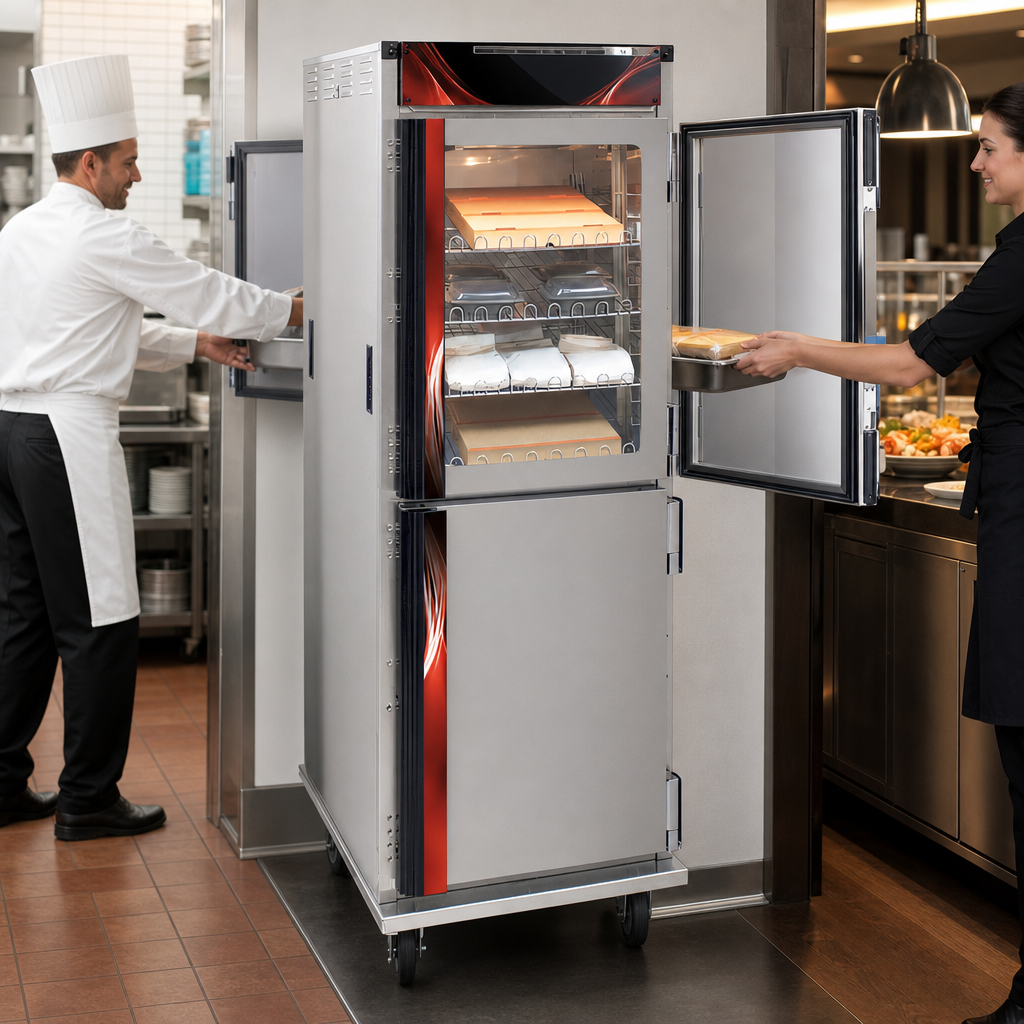

Pass-Thru Design

Access from both the front and rear supports efficient prep-to-service workflow.

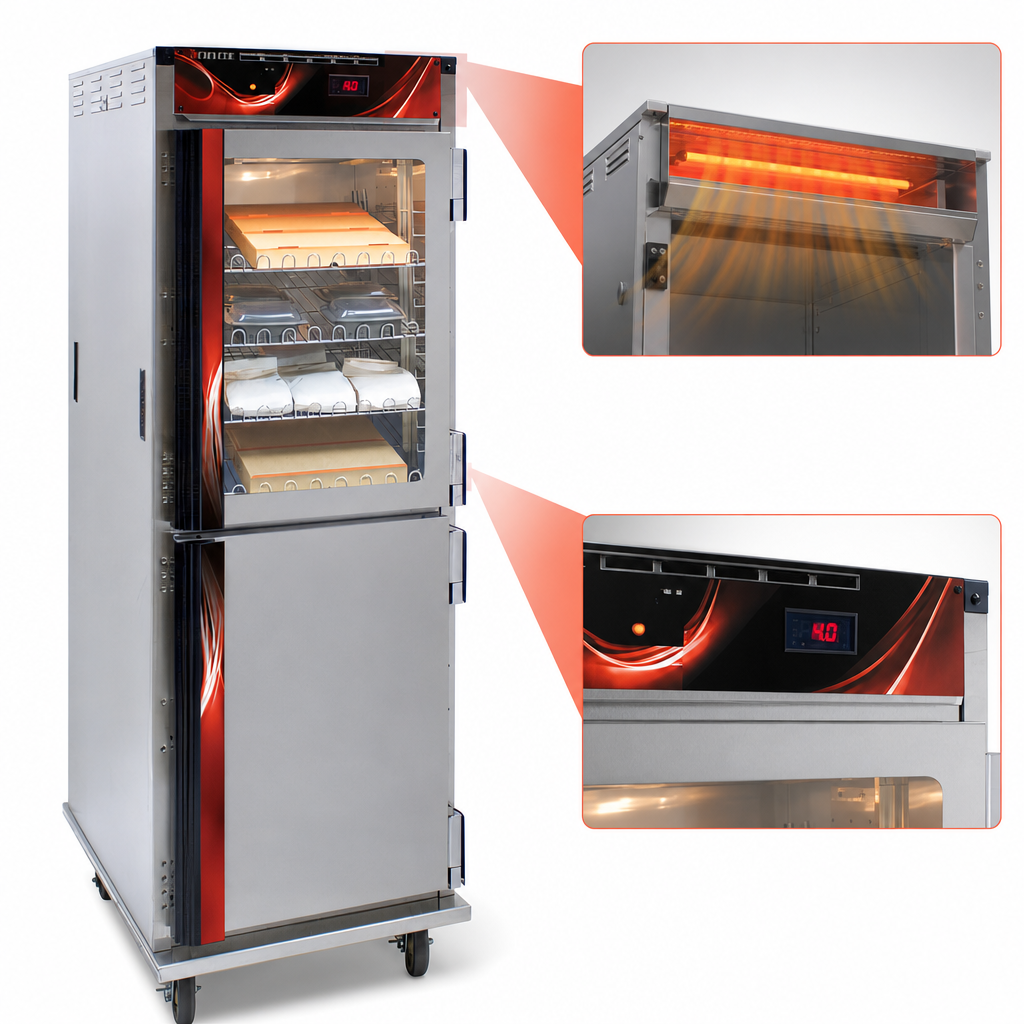

Top-Mounted Heating System

The 2 kW heater with electronic temperature control and digital display maintains holding temperatures up to 200°F (93°C).

Stainless Steel Construction

Heavy-duty stainless steel body and internal frame with smooth coved corners support durability and easy cleaning.

Lighted Top Cavity

Built-in halogen lighting improves product visibility for merchandising and service.

Dutch Front Doors

Insulated front Dutch doors include pull handles, self-closing hinges, and a tempered glass window.

Rear Access Door

Full-length rear door features a magnetic pull latch and tempered glass viewing window.

Full-Size Pan Capacity

Holds 12 full-size 18 x 26 pans on 3-inch centers.

Mobile Base

Four 5-inch swivel casters, two with brakes, make repositioning easier when loaded.

Electrical Package

Supplied with a 10-foot cord and right-angle plug for flexible installation.

Type Heated Holding Cabinet
Style Pass-Thru
Installation Type Floor Model (With Casters)
Pan Capacity 12 Full-Size Pans
Pan Size 18 Inches x 26 Inches
Material Stainless Steel
Interior Finish Stainless Steel
Controls Digital
Temperature Range Up to 200 °F
Voltage 120 Volts
Watts 2 kW
Amps 16 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type Right Angle Plug
Cord Length 10 Feet
Breaker Size 20 Amps
Shipping Width 25 Inches
Shipping Depth 33 Inches
Shipping Height 75 Inches
Shipping Weight 302 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of CSA Certified
CSA Certified

Warranty & Protection

3-Year Parts / 1-Year Labor

Documents

PDF Cutsheet PDF Download PDF Owner's manual PDF Download

Frequently Asked Questions

It holds 12 full-size 18 x 26 pans on 3-inch centers.
Yes. It has access from both the front and rear for use between prep and serving areas.
The cabinet requires 120 Volts, 60 Hz, single-phase power, draws 16 amps, and calls for 20 amp service.
Yes. Standard right-hand hinging is field reversible, and left-hand hinging is available upon request.
It rides on four 5-inch swivel casters, with two casters equipped with brakes.
The heating system maintains holding temperatures up to 200°F (93°C).
