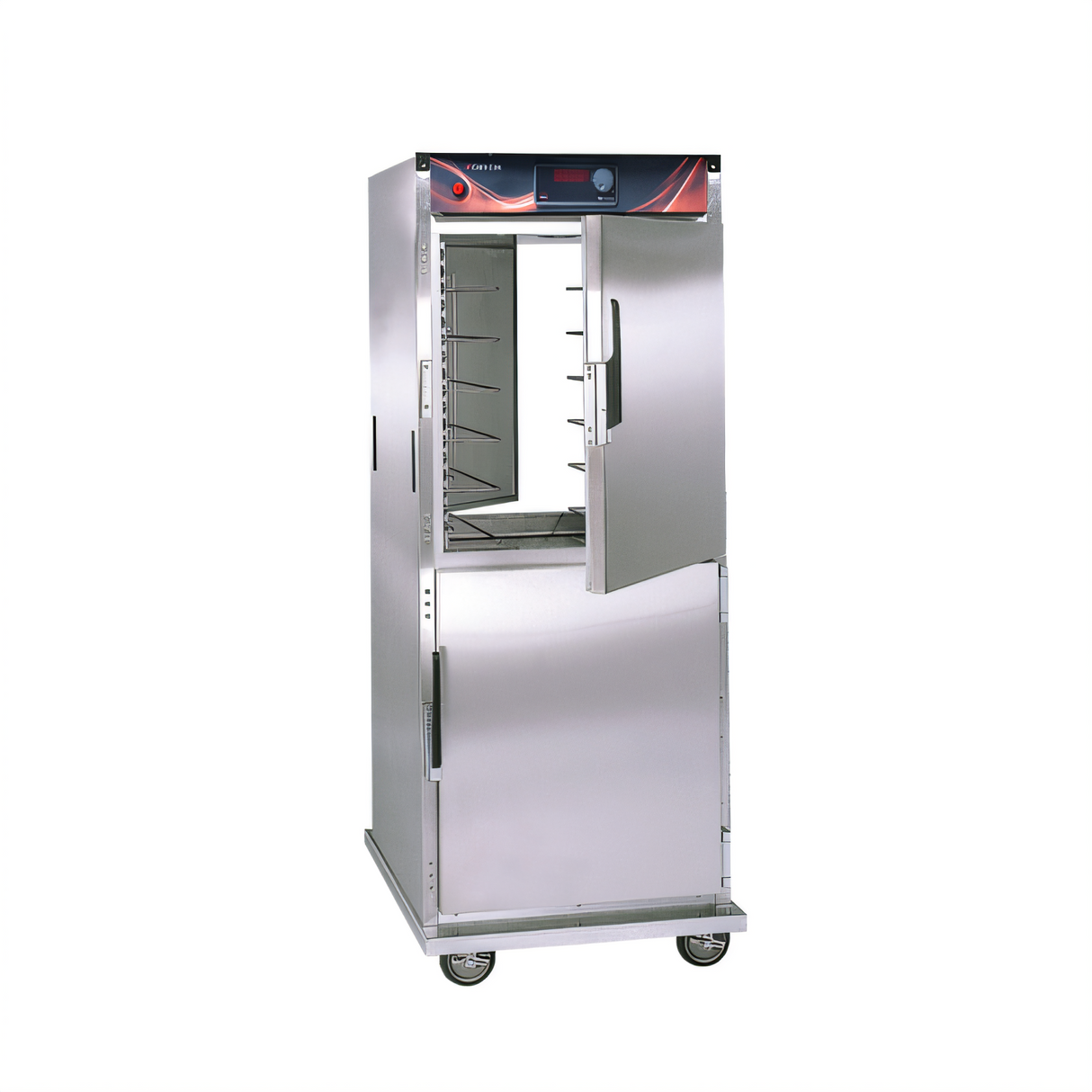

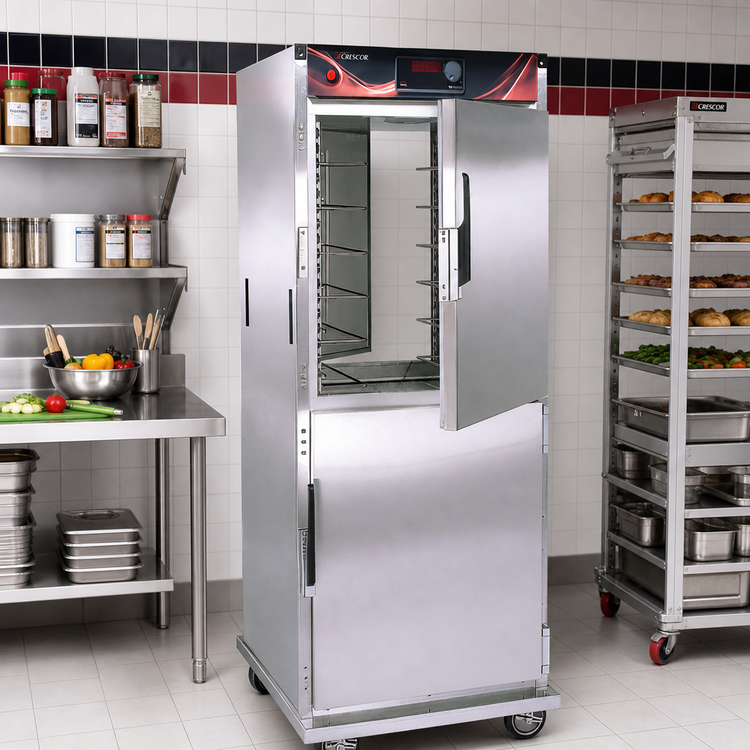

Cres Cor H-137-PSUA-12D Mobile Heated Pass-Thru Insulated Holding Cabinet, 12-Pan, 120V

Top-Mount Heater, Field-Reversible Dutch Doors, Adjustable Universal Wire Angles

Keep prepared food hot and organized with a fully insulated, mobile pass-thru cabinet that holds temperature precisely and moves easily when loaded.

  • Top-mounted 2000-watt heating system maintains holding temperatures up to 200°F.
  • Pass-thru design with field-reversible insulated Dutch doors supports fast access from either side.
  • 12 sets of chrome-plated universal angles on adjustable 1-1/2" centers accommodate a variety of pan sizes.
  • Solid-state digital control with LED display helps maintain consistent holding temperatures.
  • Stainless steel construction and coved interior corners make cleaning easier and improve durability.
  • Four 5" swivel casters, including two braked casters, provide mobility when fully loaded.

Overall Dimensions:

28.75"W x 34.63"D x 73.5"H

Product Weight:

400.0 lb

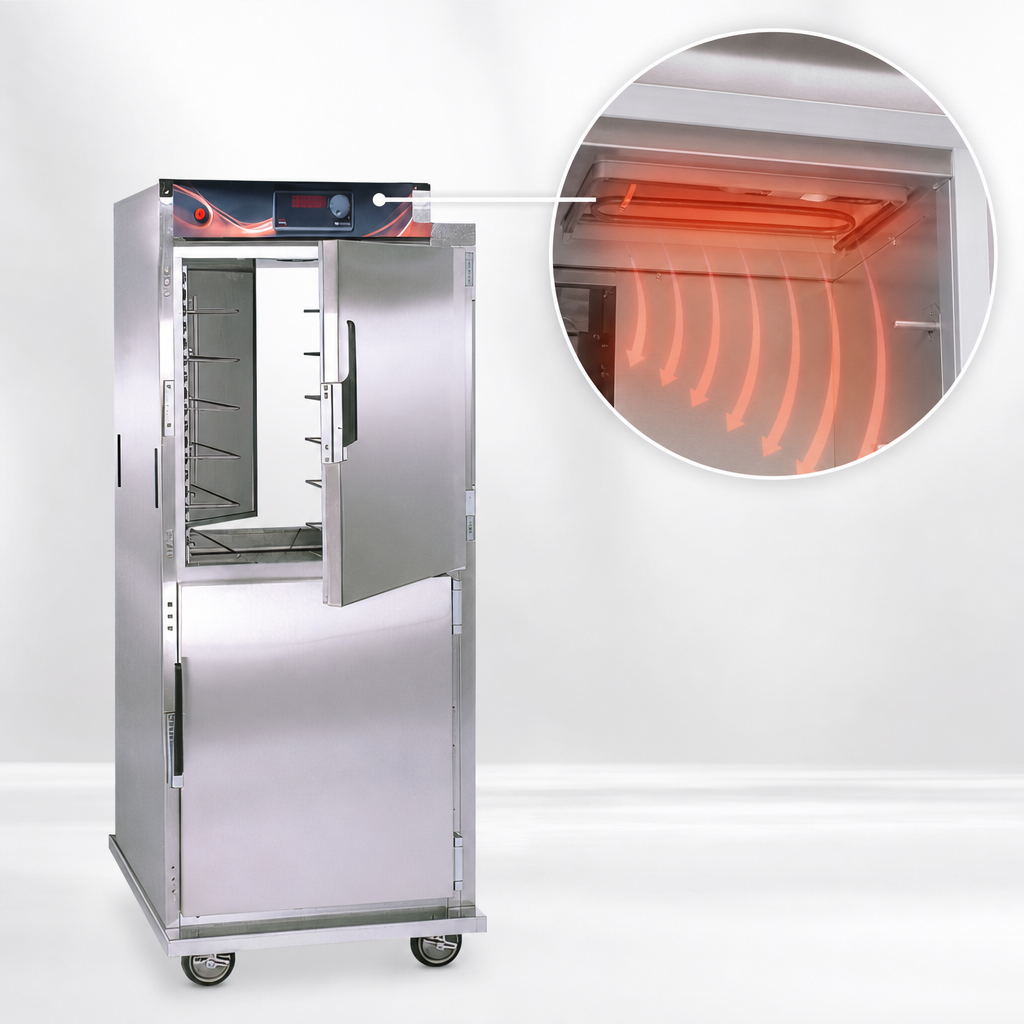

Top-Mount Heater Assembly

Top-mounted heating helps distribute heat efficiently throughout the cabinet for consistent holding performance.

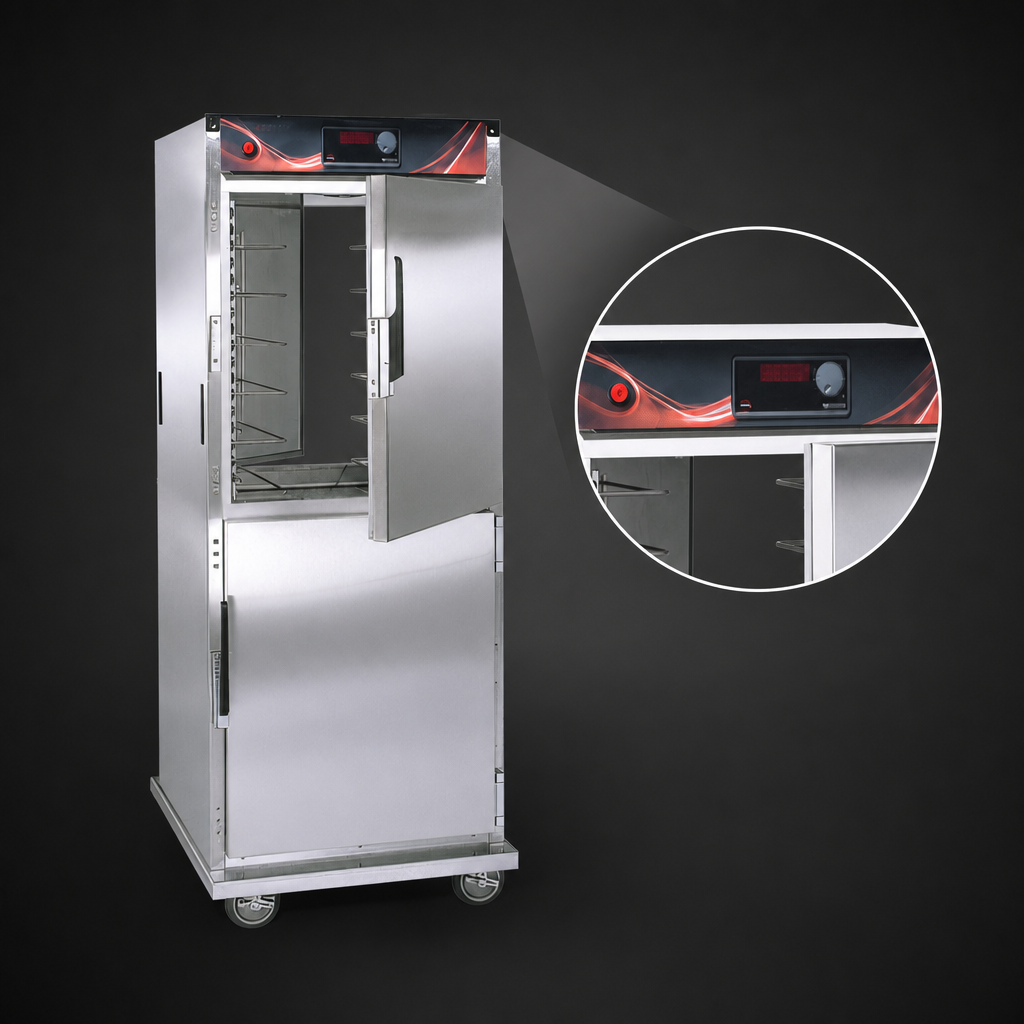

Solid-State Digital Control

Electronic control with LED display allows precise temperature management and easy monitoring.

Pass-Thru Dutch Doors

Front and rear insulated Dutch doors improve workflow and reduce temperature loss during loading and unloading.

Adjustable Universal Angle Slides

Twelve sets of chrome-plated wire universal angles adjust on 1-1/2" centers to fit multiple pan configurations.

Insulated Stainless Steel Construction

Fully insulated stainless steel body helps retain heat while supporting durability and easy cleaning.

Mobile Caster Base

Four 5" swivel casters make the cabinet easy to move; two casters include brakes for added stability.

Secure Magnetic Door Latches

High-temperature magnetic latches help keep doors securely closed during holding and transport.

Easy-Clean Interior

Smooth interior coved corners help reduce buildup of food particles and grease.

Type Hot Holding Cabinet
Style Pass-Thru
Installation Type Floor Model
Pan Capacity 12 18 x 26 Pans
Material Stainless Steel
Interior Finish Stainless Steel
Controls Solid State Digital
Temperature Range Ambient to 200°F (93°C)
Voltage 120 Volts
Amps 16 Amps
Watts 2 kW
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-20P
Cord Length 10 Feet
Shipping Width 29 Inches
Shipping Depth 35 Inches
Shipping Height 74 Inches
Shipping Weight 400 Pounds
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

3-Year Parts / 1-Year Labor

Documents

PDF Cutsheet PDF Download PDF Owner's manual PDF Download

Frequently Asked Questions

It is designed for 12 full-size 18" x 26" pans and includes 12 sets of universal angles.
The cabinet holds from ambient temperature up to 200°F (93°C).
Standard power requirements are 120 Volts, 60 Hz, single-phase, 16 Amps, with a NEMA 5-20P plug and 10-foot cord.
Yes. The insulated Dutch doors are field reversible, with standard right-hand hinging and left-hand hinging available upon request.
Yes. It rides on four 5" swivel casters, and two of the casters are braked for stability.
