Cres Cor

Cres Cor Mobile Non-Insulated Heated Holding Cabinet, Bottom-Mount Heater, 11 Universal Slides

SKU: 131UA11D
$3,980.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Cres Cor Food Holding & Warming Equipment Food Warmers & Holding Equipment Heated Cabinet Heated Cabinets & Holding Shelves Holding Cabinets Holding Cabinets New Arrivals Restaurant Equipment

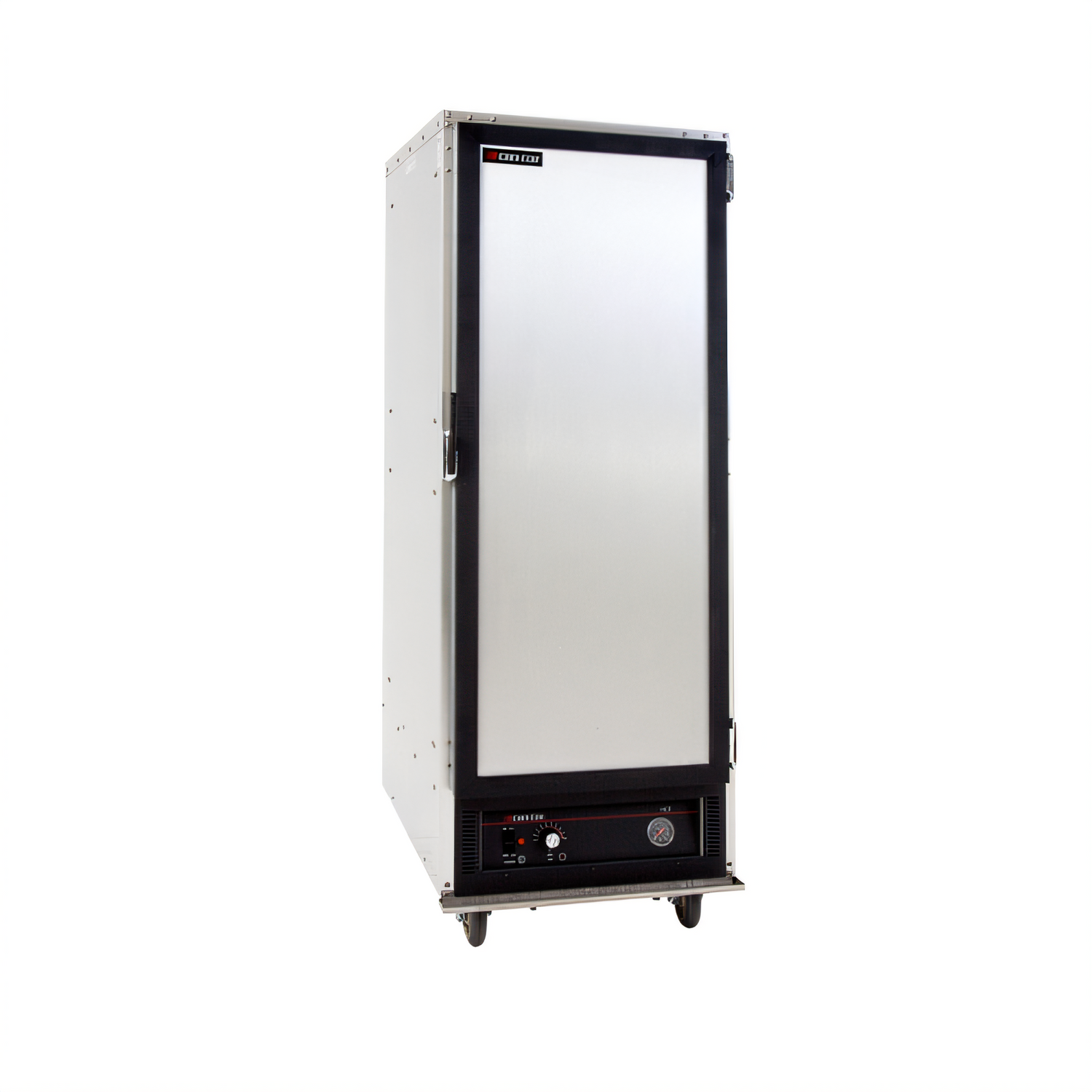

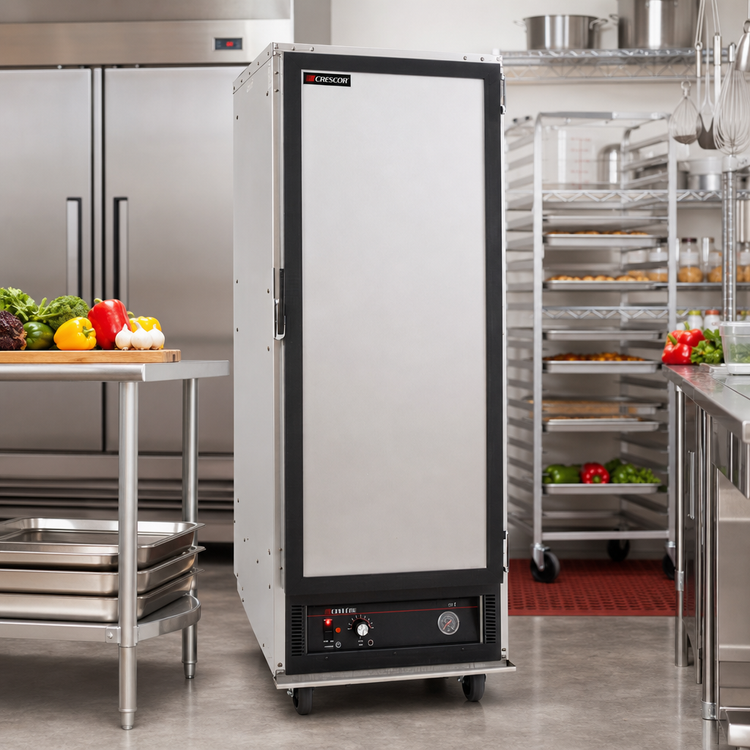

Cres Cor Mobile Non-Insulated Heated Holding Cabinet, Bottom-Mount Heater, 11 Universal Slides

120 Volts, 1-Phase, 5-Inch Swivel Casters, Fits 12 x 20 to 18 x 26 Pans

Keep prepared foods hot and ready to serve in a durable mobile cabinet designed for flexible pan loading and easy transport.

  • Non-insulated mobile cabinet helps hold prepared foods at serving temperature.
  • 11 universal slides accommodate a wide range of pans from 12 x 20 through 18 x 26.
  • Removable bottom-mount heater simplifies service and maintenance.
  • All-aluminum construction and welded frame are built for durability.
  • Magnetic latch, perimeter gasket, and reversible door help retain heat and secure loads.
  • 5-inch swivel casters, including two braked casters, make the cabinet easy to move when fully loaded.

Overall Dimensions:

24.25"W x 32.0"D x 69.75"H

Product Weight:

200.0 lb

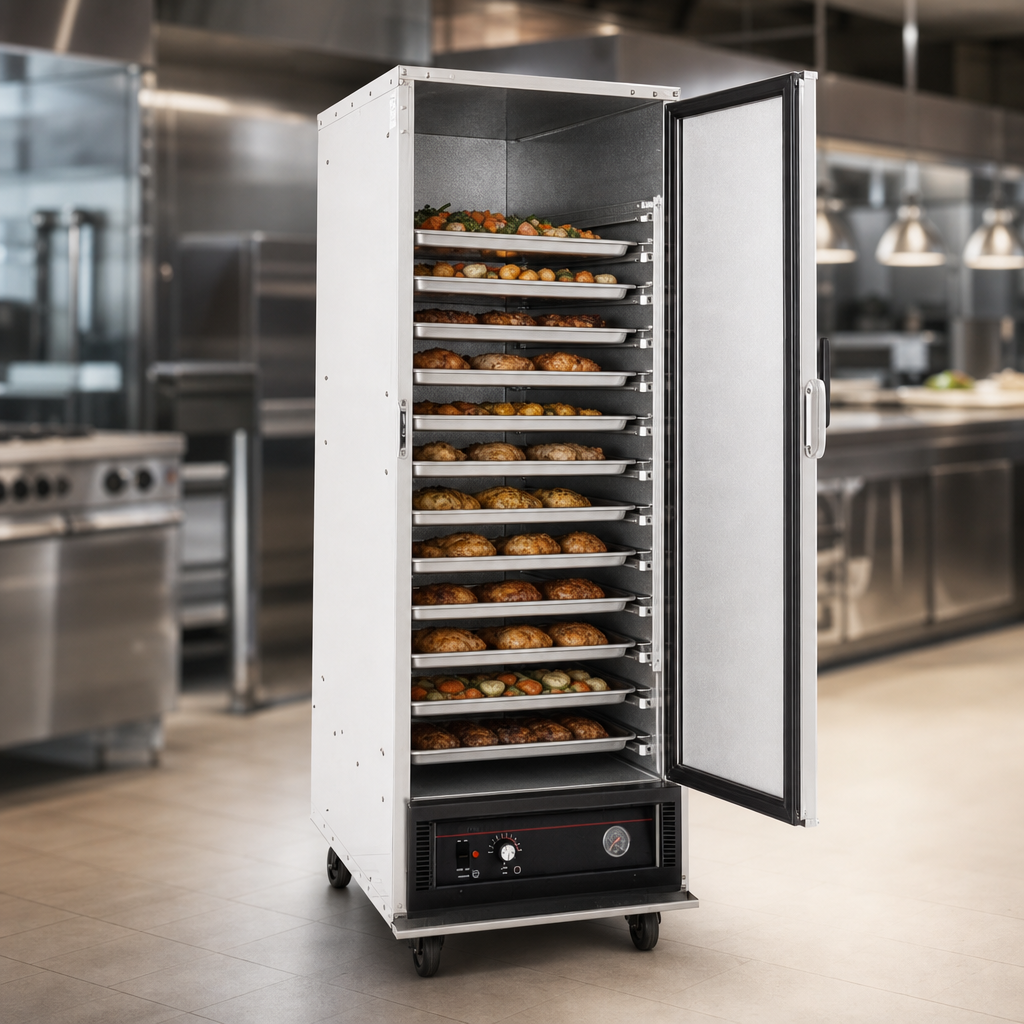

Non-Insulated Cabinet

Designed to keep prepared foods at serving temperatures without insulated wall construction.

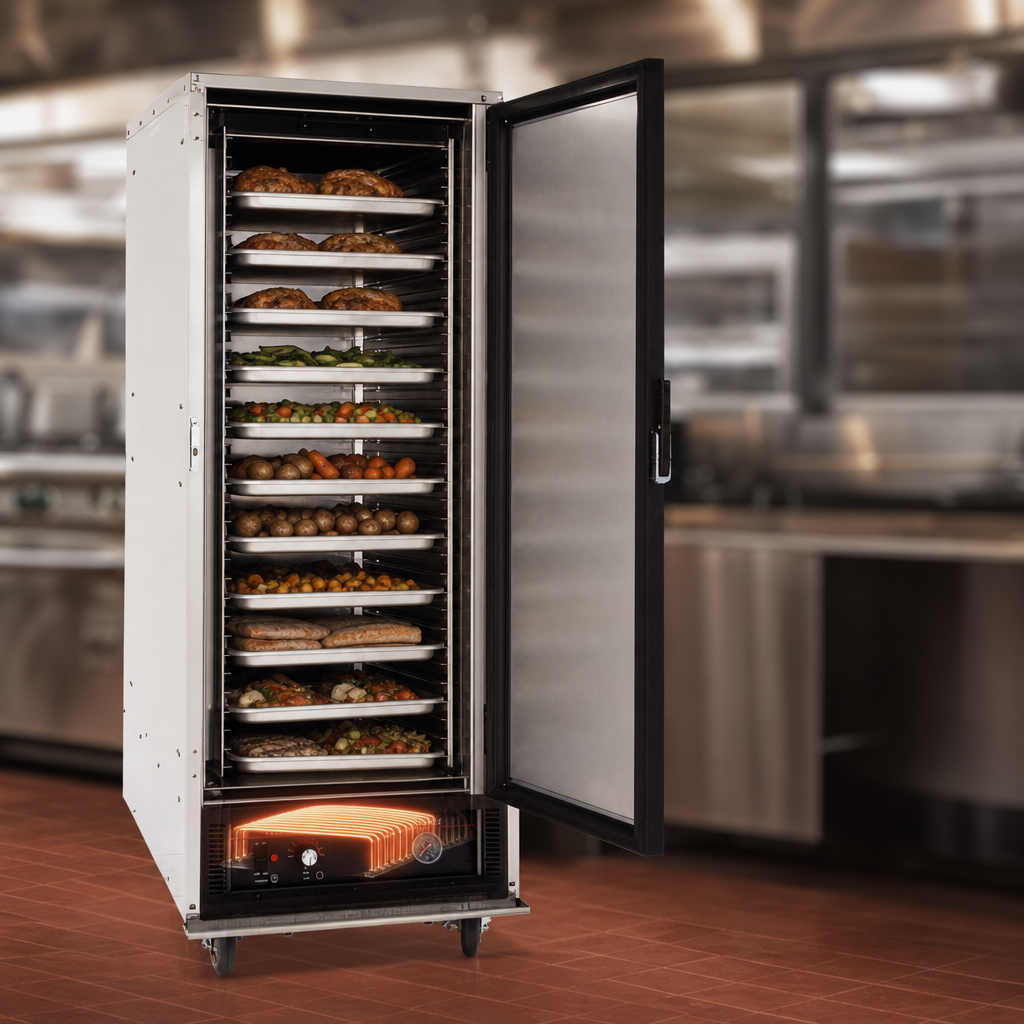

2000 Watt Holding System

Maintains cabinet temperatures up to 180°F (82°C) for hot food holding.

Bottom-Mount Heating Unit

Removable bottom-mount hot unit makes servicing and maintenance easier.

Universal Wire Slides

11 sets of wire universal angles provide flexible loading for multiple pan sizes.

Adjustable Slide Spacing

Slides are spaced on 4-1/2-inch centers and adjust on 1-1/2-inch centers.

All-Aluminum Construction

Non-corrosive hi-tensile aluminum body and fully welded frame provide strength and mobility.

Magnetic Door Latch and Perimeter Gasket

Helps secure the door during transport and reduce heat loss.

Field-Reversible Door

Brushed aluminum door is standard with right-hand hinging and can be changed to left-hand hinging upon request.

Mobile Casters

Heavy-duty 5-inch swivel casters with brakes on two casters support movement when fully loaded.

Accessible Controls

Controls are reachable without opening the door, and the slanted panel includes an easy-to-read thermometer.

Type Heated Cabinet
Style Mobile
Installation Type Floor Model
Insulation Non-Insulated
Material Aluminum
Interior Finish Aluminum
Exterior Finish All Aluminum
Heater Location Bottom Mounted
Pan Capacity 11 Universal Slide Sets
Pan Size 12 x 20 Inches thru 18 x 26 Inches
Compartments 1
Controls Mechanical Thermostat
Slide Centers 4-1/2 Inches, Adjustable on 1-1/2 Inches
Voltage 120 Volts
Watts 2 kW
Amps 16.7 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-20P
Cord Length 6 Feet
Shipping Width 25 Inches
Shipping Depth 32 Inches
Shipping Height 70 Inches
Shipping Weight 200 Pounds
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of CSA Certified
CSA Certified

Warranty & Protection

1-year parts / 90-day labor

Documents

PDF Cutsheet PDF Download PDF Owner's manual PDF Download

Frequently Asked Questions

The universal slides accept 12 x 20 through 18 x 26 pans, and the documentation notes compatibility with several pan styles including steam table pans, roast & bake pans, bun pans, and service trays.
The product data lists 11 universal slide sets and shows capacities of up to 22 full-size 12 x 20 pans or 11 full-size 18 x 26 pans, depending on pan type.
Yes. The cabinet uses a removable bottom-mount hot unit for easier service and maintenance.
Standard power requirements are 120 Volts, 60 Hz, single phase, and 16.7 Amps. 208 or 240 Volt service is available as an option.
Yes. The brushed aluminum door is field reversible; right-hand hinging is standard and left-hand hinging is available upon request.
It rides on 5-inch swivel casters, with brakes on two casters, and uses a magnetic latch to secure the door during transport.
