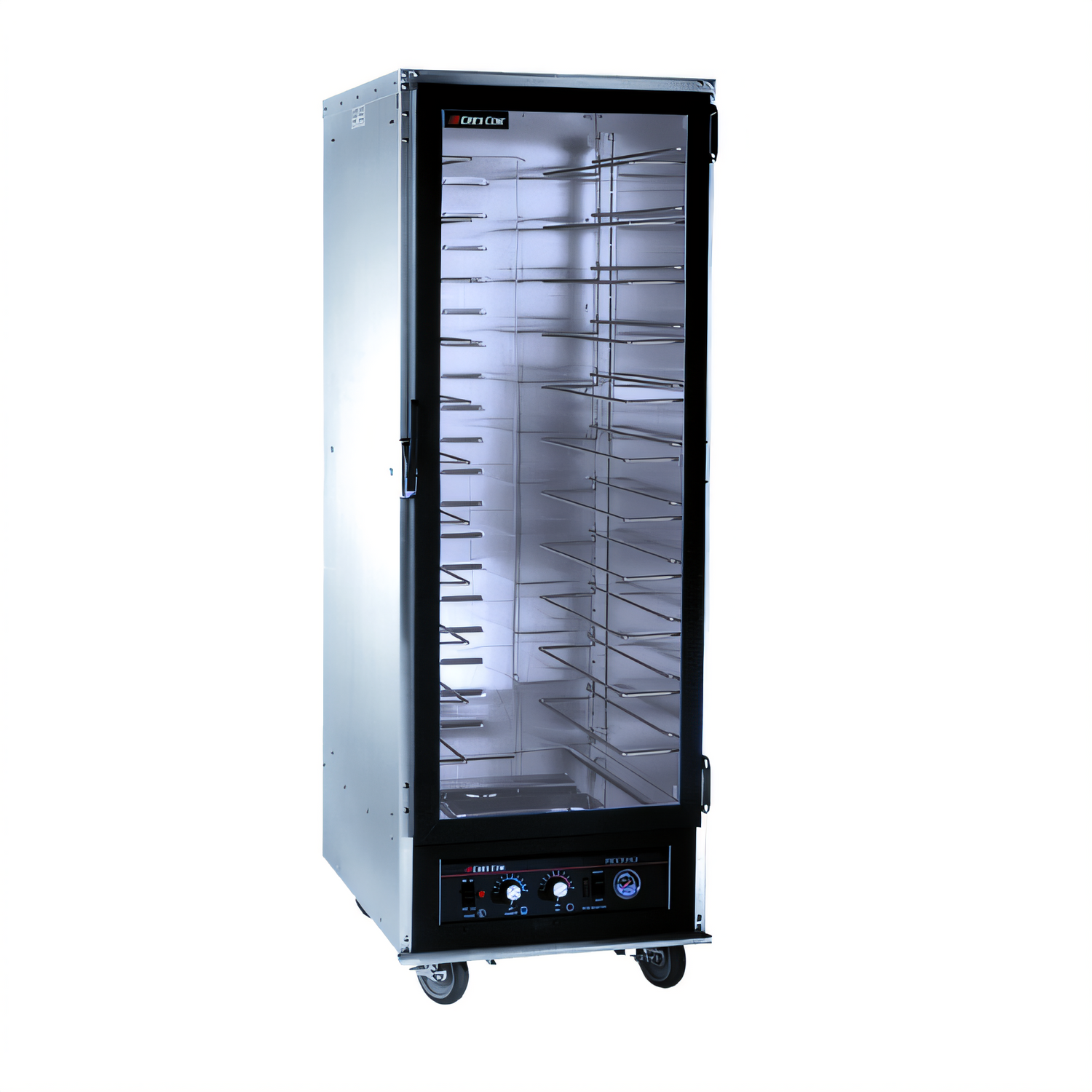

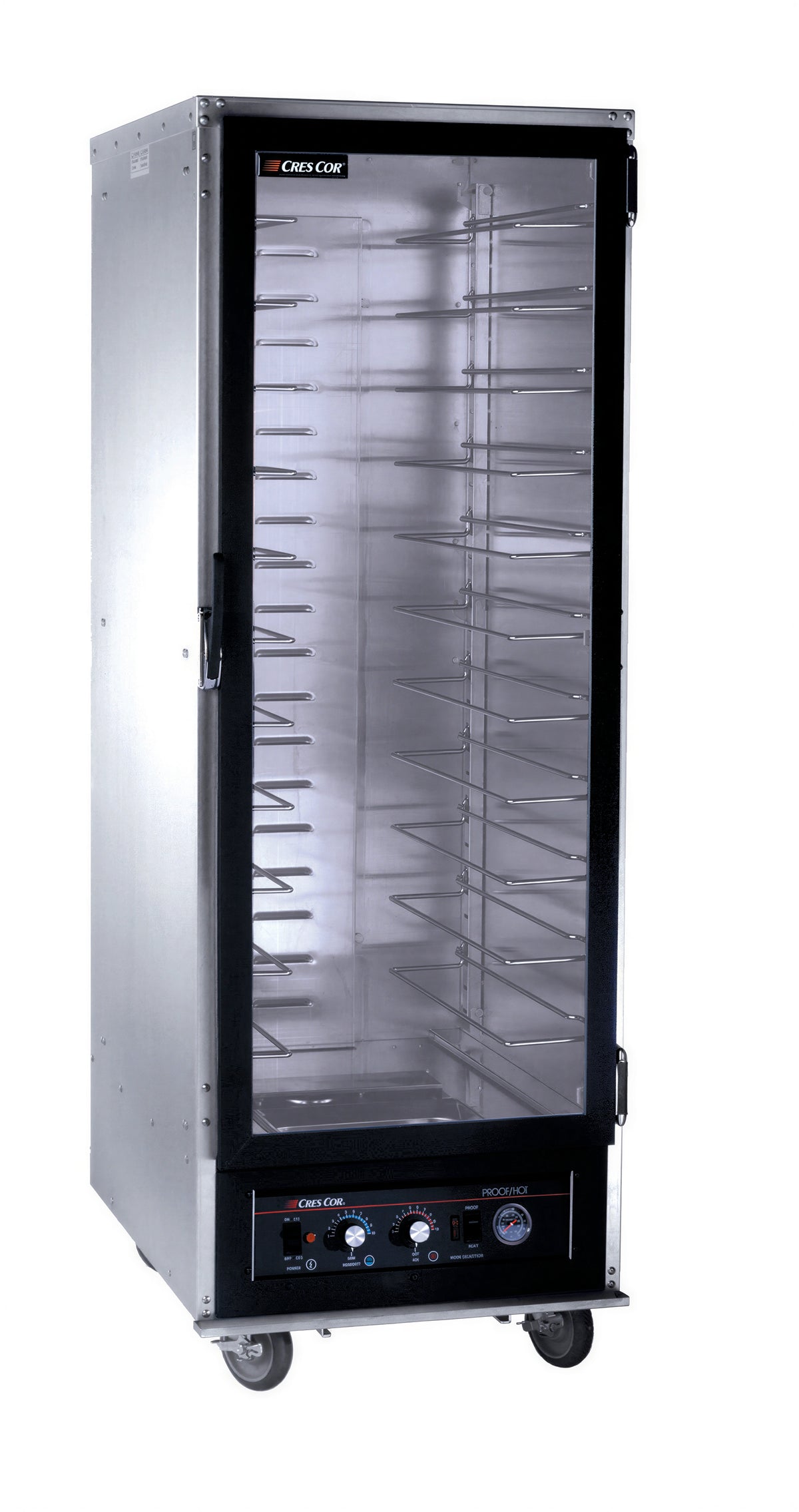

Cres Cor Non-Insulated Proof/Hot Cabinet, 11 Full-Size Sheet Pan Capacity, 120V

Universal Slides, Field-Reversible Lexan Door, Bottom-Mounted Heater

A versatile proofing and holding cabinet that keeps dough and prepared foods at the right temperature and humidity while offering flexible pan sizing and easy mobility.

  • Use as either a dough proofer or a hot holding cabinet.
  • Holds 11 full-size 18" x 26" sheet pans or 22 full-size 12" x 20" pans.
  • Non-insulated aluminum construction with a removable bottom-mounted heater.
  • Field-reversible clear Lexan door with magnetic latch and perimeter gasket.
  • 5" swivel casters with brakes help move the cabinet when fully loaded.
  • Accessible controls reduce heat loss during adjustments.
  • Integral drip trough helps keep the surrounding area dry.

Overall Dimensions:

24.25"W x 32.0"D x 69.75"H

Product Weight:

185.0 lb

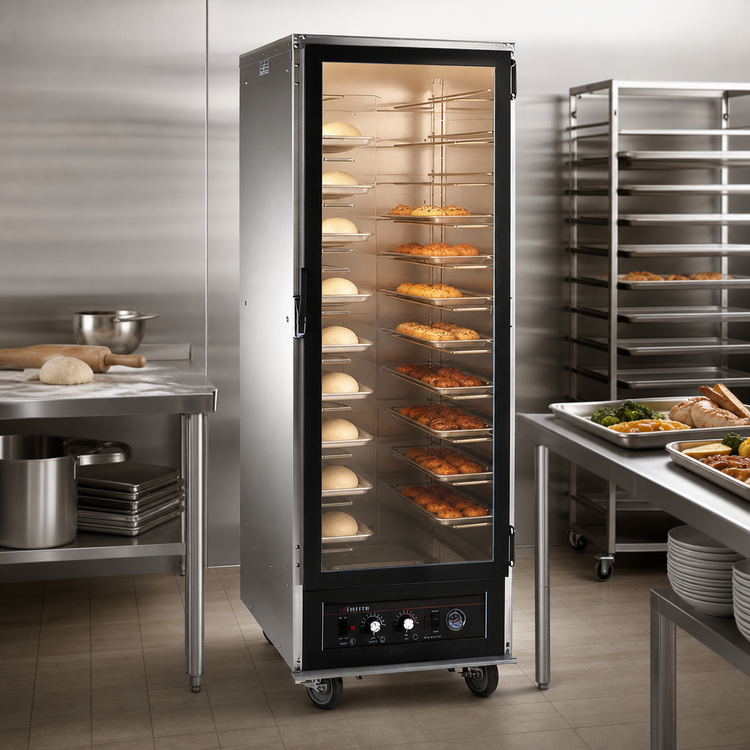

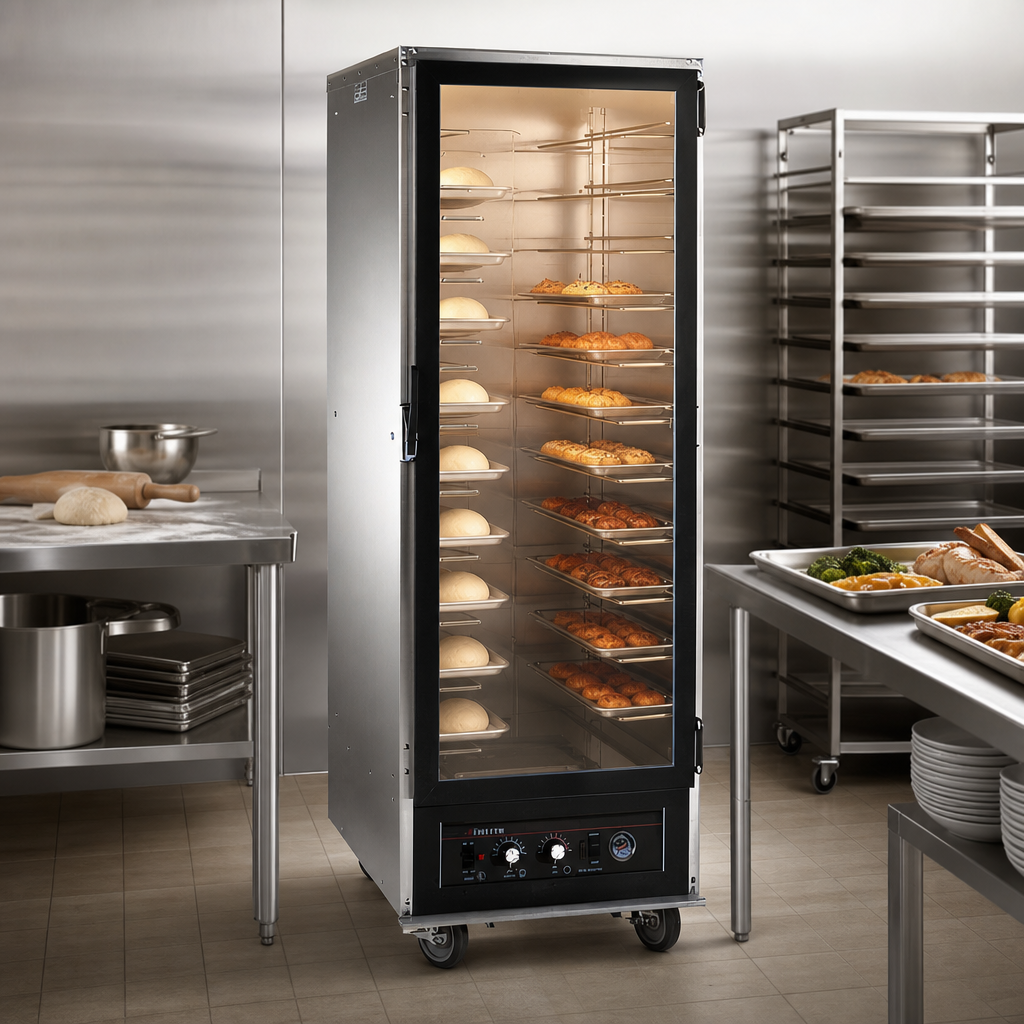

Proofing and Holding Cabinet

Designed for dual use as a dough proofer or as a hot cabinet for holding prepared foods at serving temperatures.

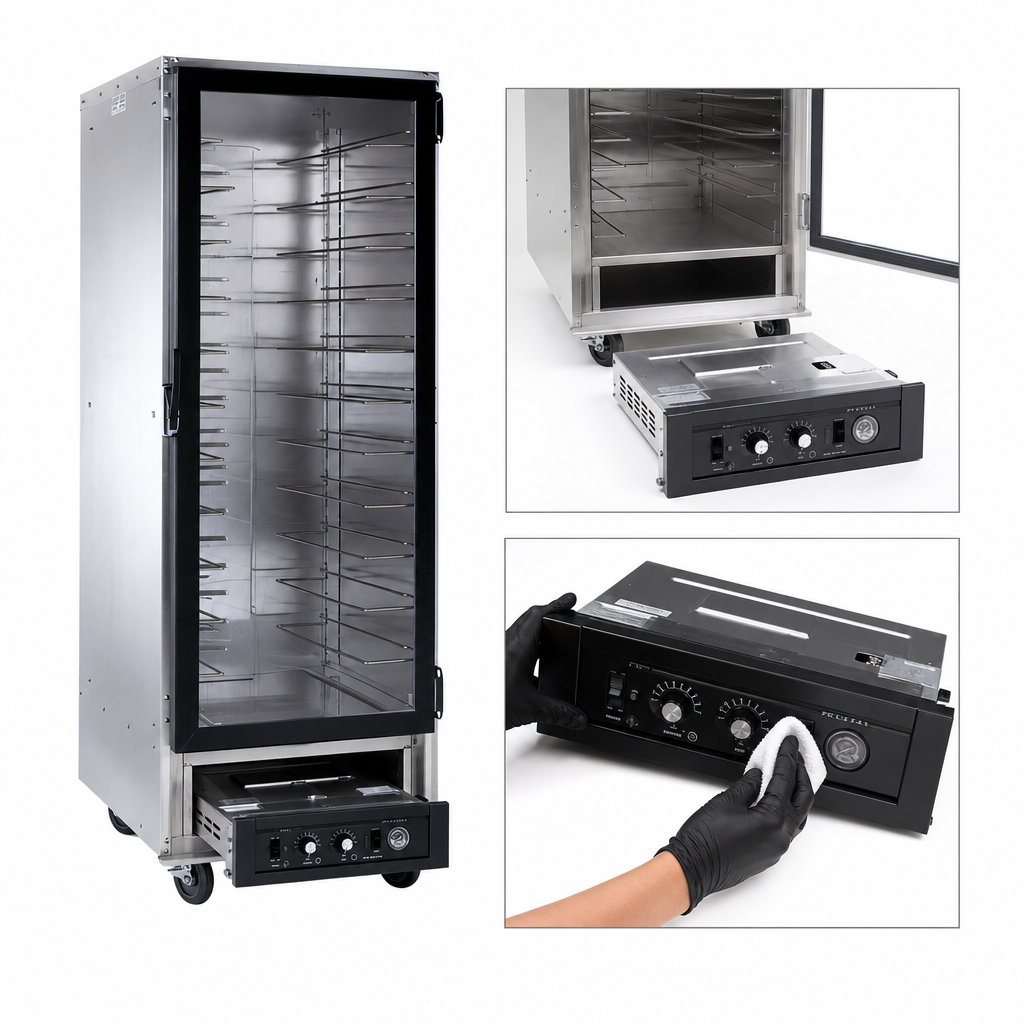

Removable Bottom-Mounted Heater

The bottom-mounted proof/hot unit can be removed for cleaning and maintenance.

Universal Wire Slides

Eleven sets of chrome-plated wire universal angles accommodate multiple pan sizes on adjustable 1-1/2-inch centers.

Field-Reversible Lexan Door

Clear Lexan door provides product visibility; right-hand hinging is standard and left-hand hinging is available upon request.

Humidity and Heat Control

Maintains holding temperatures up to 180°F and proofing temperatures from 80°F to 95°F at 95% relative humidity.

Aluminum Construction

Non-corrosive hi-tensile aluminum body with riveted, welded, and finished construction for strength and mobility.

Mobility and Safety

Includes 5-inch swivel casters, with two front casters equipped with brakes.

Integral Drip Trough

Front-mounted drip trough helps keep traffic areas dry and safer to navigate.

Accessible Controls

Controls are accessible without opening the door, helping reduce heat loss during operation.

Type Proof/Hot Cabinet
Style Non-Insulated
Installation Type Floor Model
Compartments 1
Material Aluminum
Interior Finish Aluminum
Pan Capacity 11 Full-Size 18 x 26 Sheet Pans or 22 Full-Size 12 x 20 Pans
Pan Size 12 x 20 Inches to 18 x 26 Inches
Slide Centers 4-1/2 Inches, Adjustable on 1-1/2-Inch Centers
Controls Mechanical Thermostats
Temperature Range 80°F to 180°F
Voltage 120 Volts
Watts 2 kW
Amps 16.7 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type 5-20P
Cord Length 6 Feet
Shipping Width 25 Inches
Shipping Depth 32 Inches
Shipping Height 70 Inches
Shipping Weight 185 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of CSA Certified
CSA Certified

Warranty & Protection

1-year parts / 90-day labor

Documents

PDF Cutsheet PDF Download PDF Owner's manual PDF Download

Frequently Asked Questions

No. This model is a non-insulated proof/hot cabinet.
It uses universal wire slides for 12" x 20" through 18" x 26" pans and can hold 11 full-size 18" x 26" sheet pans or 22 full-size 12" x 20" pans.
The cabinet operates on 120 Volts, 60 Hz, single phase, drawing 16.7 Amps with a 5-20P plug.
Yes. The Lexan door is field reversible; right-hand hinging is standard and left-hand hinging is available upon request.
Holding mode reaches up to 180°F, and proofing mode operates from 80°F to 95°F with 95% relative humidity.
Yes. It includes four 5-inch swivel casters, with two braked casters in front.
