CookTek (Middleby) 682701 Induction-Based Warming Equipment
CookTek (Middleby) 682701 Induction-Based Warming Equipment is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
CookTek (Middleby) 682701 Induction-Based Warming Equipment
Description

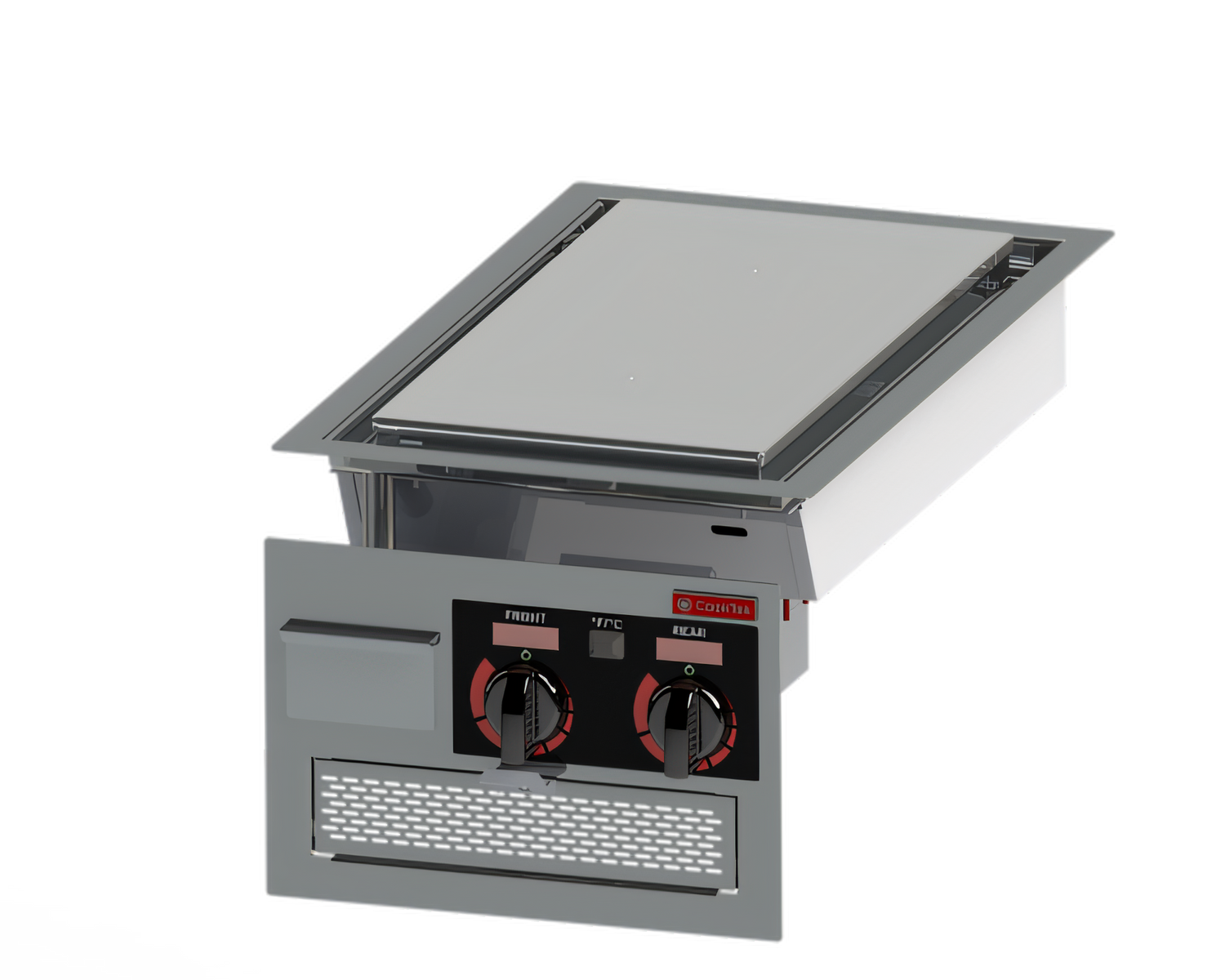

CookTek® PLD162CS-200 Drop-In Induction Plancha
16.55" W x 27.89" D • 12" x 23" steel cooking surface • 7 kWBuilt for back-of-house pros who need blazing heat without the hot kitchen, the CookTek PLD162CS-200 combines powerful 7 kW induction technology with a durable drop-in design. From delicate tortillas to sizzling steaks, reach 350 °F in under 5 minutes and 500 °F in under 9—then hold that heat evenly from edge to edge, cook after cook.
Key Advantages
- Instantaneous recovery: microprocessor-controlled induction keeps temperatures rock-steady for consistent results and faster ticket times.
- Wide 325–525 °F range: 10 precise temperature or power settings per knob handle everything from breakfast flatbreads to dinner entrées.
- Low radiant heat: a cooler, more comfortable kitchen compared with gas or electric griddles.
- Grease management made easy: full-perimeter moat channels drippings into two removable drawers for quick, mess-free cleanup.
- Advanced safety: automatic shut-off, hi-temperature surface protection and continuous component monitoring prevent overheating.
- Drop-in convenience: clean stainless housing disappears into the counter for a seamless cook line and easy wipe-downs.
- Integral cooling fan: 140 CFM airflow keeps internal electronics at peak performance—even in 122 °F kitchens.
- Certified & compliant: cETLus, NSF and CE listed for worry-free installation worldwide.
At-a-Glance Specs
| Model | PLD162CS-200 (Steel Surface) |
|---|---|
| Cooking surface | 12 in W × 23 in D (305 mm × 584 mm) |
| Induction zones | 1 independent zone • 7 kW total |
| Temperature settings | 10 levels • 325 °F – 525 °F (163 °C – 274 °C) |
| Controls | (2) rotary knobs with digital feedback |
| Housing type | Drop-in, stainless steel |
| Overall dimensions | 16.55" W × 27.89" D × 12.33" H (420 mm × 708 mm × 313 mm) |
| Cut-out (counter / control) | 25.51" × 14.51" / 14.80" × 9.50" |
| Electrical | 7 kW, 200-240 V, 50/60 Hz, 1-ph, 34 A, NEMA 6-50P |
| Unit weight / Ship weight | 76 lb (34.5 kg) / 96 lb (44 kg) |
| Certifications | cETLus, NSF, CE |
| Warranty | 1-year on-site service (U.S. & Canada) |
Installation & Clearance
- Requires dedicated circuit.
- Minimum clearances: 2" (51 mm) at front, sides and rear.
- Keep area directly below unit open or provide 30" W × 8" H access panel for maintenance.
- Rated for ambient temperatures up to 122 °F (50 °C).
Always consult local codes and the included installation manual prior to cutting countertops.
