Convotherm

Convotherm FLT0030-COV Reverse Osmosis Water System with 10-Gallon Hydropneumatic Storage Tank, 175 GPD, Non-Electric

SKU: FLT0030-COV
$1,395.00
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

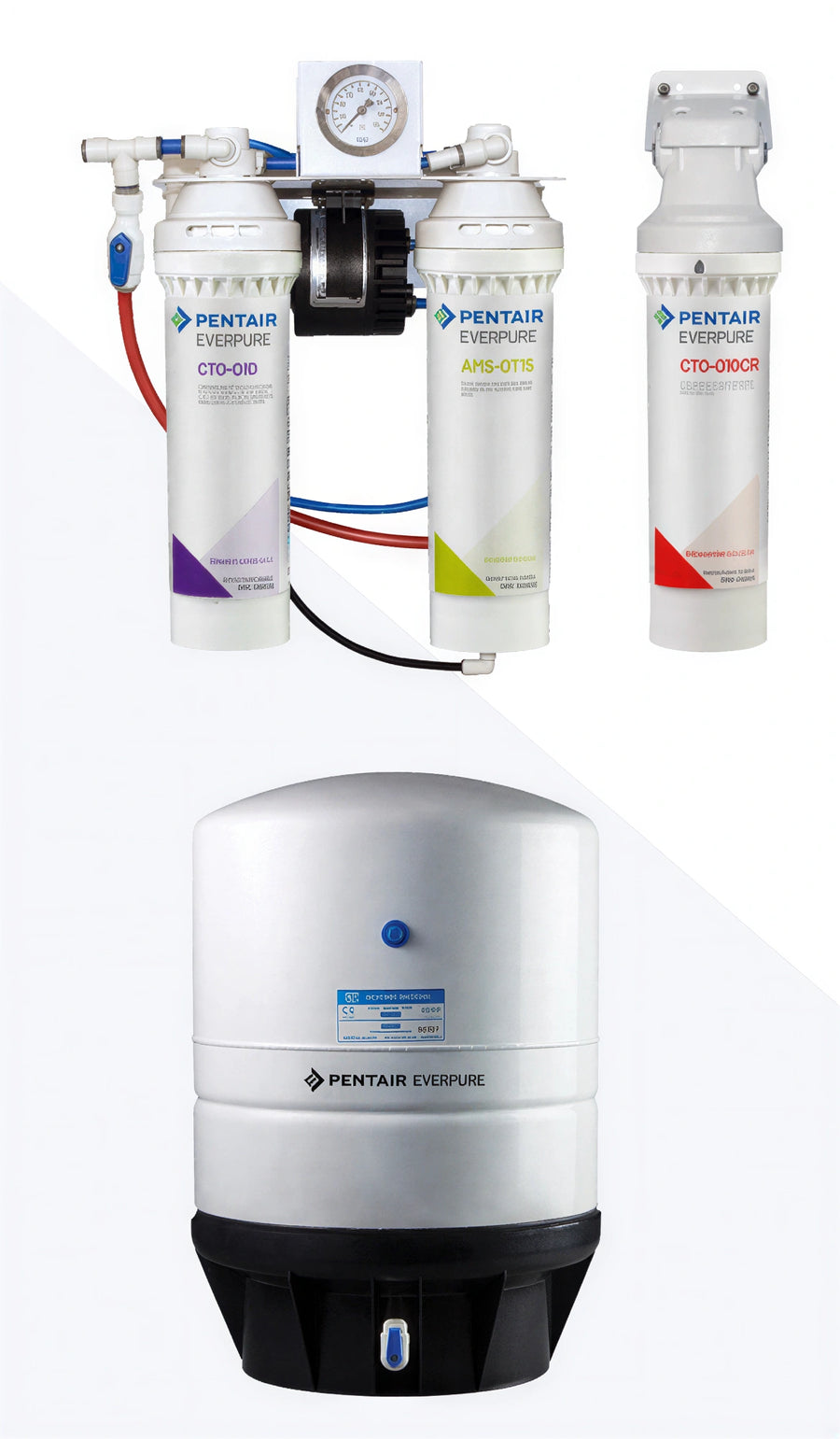

The Convotherm FLT0030-COV is a non-electric reverse osmosis water treatment system with a 10-gallon hydropneumatic storage tank. It operates on available water pressure and produces 175 gpd under specified feed-water conditions.

Integrated pre-filtration reduces sediment and chlorine, a mineral-addition cartridge supports steam-equipment applications, and a post-filter reduces chloramine. The system includes hose, tubing, and fittings.

Applications include combi ovens, proofers, and steamers. For steam generation only; do not use for condensate or wash water.

Reverse Osmosis Treatment

Designed to reduce scale and corrosion problems associated with high TDS, water hardness, and chlorides.

Hydropneumatic Storage

The sealed 10-gallon tank provides storage capacity and pressurized water to downstream equipment.

Integrated Filtration

High-capacity pre-filtration reduces sediment and chlorine, while the post-filter reduces chloramine.

Mineral Addition

The integrated mineral-addition cartridge provides TDS for conductivity sensors and mineral content for steam-equipment applications.

Non-Electric Operation

Operates using available water pressure and requires no electrical connection.

Integrated Bypass Valve

Helps reduce service interruptions and downtime.

Compact Modular Design

Designed for installation under counters and in tight spaces.

Operating Pressure Gauge

Allows visual monitoring of system production and pre-filter condition.

Related Searches

Best Sellers Convotherm Equipment New Arrivals Plumbing & Water Treatment Restaurant Equipment Water Filters Water Filtration & Treatment
Daily Production 175 gpd (633 Lpd) at 77°F (25°C) and 60 psi (3.5 bar) feed water pressure; varies with water temperature, pressure, and blended TDS setting
Tank Size 10 gallons (37.8 L)
Electrical Connection None required
Service Flow Rate Dependent on water level and pressure in storage tank
Inlet Connection 3/8 in. push-fit tubing
Outlet Connection 1/2 in. I.D. hose
Drain Connection Minimum 2.0 gpm (7.6 Lpm)
Pressure Requirements 60–85 psi (3.5–5.9 bar), non-shock
Inlet Water Temperature 40–100°F (4–38°C)
Feed TDS Up to 1200 ppm
Feed pH 6–10 units
Hardness 12 grains or less
Free Chlorine <2 mg/L
Iron 0.1 mg/L maximum
Turbidity 0.50 NTU
Manganese 0.05 mg/L maximum
Hydrogen Sulfide 0.00 mg/L
Processor Dimensions 16.3 in. H × 12.9 in. W × 7 in. D (41.4 cm × 32.7 cm × 17.8 cm)
Post-Filter Dimensions 15.4 in. H × 3.9 in. W × 3.9 in. D (39.1 cm × 9.9 cm × 9.9 cm)
Tank Dimensions 23.3 in. H × 15.6 in. diameter (59.18 cm × 39.62 cm)
Weight 29 lb (13.15 kg)

Documents

PDF Cutsheet PDF Download PDF Installation flyer PDF Download PDF Quotation accuracy checklist PDF Download PDF Installation services & kits PDF Download

Frequently Asked Questions

No. The system has no electrical connection and operates using available water pressure.
The system produces 175 gpd (633 Lpd) at 77°F (25°C) and 60 psi (3.5 bar) feed water pressure. Production varies with water temperature, pressure, and the desired blended TDS setting.
The sealed hydropneumatic storage tank holds 10 gallons (37.8 L).
It includes integrated pre-filtration for sediment and chlorine reduction, a mineral-addition cartridge, and a post-filter for chloramine reduction.
The inlet connection is 3/8 in. push-fit tubing, the outlet is a 1/2 in. I.D. hose, and the drain connection requires a minimum flow of 2.0 gpm (7.6 Lpm).
Listed applications include combi ovens, proofers, and steamers. The system is for steam generation only and should not be used for condensate or wash water.
Pre-filter, post-filter, and mineral-addition cartridges are recommended for replacement every six months, when capacity is reached, or when flow becomes too slow or inadequate. Membrane replacement is recommended every 18 months.
