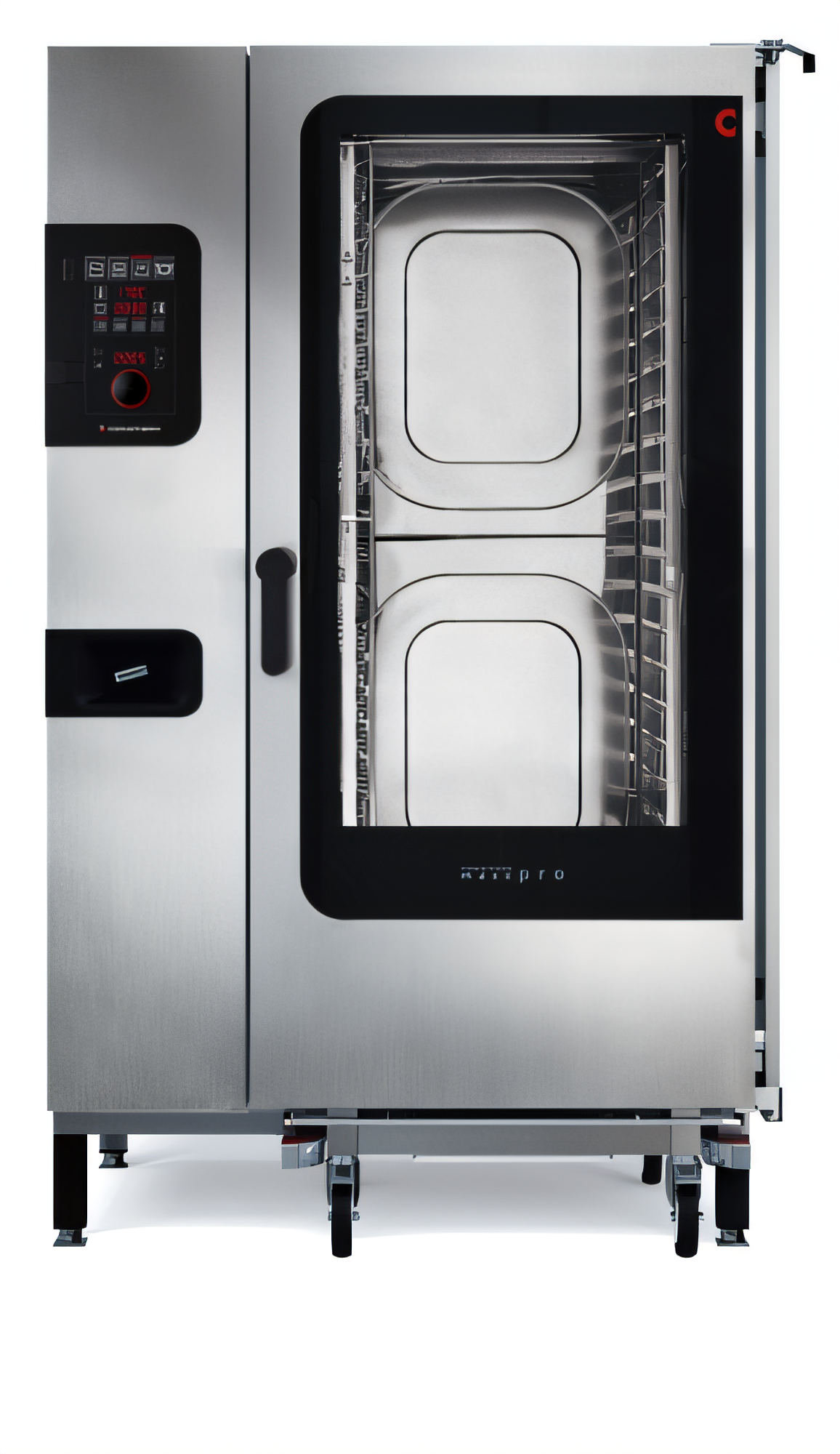

Convotherm C4 ED 20.20GS-N EasyDial Roll-In Full-Size Gas Combi Oven
Convotherm C4 ED 20.20GS-N EasyDial Roll-In Full-Size Gas Combi Oven
Boilerless, (20) 18" x 26" Sheet Pan Capacity
Experience unparalleled versatility and efficiency with the Convotherm C4 ED 20.20GS-N EasyDial combi oven, designed for high-volume commercial kitchens.
- Boilerless steam generation for energy efficiency and ease of maintenance.
- Intuitive easyDial programmable controls with digital display and recipe storage.
- Advanced Closed System+ (ACS+) ensures precise cooking climate for consistent results.
- ConvoClean+ fully automatic hands-free cleaning system simplifies sanitation.
- Generous capacity for up to (20) 18" x 26" full-size sheet pans or (40) 12" x 20" x 1" hotel pans.
- Roll-in design with included CSRT2020-4 trolley for effortless loading and unloading.
- Multiple cooking modes including steam, combi-steam, hot air, and retherm.
- HygieniCare features like an anti-microbial door handle enhance food safety.

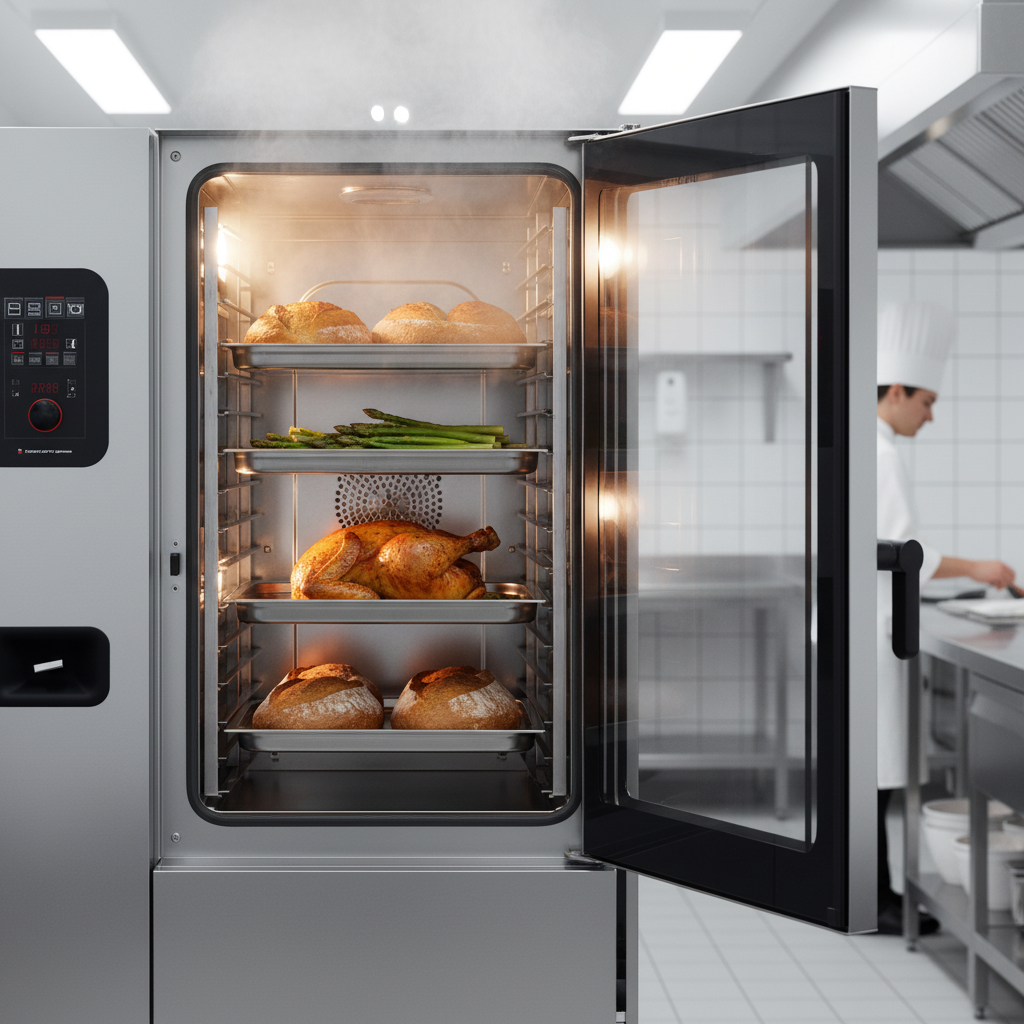

ACS+ Cooking Methods
Offers Steam (86-266°F), Combi-steam (86-482°F), and Hot air (86-482°F) modes with optimized heat transfer.

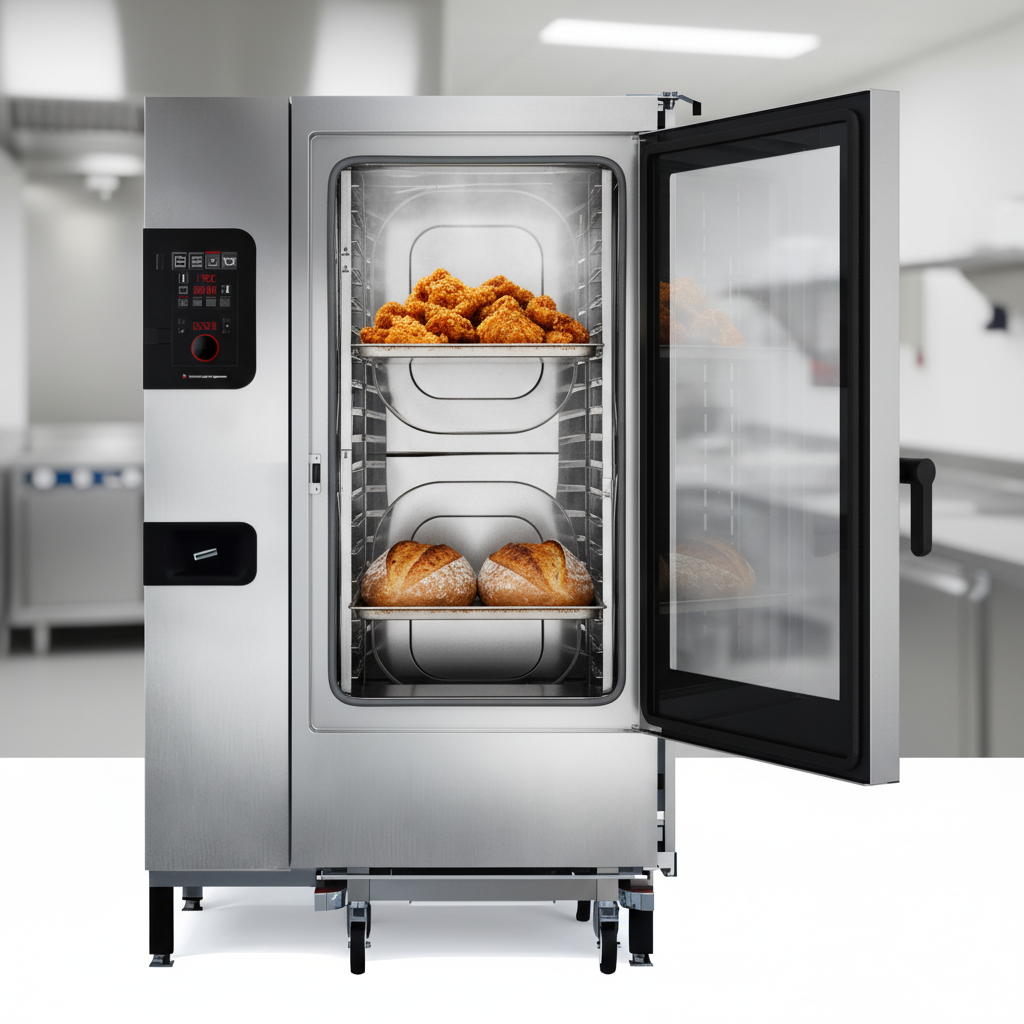

Advanced Closed System+ (ACS+) Functions
Includes Crisp&Tasty with 5 moisture-removal settings, BakePro with 5 levels for traditional baking, HumidityPro with 5 humidity settings, and a controllable fan with 5 speed settings.

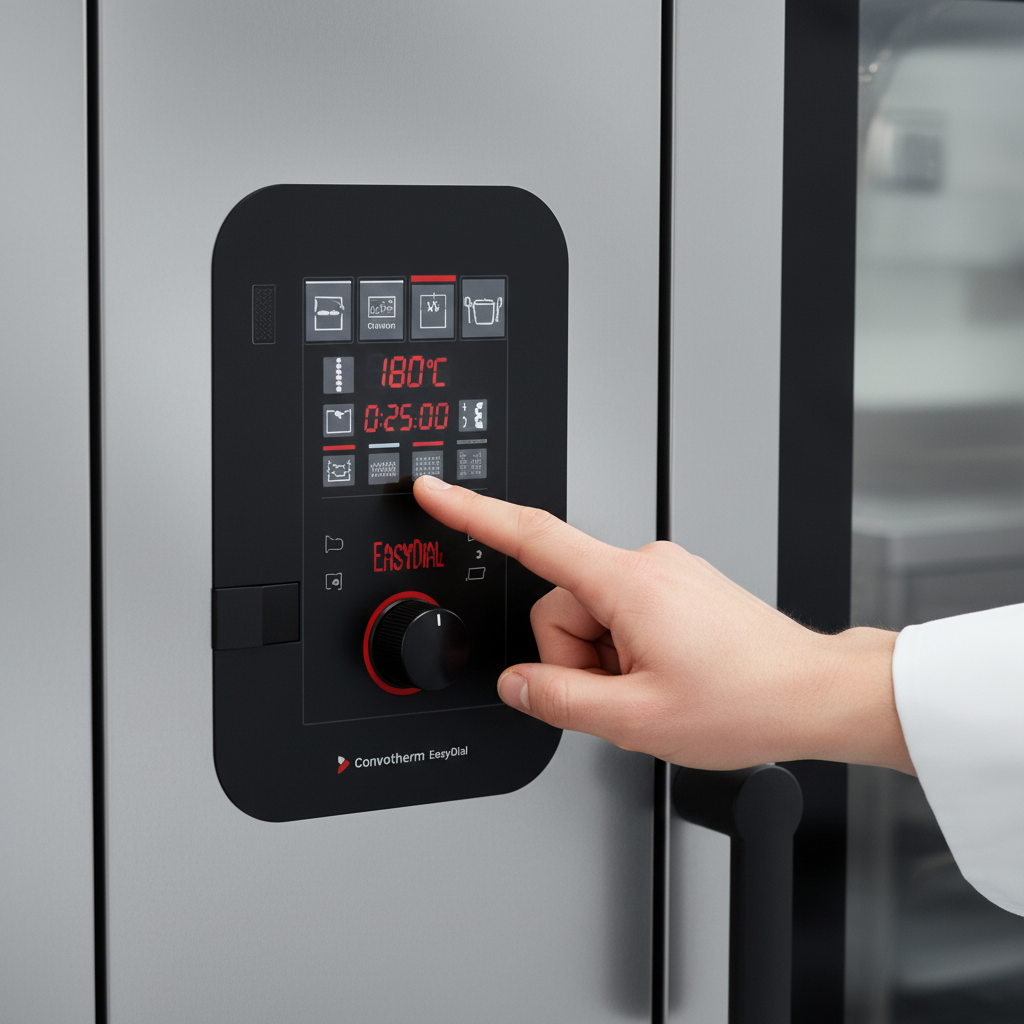

easyDial User Interface
All functions are easily set in one operating level using the Convotherm-Dial (C-Dial) central control unit and digital display.
ConvoClean+ Cleaning Management
Fully automatic hands-free cleaning system with optional single-dose dispensing for superior hygiene.
HygieniCare Features
Equipped with hygienic handles, including an anti-microbial hygienic door handle for enhanced food safety.
Multi-Point Core Temperature Probe
Ensures precise internal temperature monitoring for perfect cooking results.
Programmable Controls
Store up to 99 cooking profiles, each containing up to 9 steps, for consistent recipe execution and HACCP data storage via USB port.
Rethermalization Function
Ideal for reheating prepared foods to the highest quality standards.
LED Illumination
Provides bright, energy-efficient lighting inside the cooking chamber for clear visibility.
Roll-In Design
Comes with a CSRT2020-4 roll-in trolley and shape-optimized, color-coded wheel-in rails for easy loading and unloading of food, along with 10 wire shelves.
Triple Pane Door
Right-hinged unit door features triple glazing for improved insulation and includes a safety latch and venting position.
Integrated Recoil Hand Shower
Convenient for manual cleaning and rinsing of the cooking chamber.
Device Status Floor LED
TriColor indicator ring and floor LED (green=finished, yellow=heating up, red=fault) clearly show the current operating status.
Five-Speed Auto Reversing Fan
Ensures even heat distribution and consistent cooking throughout the chamber.
Specifications
| Installation Type | Floor Model (With Roll-In Trolley) |
|---|---|
| Type | Combi Oven/Steamer |
| Style | Roll-In |
| Controls | easyDial Programmable Digital |
| Steam Type | Boilerless |
| Temperature Range | 86-482°F |
| Pan Capacity (18"x26" Sheet Pans) | 20 Pans |
| Pan Capacity (12"x20"x1" Hotel Pans) | 40 Pans |
| Pan Capacity (12"x20"x2.5" Hotel Pans) | 40 Pans |
| Pan Capacity (13"x18" Sheet Pans) | 40 Pans |
| Pan Capacity (12"x20" Frying Baskets) | 40 Baskets |
| Plate Capacity | 98 Plates |
| Capacity (Max Loading) | 397 lb. |
| Capacity (Per Shelf) | 33 lb. |
| Voltage | 120 Volts |
| Phase | 1-Phase |
| Hertz | 60 Hz |
| Watts | 1.0 kW |
| Amps | 10.6 Amps |
| BTU | 218,400 BTU/hr |
| Gas Type | Natural Gas, Propane |
| Gas Connection Size | 3/4 inch NPT |
| Gas Inlet Pressure | 7 Inches W.C. (Natural Gas), 11 Inches W.C. (Propane) |
| Water Inlet Size | 2 x 3/4 inch GHT-M |
| Water Connection | Required |
| Drain Connection Size | 2 inch inner diameter |
| Drain Connection | Required |
| Material | Stainless Steel |
| Country of Origin | USA |
| Selling Unit | Each |
| Units Per Case | 1 |
| Shipping Width | 50 Inches |
| Shipping Depth | 43 Inches |
| Shipping Height | 79 Inches |
| Shipping Weight | 926.0 lb. |
Overall Dimensions:
49.57"W x 42.76"D x 78.43"HProduct Weight:
926.0 lbCertifications & Compliance
Warranty & Protection
3-year parts and labor
Documents
Frequently Asked Questions
Need Help Deciding?
Our equipment specialists can help you match specs to your kitchen layout, electrical capacity, and menu requirements.
