Convotherm

Convotherm c4ed 20.10eb-n easydial 20-pan full-size electric boiler combi oven

SKU: C4 ED 20.10EB-N
$30,933.10
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?

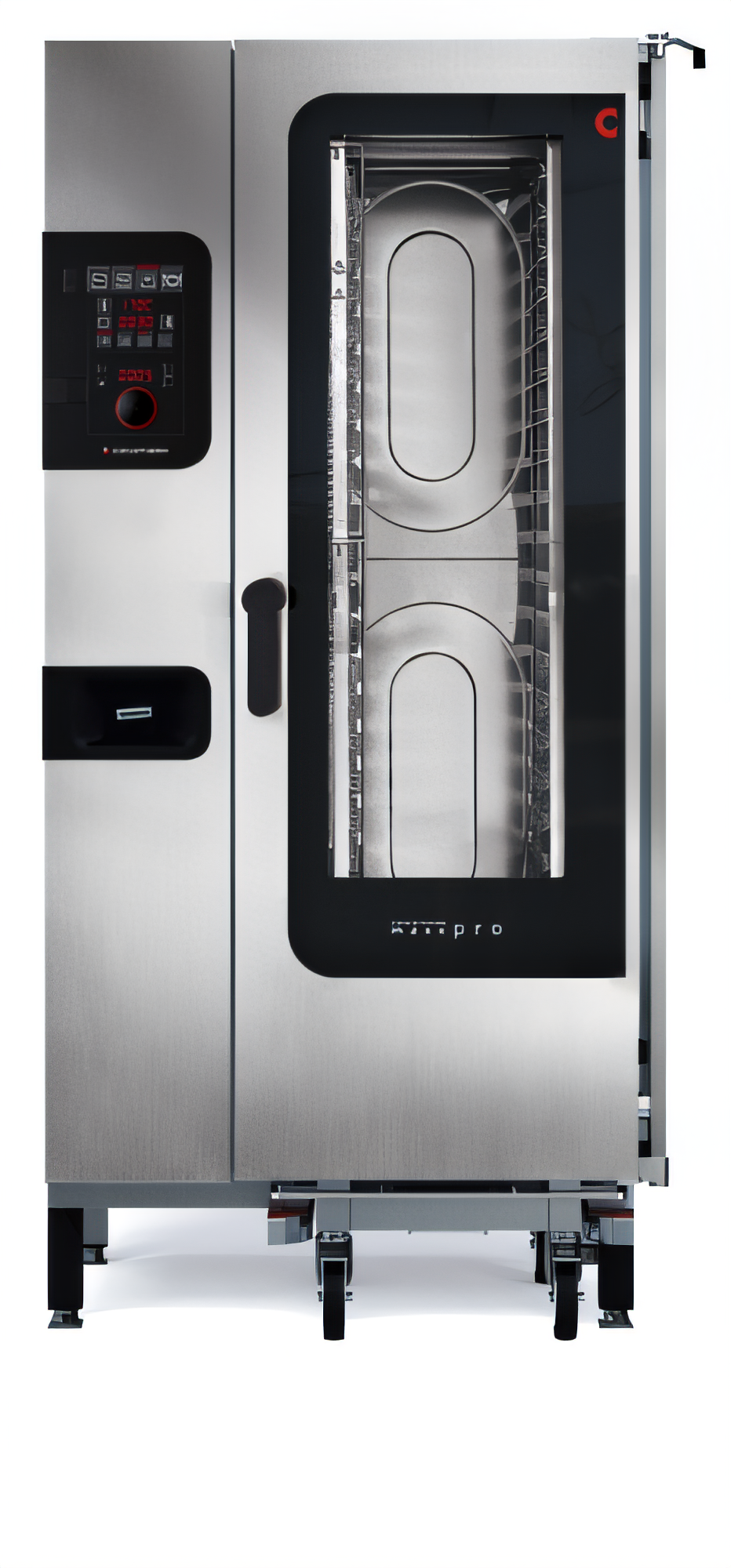

Convotherm C4eD 20.10EB-N EasyDial 20-Pan Full-Size Electric Boiler Combi Oven

EasyDial Controls, Roll-In, Right-Hinged Door

Experience versatile, high-capacity cooking with the Convotherm C4eD 20.10EB-N combi oven, featuring advanced controls and a powerful steam boiler for consistent culinary results.

  • High-performance electric boiler generates steam outside the cooking chamber for optimal saturation and consistency.
  • easyDial programmable controls with digital display allow for intuitive operation and storage of up to 99 cooking recipes.
  • Advanced Closed System+ (ACS+) offers five moisture-removal settings (Crisp&Tasty), five baking levels (BakePro), and five humidity settings (HumidityPro).
  • Spacious capacity accommodates 20 half-size sheet pans or 20 full-size 12"x20"x1" hotel pans, ideal for high-volume operations.
  • Integrated ConvoClean+ fully automatic cleaning system ensures effortless hygiene and maintenance.
  • Equipped with a multi-point core temperature probe and a five-speed auto-reversing fan for precise and even cooking.

Advanced Closed System+ (ACS+)

Utilizes a sealed cooking cavity to enhance water and energy efficiency while providing precise control over the cooking climate with functions like Crisp&Tasty (5 moisture-removal settings), BakePro (5 levels of traditional baking), and HumidityPro (5 humidity settings).

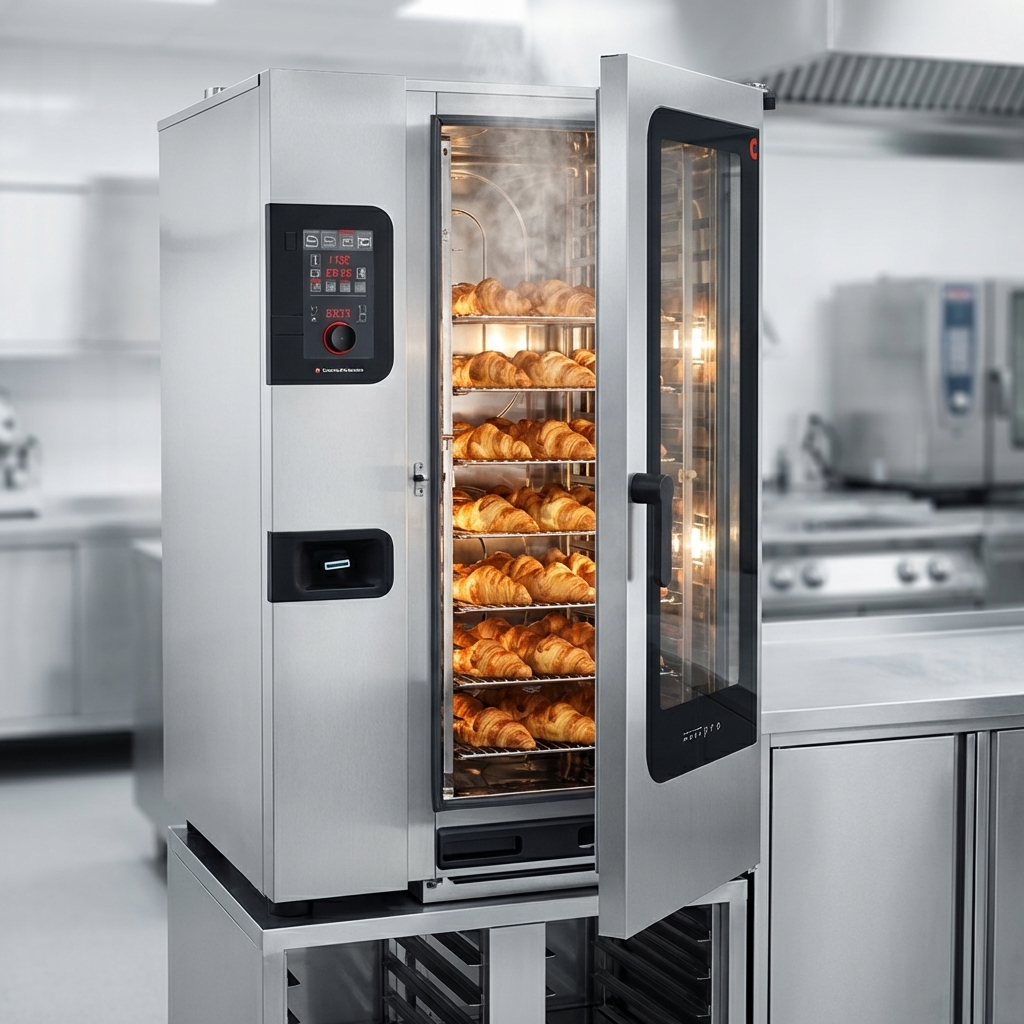

Experience unparalleled cooking precision with the Advanced Closed System+, ensuring perfectly crisp results and efficient climate control.

easyDial Programmable Controls

Features a central C-Dial control unit and digital display, allowing all functions to be set in one operating level. Stores up to 99 cooking profiles with up to 9 steps each, plus HACCP data storage.

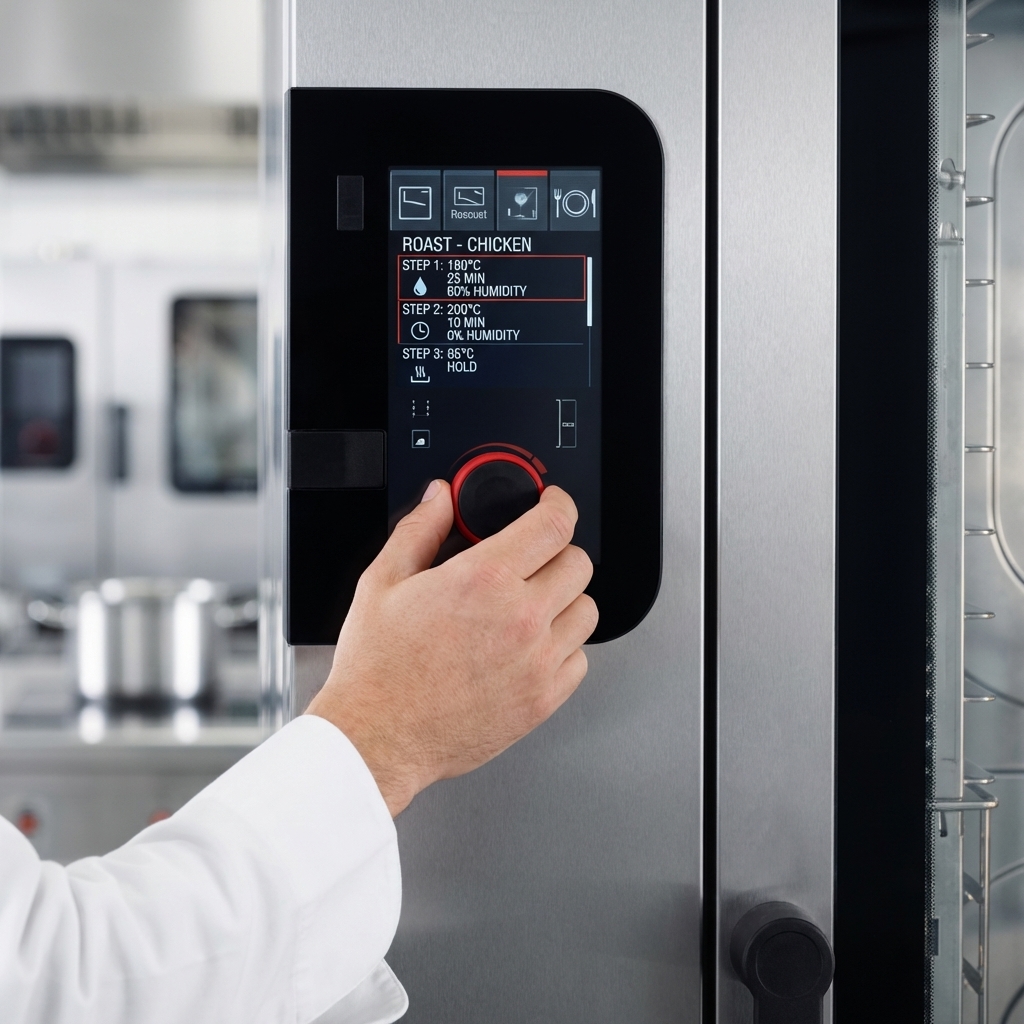

Effortlessly program precise cooking with the intuitive easyDial controls and bright digital display.

Multi-Mode Cooking

Offers four primary cooking modes: Steam (86-266°F), Combi-steam (86-482°F) with automatic humidity adjustment, Hot Air (86-482°F) with optimized heat transfer, and Rethermalization function.

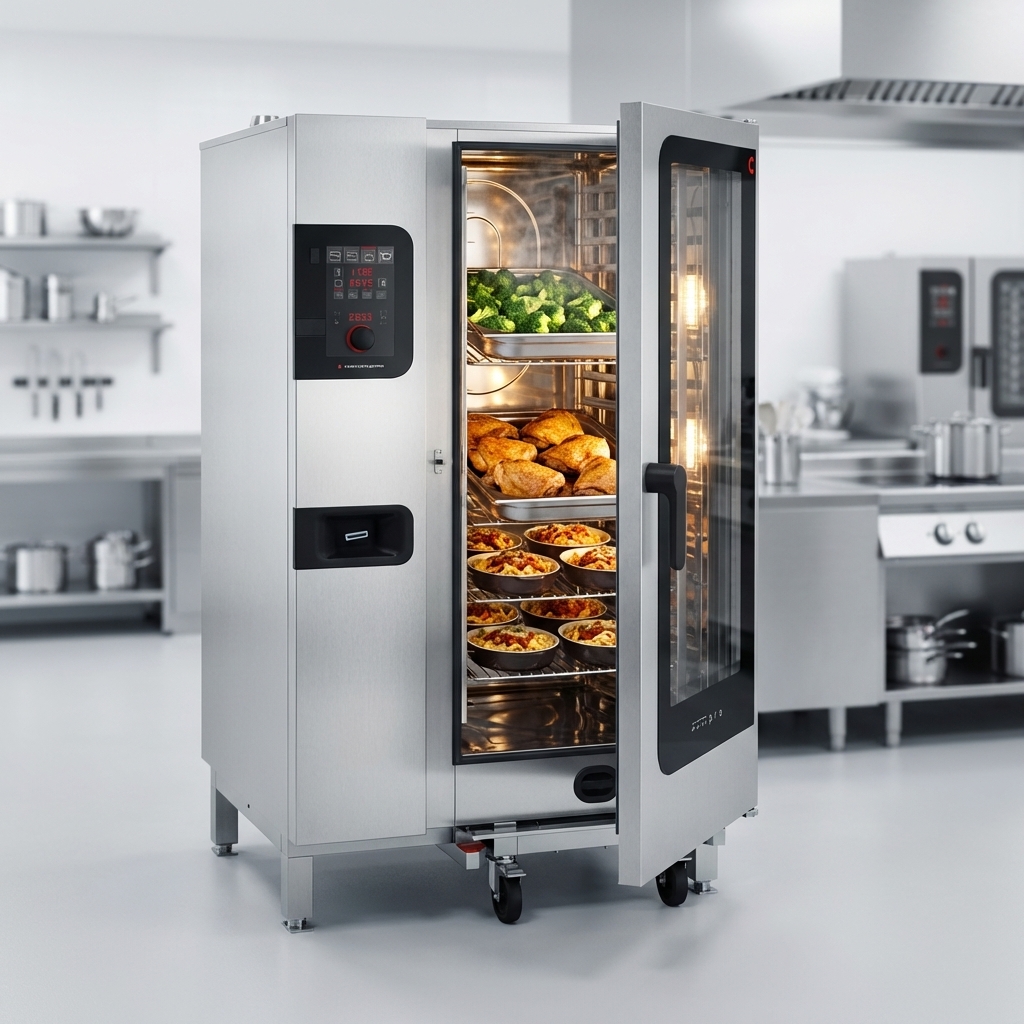

Experience the Convotherm Combi Oven's versatile multi-mode cooking, expertly steaming, roasting, and rethermalizing a wide range of dishes with ease.

ConvoClean+ Automatic Cleaning

A fully automatic, hands-free cleaning system with optional single-dose dispensing for superior hygiene and ease of maintenance.

HygieniCare Design

Includes hygienic door handles and a unit door with safety latch, venting position, and LED illumination for the cooking chamber.

High-Performance Boiler System

Steam is generated by a high-performance boiler located outside the cooking chamber, ensuring guaranteed steam saturation and efficiency.

Integrated Features

Equipped with a multi-point core temperature probe for accurate internal temperature readings, an integrated recoil hand shower for easy rinsing, and a USB port for data management.

TriColor Indicator Ring

Provides a quick visual indication of the current operating status (green = finished, yellow = heating up, red = fault).

Controllable Fan

A five-speed auto-reversing fan ensures optimal airflow management and even heat distribution throughout the cooking chamber.

Triple-Pane Right-Hinged Door

Features double glazing for energy efficiency and a right-hand hinge for ergonomic access, enhancing safety and ease of use.

Adjustable Feet

Allows for leveling and stability with an adjustment range between 4 and 5 inches.

Specifications

Type Combi Oven/Steamer
Style Roll-in
Installation Type Floor Model (Roll-In)
Pan Capacity 20 Half-Size Sheet Pans or 20 Full-Size Hotel Pans
Pan Size Full-Size Hotel Pan, Half-Size Sheet Pan
Compartments 1
Controls easyDial Programmable Digital
Temperature Range 86-482°F
Voltage 208/240 Volts, 440/480 Volts
Amps 87.1 - 100.1 Amps (208/240V); 42.8 - 46.5 Amps (440/480V)
Watts 31.3 - 41.6 kW (208/240V); 32.6 - 38.6 kW (440/480V)
Hertz 60 Hz
Phase 3-Phase
Water Connection Required
Water Inlet Size 3/4 inch GHT-M
Drain Connection Required
Drain Connection Size 2 Inches inner diameter
Material Stainless Steel
Interior Finish Stainless Steel
Capacity 220 lb. Max. Loading Weight
Shipping Width 40 Inches
Shipping Depth 35 Inches
Shipping Height 79 Inches
Shipping Weight 730 lb.
Country of Origin USA
Selling Unit Each
Units Per Case 1

Overall Dimensions:

39.93"W x 34.89"D x 78.43"H

Product Weight:

730.0 lb
Manufacturer Convotherm
Brand name EasyDial
Certifications ["NSF", "cULus"]
Height 78.43in
Width 39.93in
Depth 34.89in
Shipping Weight 730.0lbs
Full Size Hotel Pan Capacity (15 - 20) 12" x 20" pans
Type floor model
Steam Type steam generator
Control Type programmable controls
Half Size Sheet Pan Capacity (11 - 20) 13" x 18" pans
Specifications Convotherm Combi Oven/Steamer, electric, steam generator, roll-in, (20) half size sheet pan or (20) 12" x 20" x 1" hotel pan capacity, easyDial programmable controls with digital display 9-stage & 99 cooking recipes storage, (4) cooking modes: hot air, steam, combi-steam & retherm, multi-point core temperature probe, five-speed auto reversing fan, LED light, triple pane right hinged door with anti-microbial hygienic door handle, , pull-out spray hose, ConvoClean+ fully automatic hands-free cleaning system, includes: (1) CSRT2010-4 roll-in trolley (trolley shelves are extra and must be ordered separately), stainless steel construction, cULus, NSF

Frequently Asked Questions

For optimal performance and to maintain warranty, Convotherm recommends ensuring your water quality meets specific standards for boiler (generator) units. Reverse Osmosis (RO) systems like the Convotherm FLT0031-COV (16-gallon) or Pentair OPS175CR/16 are recommended to remove TDS, chlorides, and hardness, especially if your water's hardness exceeds 170 ppm or pH is below 8.5.
The Convotherm C4eD 20.10EB-N can reach up to 482°F (250°C) when operating in combi-steam or hot air modes. For steam-only cooking, the temperature range is 86-266°F (30-130°C).
Yes, professional installation by a Factory Authorized Servicer (FAS) is highly recommended. A startup service by an Authorized Servicer is required to begin warranty coverage, and the warranty is void without it. An installation kit (Part Number: 11000115817 for electric large models) is also recommended.
This combi oven has 20 slide rails with 2.68 inch spacing, allowing it to hold 20 half-size sheet pans (13"x18") or 20 full-size steam table pans (12"x20"x1"). The maximum loading weight for the entire oven is 220 lbs.
The C4eD 20.10EB-N is available in two main 3-Phase electrical configurations: 208V/240V 60Hz or 440V/480V 60Hz. It is prepared for connection to an energy optimizing system.

Need Help Deciding?

Our equipment specialists can help you match specs to your kitchen layout, electrical capacity, and menu requirements.
