Convotherm

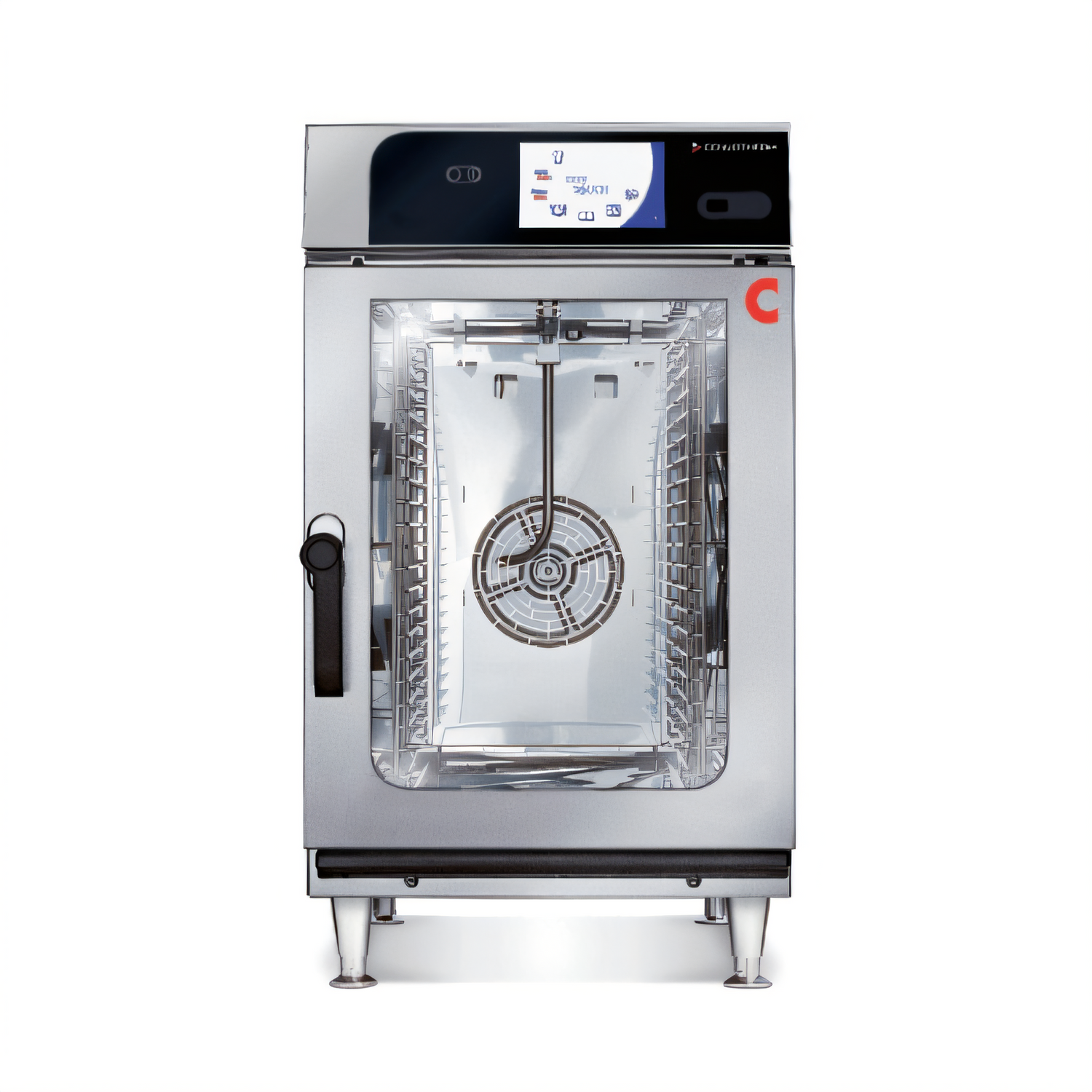

Convotherm 10.10ET MINI easyTouch Half-Size Electric Boilerless Combi Oven with 10-Shelf Capacity

SKU: 10.10ET MINI
$14,756.50
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?

Convotherm 10.10ET MINI easyTouch Half-Size Electric Boilerless Combi Oven with 10-Shelf Capacity

Countertop, 10-Shelf, Half-Size, Boilerless

Experience unparalleled cooking versatility and convenience with the Convotherm 10.10ET MINI easyTouch Combi Oven, designed for compact commercial kitchens.

  • Versatile 4-in-1 operating modes: Steam, combi steam, convection, and retherm.
  • Intuitive easyTouch 7" glass display for seamless control and program management.
  • ConvoClean+ automatic cleaning system simplifies maintenance with multiple intensity levels.
  • UL listed ventless operation (KNLZ) potentially eliminates the need for a separate hood (local codes prevail).
  • Compact half-size design with a 10-shelf capacity for 13"x18" half-size sheet pans.
  • Advanced climate management features like Crisp&Tasty and HumidityPro for precise results.

Overall Dimensions:

20.3"W x 30.6"D x 36.3"H

Product Weight:

183.0 lb

4 Operating Modes

Offers Steam (86-266°F), Combi-steam (86-482°F) with automatic moisture adjustment, Hot air (86-482°F) with optimized heat transfer, and a Retherm function for versatile cooking.

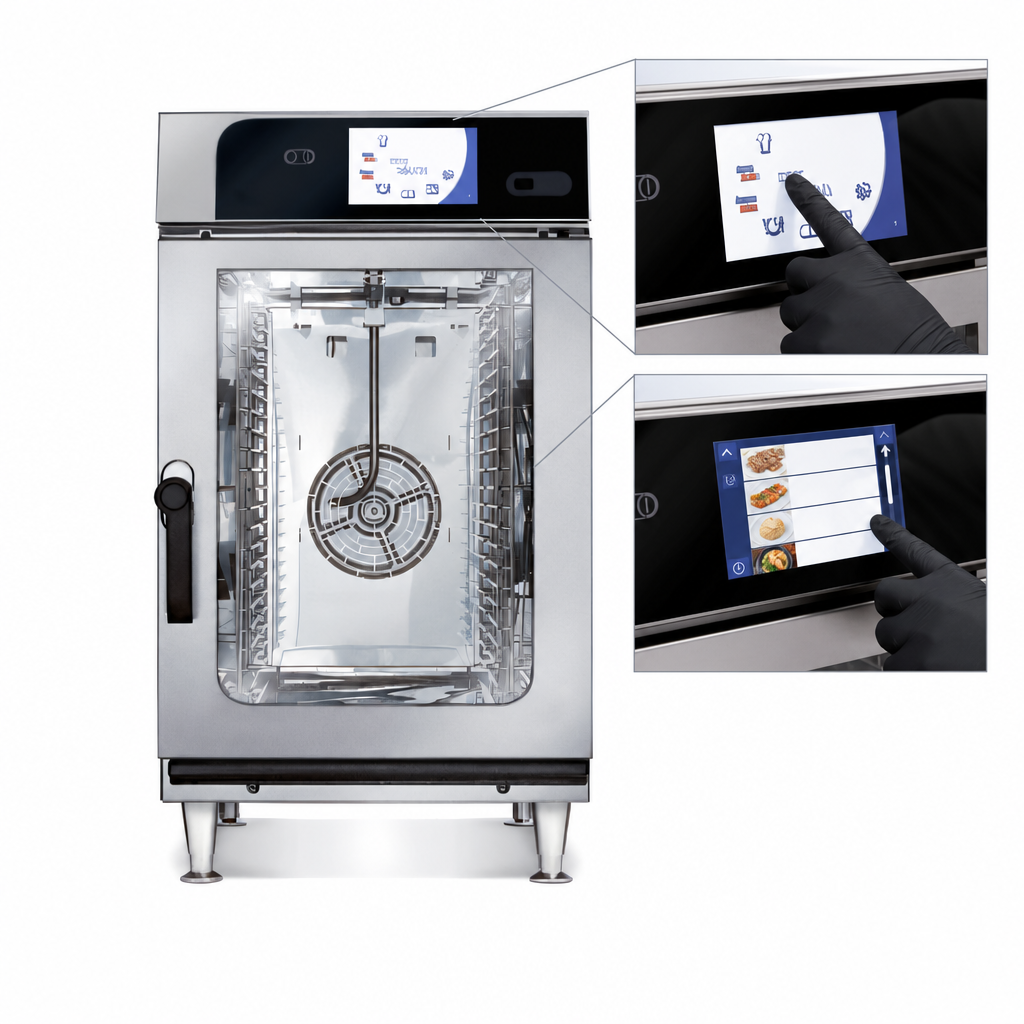

easyTouch User Interface

Features a 7" TFT high-resolution glass touch display (capacitive) with smooth-action, quick-reacting scrolling for intuitive control.

ConvoClean+ Automatic Cleaning

A fully automatic cleaning system with three intensity settings, clean and care booster, 10-minute express cleaning, 2-minute quick rinse, and a safe cool-down function before cleaning.

UL Listed Ventless Operation (KNLZ)

Conforms to NFPA96 recommendations for limiting grease-laden air emissions, allowing for ventless operation without a separate hood (local codes prevail).

Climate Management

Includes Crisp&Tasty with 3 moisture-removal settings and HumidityPro with 3 humidity settings for precise climate control.

BakePro

Provides 3 levels of traditional baking for optimized baking results.

Multi-point Core Temperature Probe

Ensures accurate internal temperature monitoring for perfect cooking results.

Production Management System

Features automatic cooking with Press&Go (up to 399 profiles), an integrated cookbook, TrayTimer and TrayView for load management, HACCP data storage, ecoCooking, LT/Delta-T cooking, and Cook&Hold.

HygieniCare

Designed with hygienic handles (door and spray head), a hygienic steam function, and hygienic control panel films for enhanced cleanliness.

Connectivity

Equipped with WiFi and an Ethernet port (LAN), plus a USB port integrated into the control panel for easy data transfer and network integration.

TriColor Indicator Ring

A visual indicator ring that displays the current operating status of the oven.

Steam Generation by Injection

Steam is generated by directly injecting water into the cooking chamber, ensuring guaranteed steam saturation.

Right-Hinged Appliance Door

Features a right-hand hinged door with a sure-shut function and a safety door latch with a venting position.

Adjustable Legs

Includes 4-inch adjustable legs for proper leveling and placement.

Stainless Steel Construction

Durable and easy-to-clean stainless steel construction.

Type Combi Oven
Style Boilerless
Installation Type Countertop (With 4 Inches Adjustable Legs)
Controls Programmable Digital (easyTouch 7 Inches TFT Glass Display)
Pan Capacity 10 Half-Size (13 Inches x 18 Inches) Sheet Pans
Pan Capacity 6 Full-Size (12 Inches x 20 Inches x 2 1/2 Inches) Steam Table Pans
Pan Capacity 6 Wire Fry Baskets (12 Inches x 20 Inches)
Pan Capacity 12 Plates (Max Ø 11 Inches)
Pan Capacity 5 (2/3 US) Hotel Pans
Shelf Level Capacity 11 lbs
Overall Loading Capacity 66 lbs
Voltage 208/240 Volts
Phase 3-Phase
Hertz 60 Hz
Watts (208V) 8.50 kW
Amps (208V) 23.6 Amps
Watts (240V) 11.25 kW
Amps (240V) 27.1 Amps
Cord Length 6 Feet
Plug Type 15-30P or L15-30P
Plug Type 15-50P or L15-50P
Temperature Range (Steam) 86-266°F
Temperature Range (Combi-steam / Hot air) 86-482°F
Water Connection Size Two 3/4 Inches GHT-M
Water Connection Required
Water Flow Pressure (without ConvoClean) 29-87 psi
Water Flow Pressure (with ConvoClean) 43.5-87 psi
Water Consumption (Cooking, Connection A) 0-4.0 gph
Water Consumption (Cooking, Connections A & B with ConvoClean) 0-5.3 gph
Max Water Throughput (Connection A) 0.13 gpm
Max Water Throughput (Connections A & B with ConvoClean) 2.6 gpm
Drain Connection Size 1 1/2 Inches or 2 Inches
Drain Connection Required
Drain Temperature 140 °F
Decibel Rating Max 60 dBA
Shipping Width 22.8 Inches
Shipping Depth 35.8 Inches
Shipping Height 47.0 Inches
Shipping Weight 183 lbs
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of UL Certified
UL Certified

Warranty & Protection

Warranty coverage begins upon successful startup by a certified technician; void if not started correctly or if water quality requirements are not met.

Frequently Asked Questions

The Convotherm 10.10ET MINI offers four operating modes: Steam (86-266°F), Combi-steam (86-482°F) with automatic moisture adjustment, Hot air (86-482°F) with optimized heat transfer, and a Retherm function.
No, the Convotherm 10.10ET MINI is UL listed (KNLZ) for ventless operation, meaning a separate ventilation hood is generally not required. However, it is important to always check and comply with local codes.
For water injection (Connection A), the unit requires drinking water, typically soft water, with a TDS of 70-125 ppm and hardness of 70-125 ppm (4-7 gpg). For cleaning (Connection B), drinking water with slightly broader parameters is acceptable. A water treatment system may be necessary if local water quality does not meet these standards, and failure to comply may void the warranty.
The oven features the ConvoClean+ fully automatic cleaning system with three intensity settings, a clean and care booster, a 10-minute express cleaning option, and a 2-minute quick rinse. It also includes a safe cool-down function before cleaning.
This half-size combi oven has 5 sliding rails and can hold up to 10 half-size (13" x 18") sheet pans, 6 full-size (12" x 20" x 2 1/2") steam table pans, or 6 (12" x 20") wire fry baskets. The maximum loading weight is 66 lbs per combi oven and 11 lbs per shelf level.
The unit requires dedicated electrical and water supply connections within 3 feet of its final location. Two 3/4" GHT-M water supply lines are needed. A backflow preventer may be required by local codes. Minimum safety clearances are 2" to the rear and sides, and 20" to the top. A pre-installation site survey is required to ensure the site is ready.
