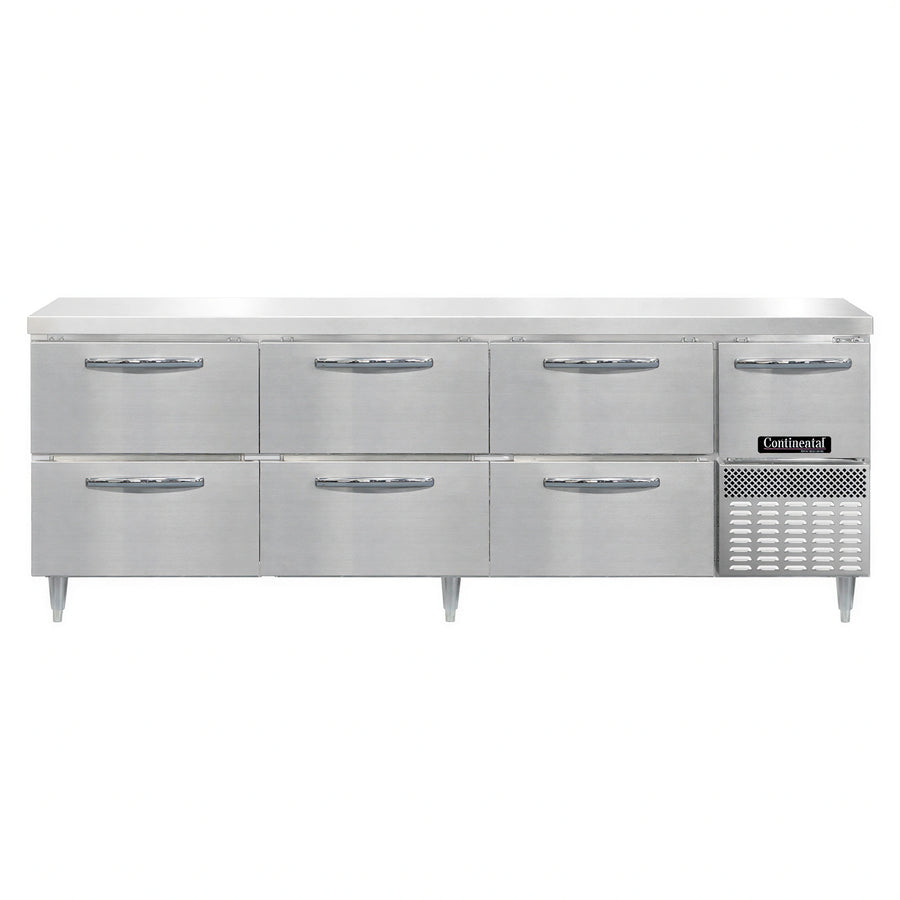

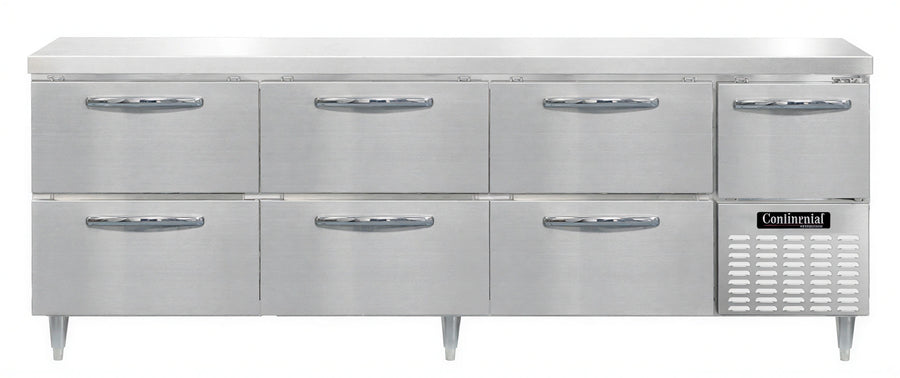

Continental Refrigerator Designer Line DRA93NSS-D 93-Inch Stainless Steel Worktop Refrigerator Base, 6 Drawers & Half-Height Door

SKU: DRA93NSS-D
$15,650.35
/each Configurable
Free Shipping
Enter ZIP for a shipping estimate

Want to speak to an expert?

DRA93NSS-D is a 93-inch Designer Line refrigerated base with a reinforced stainless steel worktop, six drawers, and one half-height field-rehingeable door.

The unit has stainless steel front, sides, and interior surfaces, self-contained side-mounted refrigeration using natural R-290 refrigerant, and six-inch adjustable stainless steel legs.

  • 32 cu. ft. net capacity
  • Six stainless steel roll-out drawers
  • One half-height field-rehingeable door
  • Automatic hot gas condensate evaporator

Overall Dimensions:

93.0"W x 37.0"D x 36.0"H

Product Weight:

660.0 lb

Six-drawer and door configuration

The unit has six drawers and one half-height field-rehingeable door.

Reinforced stainless steel worktop

The worktop is specified as reinforced stainless steel.

Stainless steel construction

The front, sides, and interior are specified as stainless steel.

Self-contained side-mounted refrigeration

The refrigeration system is self-contained and side-mounted.

Natural R-290 refrigerant

The model is identified as a natural R-290 refrigerant model.

Adjustable stainless steel legs

Six-inch adjustable stainless steel legs are specified.

Stainless steel roll-out drawers

The drawers are specified as stainless steel roll-out drawers.

Automatic condensate evaporation

The refrigeration system includes an automatic, hot gas condensate evaporator.

Product type Refrigerated base worktop
Access type Doors and drawers
Number of doors 1 half-height field-rehingeable door
Number of drawers 6 drawers
Worktop Reinforced stainless steel
Exterior finish Stainless steel top, front, and sides
Interior finish Stainless steel
Refrigeration Self-contained, side-mounted
Refrigerant Natural R-290
Compressor HP 1/4 HP
Net capacity 32 cu. ft. (906 L)
Legs 6-inch adjustable stainless steel legs
Voltage 115/60/1 (220/50/1 international)
Total amps 5.1 (3.4 international)
Plug NEMA-5-15P, varies by country
Interior width above condenser 17 in
Interior depth above condenser 30 in
Interior height above condenser 12 1/2 in
Drawer pan configuration Two-tier; two 12 x 20 x 6 in pans per drawer

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

Seven-year parts, labor, and compressor warranty.

Frequently Asked Questions

It has six drawers and one half-height field-rehingeable door.
The overall dimensions are 93.0 inches wide, 37.0 inches deep, and 36.0 inches high. The listed weight is 660 pounds.
It uses self-contained, side-mounted refrigeration with natural R-290 refrigerant and a listed compressor size of 1/4 HP.
The listed net capacity is 32 cubic feet, or 906 liters.
The specification lists 115/60/1, or 220/50/1 for international service, with total amps of 5.1, or 3.4 internationally. The plug is NEMA-5-15P and varies by country.
The listed certifications are NSF and cETLus.
The provided warranty specifies seven years of parts, labor, and compressor coverage for Continental self-contained units using R-290, subject to the stated warranty terms.
