Customize Continental Refrigerator Model no. DRA68NSS-F

Configuration
Accessories
Review
0 selected · total
$13,918.55
Continental Refrigerator

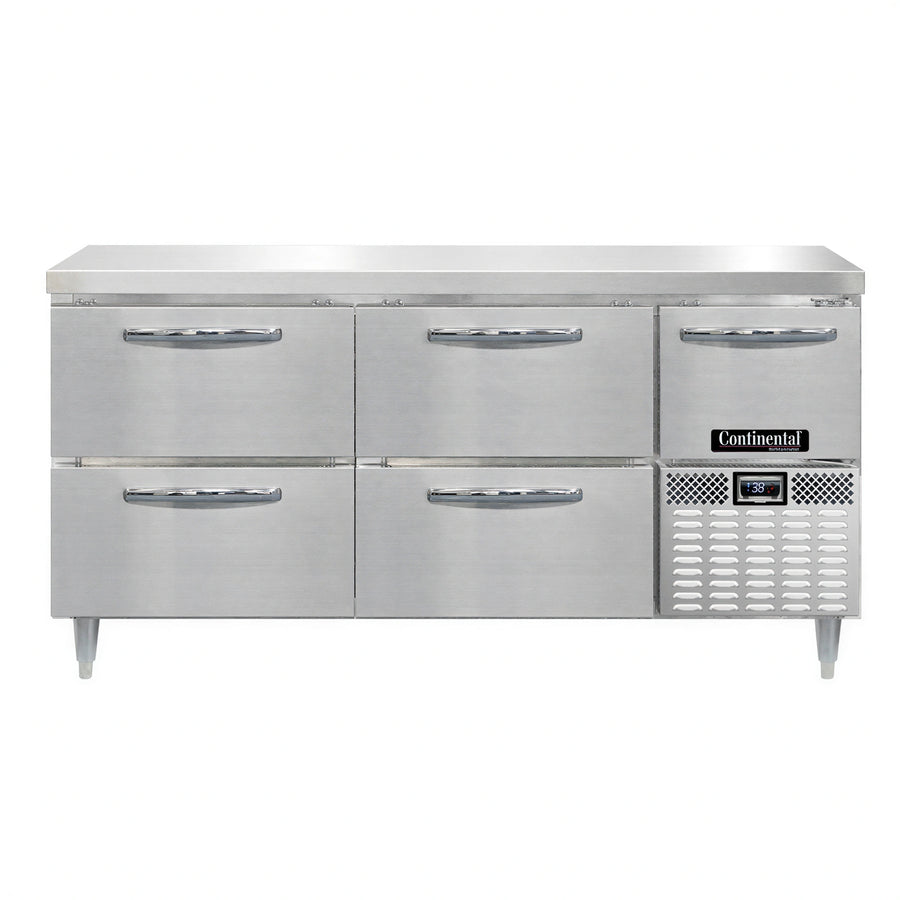

Continental Refrigerator Designer Line DRA68NSS-F 68" Work Top Fish File Refrigerator, Stainless Steel, 4 Drawers & Half Door

SKU: DRA68NSS-F
$13,918.55
/each Configurable
Free Shipping
Enter ZIP for a shipping estimate
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Chest, Mobile & Specialty Cabinet Equipment Commercial Refrigeration Commercial Refrigerators Continental Refrigerator Fish File Mobile Refrigerated & Freezer Cabinets New Arrivals Refrigeration & Ice Refrigerators & Freezers Restaurant Equipment

The DRA68NSS-F Designer Line fish file refrigerator features a 68-inch work top, stainless steel construction, four drawers, and one half-height door.

It is designed for storing fresh fish packed in crushed ice in drawer pans. The unit uses self-contained, side-mounted refrigeration with R-290 refrigerant, an electronic controller with digital display, and adjustable stainless steel legs.

  • #304 series stainless steel work top
  • Four drawers with one stainless steel pan per drawer
  • One half-height, spring-loaded self-closing door
  • Six-inch adjustable stainless steel legs

Overall Dimensions:

68.0"W x 36.06"D x 36.0"H

Product Weight:

495.0 lb

Fish storage configuration

Four drawers are specified with one stainless steel pan per drawer, along with one half-height door for fish-file storage.

Stainless steel construction

The unit has a #304 series stainless steel work top and stainless steel exterior, front, sides, and interior.

Refrigeration system

Self-contained, side-mounted refrigeration uses R-290 refrigerant and a performance-rated refrigeration system.

Electronic control

An electronic controller with digital display provides control of the refrigeration system.

Drawer and door operation

The drawers use heavy-duty drawer tracks, and the spring-loaded door is self-closing.

Adjustable support

Six-inch adjustable stainless steel legs are included.

Service access

The condensing unit is designed to slide out for service.

Cabinet Work top
Configuration Door and drawers
Section count 3 section
Work top material #304 series stainless steel
Cabinet material Stainless steel exterior, front, sides, and interior
Number of drawers 4
Number of half doors 1
Drawer pans One stainless steel pan per drawer; four pans supplied
Refrigeration Self-contained refrigeration
Refrigeration location Side-mounted
Compressor 1/4 HP
Refrigerant R-290
Net capacity 22 cu ft
Controller Electronic controller with digital display
Legs 6-inch adjustable stainless steel legs
Refrigeration capacity 4220 BTU per hour at +25°F evaporator and 90°F ambient
Insulation 2-inch non-CFC polyurethane foam
Voltage 115/60/1 (220/50/1)
Total amperage 4.8 A (3.3 A)
Electrical plug NEMA-5-15P plug; varies by country
Drain 1-inch NPS drain tube; direct piping to a building floor drain or suitable waste line required

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

Seven-year parts, labor, and compressor warranty for self-contained units using R-290 refrigerant.

Documents

PDF Cutsheet PDF Download PDF Warranty-hc PDF Download PDF Installation & operation PDF Download PDF Owner's manual PDF Download PDF Map policy PDF Download

Frequently Asked Questions

It has four drawers and one half-height door.
The model is specified with one stainless steel pan per drawer, and the cutsheet lists four pans supplied.
It uses R-290 refrigerant in a self-contained, side-mounted refrigeration system.
The listed net capacity is 22 cubic feet.
The self-contained R-290 unit has a seven-year parts, labor, and compressor warranty, beginning on the date of installation or 87 months from shipment, whichever comes first.
