Continental Refrigerator  |  Designer Line  |  SKU: DL3WE-SS-PT-HD

Continental Refrigerator DL3WE-SS-PT-HD Designer Line Heated Cabinets & Holding Shelves

$25,205.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Owner's manual Map policy Warranty Installation & operation
Related Searches
Heated Cabinets & Holding Shelves Holding Cabinets

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

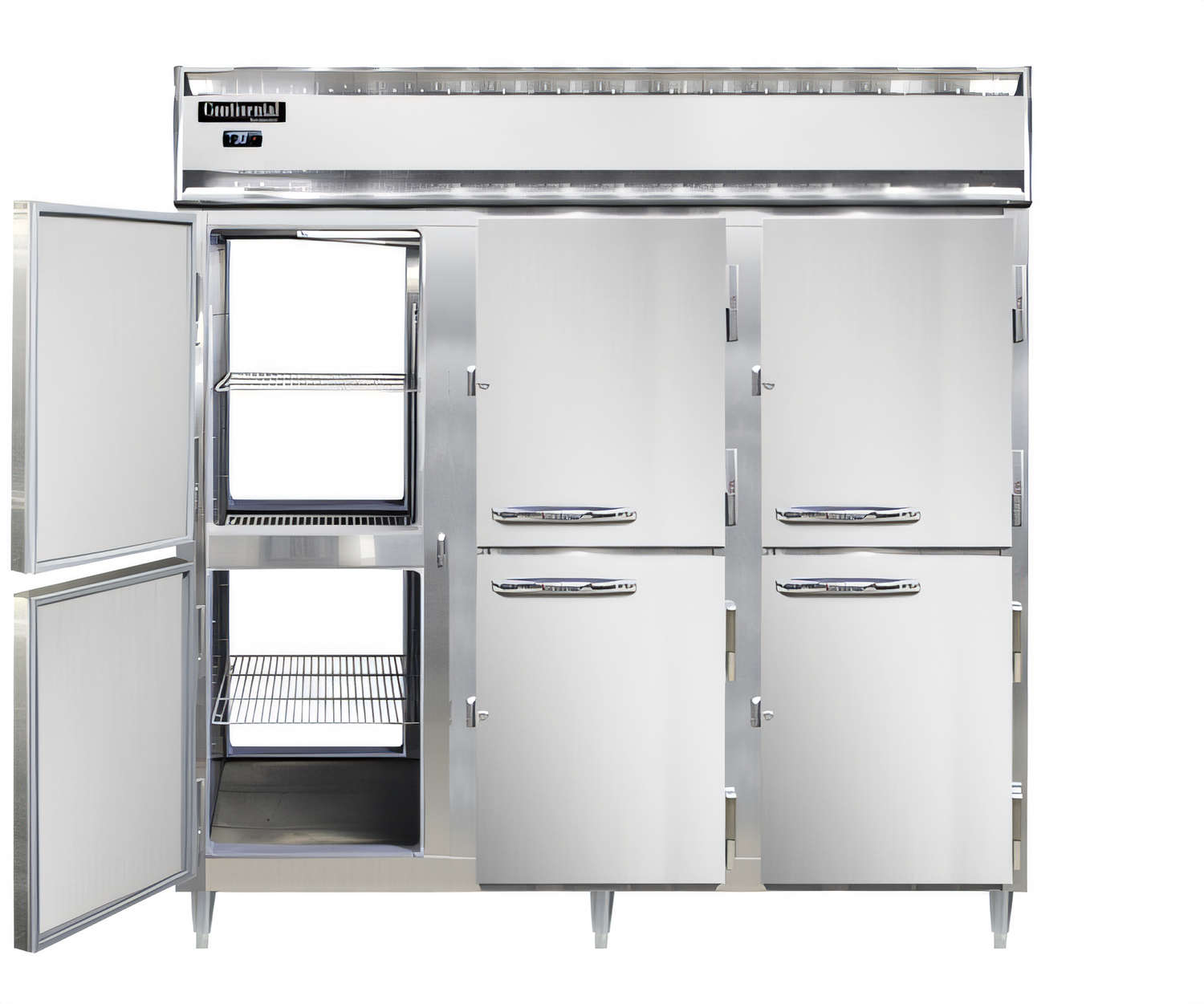

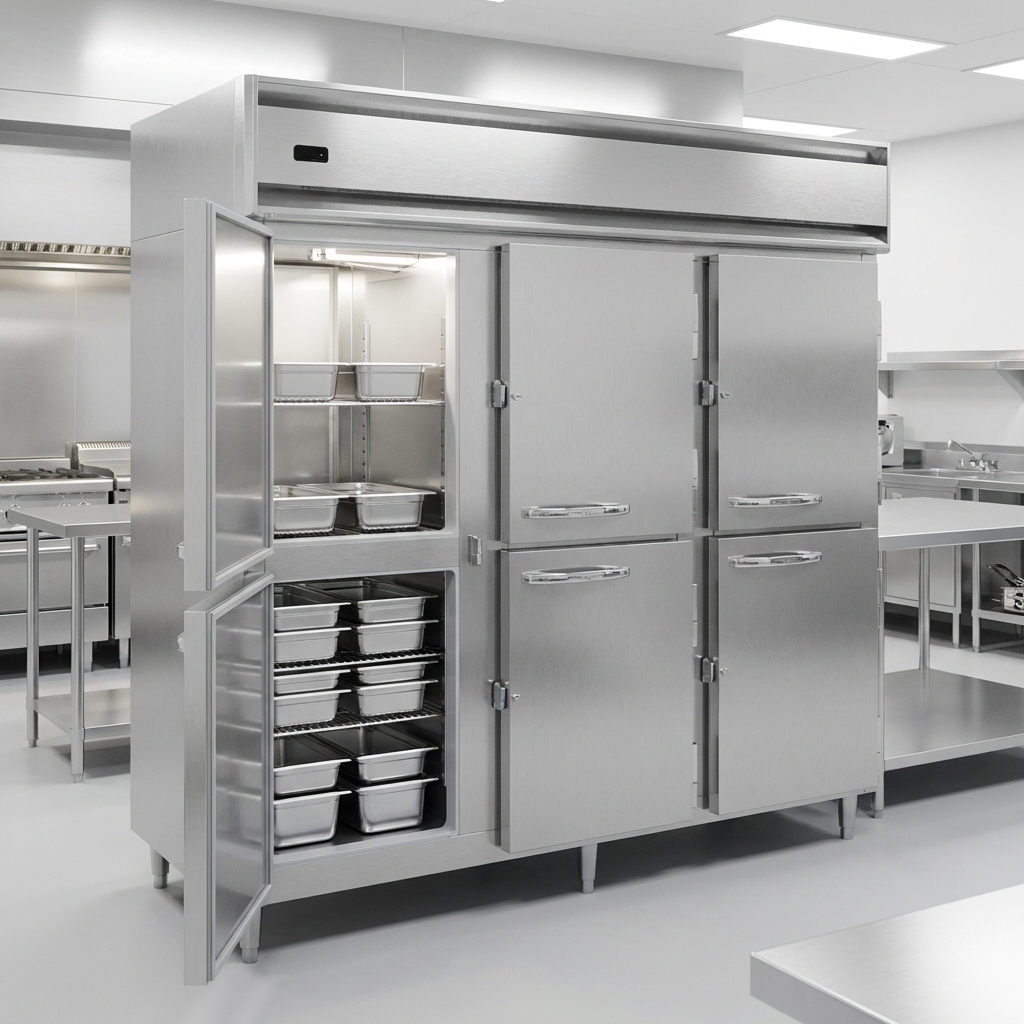

Designer Line™ Extra-Wide Pass-Thru Heated Cabinet – 3 Section

Model DL3WE-SS-PT-HD | 75 cu ft | Stainless Steel In & Out

Engineered for high-volume kitchens that refuse to compromise on speed or food quality, the Continental Refrigerator Designer Line heated cabinet keeps pre-plated meals, sheet pans, or bakery items hot, safe, and instantly accessible from either side of the line.

Why You’ll Love It

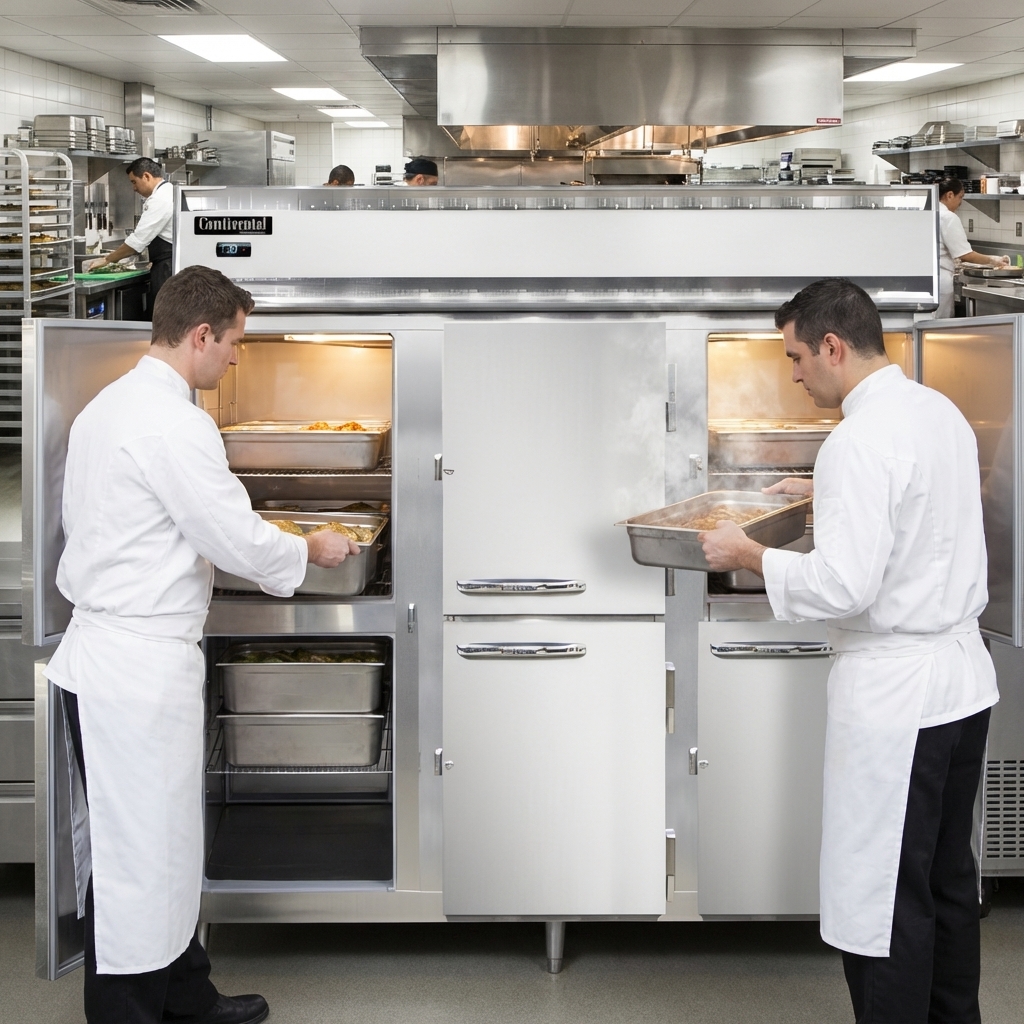

  • True pass-thru convenience – load on one side, serve from the other to streamline workflow.

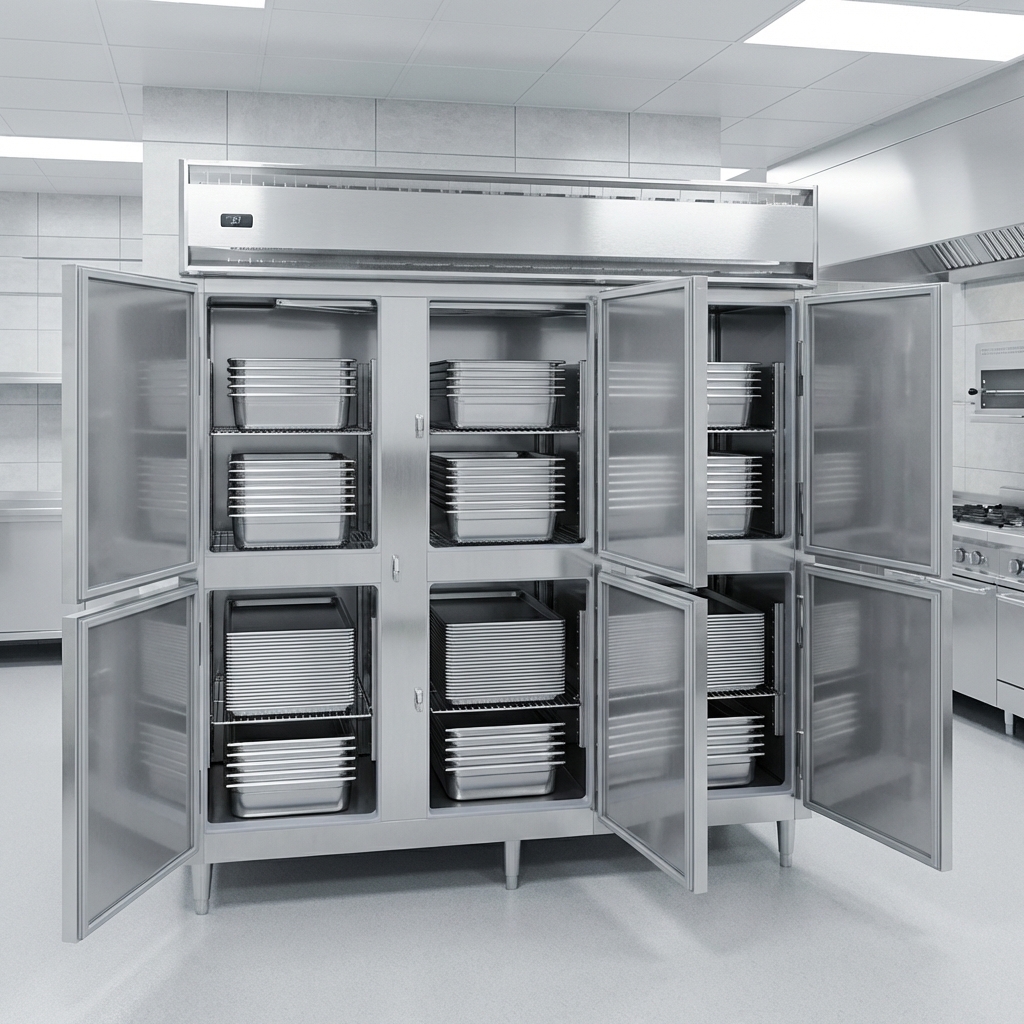

  • Wide body, huge capacity – 75 cu ft interior with 9 heavy-duty chrome shelves (3 per section).
  • Precise heat holding – self-contained top-mounted heater maintains 90°F-180°F with even air circulation.
  • Rock-solid construction – all stainless steel exterior & interior plus 3" eco-friendly polyurethane insulation.
  • 12 self-closing half-doors on lift-off cam hinges minimize heat loss while providing quick, ergonomic access.
  • Digital controls & alarms – easy-read display with hi-/lo-temperature alert protects your product.
  • Magnetic Santoprene™ gaskets & cylinder locks on every door for a tight, secure seal.
  • Adjustable 6" stainless legs for effortless cleaning underneath.
  • cETLus & NSF listed for peace of mind.

Technical Specifications

Interior capacity 75 cu ft (2124 L)
Sections / doors 3 sections / 12 half-doors, pass-thru
Shelves supplied 9 chrome-plated steel, adjustable
Temperature range 90°F - 180°F  (32°C - 82°C)
Exterior dimensions (W×D×H) 85 ½" × 38 ¾" × 83 ¼" (including handles & 6" legs)
Interior depth 32"
Electrical 208-230 V / 60 Hz / 1-ph, 13.9 A, 3000 W, hard-wire connection
Net weight (crated) 840 lb
Certifications cETLus, NSF

Popular Options & Accessories

  • Automatic interior LED lighting
  • Stainless steel or additional chrome shelves
  • Universal pan slides
  • 4" or 6" casters
  • Custom laminate end panels
  • Correctional-package security upgrades

Contact us for pricing, lead times, or any configuration not shown.

Installation Clearance: Provide at least 12" above and 3" on both sides & rear when placing the cabinet against a wall or beneath a low ceiling to ensure proper air circulation.

Backed by Continental Refrigerator’s industry-leading support and proudly designed & assembled in the U.S.A.

Features & Specs

Manufacturer

Continental Refrigerator

Brand_name

Designer Line

Certifications

NSF, cETLus

Height

83.25in

Width

85.5in

Depth

38.75in

Shipping Weight

840.0lbs

Exterior Finish

all stainless steel exterior

Doors

half-size hinged solid

Size

3 section

Interior configuration

shelves

Interior Finish

stainless steel interior

Thermometer

exterior digital

Depth (front - back)

standard

Specifications

Designer Line Heated Cabinet, extra wide pass-thru, three-section, 75 cu. ft. capacity, (3) shelves per section, stainless steel exterior & interior, standard depth, hinged half-doors, electronic control with digital display, hi-low alarm, cETLus, NSF
