Continental Refrigerator DL3WE-SS-PT Designer Line Heated Cabinets & Holding Shelves
Continental Refrigerator DL3WE-SS-PT Designer Line Heated Cabinets & Holding Shelves is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Continental Refrigerator DL3WE-SS-PT Designer Line Heated Cabinets ...
Description

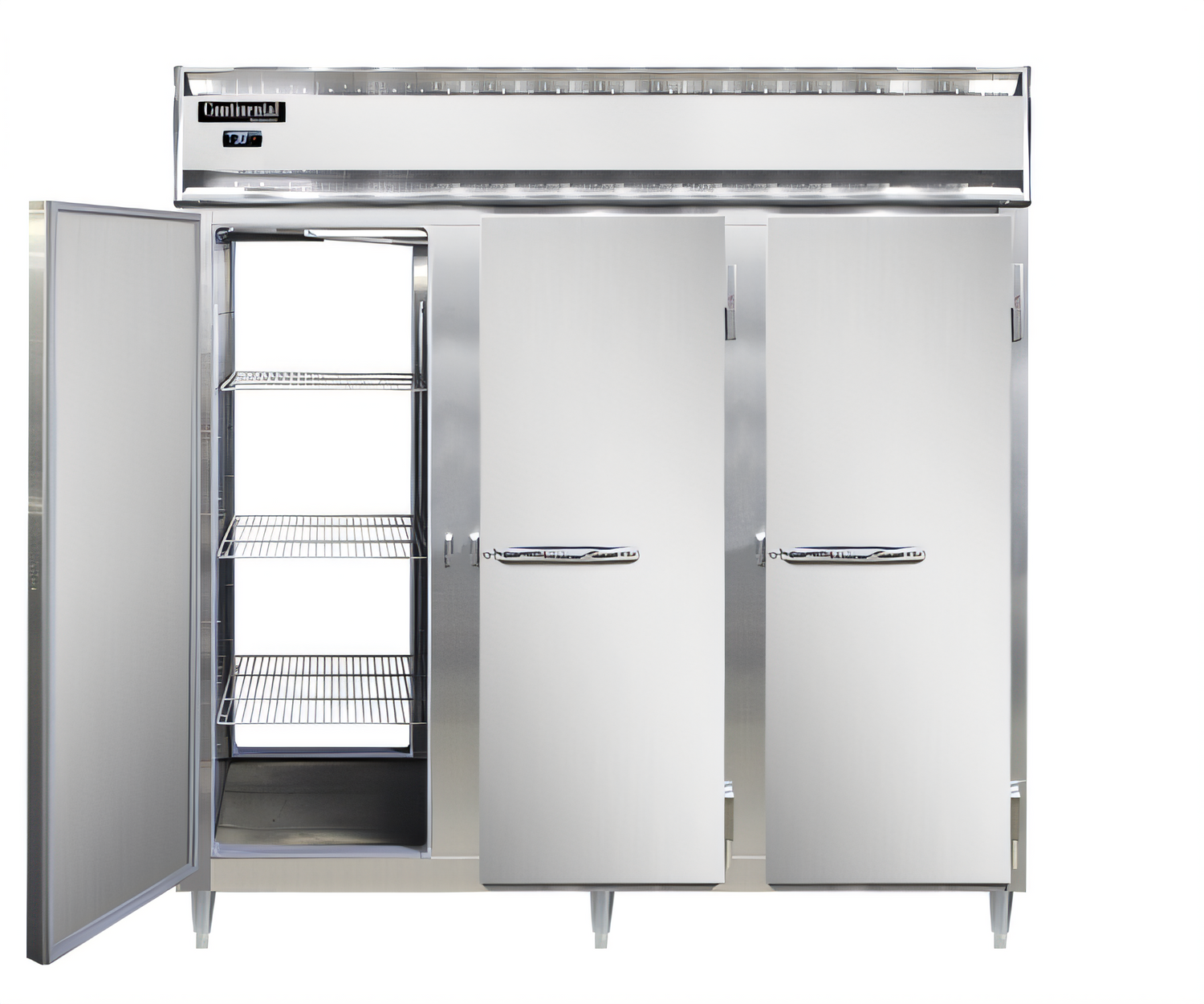

Designer Line Extra-Wide Pass-Thru Heated Cabinet

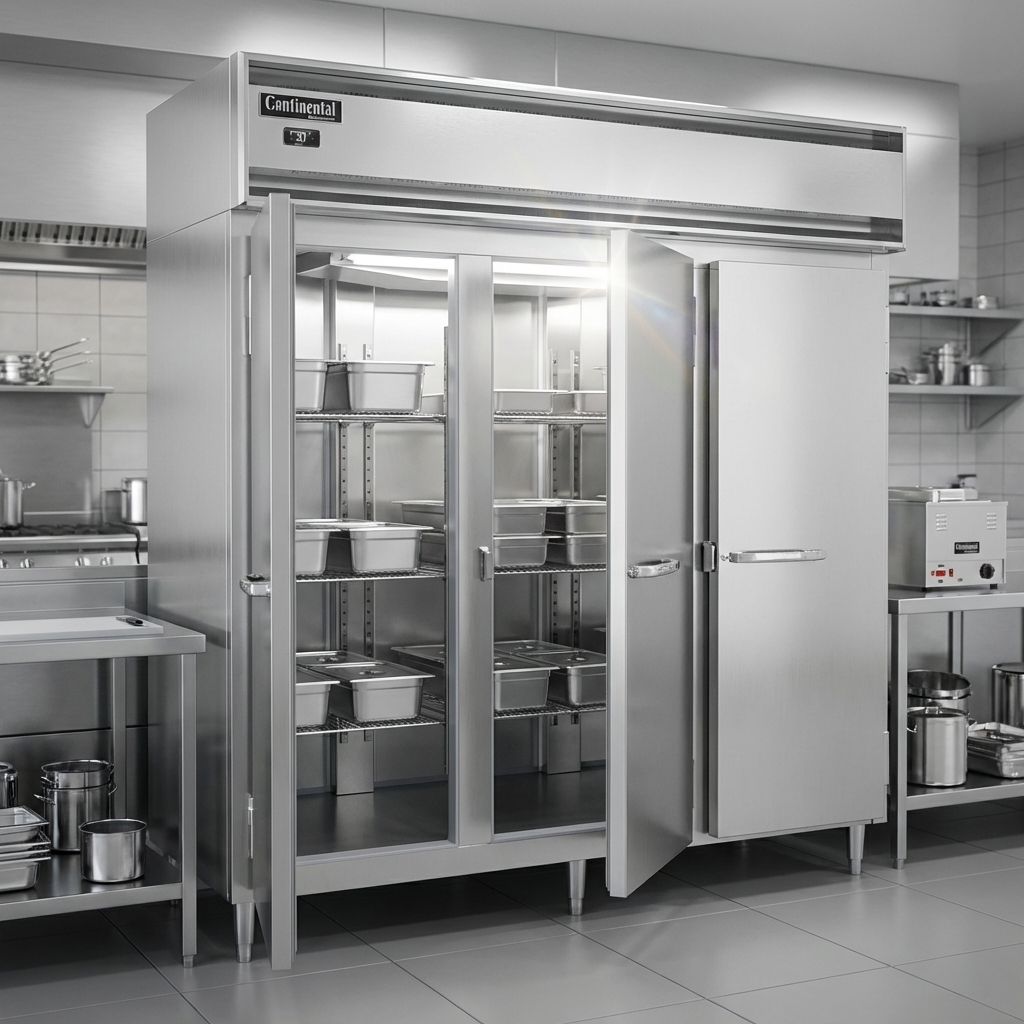

Model DL3WE-SS-PT | Three-Section | 75 cu. ft.Built for high-volume kitchens that refuse to compromise on speed or presentation, Continental Refrigerator’s Designer Line pass-thru warmer keeps cooked foods at serving-ready temperatures while letting staff load from one side and serve from the other. Premium all-stainless construction, a digitally controlled heating system, and NSF compliance make it a rock-solid choice for demanding commercial operations.
Why You’ll Love It

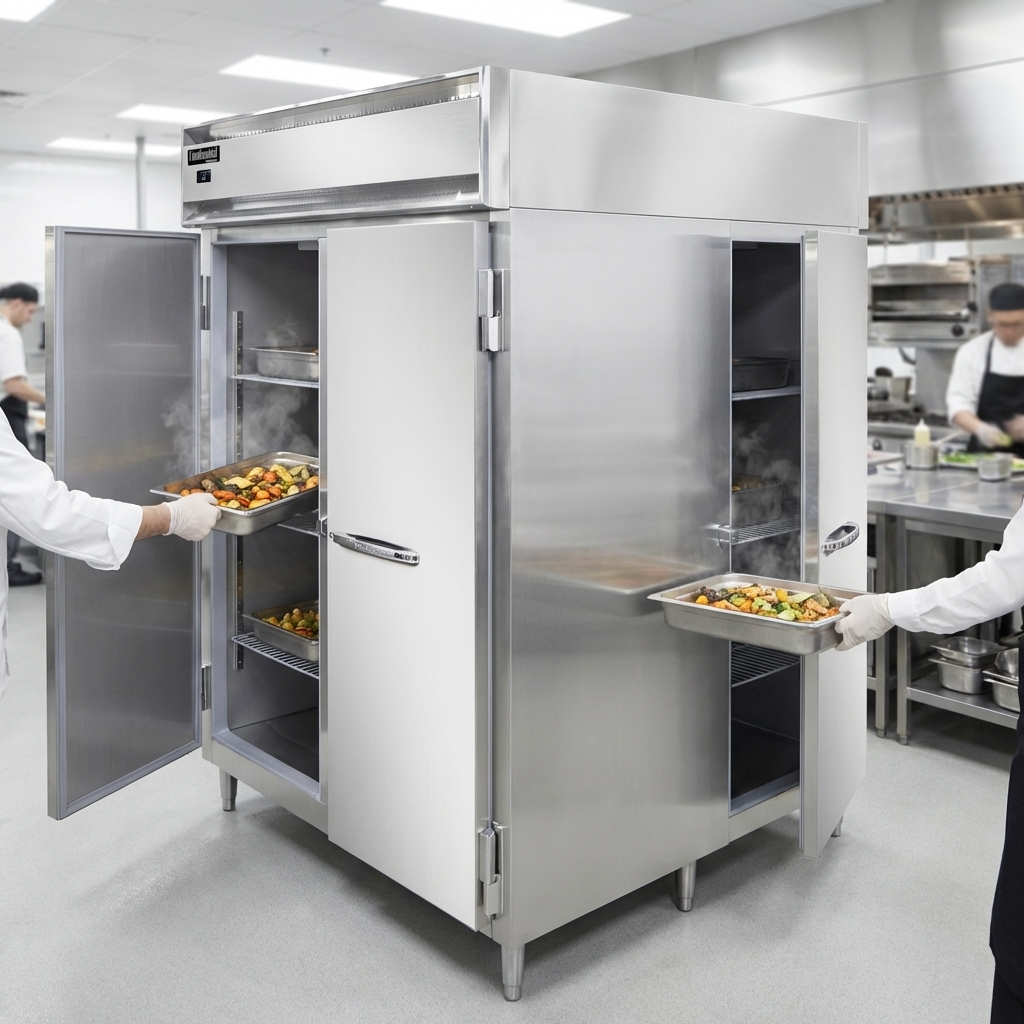

- True pass-thru convenience – six self-closing doors (three front, three rear) streamline back-of-house loading and front-of-house plating.
- Fast, even heat – top-mounted plenum “plug” with circulating fan and stainless steel strip heaters in the base deliver uniform 90 °F–180 °F temperatures.

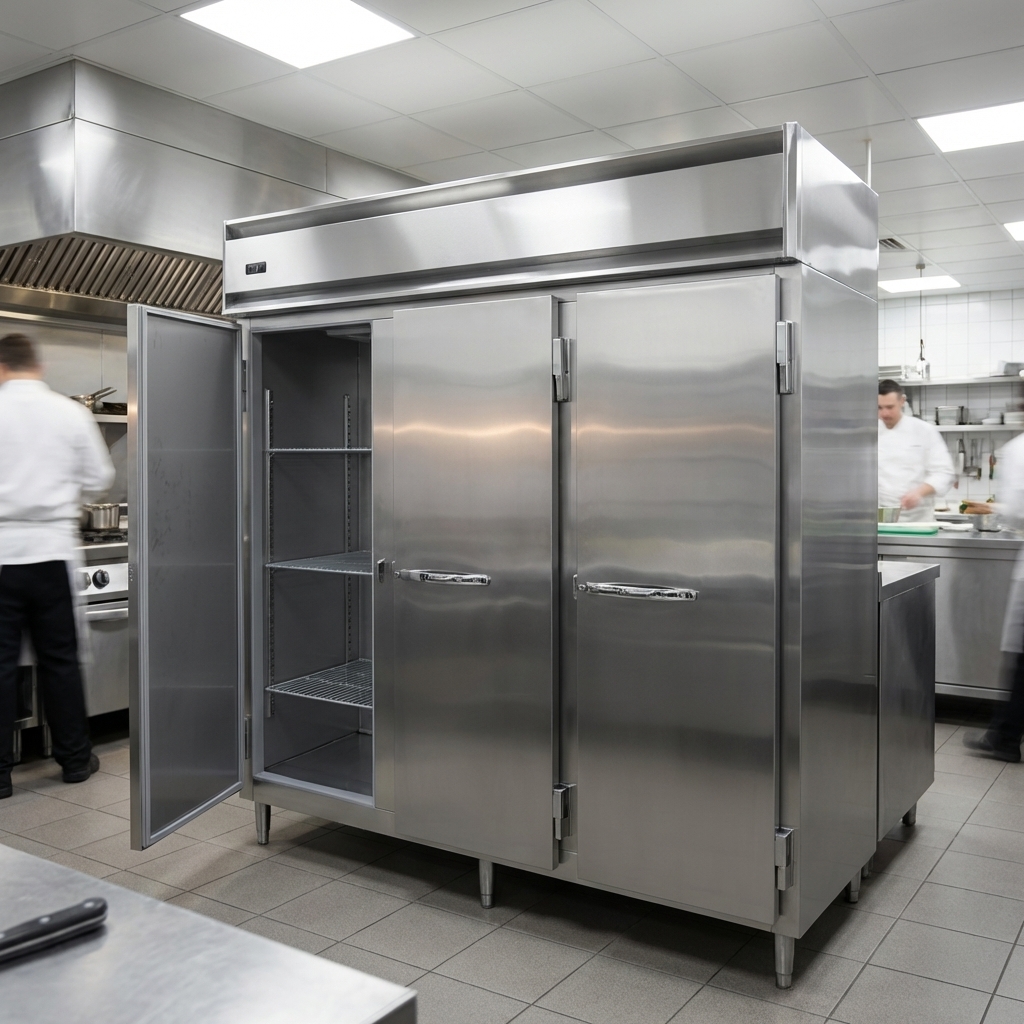

- Rock-solid build – all-stainless steel exterior & interior, 3" non-CFC foam insulation, and polished chrome workflow handles stand up to daily abuse.
- Digital precision – electronic control with bright digital display, plus hi-low temperature alarm for worry-free HACCP compliance.
- Secure & sanitary – magnetic Santoprene™ gaskets, cylinder locks on every door, and cETLus/NSF listings.
- Adjustable storage – nine heavy-duty chrome shelves (three per section) handle sheet pans, hotel pans, or bulky platters.
- Field-friendly – cam-lift, lift-off hinges for easy maintenance and 6" adjustable stainless legs for simple leveling or cleaning underneath.
Specifications
| Capacity | 75 cu. ft. (2124 L) |
|---|---|
| Sections / Doors | 3 sections | 6 hinged, self-closing doors |
| Shelf Count / Type | 9 chrome-plated steel shelves (3 per section) |
| Temperature Range | 90 °F – 180 °F (32 °C – 82 °C) |
| Exterior / Interior | Stainless steel (front, sides, top & interior) |
| Overall Dimensions | 85 ½" W × 38 ¾" D × 83 ¼" H (including 6" legs) |
| Electrical | 208-230 V / 60 Hz / 1-ph, 13.9 A, 3000 W (field-wired) |
| Certifications | cETLus, NSF |
| Warranty | Manufacturer’s limited parts & labor warranty (contact us for details) |
Popular Factory Options
- Additional chrome or stainless steel shelves
- Universal pan slides (19-slide capacity per section)
- Casters for mobility
- Automatic interior LED lighting
- Custom laminates or correctional-facility security packages
Options may require extra lead time—ask our team for a custom quote.
Ready to keep every plate piping hot and perfectly timed? Add the Designer Line pass-thru heated cabinet to your cart or talk with a foodservice specialist today.
