Continental Refrigerator DL3WE-SA-PT-HD Designer Line Heated Cabinets & Holding Shelves
Continental Refrigerator DL3WE-SA-PT-HD Designer Line Heated Cabinets & Holding Shelves is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Continental Refrigerator DL3WE-SA-PT-HD Designer Line Heated Cabine...
Description

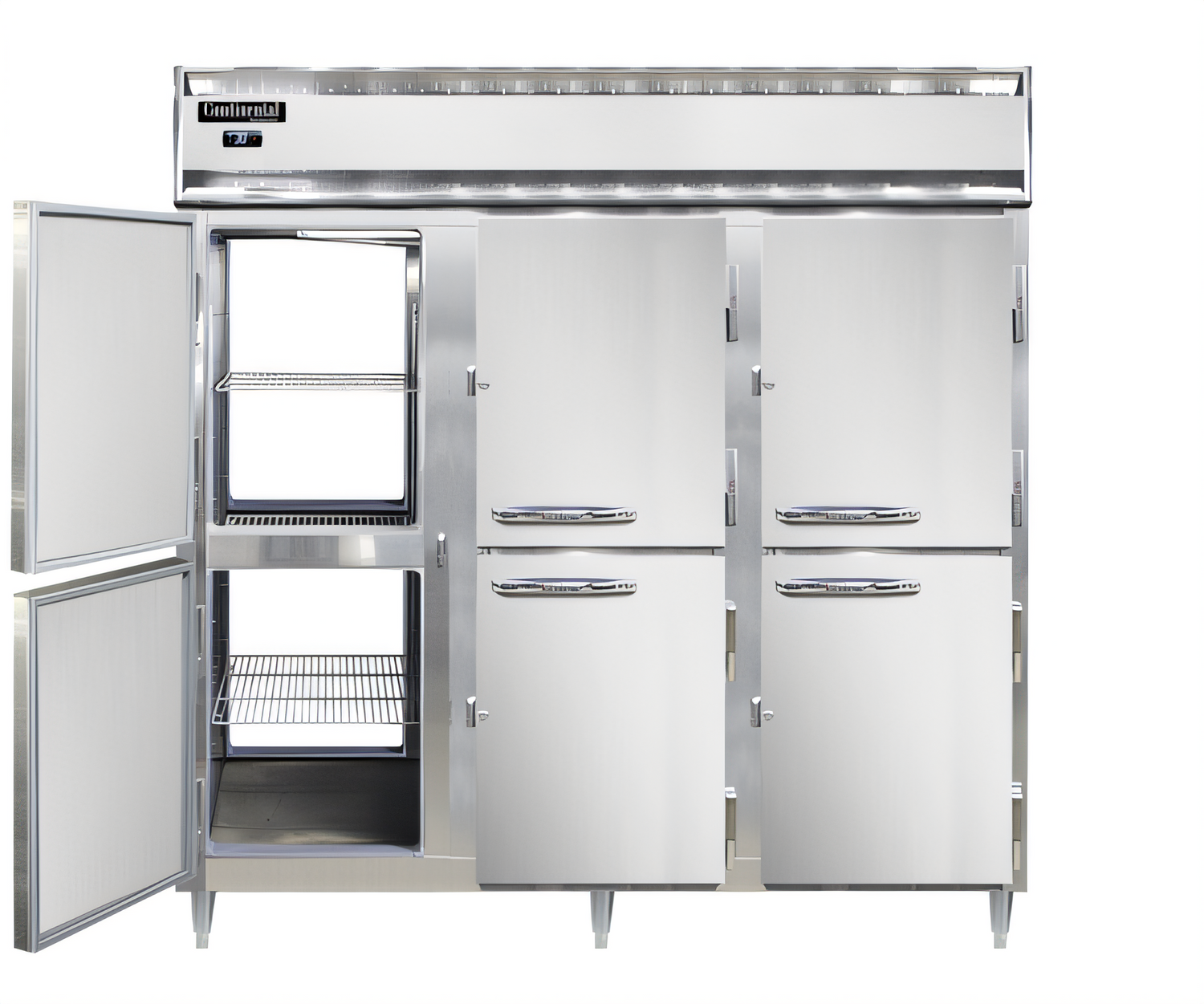

Designer Line Extra-Wide Pass-Thru Heated Cabinet – 3 Section, Half Doors

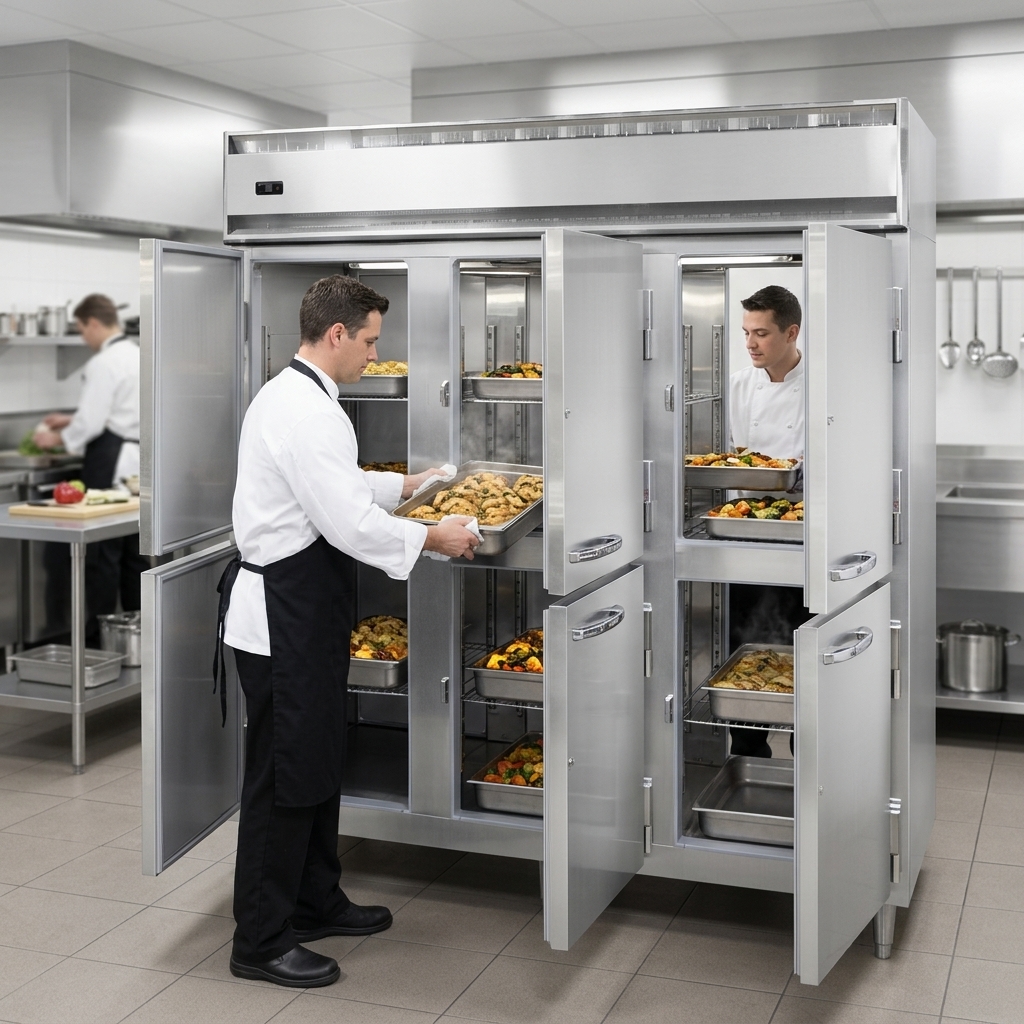

Model DL3WE-PT-HD • Continental RefrigeratorBuilt for high-volume kitchens that never slow down, the Designer Line DL3WE-PT-HD delivers a generous 75 cu. ft. of perfectly-tempered holding space on both sides of the line. Its extra-wide, pass-thru design keeps plated meals, pans or sheet trays hot and ready—so service stays fast, safe and consistent from prep to pass.
Key Performance Benefits
- 90 °F – 180 °F range with self-contained, top-mounted heating plenum and high-flow fan for even heat.
- 12 self-closing half doors (six per side) limit heat loss while giving crew-level access to every section.
- Heavy-duty chrome shelves (9 included, 3 per section) handle sheet pans, hotel pans or plated dishes.
- Electronic controller with bright digital display, simple push-button set-point and hi-/lo temperature alarm.
- 3" non-CFC polyurethane insulation locks in heat and reduces energy use.
- Stainless-steel exterior with aluminum interior stands up to daily commercial abuse and wipes clean fast.
- Santoprene™ snap-in magnetic gaskets and cam-lift hinges provide a tight, trouble-free seal.
- Each door includes a factory-installed cylinder lock for overnight security.
- Adjustable 6" stainless-steel legs make leveling simple; optional casters available.
- cETLus & NSF listed — built, tested and assembled in the U.S.A.

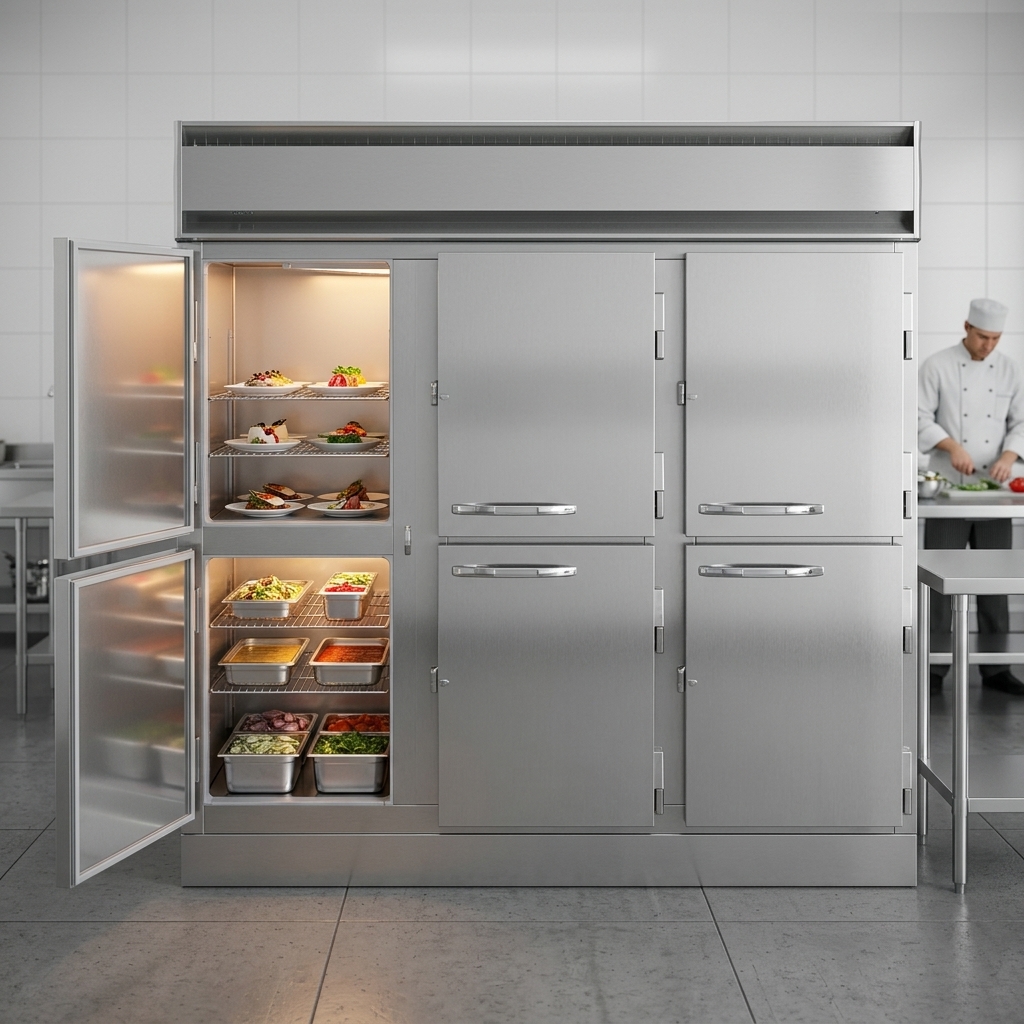

Capacity & Dimensions
| Net capacity | 75 cu. ft. (2124 L) |
|---|---|
| Shelves supplied / material | 9 chrome-plated steel (3 per section) |
| Shelf area | 66.7 sq. ft. (6.2 m2) |
| Overall width | 85 1/2" (2172 mm) |
| Overall depth | 38 3/4" (984 mm) • 32" (813 mm) less doors |
| Overall height | 83 1/4" (2115 mm) including 6" legs |
| Clear door opening | 21 7/8" W × 27 1/2" H (per half door) |
Electrical & Construction Data
| Voltage | 208-230 V / 60 Hz / 1-phase |
|---|---|
| Total amperage | 13.9 A |
| Wattage | 3000 W |
| Cord & plug | Hard-wired (no cord/plug supplied) |
| Heat source | Top-mounted plenum with circulating fan |
| Exterior / interior | All stainless-steel exterior, aluminum interior |
| Insulation | 3" foamed-in-place, CFC-free polyurethane |
| Certifications | cETLus, NSF |
| Shipping weight | ≈ 800 lb. (363 kg) |
Optional Upgrades †
- Automatic interior LED lighting
- Additional or stainless-steel shelves
- Universal pan slides
- Casters for easy mobility
- Correctional-facility security packages
- Special electrical configurations
† Options require extra lead time and up-charge. Consult the factory for details.
Specifications are subject to change without notice. Images may show optional accessories.
