Continental Refrigerator  |  Designer Line  |  SKU: DL3WE-SA-PT

Continental Refrigerator DL3WE-SA-PT Designer Line Heated Cabinets & Holding Shelves

$21,278.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Installation & operation Warranty Map policy Owner's manual
Related Searches
Heated Cabinets & Holding Shelves Holding Cabinets

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

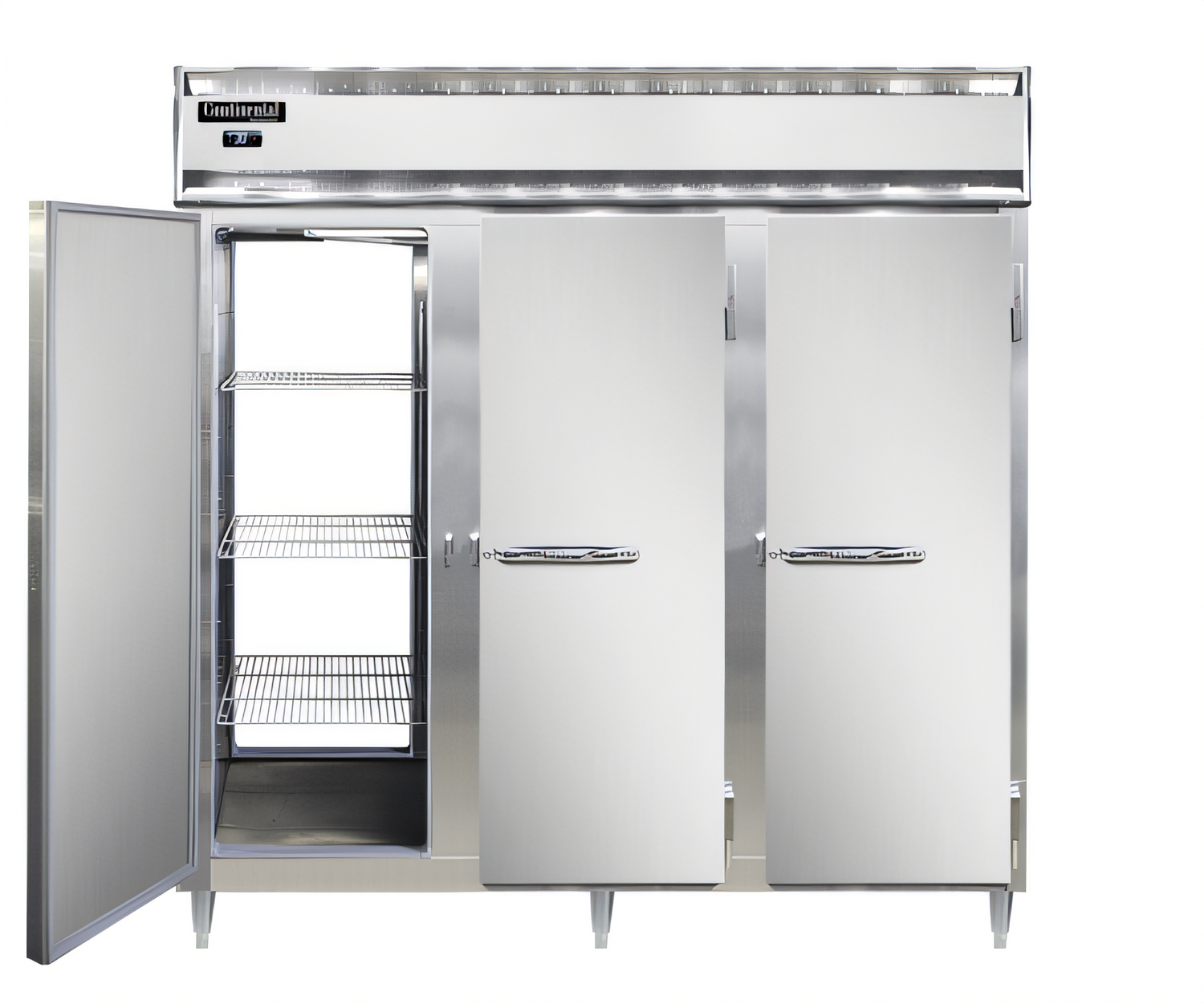

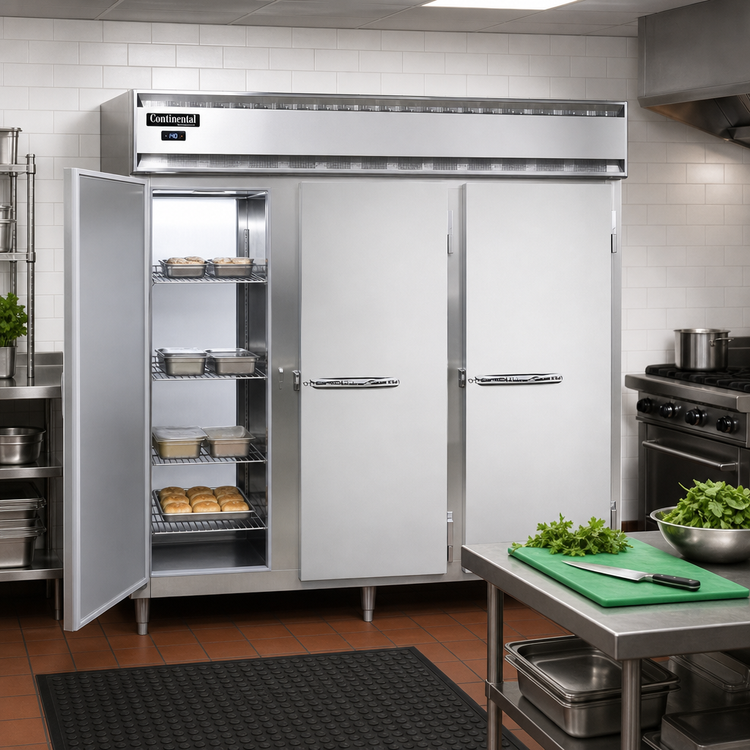

Designer Line Extra-Wide Pass-Thru Heated Cabinet

Model DL3WE-SA-PT • 3-Section • 75 cu. ft.

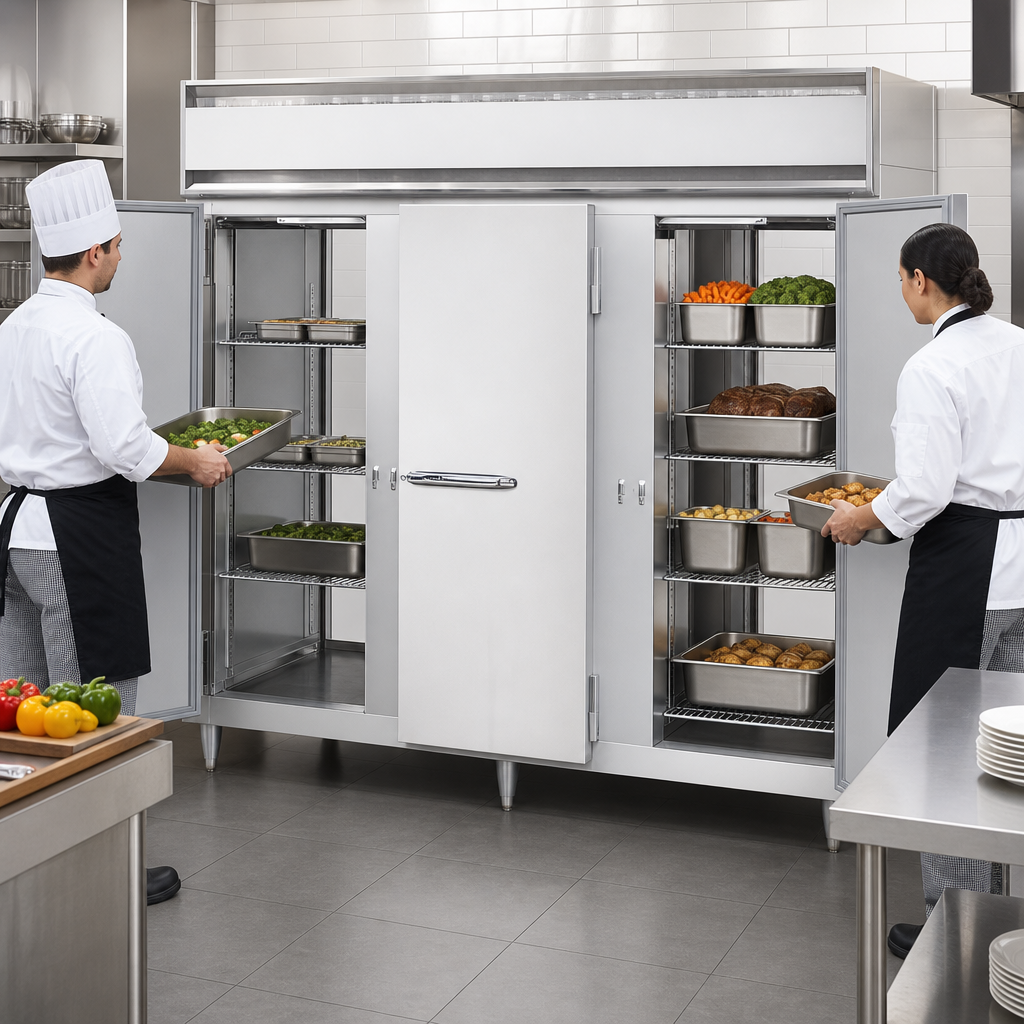

Keep entrées, sides and plated meals service-ready with Continental Refrigerator’s Designer Line heated cabinet. Its pass-thru layout lets staff load from the prep side and retrieve from the service side, while a top-mounted, self-contained heating system maintains a steady 90 °F – 180 °F throughout the spacious interior.

Key Features

  • 75 cu. ft. capacity across three roomy sections
  • Top-mounted, performance-rated heater with circulating fan for even air flow
  • Electronic controller with large digital display and hi-low temperature alarm
  • Six self-closing, lift-off hinged doors with cylinder locks—load or serve from either side
  • Nine heavy-duty chrome-plated shelves (3 per section), adjustable on robust pilaster strips
  • Durable stainless-steel exterior paired with a corrosion-resistant aluminum interior
  • 3″ non-CFC foamed-in insulation preserves heat and reduces energy draw
  • Magnetic, snap-in Santoprene™ door gaskets remove without tools for quick sanitation
  • Adjustable 6″ stainless-steel legs for easy leveling and floor cleaning access
  • Certified cETLus & NSF for dependable commercial performance

Specifications

Net Capacity 75 cu. ft. (2124 L)
Sections / Doors 3 sections / 6 pass-thru hinged doors
Shelves Supplied 9 chrome-plated steel, adjustable
Shelf Area 66.7 sq ft (6.2 m²)
Temperature Range 90 °F – 180 °F (32 °C – 82 °C)
Exterior Stainless steel (front, sides, doors, top)
Interior Aluminum with stainless strip heaters at base
Overall Width 85 ½″ (2172 mm)
Overall Depth (incl. handles) 38 ¾″ (984 mm)
Overall Height (incl. 6″ legs) 83 ¼″ (2115 mm)
Electrical 208-230 V / 60 Hz / 1-phase, 13.9 A, 3000 W (hard-wired)
Certifications cETLus, NSF
Country of Origin Designed & assembled in the USA

Perfect For

  • High-volume restaurants staging dishes between cook line and expo
  • Hotel banquet kitchens needing bulk plate holding with dual-side access
  • Catering & institutional facilities (schools, hospitals, corrections) demanding rugged, large-capacity hot storage

What’s Included

  • (9) adjustable chrome-plated shelves
  • Factory-installed electronic controller with hi-low alarm
  • Magnetic door gaskets & cylinder door locks
  • Adjustable 6″ stainless-steel legs

For safe operation and service access, allow at least 12″ clearance above the cabinet and 3″ on both sides and rear.

Features & Specs

Manufacturer

Continental Refrigerator

Brand_name

Designer Line

Certifications

NSF, cETLus

Height

83.25in

Width

85.5in

Depth

38.75in

Shipping Weight

840.0lbs

Doors

hinged solid

Exterior Finish

all stainless steel exterior

Size

3 section

Interior configuration

shelves

Depth (front - back)

standard

Interior Finish

aluminum interior

Thermometer

exterior digital

Specifications

Designer Line Heated Cabinet, extra wide pass-thru, three-section, 75 cu. ft. capacity, (3) shelves per section, stainless steel exterior, aluminum interior, standard depth, hinged doors, electronic control with digital display, hi-low alarm, cETLus, NSF
