Continental Refrigerator  |  Designer Line  |  SKU: DL3WE-SA

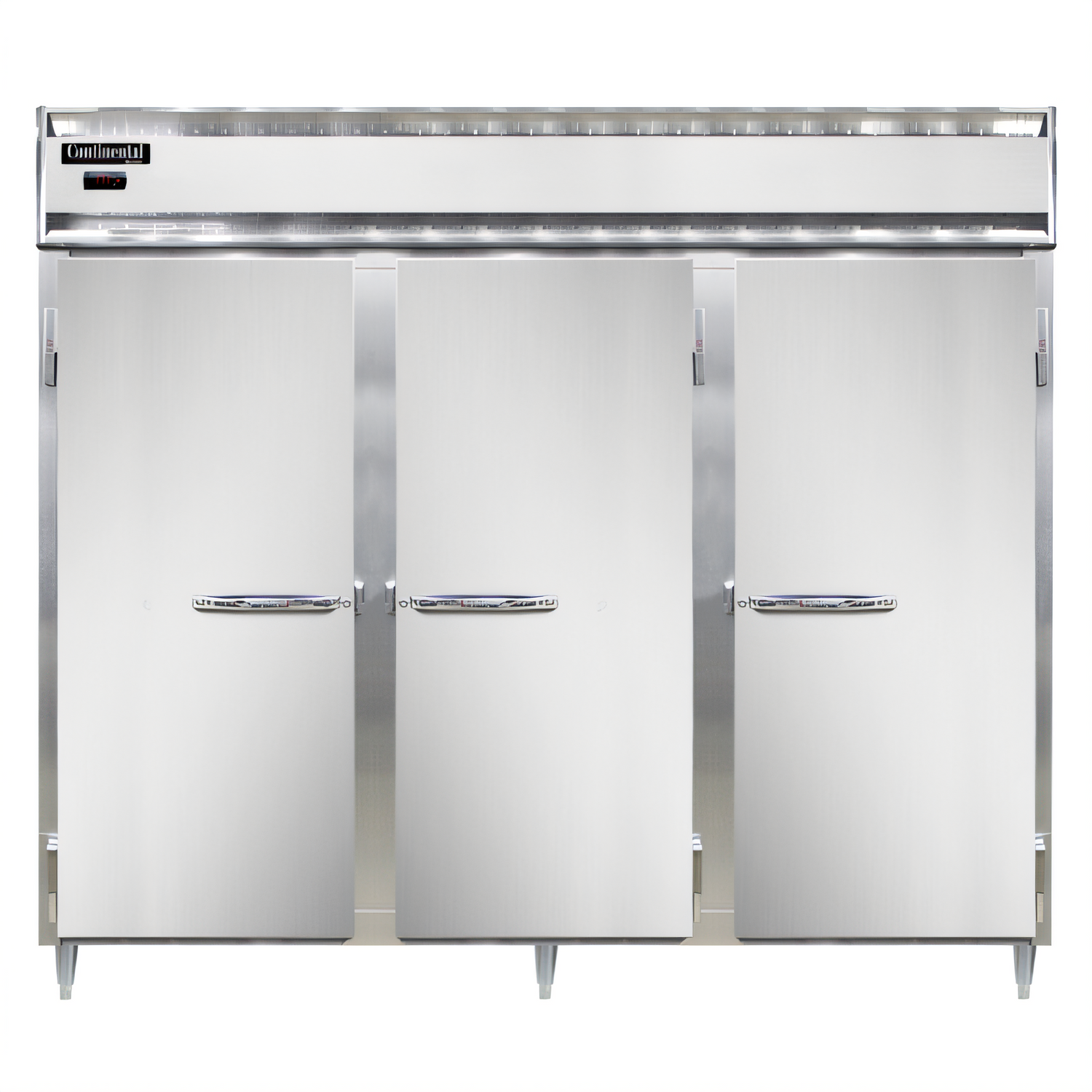

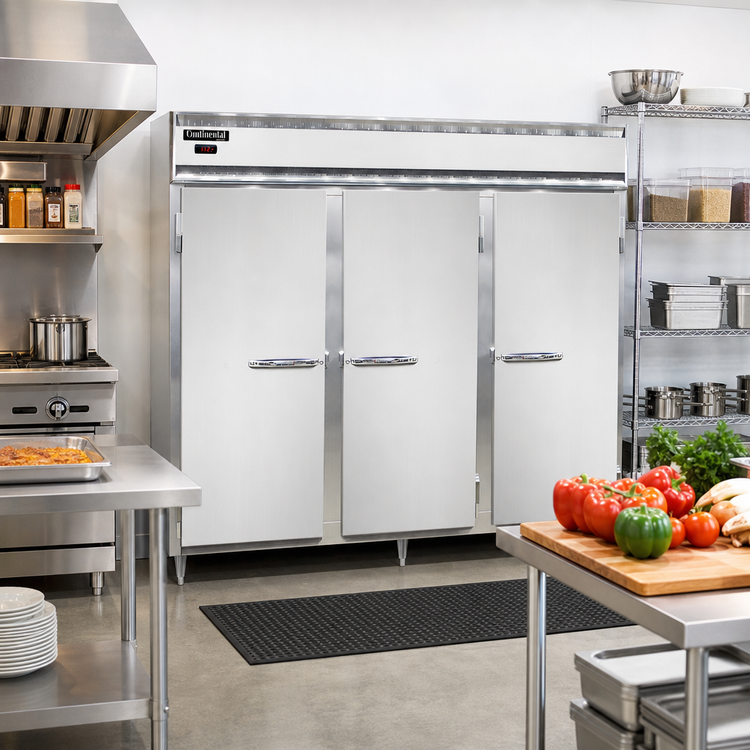

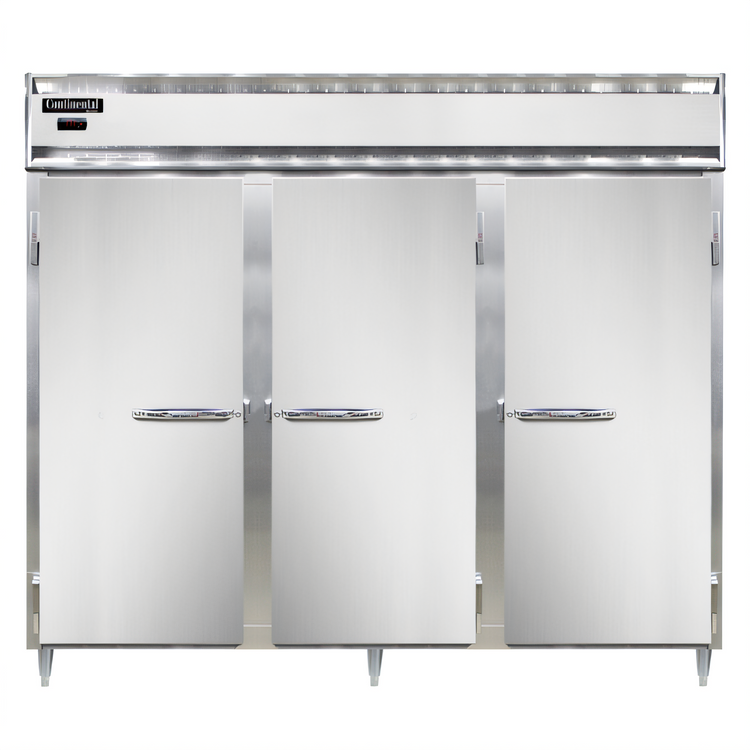

Continental Refrigerator DL3WE-SA Designer Line Heated Cabinets & Holding Shelves

$16,811.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Owner's manual Warranty Installation & operation Map policy
Related Searches
Heated Cabinets & Holding Shelves Holding Cabinets

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

Designer Line Extra-Wide Heated Cabinet

Model DL3WE-SA  •  Three-Section Reach-In  •  75 cu. ft.

Built for high-volume kitchens that can’t compromise on food quality, the Continental Refrigerator Designer Line Heated Cabinet keeps every pan perfectly held between 90 °F – 180 °F. A powerful top-mounted heating plenum circulates air uniformly from corner to corner, while a stainless-steel exterior delivers the rugged durability you expect from an NSF-listed, cETLus-approved piece of American-made equipment.

Performance & Construction Highlights

  • Self-contained, performance-rated heating system with circulating fan for even heat distribution.

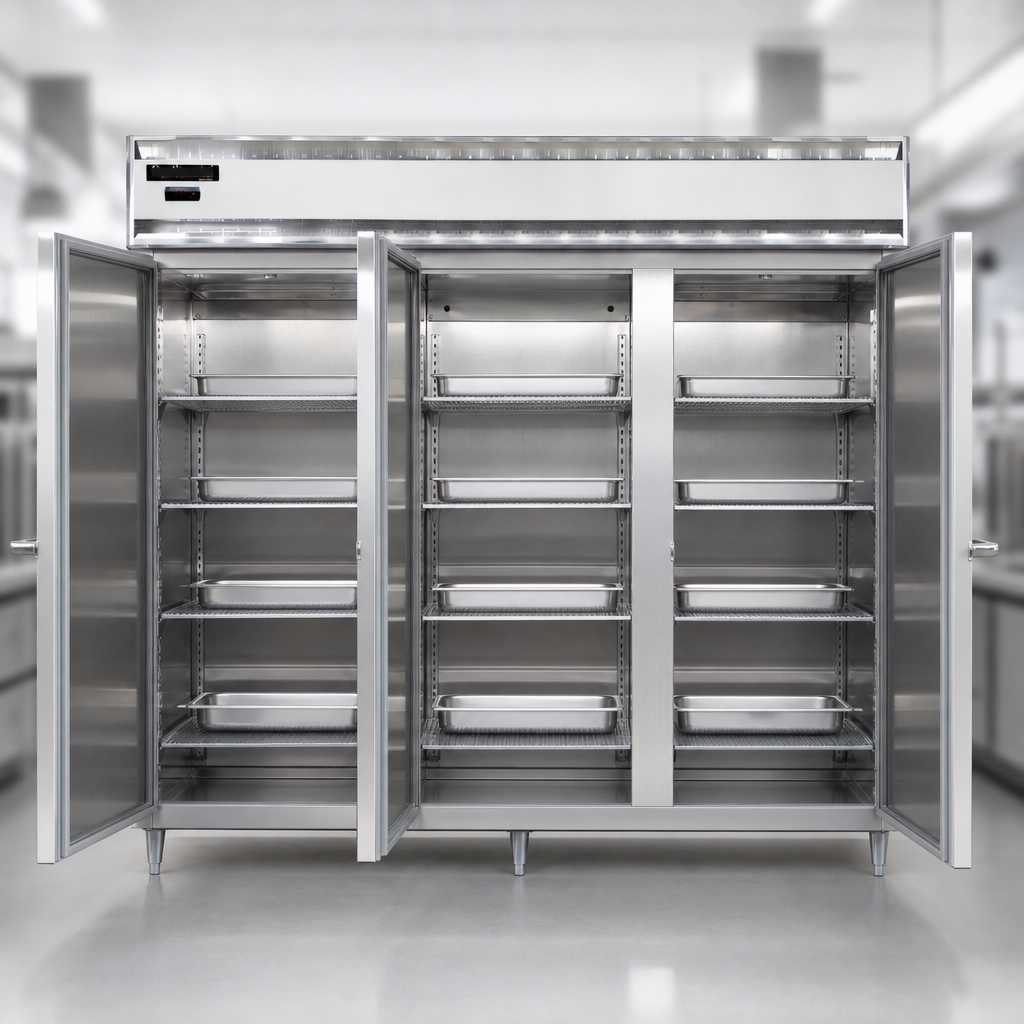

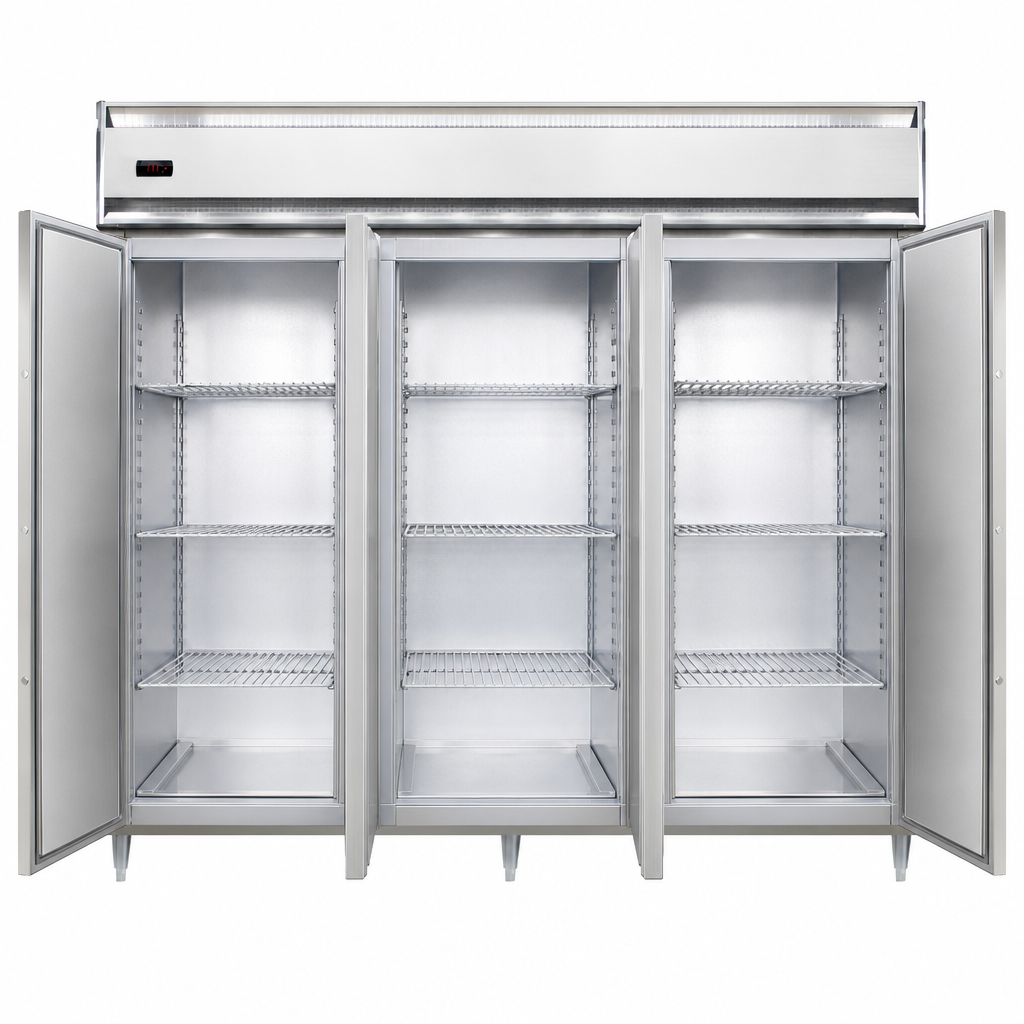

  • Extra-wide 3-section layout provides 75 cu. ft. of usable space and nine heavy-duty chrome shelves (3 per section) right out of the box.
  • Stainless-steel exterior paired with an easy-to-clean aluminum interior—built to withstand daily commercial abuse.
  • 3″ thick, non-CFC polyurethane foam insulation locks in heat and lowers energy use.
  • Electronic controller with large digital display plus Hi-/Low temperature alarm for worry-free food safety.
  • Self-closing, lockable doors with polished chrome workflow handles, lift-off cam hinges, and magnetic Santoprene™ gaskets.
  • Adjustable 6″ stainless-steel legs simplify leveling and cleaning underneath the cabinet.
  • cETLus & NSF listings mean the unit is code-ready for any commercial kitchen in the USA or Canada.
  • Proudly designed & assembled in the U.S.A.

Technical Specifications

Internal capacity 75 cu. ft. / 2-section (2,124 L)
Overall dimensions (W × D × H) 85 ½″ × 35 ⅜″ × 83 ¼″ (including 6″ legs & handles)
Interior depth (less doors) 32″
Door clearance at 90° 58″ D × 21 ⅞″ W opening
Sections / Doors 3 / 3, hinged, self-closing
Standard shelving 9 heavy-duty chrome shelves (66.7 sq. ft. total)
Temperature range 90 °F – 180 °F
Electrical 208-230 V / 60 Hz / 1-phase, 3 wire, 3,000 W, 13.9 A (hard-wired)
Shipping weight 710 lb (322 kg)
Certifications cETLus, NSF
Installation clearance: Provide at least 12″ of space above the cabinet and 3″ on both sides and rear for safe operation and service access.

Popular Factory Options

  • Additional chrome or stainless-steel shelves
  • Universal pan slides (19 per section capacity)
  • Casters in place of legs
  • Stainless-steel interior (Model DL3WE-SS)
  • Correctional packages (security screws, mesh covers, locking hasp)

Looking for a different configuration? Ask us about re-hinging, custom laminates, or other Designer Line warmers.

Features & Specs

Manufacturer

Continental Refrigerator

Brand_name

Designer Line

Certifications

NSF, cETLus

Height

83.25in

Width

85.5in

Depth

35.38in

Shipping Weight

745.0lbs

Interior Finish

aluminum interior

Exterior Finish

all stainless steel exterior

Interior configuration

shelves

Size

3 section

Doors

hinged solid

Depth

standard depth

Specifications

Designer Line Heated Cabinet, extra wide reach-in, three-section, 75 cu. ft. capacity, (3) shelves per section, stainless steel exterior, aluminum interior, standard depth, hinged doors, electronic control with digital display, hi-low alarm, cETLus, NSF
