Description

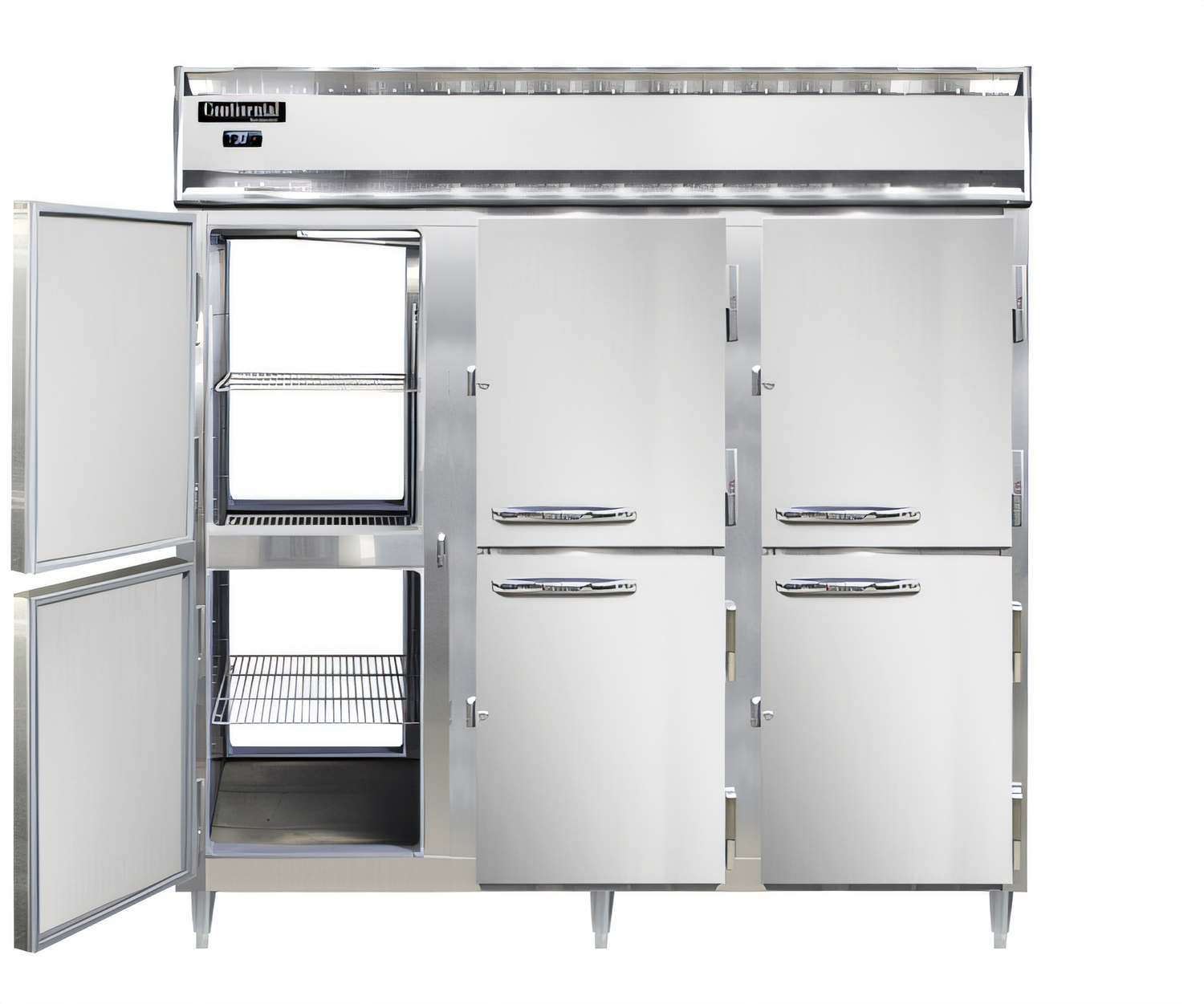

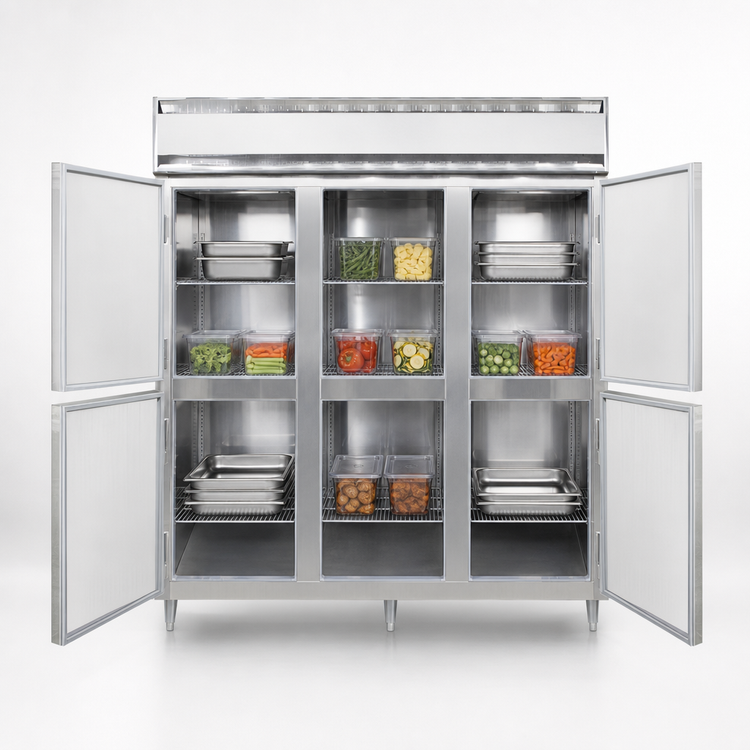

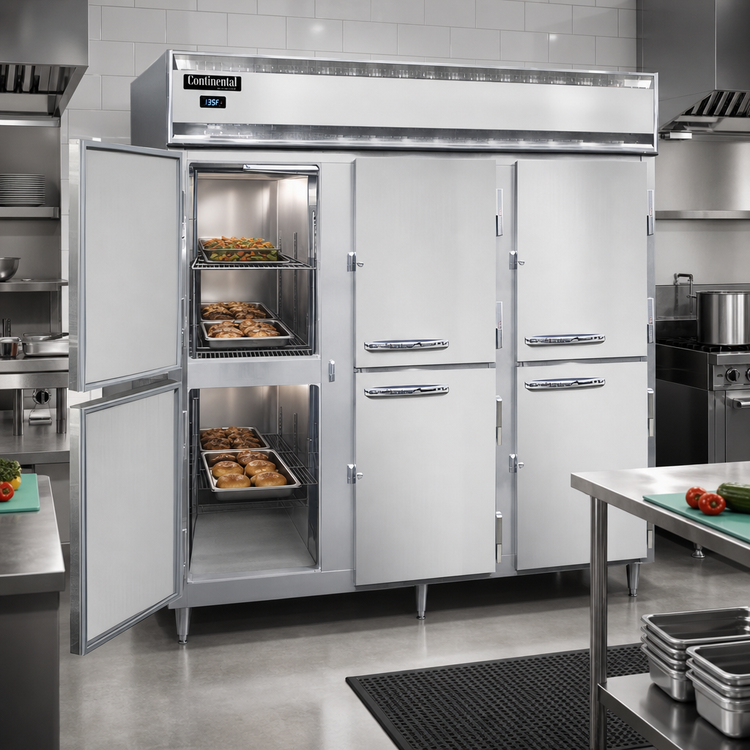

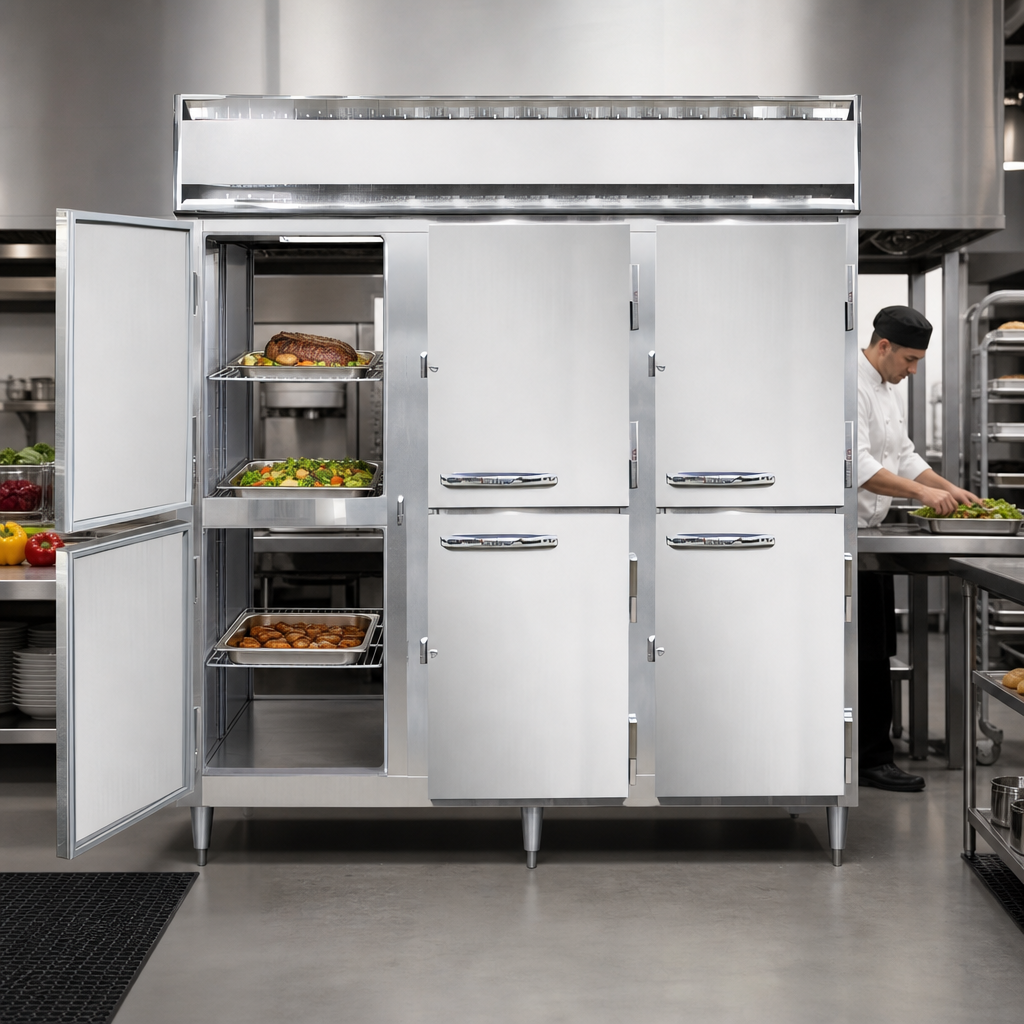

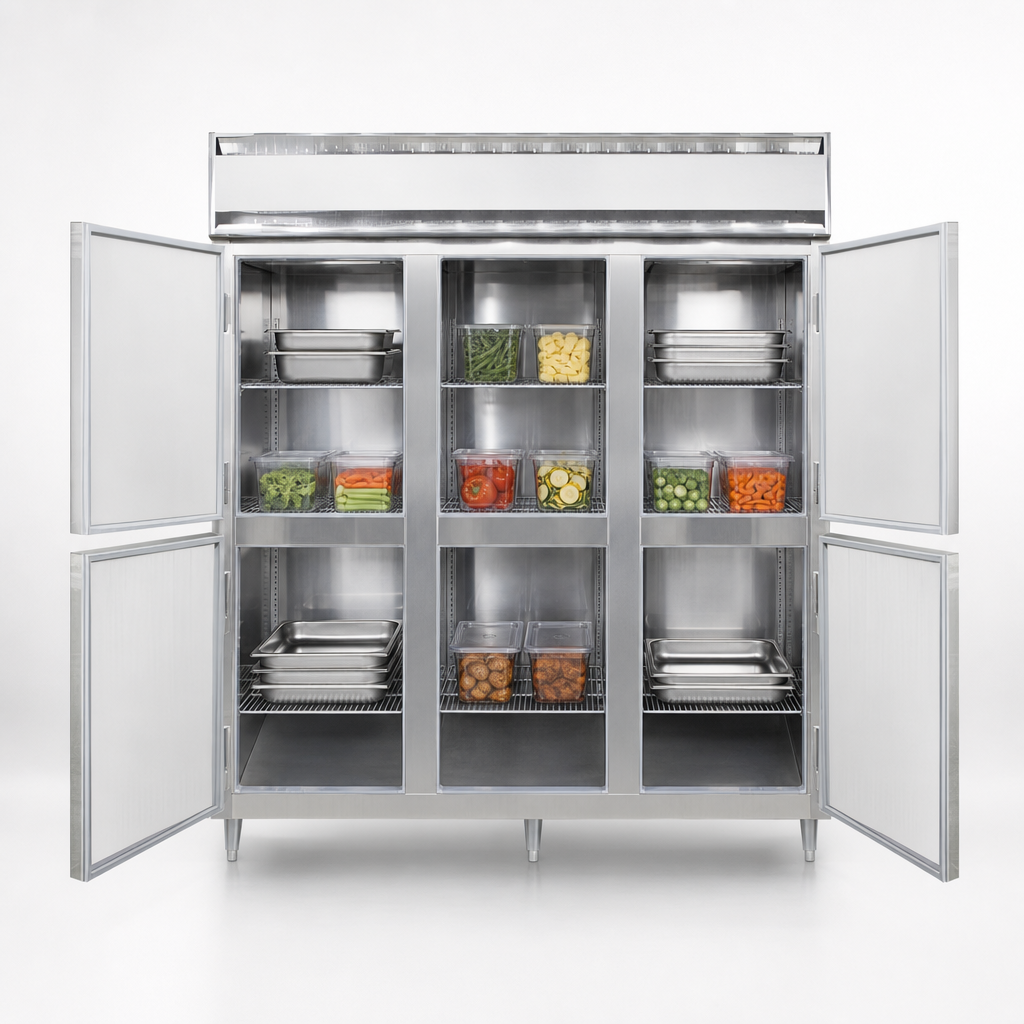

Designer Line DL3WE-PT-HD Extra-Wide Pass-Thru Heated Cabinet
3-Section | 75 cu ft | 12 Half Doors | 208-230 V, 1-PhaseEngineered for demanding commercial kitchens, the Continental Refrigerator Designer Line DL3WE-PT-HD delivers consistent, gentle heat from prep to plating. Its extra-wide, three-section pass-thru layout lets staff load from the back and serve from the front without disrupting workflow—perfect for banquets, institutions or high-volume à-la-carte service.
Highlights
- 90 °F – 180 °F electronic temperature control with bright digital display and hi-low alarm.
- Top-mounted, self-contained heating plenum with circulating fan for even air distribution.
- 12 self-closing, hinged half doors minimize heat loss and shorten recovery time.
- Heavy-duty chrome-plated shelves—three per section, adjustable on pilaster strips.
- 3 in. thick, non-CFC polyurethane insulation locks in heat and reduces energy costs.
- Stainless steel front; durable aluminum interior & end panels resist corrosion.
- Smooth chrome workflow door handles, magnetic Santoprene™ gaskets & individual cylinder locks.
- Adjustable 6 in. stainless steel legs for quick leveling on uneven floors.
- cETLus & NSF listed; proudly designed & assembled in the USA.
At-a-Glance Specs
| Model | DL3WE-PT-HD |
|---|---|
| Net capacity | 75 cu ft / 2124 L |
| Sections | 3 (extra wide pass-thru) |
| Doors | 12 hinged half doors (six per side) |
| Shelves supplied | 9 heavy-duty chrome shelves |
| Exterior (front / ends) | Stainless steel / Aluminum |
| Interior | Aluminum with stainless strip heaters in base |
| Overall dimensions (W × D × H) | 85 1⁄2 in × 38 3⁄4 in × 83 1⁄4 in (2172 × 984 × 2115 mm) |
| Clear door opening | 21 7⁄8 in W × 27 1⁄2 in H (per half door) |
| Shelf area | 66.7 sq ft / 6.2 m² |
| Electrical | 208-230 V / 60 Hz / 1-ph, 13.9 A, 3000 W |
| Shipping weight | Approx. 800 lb / 363 kg |
Popular Options (factory-installed)
- Automatic LED interior lighting
- Additional chrome or stainless-steel shelves
- Universal pan slides
- Casters in place of legs
- Correctional-facility security packages
- Custom laminates or special electrical configurations
Contact us to configure the perfect DL3WE-PT-HD for your operation.
Backed by Continental Refrigerator’s industry-leading warranty and nationwide service network for complete peace of mind.
