Description

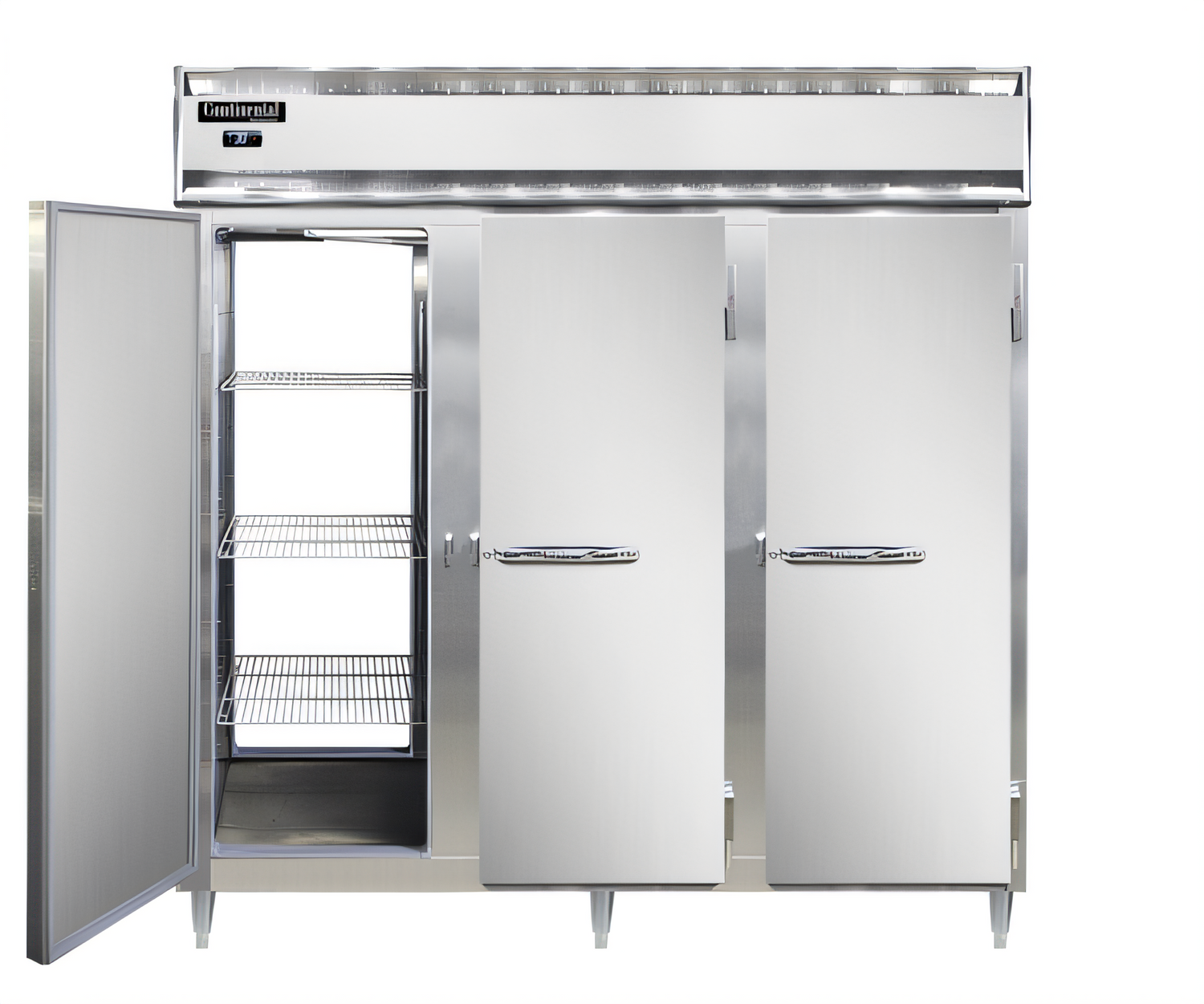

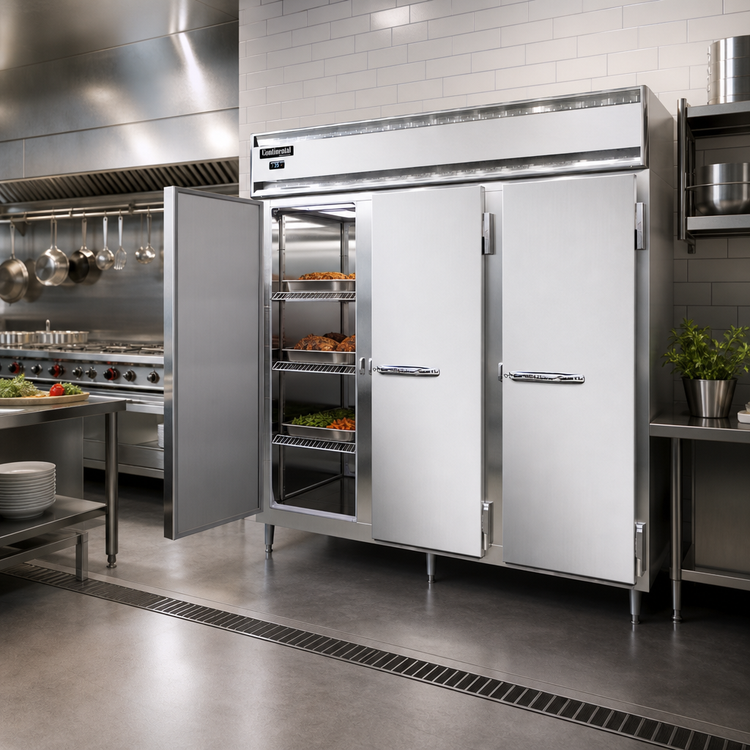

Designer Line DL3WE-PT Pass-Thru Heated Cabinet

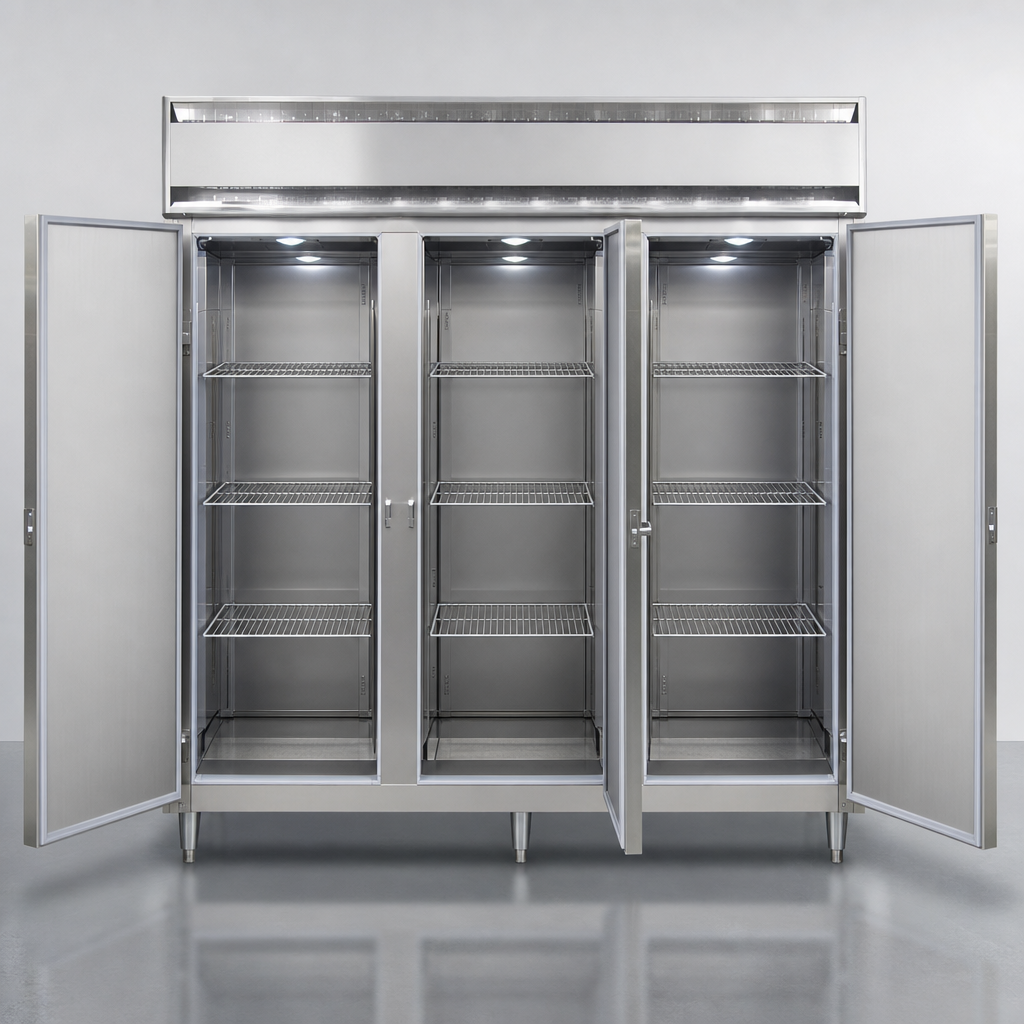

3-Section • Extra-Wide • 75 cu. ft. CapacityBuilt for busy institutional and commercial kitchens, the Continental Refrigerator Designer Line DL3WE-PT keeps plated meals, sheet pans or hotel pans hot and ready on both sides of the line. A self-contained heating system, rugged stainless-steel front and full pass-thru design make it a powerful productivity upgrade for tray make-up, banqueting and bulk holding applications.
Why It Stands Out
- 90 °F – 180 °F operating range with rapid recovery for service-ready plates or pans.
- Top-mounted plenum “plug” with circulating fan plus proprietary air-flow ducts for even, corner-to-corner heat distribution.

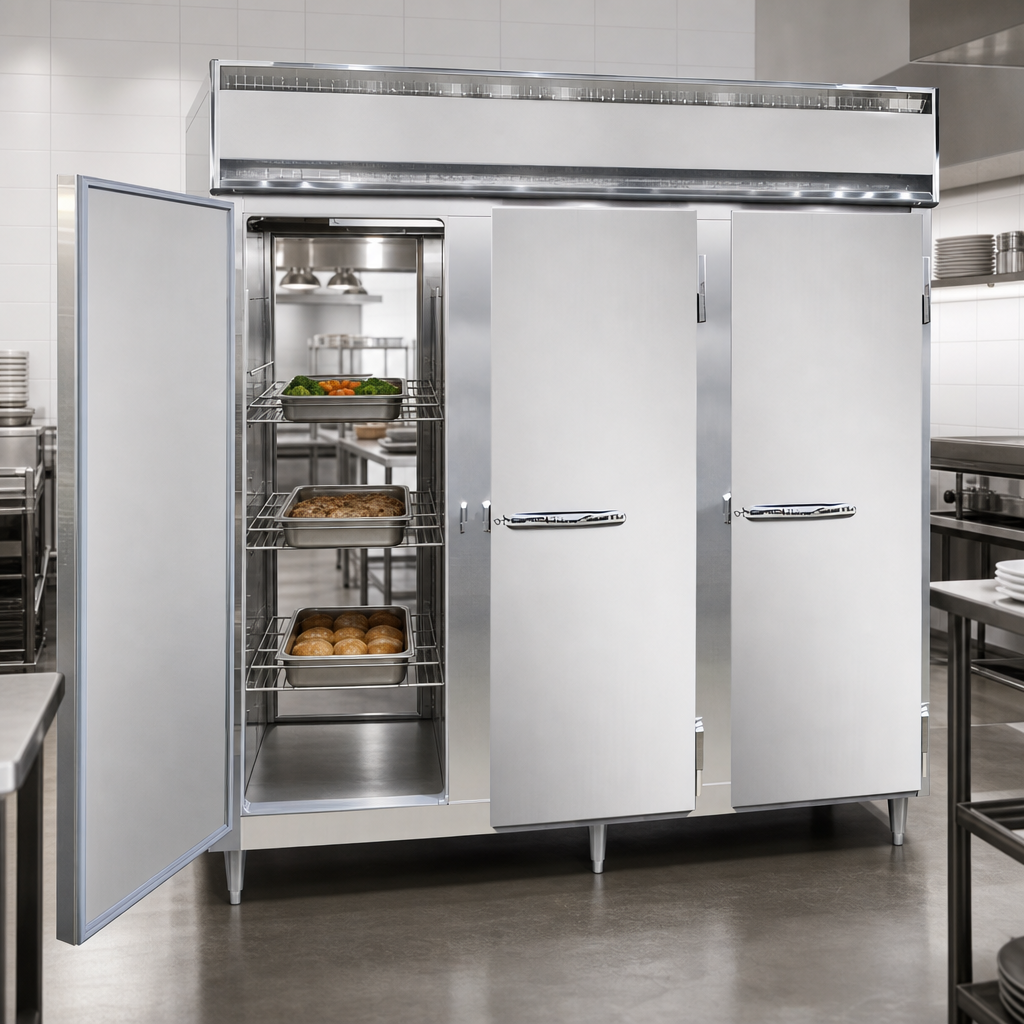

- Six self-closing, pass-thru doors speed up workflow while keeping heat locked in.
- Electronic control with large digital readout and hi-/low temperature alarm for easy, at-a-glance monitoring.
- 3" non-CFC foam insulation and magnetic Santoprene™ gaskets maximize energy efficiency.
- Heavy-duty chrome-plated shelves (3 per section / 9 total) handle sheet pans or platters up to 66.7 ft² of shelf area.
- Individually keyed cylinder locks protect contents during transport or off-hour storage.
- Adjustable 6" stainless-steel legs for quick cleaning underneath or optional casters (upcharge).
- Certified to cETLus & NSF standards and backed by an industry-leading 7-year parts, labor & compressor warranty.
Built for Daily Demands
- Stainless-steel front resists dings in high-traffic corridors; aluminum ends & interior help reduce weight.
- Cam-action, lift-off hinges and polished chrome workflow handles for smooth, dependable operation.
- Stainless-steel strip heaters in the cabinet base minimize condensation on door frames.
- Heavy-duty pilaster strips allow fast, tool-free shelf adjustment.
Technical Specifications
| Model | DL3WE-PT (Stainless front / Aluminum ends & interior) |
|---|---|
| Capacity | 75 cu. ft. (2124 L) • 3 sections |
| Exterior Dimensions (W × D × H) | 85 1/2" × 38 3/4" × 83 1/4" (incl. 6" legs) |
| Door Configuration | 6 hinged, self-closing doors (full pass-thru) |
| Shelves Supplied | 9 heavy-duty chrome shelves (3 per section) |
| Temperature Range | 90 °F – 180 °F (32 °C – 82 °C) |
| Electrical | 208-230 V / 60 Hz / 1-Ph • 13.9 A • 3,000 W • hard-wired (no cord/plug) |
| Ship Weight | Approx. 800 lb (363 kg) |
| Certifications | cETLus, NSF |
| Warranty | 7-year parts, labor & compressor coverage |
Popular Factory Options
- Additional chrome or stainless-steel shelves
- Universal pan slides
- Casters for mobile applications
- Custom laminates or full stainless exterior
- Correctional packages (security screws, mesh covers, lock hasp)
Provide at least 12" clearance above and 3" on both sides & rear for proper ventilation.
