Description

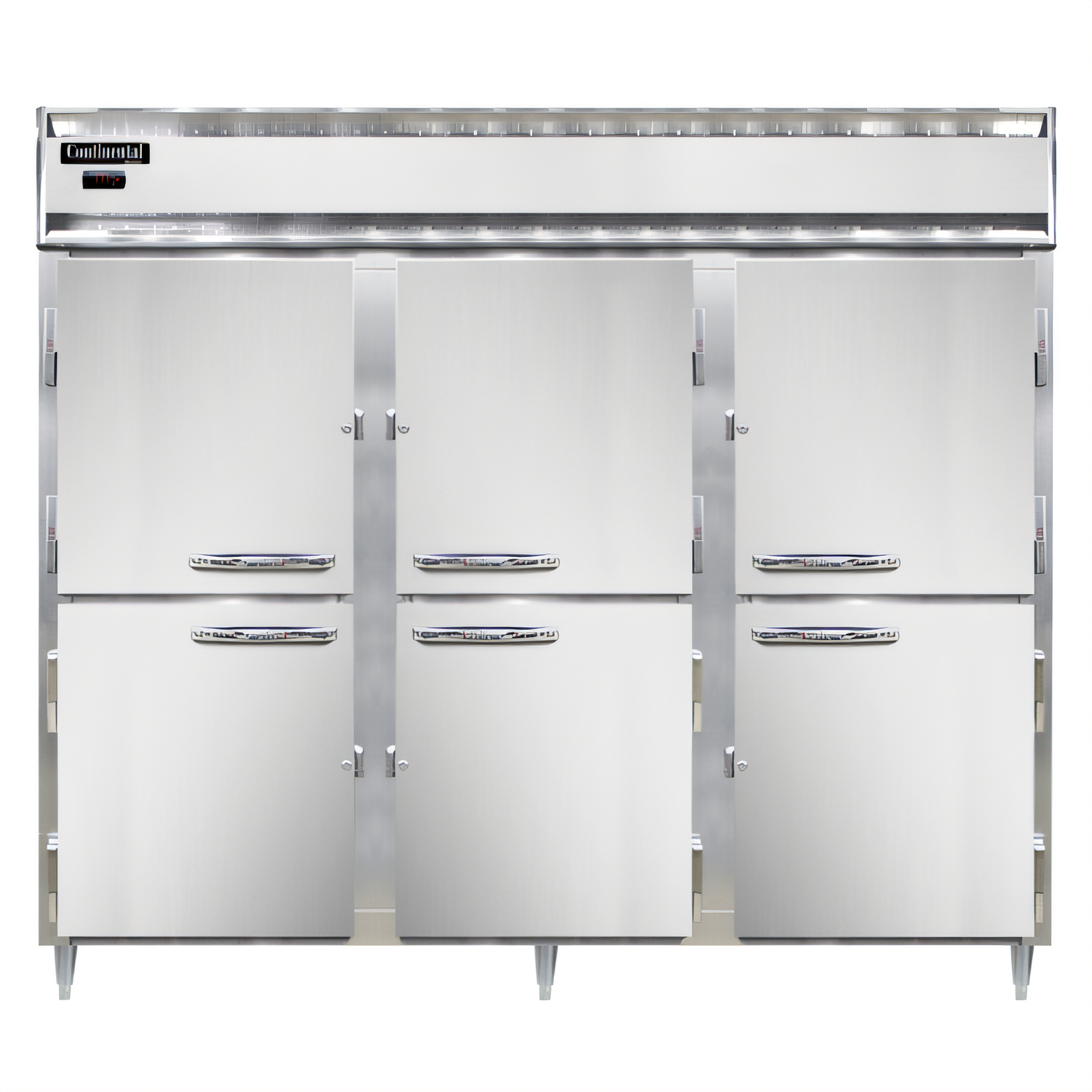

Designer Line DL3WE-HD Heated Cabinet

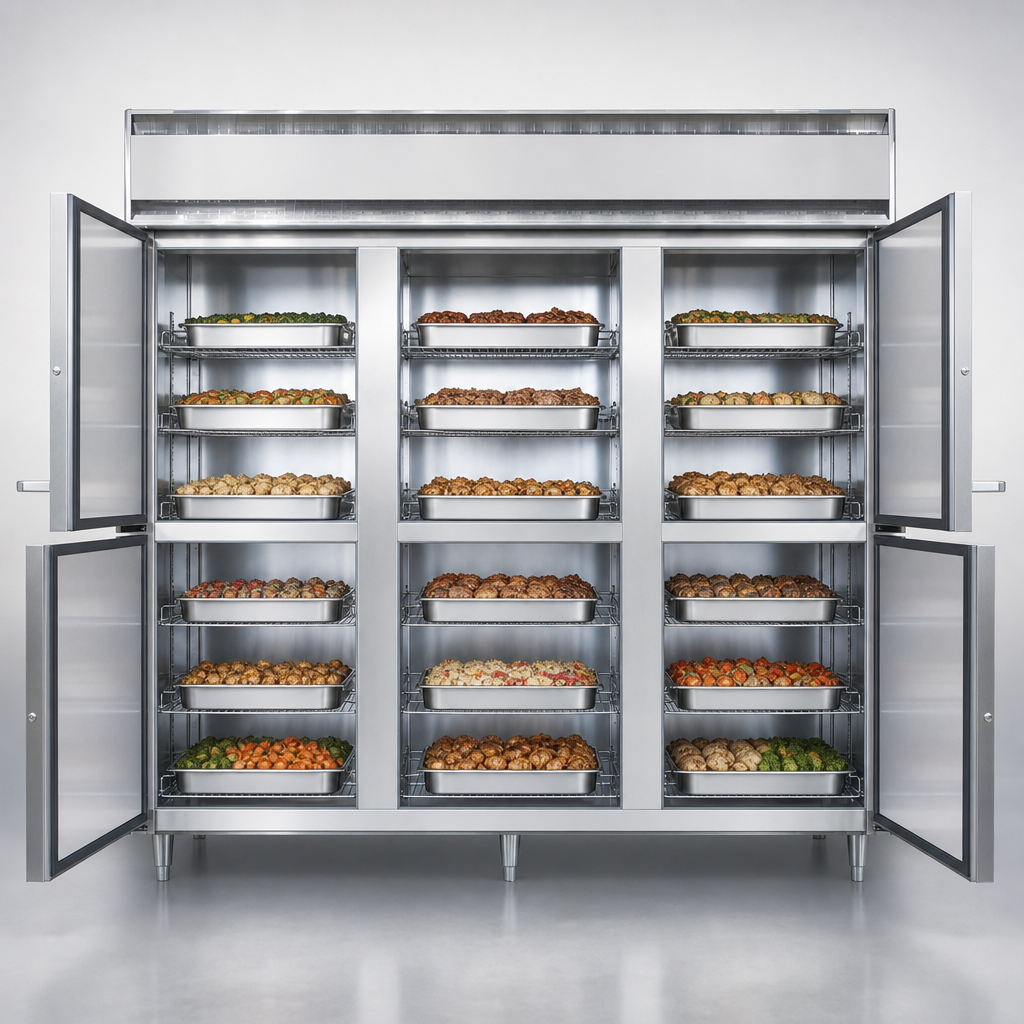

Extra-wide 3-section reach-in warmer – 75 cu. ft. capacityGive plated meals, sheet pans, and hotel pans the perfect holding environment with Continental Refrigerator’s Designer Line DL3WE-HD. This self-contained warmer delivers consistent 90 – 180 °F heat, rock-solid construction, and smart digital controls — all packaged in a space-saving half-door design that maximizes kitchen workflow.
- Self-contained, performance-rated heating system with top-mounted plenum & circulating fan
- Six hinged half-doors minimize heat loss while speeding up access

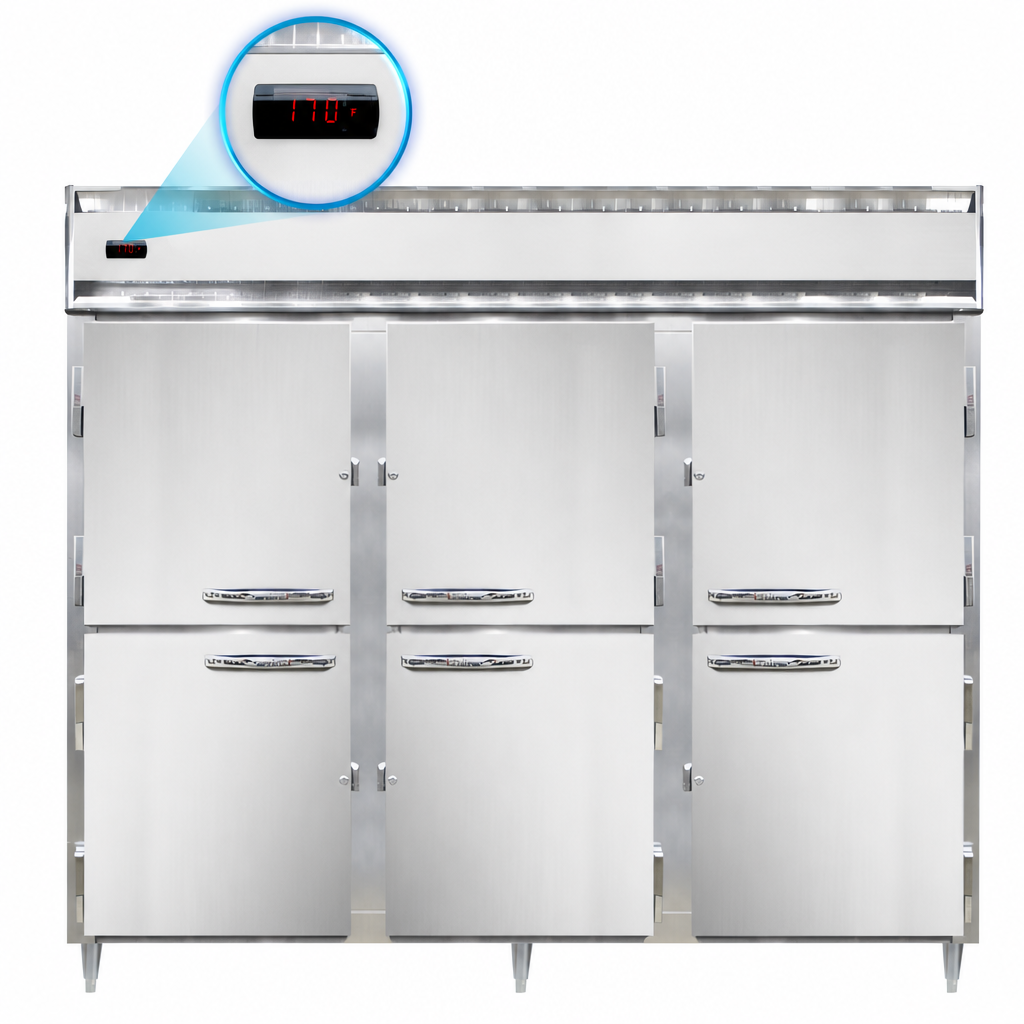

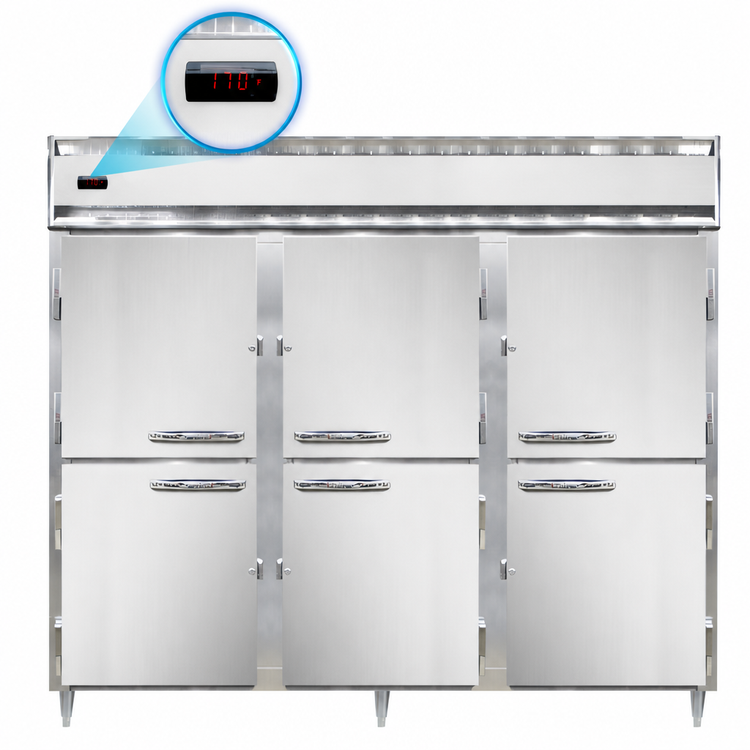

- Electronic controller with large digital display, temperature read-out, and Hi/Low alarm
- Stainless steel front & heavy-duty chrome shelves stand up to rigorous, daily use
- 3″ non-CFC polyurethane insulation for outstanding energy efficiency
- Magnetic Santoprene™ gaskets and self-closing doors seal in heat
- Adjustable 6″ stainless legs simplify cleaning under and around the unit
- Certified cETLus & NSF for assured code compliance
- Proudly designed & assembled in the USA
At-a-Glance Specs
| Interior capacity | 75 cu. ft. (2124 L) |
|---|---|
| Sections / doors | 3 sections / 6 half-doors (right-hinged factory standard) |
| Shelves supplied | 9 chrome-plated steel (3 per section) |
| Temperature range | 90 °F – 180 °F (32 °C – 82 °C) |
| Exterior dimensions | 85 1⁄2" W × 35 3⁄8" D × 83 1⁄4" H (2172 × 899 × 2115 mm, inc. 6" legs) |
| Shelf area | 66.7 ft² (6.2 m²) |
| Electrical | 208-230 V / 60 Hz / 1-ph, 13.9 A, 3000 W (hard-wired) |
| Construction | Stainless steel front, aluminum end panels & interior |
| Shipping weight | Approx. 710 lb (322 kg) |
| Certifications | cETLus, NSF |
Engineered for Even Heat
A top-mounted heating plenum “plug” draws air through exclusive distribution ducts for uniform temperatures from top to bottom — no hot spots, no cold corners. Stainless steel strip heaters in the base keep the floor zone just as warm as the upper shelves.
Built to Last in Busy Kitchens
- Cam-action, lift-off hinges for quick door removal & maintenance
- Cylinder locks on every door guard valuable product after hours
- Polished chrome workflow handles are easy to grip with gloved hands
- Heavy-duty pilaster strips allow shelf repositioning in 1" increments
Provide at least 12" (305 mm) above the cabinet and 3" (76 mm) on sides & rear for proper airflow and service access.
Popular Options (Factory-Installed)
- Stainless steel ends or full stainless exterior
- Additional shelves or stainless steel shelves
- Universal pan slides or tray slides
- Casters in place of legs
- Automatic interior LED lighting
- Correctional packages: one-way security screws, locking hasp, mesh covers
Options may affect lead time and price — contact us for a custom quote.
