Continental Refrigerator  |  Designer Line  |  SKU: DL3WE

Continental Refrigerator DL3WE Designer Line Heated Cabinets & Holding Shelves

$16,092.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Owner's manual Map policy Installation & operation Warranty
Related Searches
Heated Cabinets & Holding Shelves Holding Cabinets

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

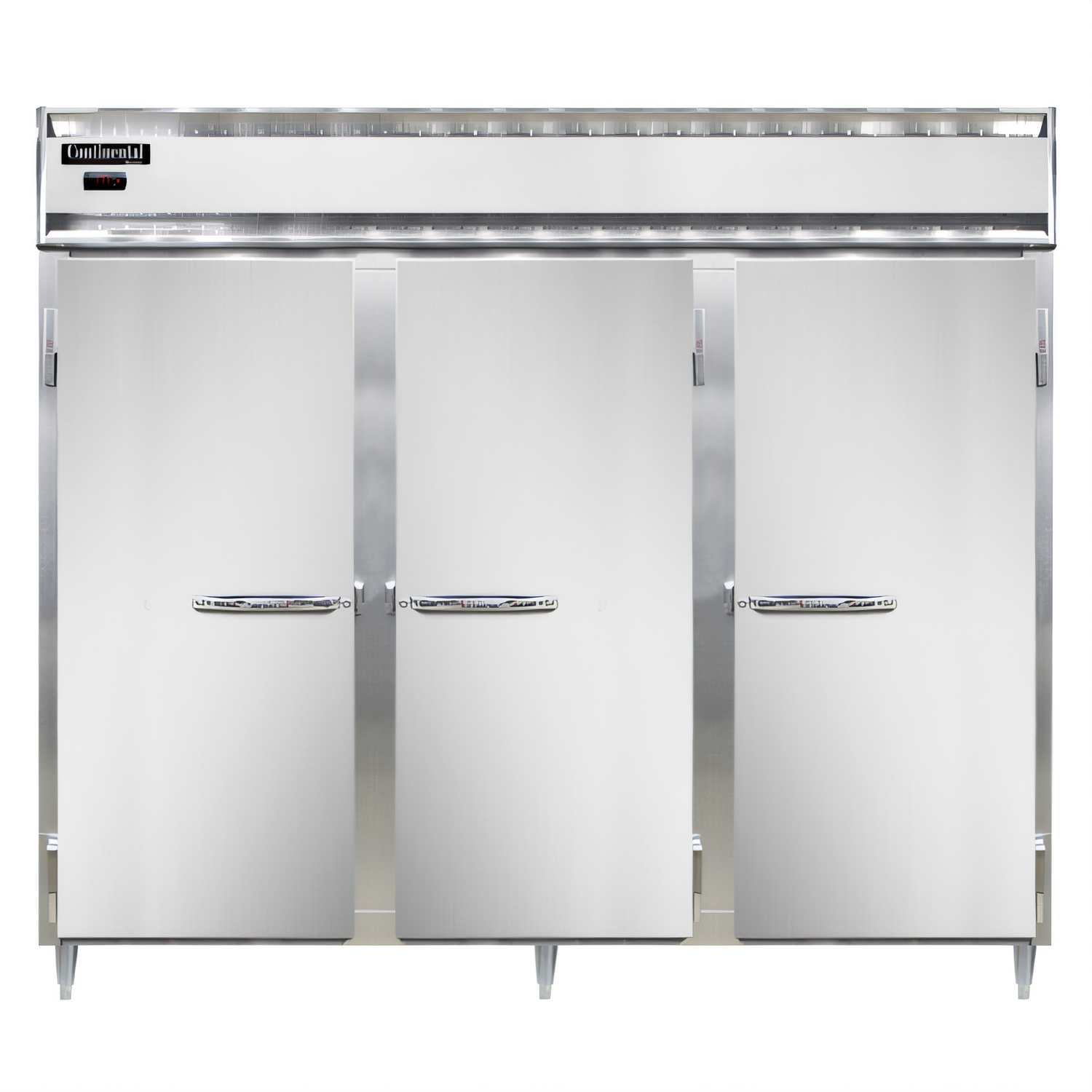

Designer Line DL3WE Extra-Wide Reach-In Heated Cabinet

by Continental Refrigerator

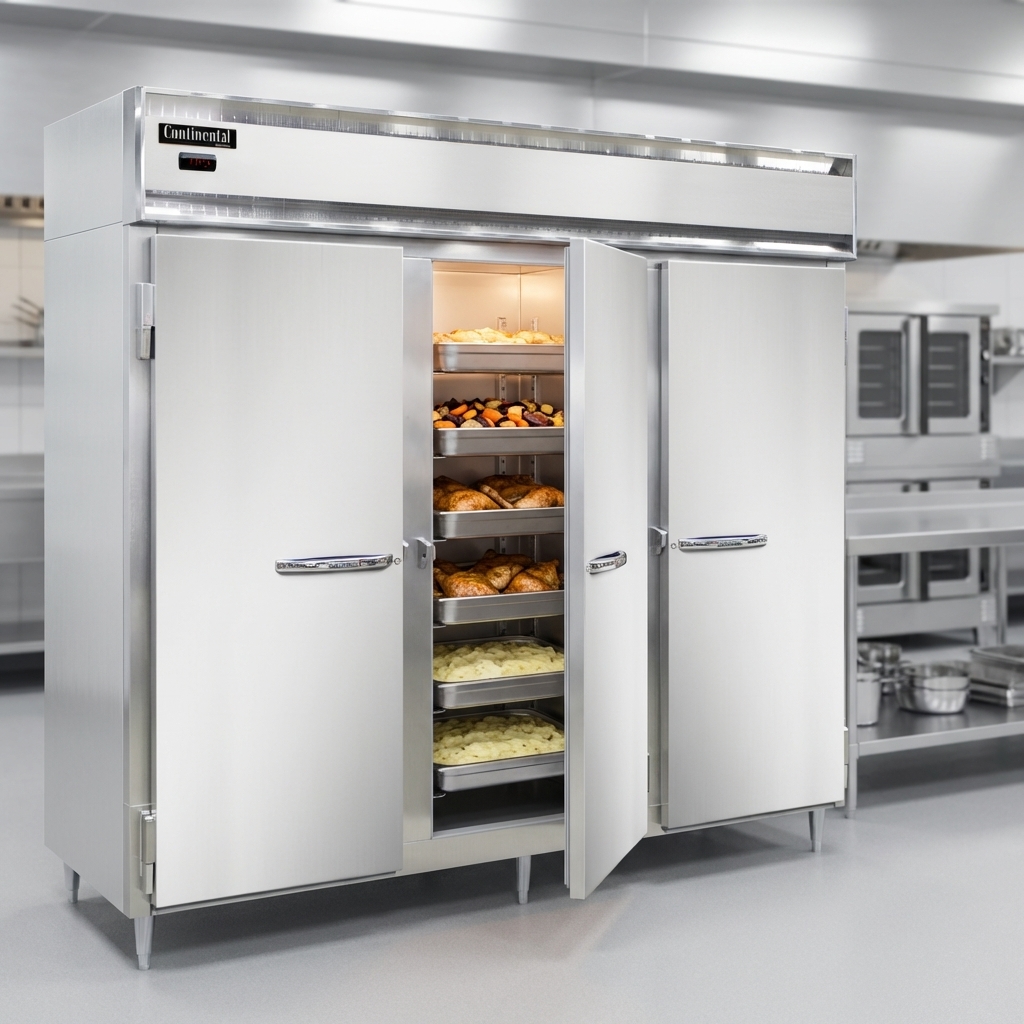

Engineered for high-volume kitchens that demand both capacity and precision, the DL3WE delivers 75 cu. ft. of evenly circulated heat—perfect for banquets, tray make-up lines, and à la carte service. A self-contained heating system, intuitive digital controls, and rugged stainless/aluminum construction make this three-section cabinet a long-term workhorse you can rely on service after service.

Top Reasons You’ll Love It

  • 90 °F – 180 °F temperature range with electronic controller & digital display
  • Hi-Low alarm warns staff if temps stray from your set point

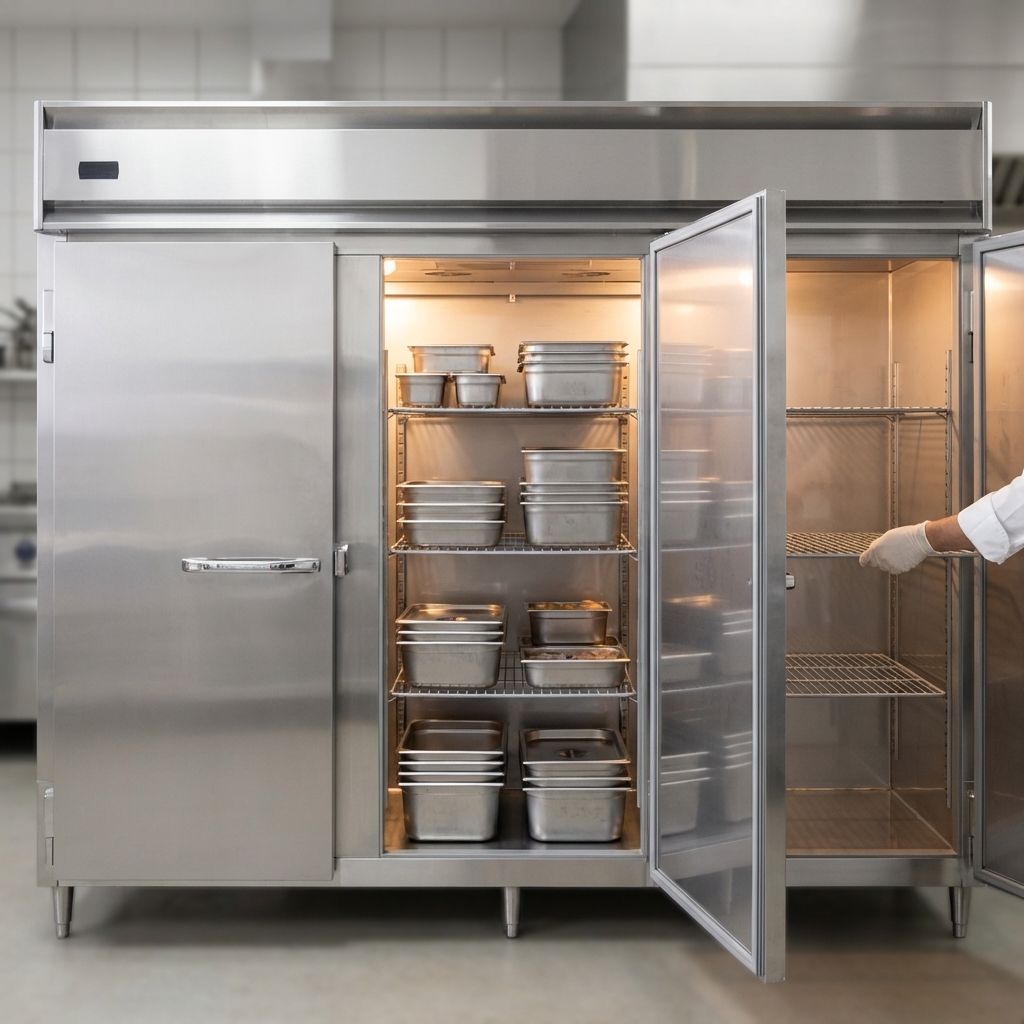

  • Extra-wide footprint holds 9 heavy-duty chrome shelves (3 per section)
  • Top-mounted heating plenum and unique air-flow ducts ensure uniform heat distribution

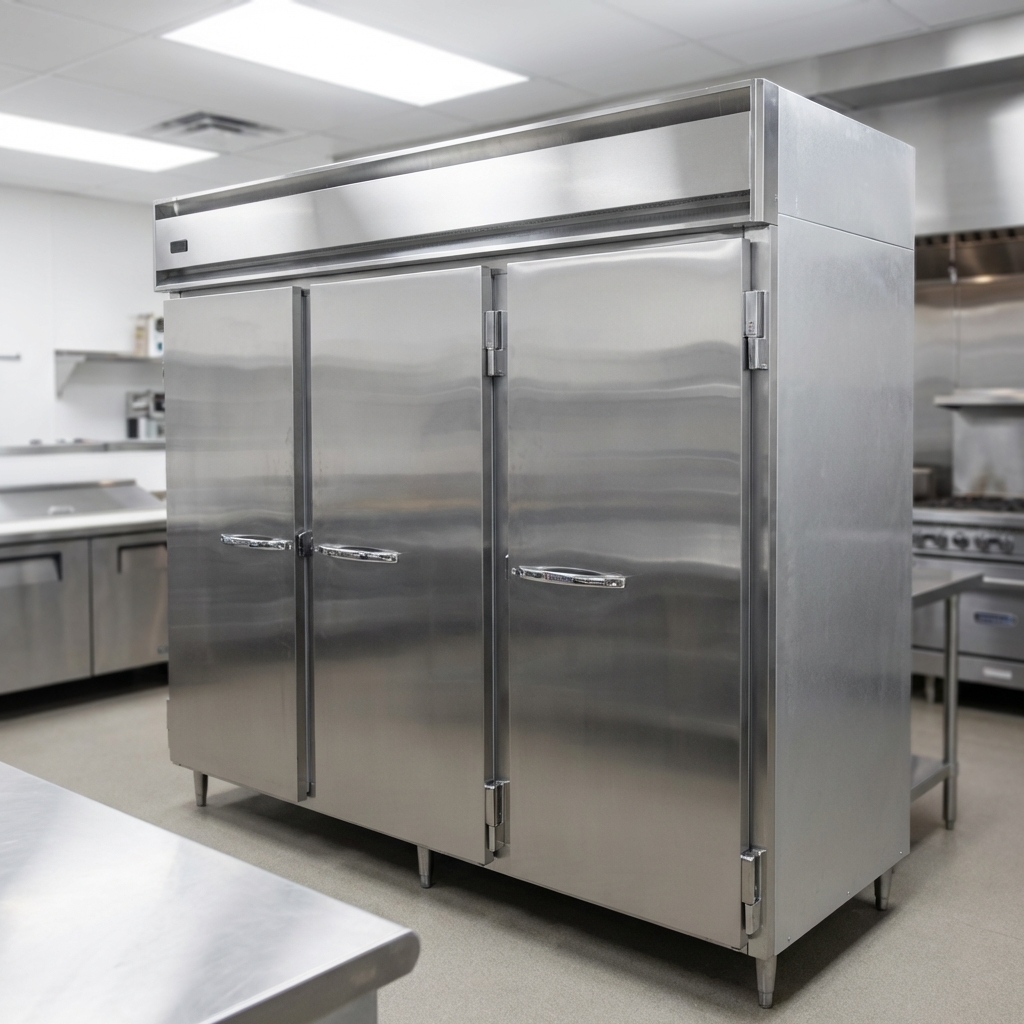

  • Stainless steel front with rugged aluminum ends and interior—easy to clean, built to last
  • 3 self-closing, lift-off hinged doors with magnetic gaskets & cylinder locks
  • 3" foamed-in, non-CFC polyurethane insulation for maximum thermal efficiency
  • Adjustable 6" stainless steel legs simplify leveling and floor cleaning
  • cETLus & NSF listed for electrical and sanitation compliance

At-a-Glance Specs

Model DL3WE
Capacity 75 cu. ft. (2124 L)
Sections / Doors 3 / 3 hinged, self-closing
Shelves Included 9 chrome-plated steel (3 per section)
Exterior Dimensions (W × D × H) 85 1/2" × 35 3/8" × 83 1/4"
(2172 × 899 × 2115 mm)
Temperature Range 90 °F – 180 °F (32 °C – 82 °C)
Electrical 208-230 V / 60 Hz / 1-ph, 13.9 A, 3000 W
(hard-wired, 3 feed wires incl. ground)
Certifications cETLus, NSF

Popular Factory Options

  • Full stainless-steel exterior (Model DL3WE-SA) or all stainless (DL3WE-SS)
  • Automatic interior lighting
  • Additional shelves or stainless-steel shelves
  • Universal pan slides or tray slides (19 per section max.)
  • Casters for mobile applications
  • Correctional-facility packages (security screws, mesh covers, locking hasps)
  • Custom laminates & special electrical configurations (consult factory)
Installation Clearance: Allow a minimum of 12" above and 3" on both sides & rear for proper ventilation. Unit ships without a cord/plug and must be installed by a qualified electrician in accordance with local codes.

Need a spec sheet, drawing, or additional accessories?
Visit the manufacturer’s resource center at ContinentalRefrigerator.com or chat with our food-service equipment experts.

Features & Specs

Manufacturer

Continental Refrigerator

Brand_name

Designer Line

Certifications

NSF, cETLus

Height

83.25in

Width

85.5in

Depth

35.38in

Shipping Weight

710.0lbs

Interior configuration

shelves

Interior Finish

stainless steel interior

Doors

hinged solid

Size

3 section

Exterior Finish

stainless steel & aluminum exterior

Depth

standard depth

Specifications

Designer Line Heated Cabinet, extra wide reach-in, three-section, 75 cu. ft. capacity, (3) shelves per section, stainless steel front, aluminum ends, standard depth, hinged doors, electronic control with digital display, hi-low alarm, cETLus, NSF
